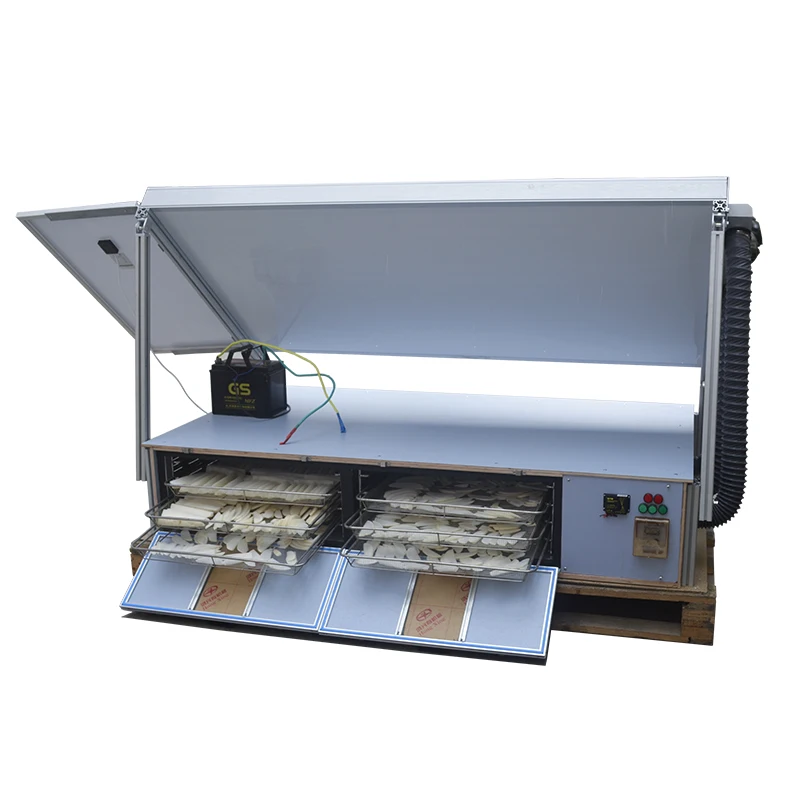

16 Trays fruits and Vegetable dryer tomatoes drying machine onions dehydrator
- Category: >>>
- Supplier: Dryfree Technology Equipment Co. Ltd.
Share on (1600515484368):
Product Overview
Description
Product Description
Solar small family dryer is a special solar system for food and fruit dry, cold air into Solar air collector by heating, control system push fan transport hot air from solar air collector to food dry box, system operation and control power form solar PV panel all,. it is widely used in dehydrate field for vegetables, melons and fruit, bread and so on.This solar dryer is intended for the small landholder or a family. With a capacity of 40 - 60 kg of sliced wet fruit or vegetables, depending on type of fruit and numerous other factors , this dryer is ideal for high-quality natural preservation in a micro-enterprise setting. multiple units provide a significant commercial volume at a combined cost which remains economical and substantially lower than large commercial solar dryers.

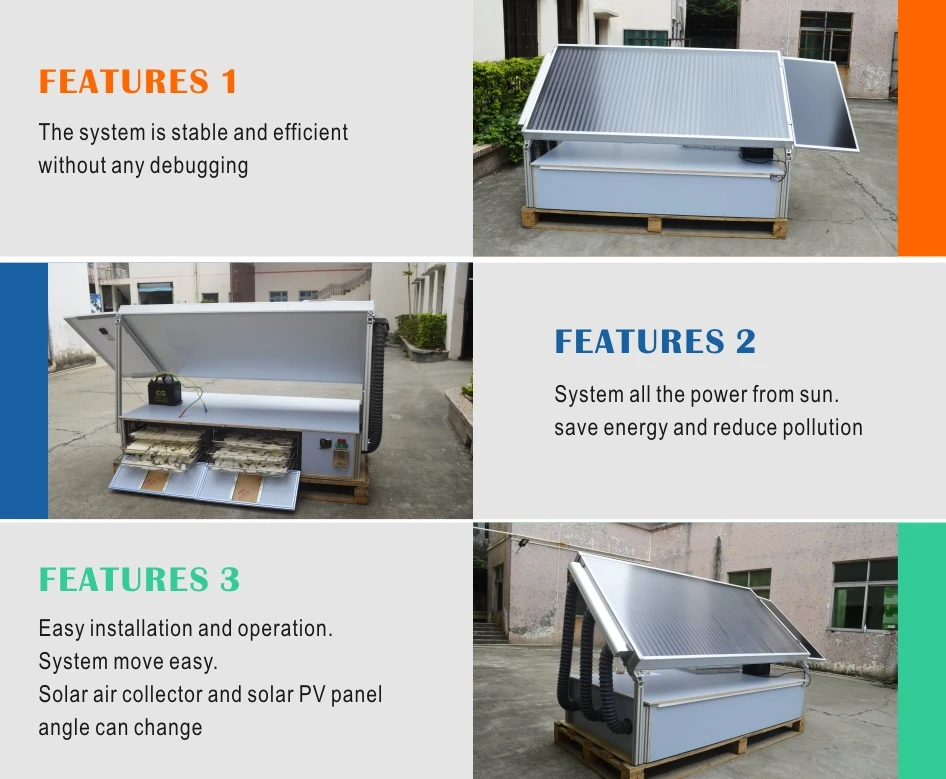

Features
The Small-Farm model has three main features which enhance drying speed and efficiency. This compact configuration provides for:
• Horizontal airflow across the food is proven superior versus vertical airflow.
• Solar air collector tilts to accommodate any latitude or season.
• Entire dryer can swivel on a fixed table so operator can rotate unit to track the sun.
Large commercial dryers, or their solar air collectors, are unable to be rotated during the day to track the sun. This limitation also favors multiple small units.
Advantage of solar air collector
Solar air collector is a specific collector developed by Dryfree solar from 2009.Different from the traditional solar collector
using the water as the heat transfer fluid, solar air collector heats the air directly by using the air as heat transfer medium.
Air drawn through the system absorbs the collector’s heating,rising in temperature by as much as required temperature, and then
the warm air returns to the drying chamber for the drying operation, or passes into the living room for heating. Solar air
collector can be widely used in industrial and agricultural drying and spacing heating, etc.
• Horizontal airflow across the food is proven superior versus vertical airflow.
• Solar air collector tilts to accommodate any latitude or season.
• Entire dryer can swivel on a fixed table so operator can rotate unit to track the sun.
Large commercial dryers, or their solar air collectors, are unable to be rotated during the day to track the sun. This limitation also favors multiple small units.
Advantage of solar air collector
Solar air collector is a specific collector developed by Dryfree solar from 2009.Different from the traditional solar collector
using the water as the heat transfer fluid, solar air collector heats the air directly by using the air as heat transfer medium.
Air drawn through the system absorbs the collector’s heating,rising in temperature by as much as required temperature, and then
the warm air returns to the drying chamber for the drying operation, or passes into the living room for heating. Solar air
collector can be widely used in industrial and agricultural drying and spacing heating, etc.

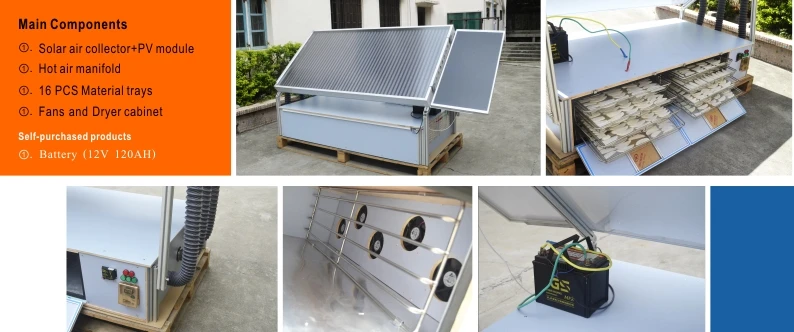

Detailed Images
Product Specifications
Technical datasheet of solar farm dryer | ||
Qty. of trays: | 16 pcs stainless steel | |
Size of tray: | 640*460mm | |
Drying area: | total tray surface = approx 5 sq.M | |
Cabinet construction: | Painted plywood with steel supports and top | |
PhotoVoltaic Panel : | 100 Watts with charge controller | |
Battery : | deep cycle automotive type (optional) | |
Fan : | 5 DC fans,12V, 0.65A | |
Glazing Material : | tempered / textured solar glass | |
Solar collector : | corrugated and painted steel with aluminum frame | |
Solar collector adjustable angle range: | 30 to 40 degrees | |
Size: | 1050*2500*1060（H） | |
Packing size: | 2 packages, 1900*1100*500MM, 2040*110*1150MM ; 2CBM; 220kg | |
Application
The solar family dryer is widely used in dehydrate field of food,such as vegetables,fruit,herbs etc.

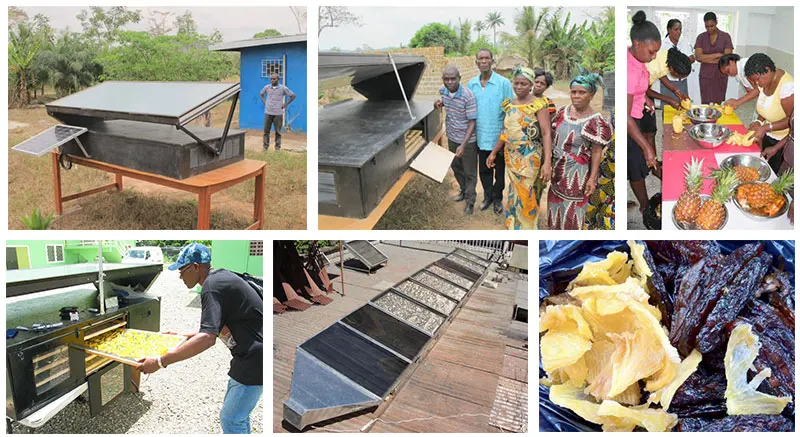

Case show

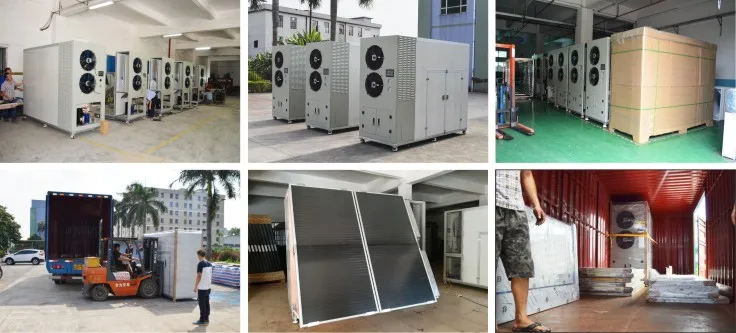

Packing&Shipping
Related Products
Certificate
As an enterprise that takes technology as the core and new technology products as the driving force for development, our company has always paid close attention to and insisted on the strong investment in technology research and development, obtained 33 patent certificates, and created the cascade new product echelon. Always maintain product technology leadership and rapid response to market demand.
Company Introduction
Dryfree is China's first factory specializing in the production of dehydrator, solar dryers, heat pump dryer machines and
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
Why choose us
1.We have stable R&D capital input.The powerful and comprehensive R&D team deeply understand clients’ demand.
2.We have well trained production team,stable and reliable excellent supply chain system and strict quality control system.
3.Dryfree have 15 years experience of drying industry and serve for thousands of customers in nearly 150 industries.There are more than 3000 successful cases.
4.We will provide you on-site service with the experienced project technicians.
5.Our leadership team have advanced business and management concept,rich enterprise operation experience and engineering project management practice.
6.Providing specially-assigned person tracing service to ensure the good communication and coordination with clients.
2.We have well trained production team,stable and reliable excellent supply chain system and strict quality control system.
3.Dryfree have 15 years experience of drying industry and serve for thousands of customers in nearly 150 industries.There are more than 3000 successful cases.
4.We will provide you on-site service with the experienced project technicians.
5.Our leadership team have advanced business and management concept,rich enterprise operation experience and engineering project management practice.
6.Providing specially-assigned person tracing service to ensure the good communication and coordination with clients.
