213 1200W V1 48v 60v Spoke Hub Motor Kits for Electric Bike Scooter
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600515488830):
Product Overview
Description
213 1200W V1 48v-60v Spoke Hub Motor Kits for Electric Bike Scooter
One kits including:

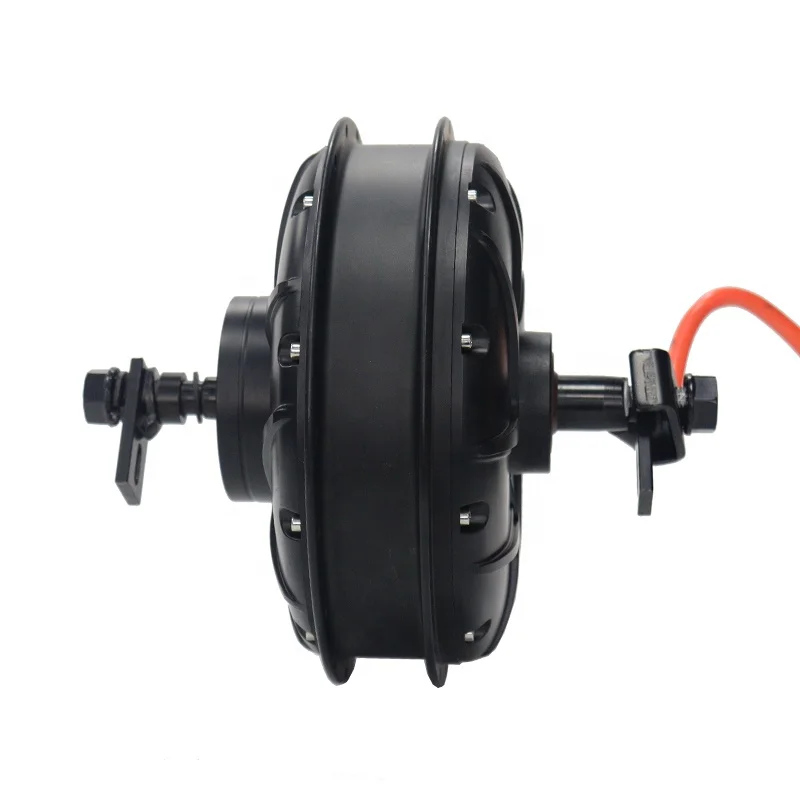

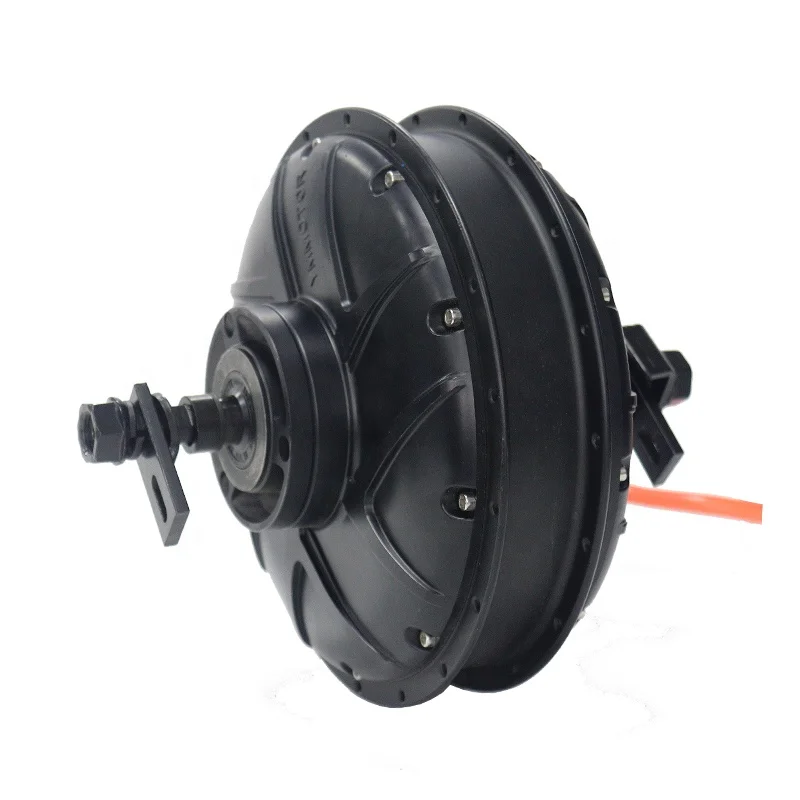

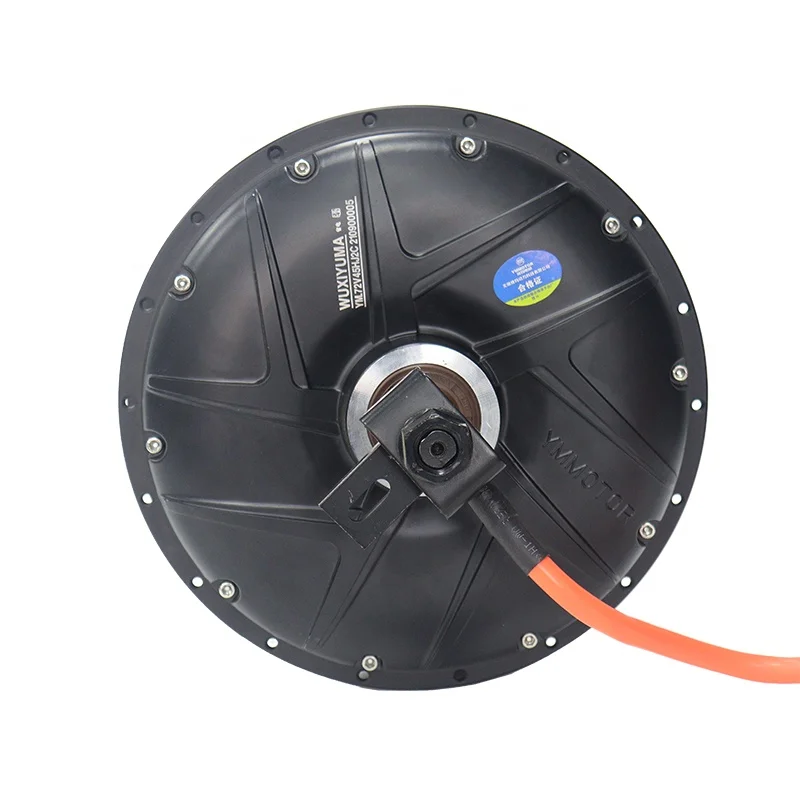

1pc x YMMotor 213 Spoke Hub Motor 1200w V1(disc brake type)
1pc x YMMotor 213 Spoke Hub Motor 1200w V1(disc brake type)

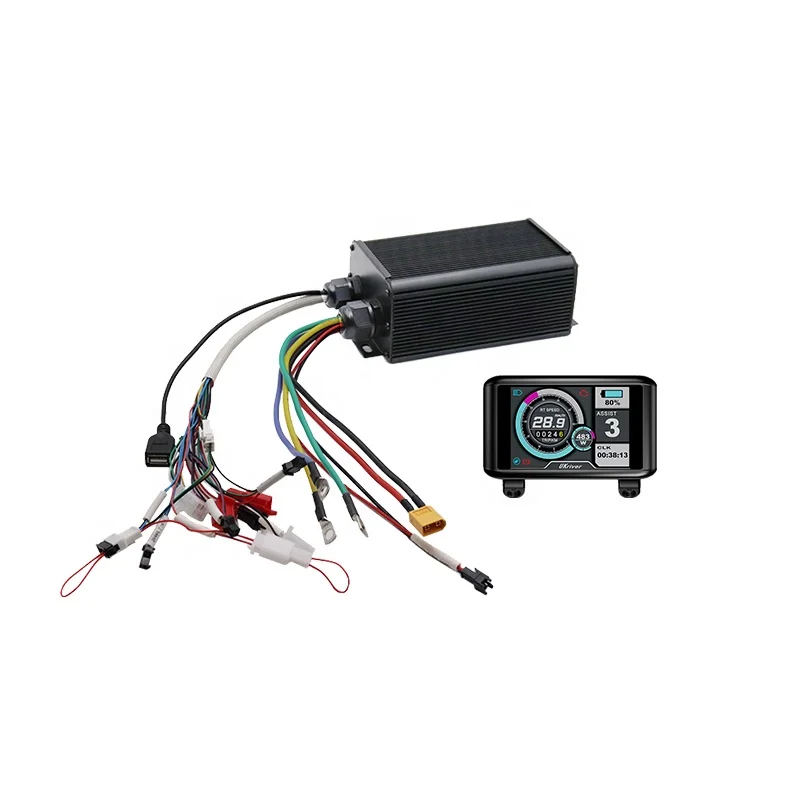

1pc x SVMC7245-M Controller with function wiring harness + USB cable

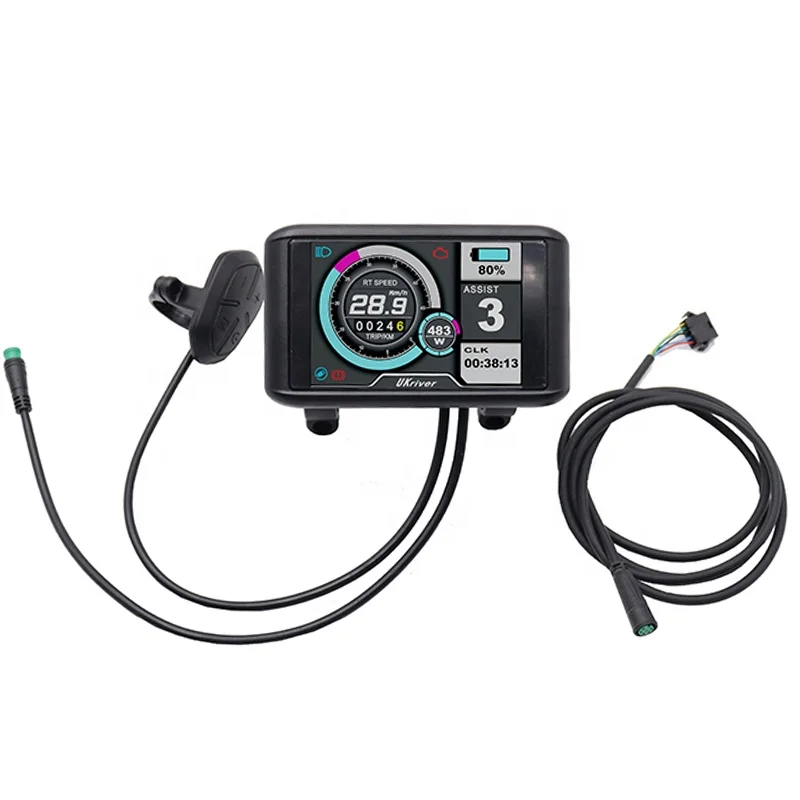

1pc x TFT UKC1 display 48v-72v programmable
Specification
Motor Kits | BLDC Spoke Hub Motor Kits For Electric Motorcycle Scooter Bike | ||||||
Motor Brand | YUMA Motor, YMMotor | ||||||
Motor | 213 Spoke Hub Motor 1200w V1 | ||||||
Rim Size | Can match with 20"/24"/26"/27.5"/700C/28"/29" Bike Rim, 17"-19" Moped Rim | ||||||
Magnet Height | 30mm, 26 pole pairs | ||||||
Stator | Iron Core | ||||||
Rated Power | 1200W | ||||||
Peak Power | 2400W | ||||||
Speed | 25-45KPH, it's customized. | ||||||
Work voltage range | 48V-72V | ||||||
Peak torque | 70-85N.m | ||||||
Thermic Probe | KTY84-130(as default) | ||||||
Max Efficiency | 88.5% | ||||||
Brake type | disc brake, PCD3*80mm M8, CB58mm | ||||||
Drop-Outs | 200mm | ||||||
Hall | Single Hall | ||||||
Waterproof Grade | IP65 | ||||||
Controller | Sabvoton SVMC7245-M Controller, FOC sine wave bldc type | ||||||
Working Voltage | 48V/60V/72V, max. 88V | ||||||

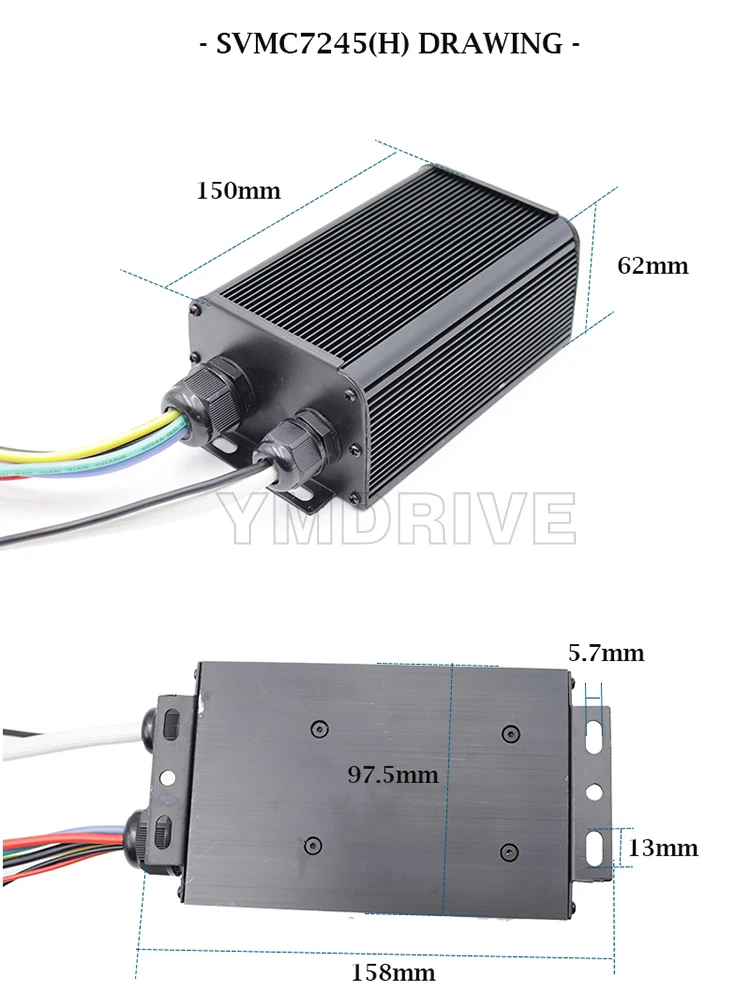

Size & Weight | 158mm * 97.5mm * 62 mm, 1.7kg | ||||||
Current | DC 45A, Phase Current 150A | ||||||
Programmable | by PC or Phone | ||||||
Display | TFT UKC1 display 48v-72v programmable | ||||||
Speed display | AVG SPEED, MAX SPEED, SPEED(Real-time). | ||||||
9-level Assist | 3-level/5-level/6-level/9-level is optional. | ||||||
Functions | total trip, battery indicator, speed, power, fault indicator, PAS, headlight. | ||||||

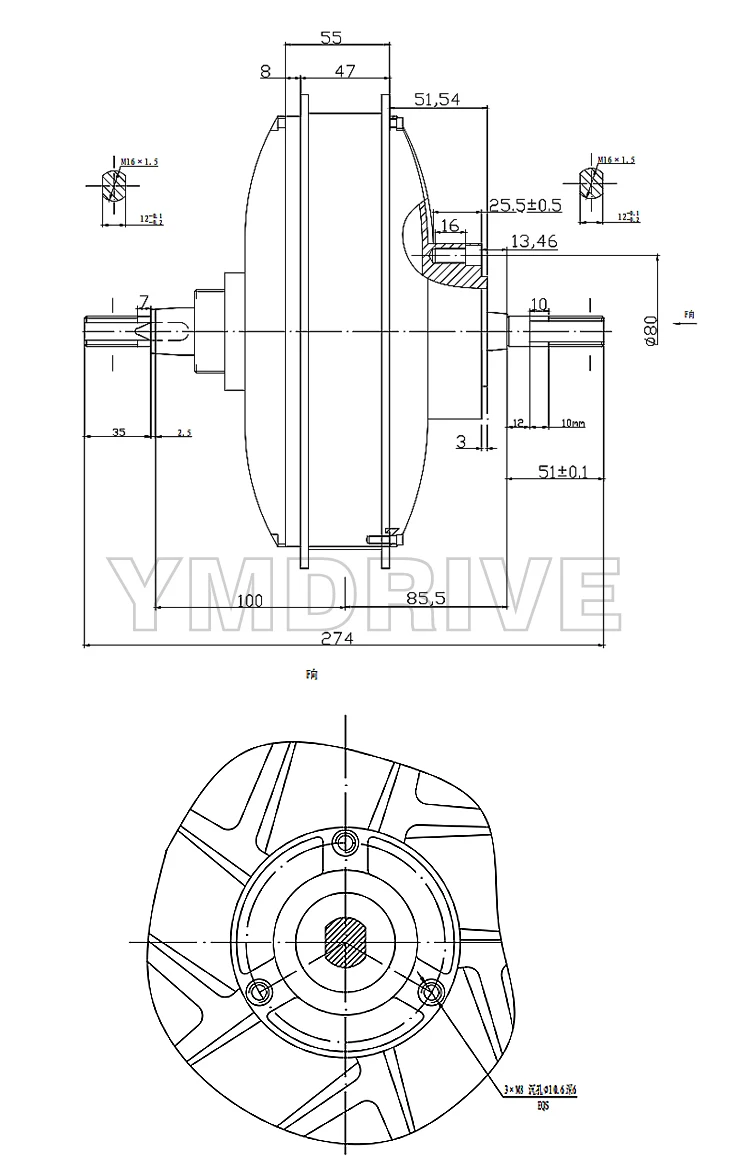

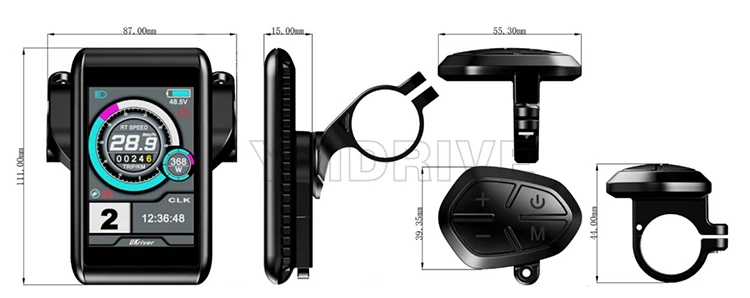

Drawing
Pls. contact with sales for more clear drawing for reference. Some dimensions can be customized.

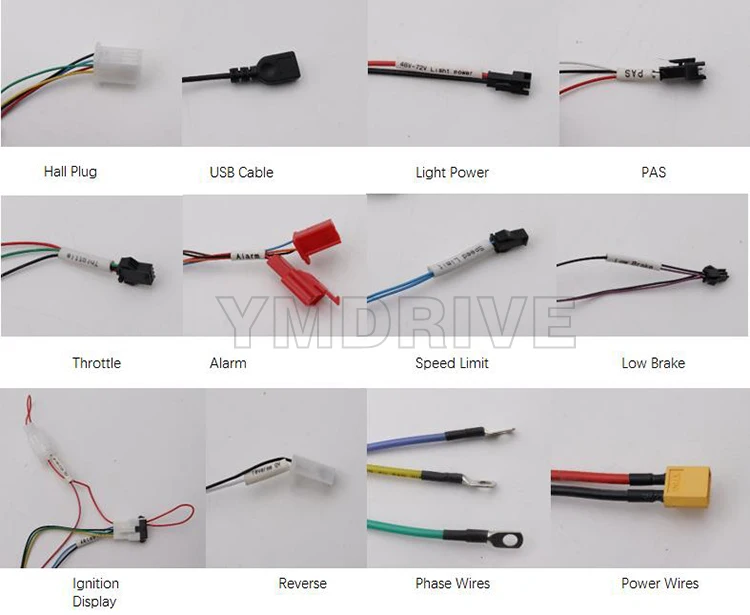

Wiring Definition

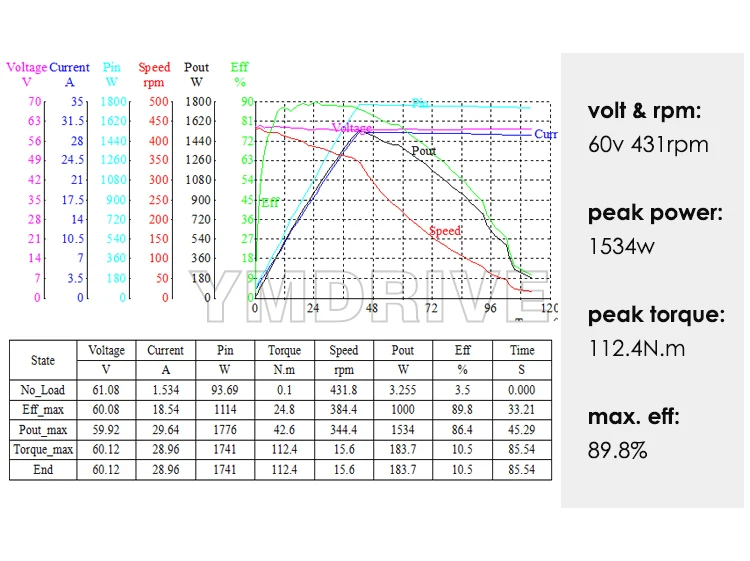

Test Report
Pls. contact with sales for full showing test report for check, if you want to customized voltage & rpm, it's also support even for sample order.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
