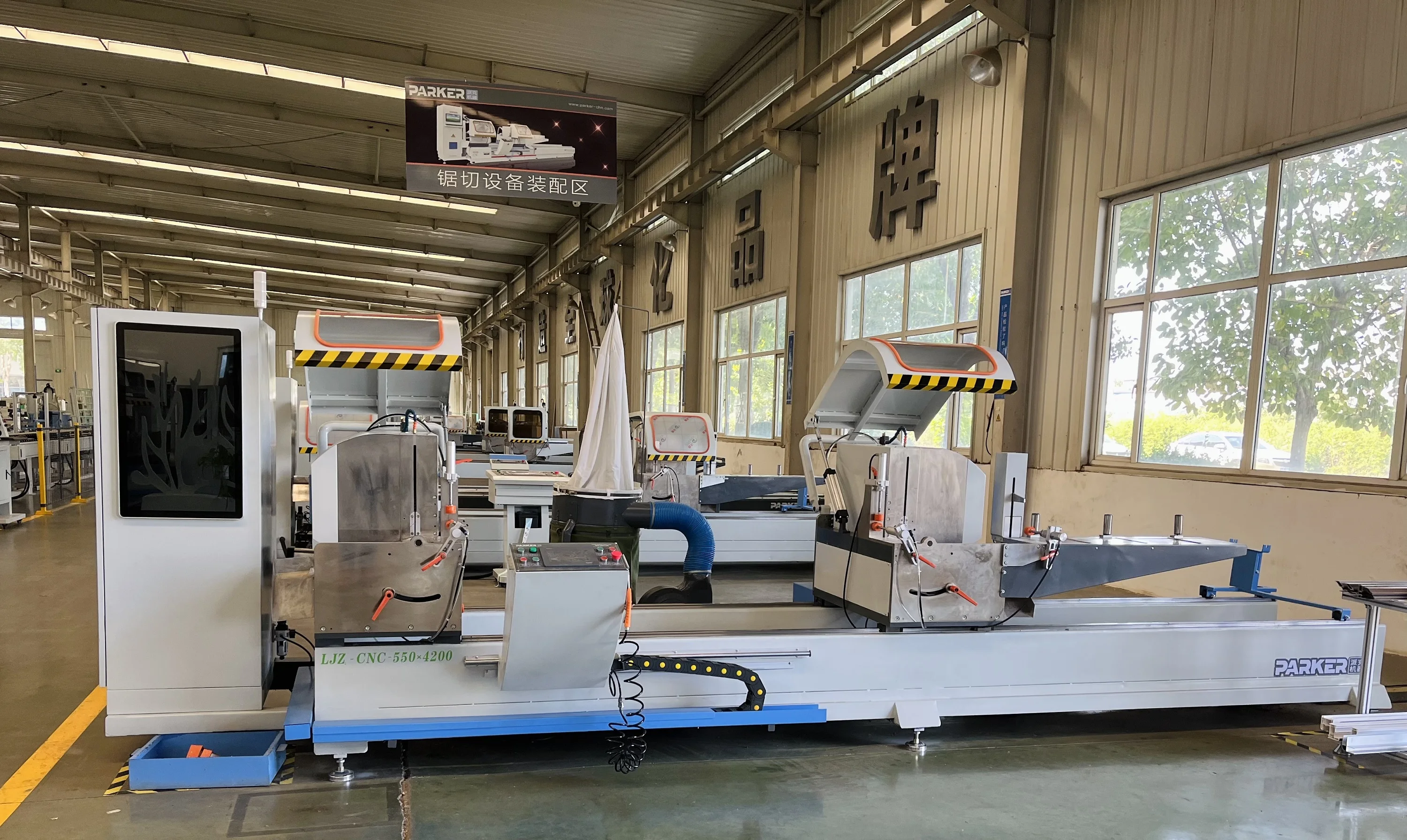

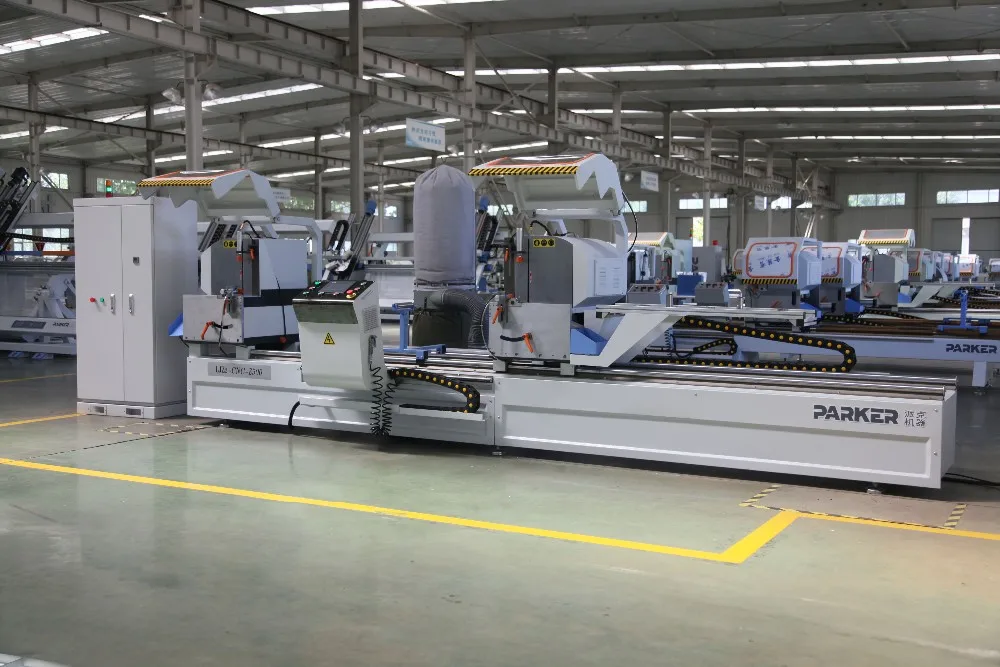

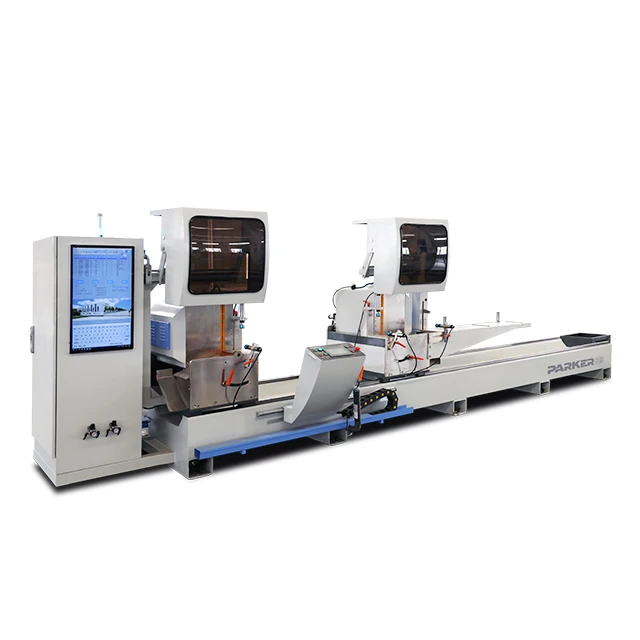

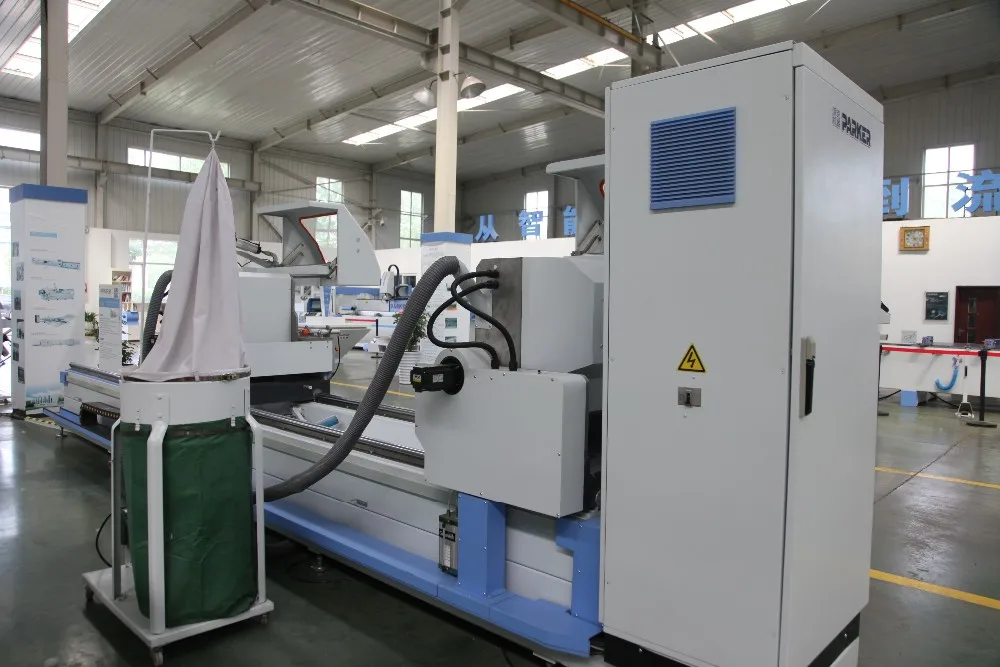

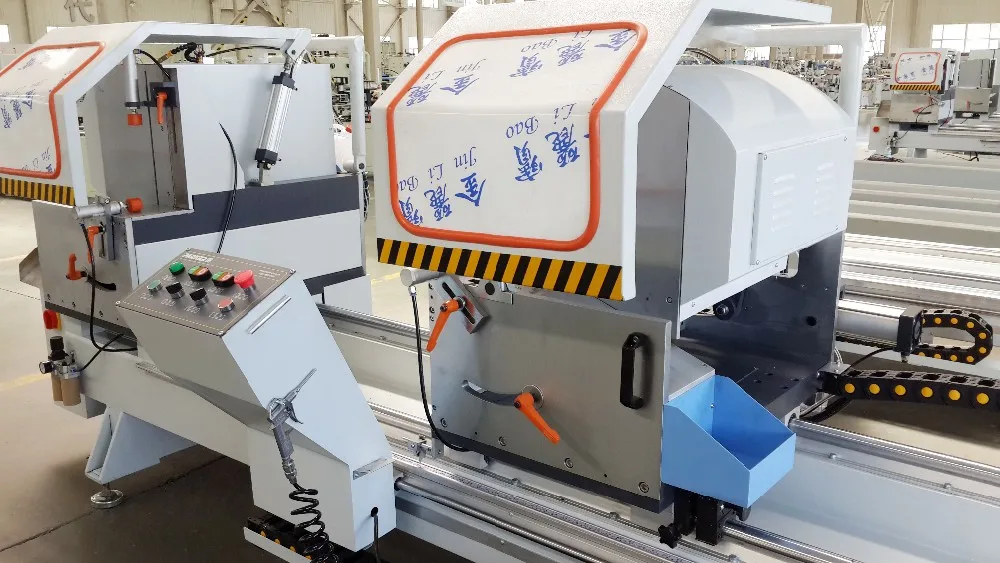

Double Head Cutting Saw Machine for Window and Door Making with High Efficiency
- Category: >>>
- Supplier: Jinan Parker Machinery Co. Ltd.Jinan Ltd.
Share on (1600515495173):
Product Overview
Description
Product Description
Product Application
Alu-alloy and curtain wall profile cutting. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows.
Voltage: | 380V 50HZ | ||||
Power: | 4.4KW | ||||
Air pressure: | 0.5-0.8MPa | ||||
Air consumption: | 200L/min | ||||
Blade specification: | Φ500×Φ30×4.4Z=120(standard size) | ||||
Cutting length: | 400mm-4200mm | ||||
Cutting width: | Max.135mm | ||||
Cutting height: | Max.300mm | ||||
Cutting angle: | 45° 90° | ||||
Angle error: | ±4′ | ||||
Repeat locating length error: | ±0.2mm | ||||
Surface plainness: | ±0.1mm | ||||
Surface roughness: | Ra12.5µm | ||||
Overall dimension: | 5500mmX1750mmX1990mm | ||||
Feature:
◆ LJZ2-500X4200 is used for cutting of alu-alloy and curtain wall profile. The imported special hard-metal saw features the high
precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the
world. The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth
feeding and steady moving.
◆ The automatically opening and closing protecting cover makes the operation safe and easy. The moving heads adopt imported linear
bearing motion pair, and they features high precision.
◆ he moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long
structures, the saw has large cutting range.
◆ LJZ2-500X4200 is used for cutting of alu-alloy and curtain wall profile. The imported special hard-metal saw features the high
precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the
world. The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth
feeding and steady moving.
◆ The automatically opening and closing protecting cover makes the operation safe and easy. The moving heads adopt imported linear
bearing motion pair, and they features high precision.
◆ he moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long
structures, the saw has large cutting range.
Detailed Images

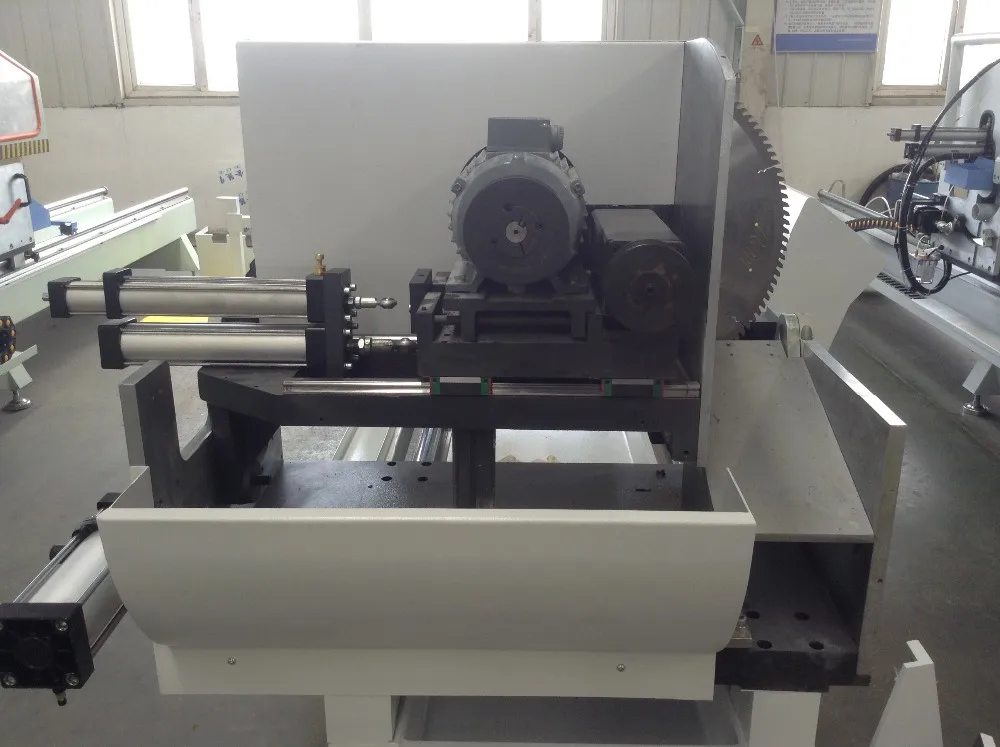

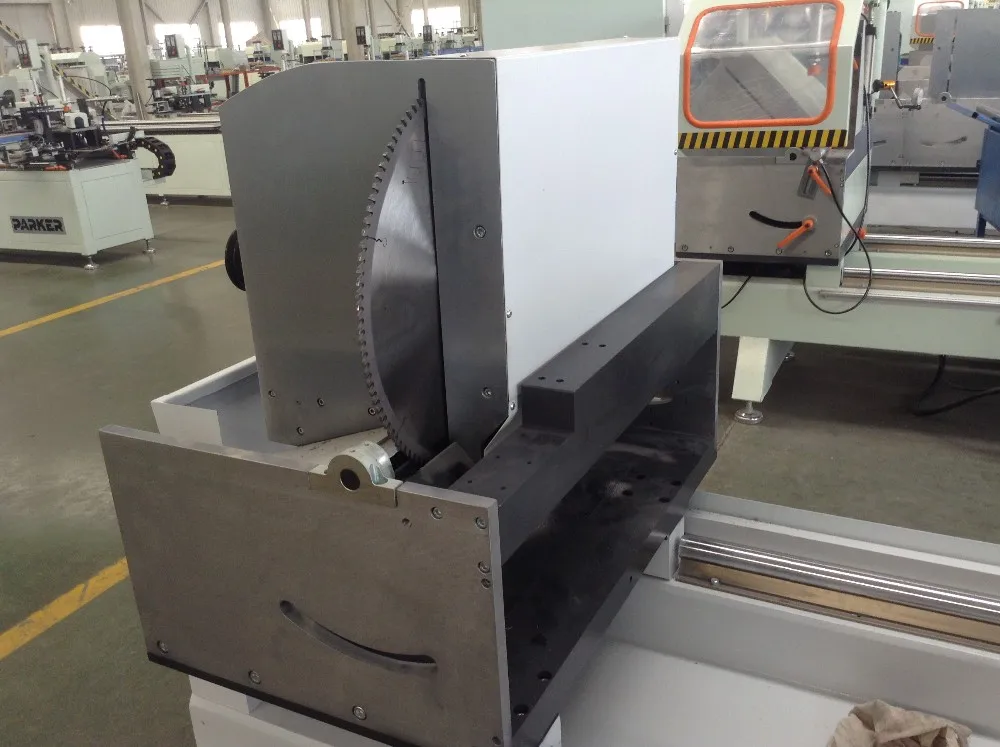

Saw Blade Adopts the Germany WEMARO / JANPAN WAGEN Brand.

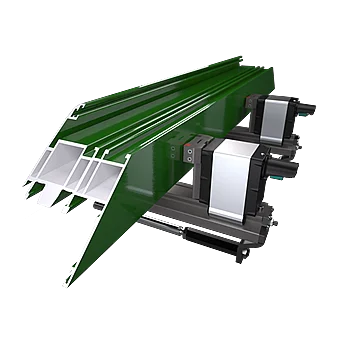

Imported Taiwan Original Brand

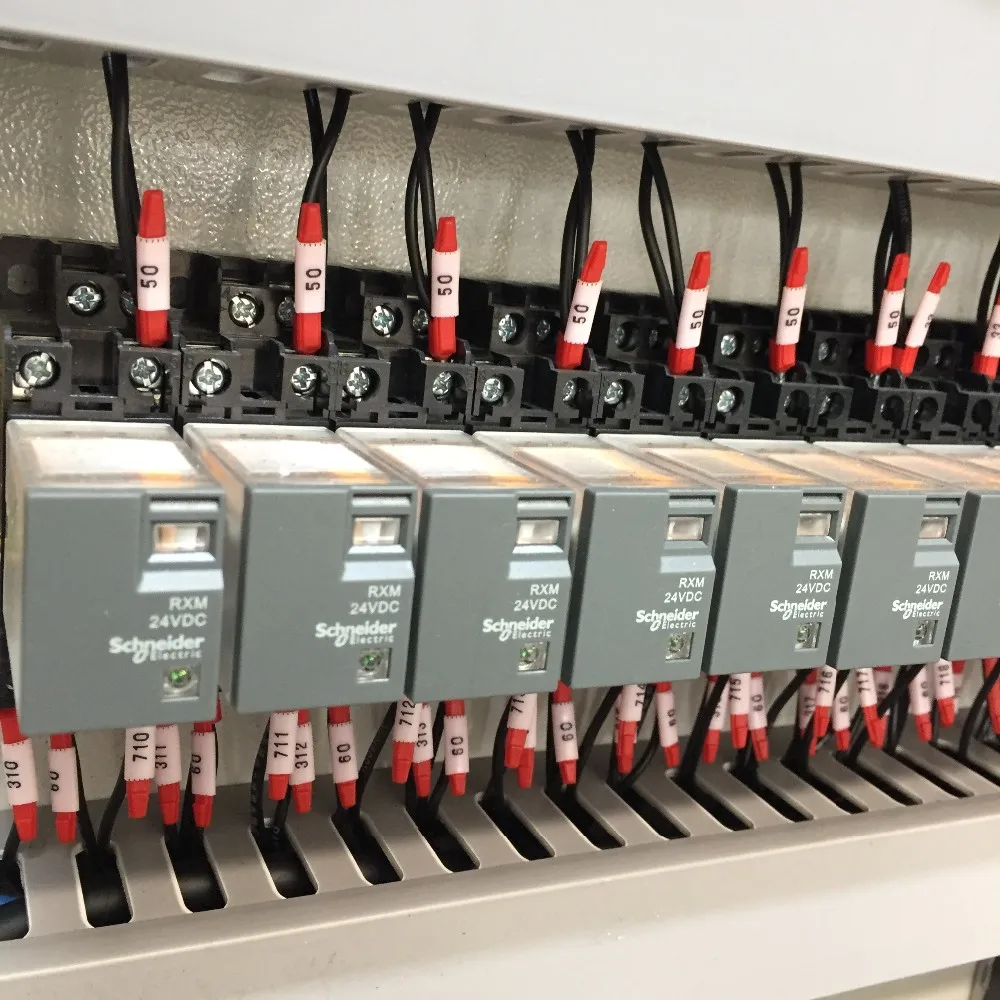

Electric Parts Adopts the France Schneider Brand
Choose Parker
Parker Data
15 years manufacturing experiences.
66,000 sqm production base.
35 peoples R&D team.
15 peoples after-service team.
Machine Parts Used
Machine parts all used the imported brand like Yaskawa, Schneider, TBI, ABB...and so on.
Meet CE and UL certificate.
Quality Control / After service
Raineshaw laser testing device before delivery.
5 engineers give fast solutions to solve the after-sales problem.
Parker Machine is Very Stable and Rarely See Suddenly Failed to Affect the Normal Work!
