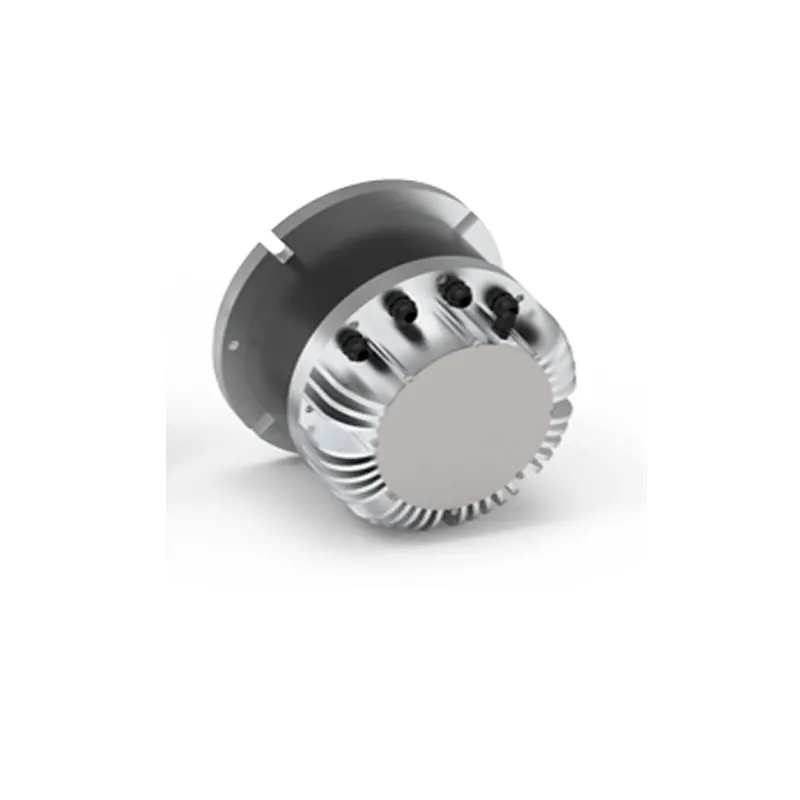

48v bldc motor 4kw brushless dc motor tfpm for heavy AGV Robotics industry and equipment mobile platforms
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (1600515496400):
Product Overview
Description

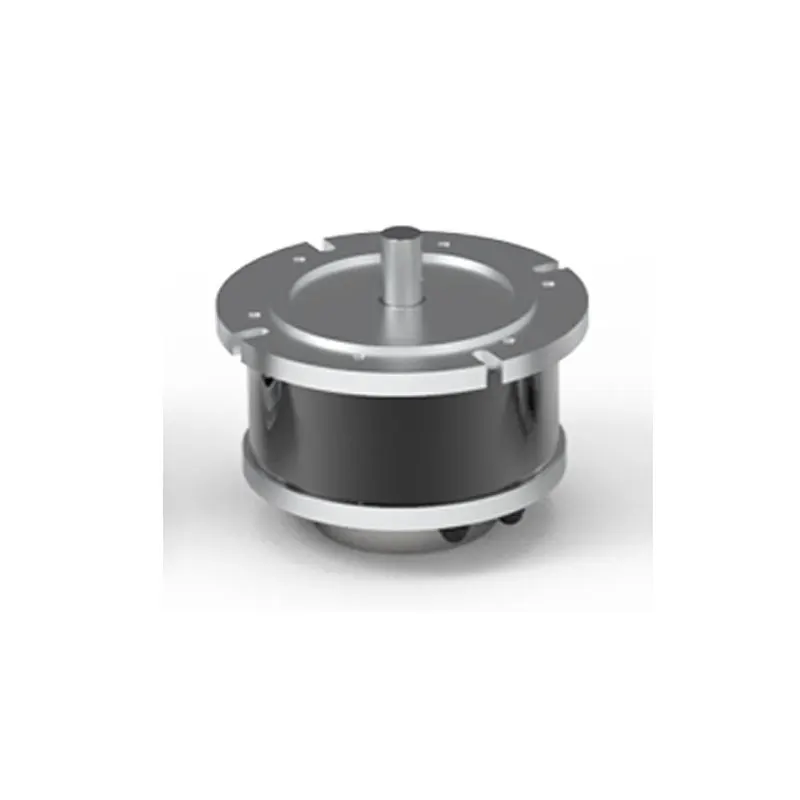

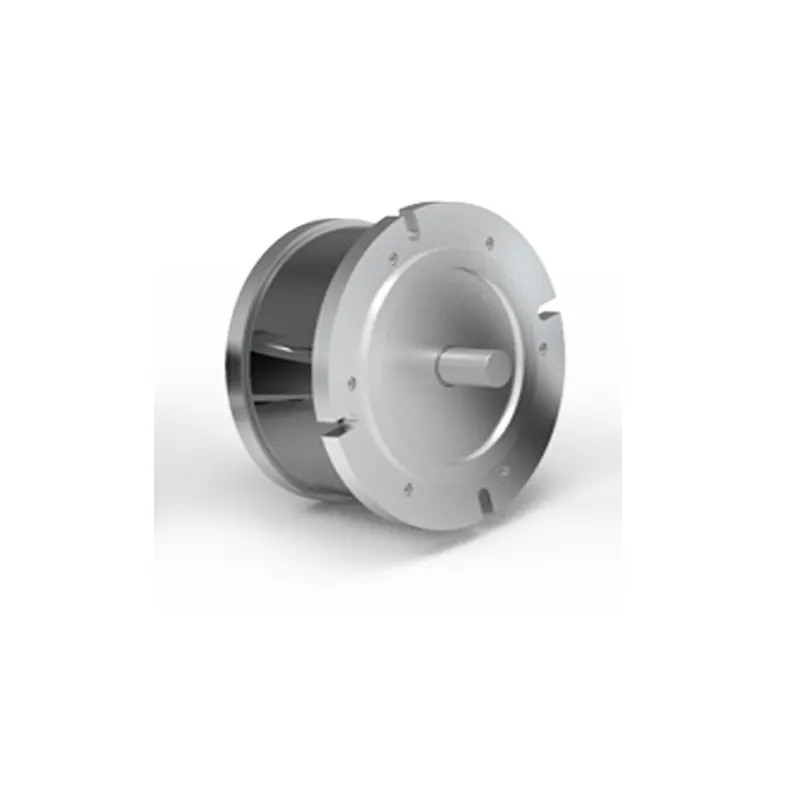

48v bldc motor 4kw brushless dc motor tfpm for heavy AGV Robotics industry and equipment mobile platforms

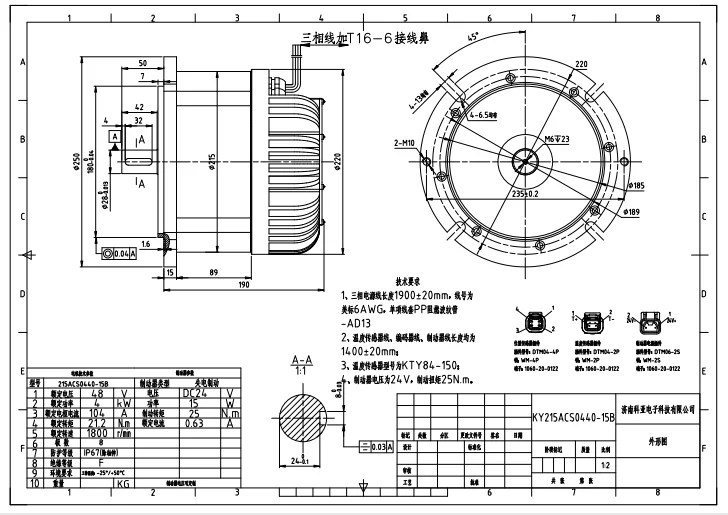

Model: KY215ACS0440-15
Product Description
KY215ACS0440-15B Is the disk-type permanent magnet motor,the structure is small size, light weight, the motor's stator structure is convenient for the motor core and winding cooling, can obtain a larger heat dissipation area.this motor are widely used in electric forklifts, heavy AGV, lawnmower and drive, marine electric propulsion, wind power and industrial equipment mobile platforms etc.
Specification for KYACS0440-15B | ||
Rated voltage | DC48V | |
Rated power | 4000w | |
Rated speed | 1500rpm | |
Rated current | 96A | |
Rated touque | 25.5N.m | |
Instantaneous max torque | 76N.m | |
Instantaneous max current | 288A | |
Max speed | 2100rpm | |
Wire Resistance | 0.014 | |
Torque Constant | 0.266N.m/A | |
Back EMF Constant | 0.153V/Kr/min | |
Number of Pole pairs | 4Pairs | |
Brake(Option) | Brake when power is off | |

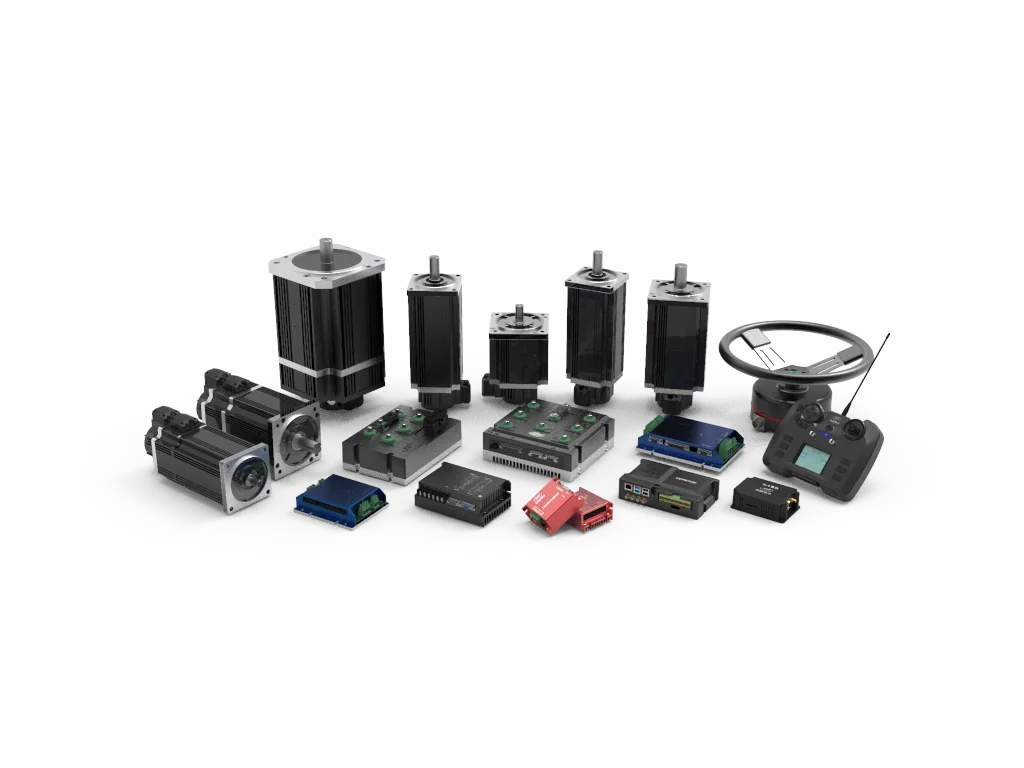

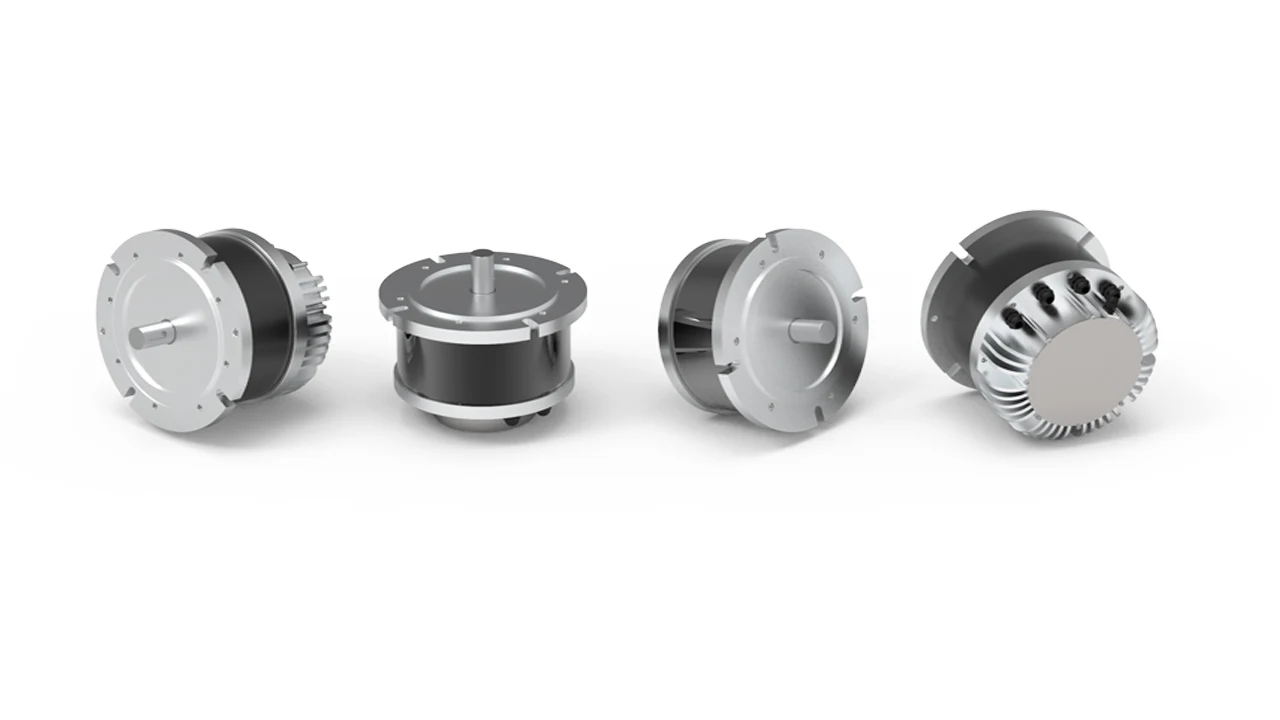

Related products
Model | Rated power/w | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m |
KY80AS020-15 | 200W | 24V/48V | 1500rpm | 9.4A/4.7A | 1.27N.M |
KY80AS0204-15 | 400W | 24V/48V | 1500rpm | 21.3A/10.6A | 2.55N.m |
KY80AS0204-30 | 400W | 24V/48V | 3000rpm | 18.8A/9.4A | 1.27N.m |
KY110AS0405-15 | 500W | 24V/48V | 1500rpm | 28A/14A | 3.1N.m |
KY110AS0408-15 | 800W | 24V/48V | 1500rpm | 44A/22A | 5.0N.m |
KY110AS0410-15 | 1000W | 24V/48V | 1500rpm | 52A/28A | 6.3N.m |
KY110AS0412-25 | 1200W | 48V | 2500rpm | 33A | 4.5N.m |
KY110AS0415-15 | 1500W | 48V | 1500rpm | 37.5A | 9.5N.m |
KY110AS0415-30 | 1500w | 48V | 3000rpm | 37.5A | 4.7N.m |
KY110AS0420-25 | 2000w | 48V | 2500rpm | 55A | 7.6N.M |
KY130AS0430-15 | 3000W | 48V | 1500rpm | 73A | 19.1N.m |

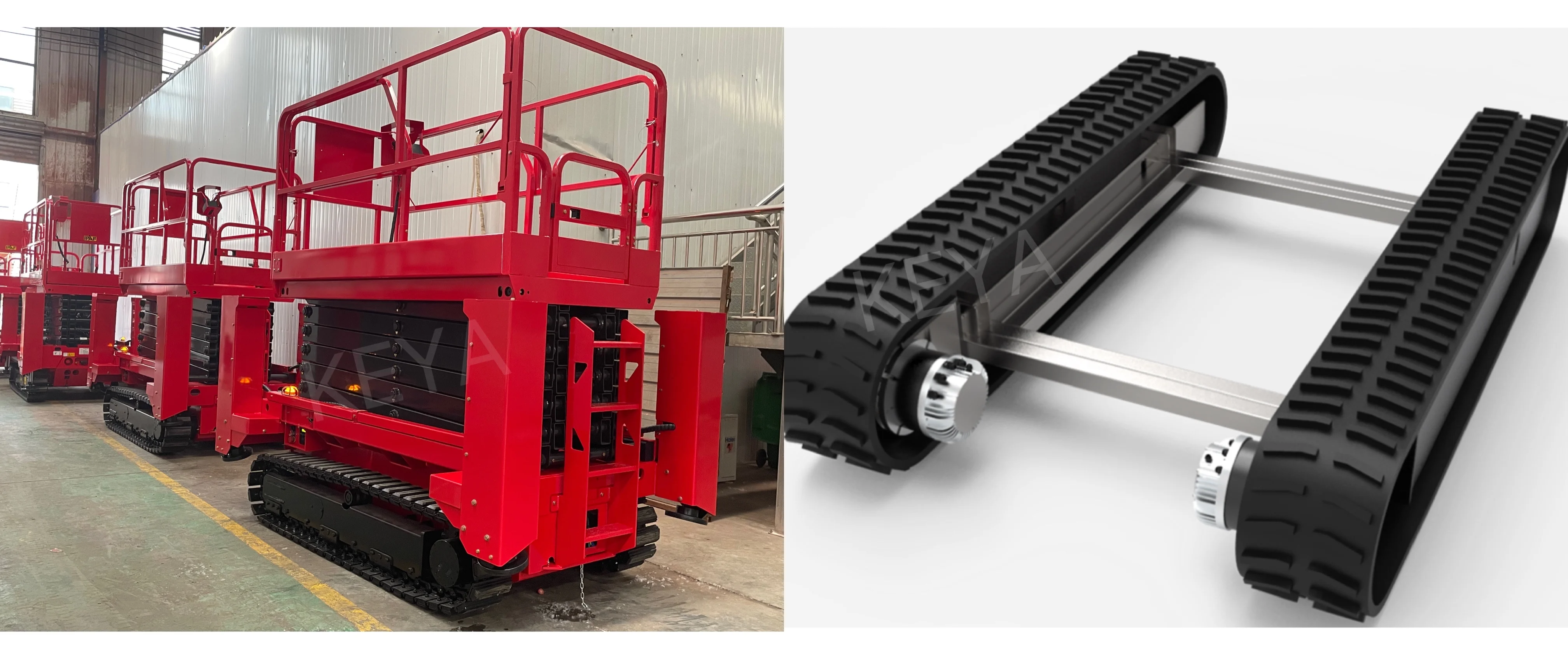

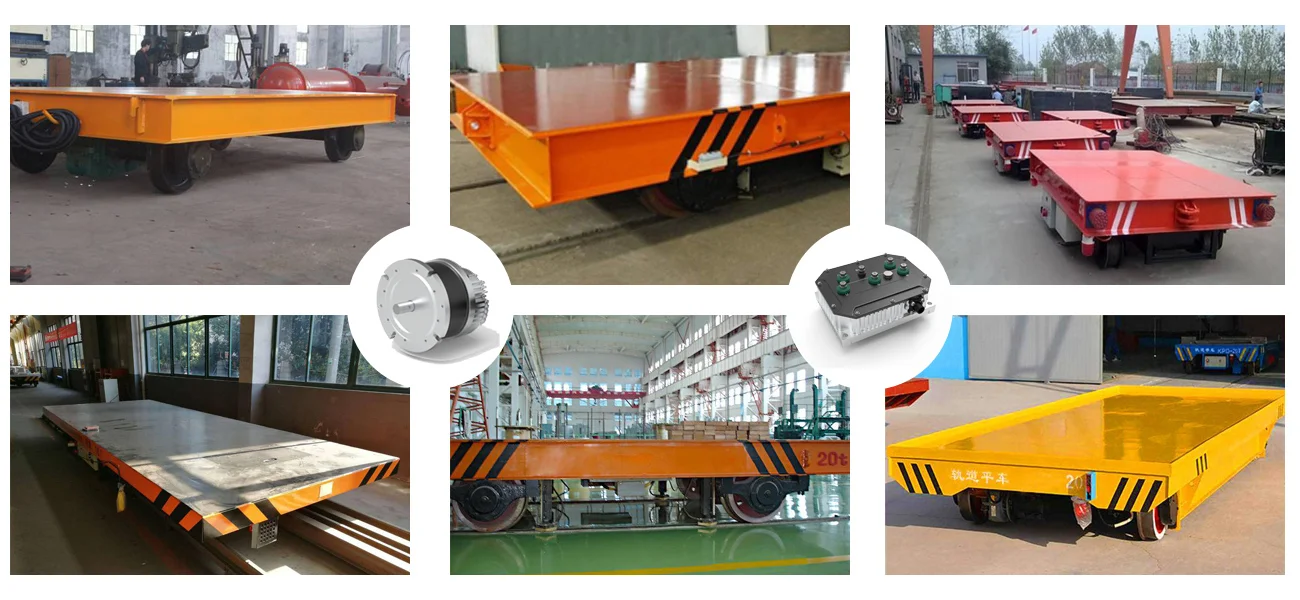

Products Application Cases Display
this motor are widely used in electric forklifts, heavy AGV, lawnmower and drive, marine electric propulsion, wind power and industrial equipment mobile platforms etc.
48v bldc motor 4kw brushless dc motor with brake tfpm for heavy AGV Robotics industry and equipment mobile platforms
Packing & Delivery

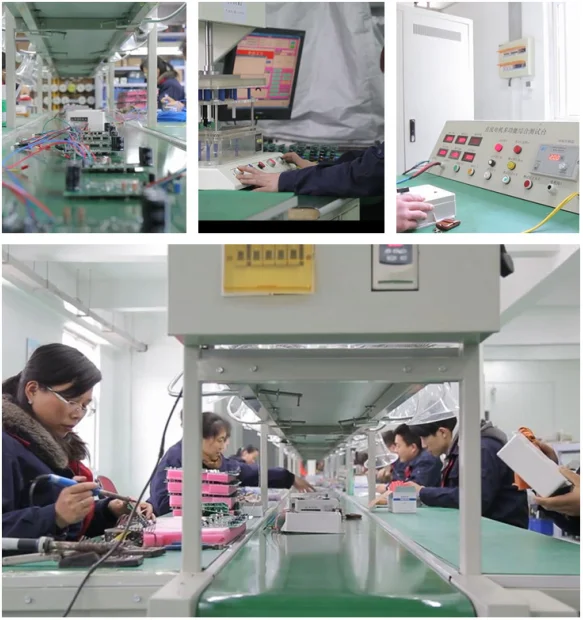

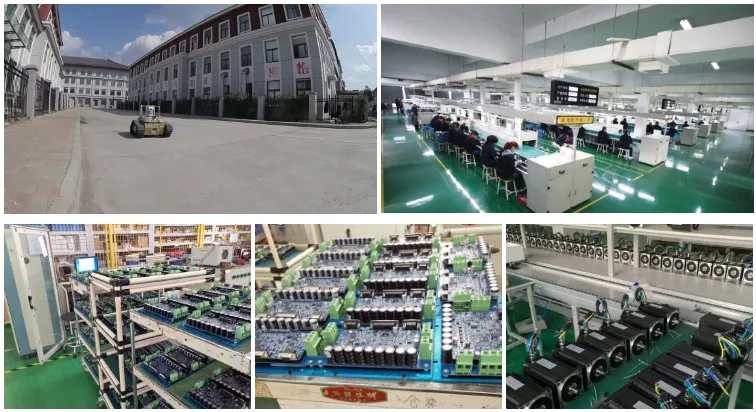

Company Profile

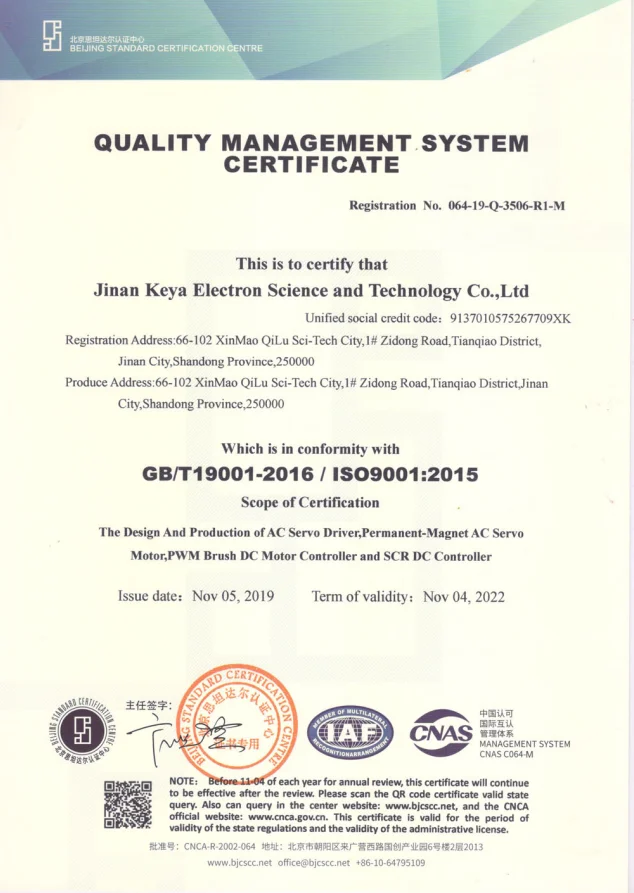

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

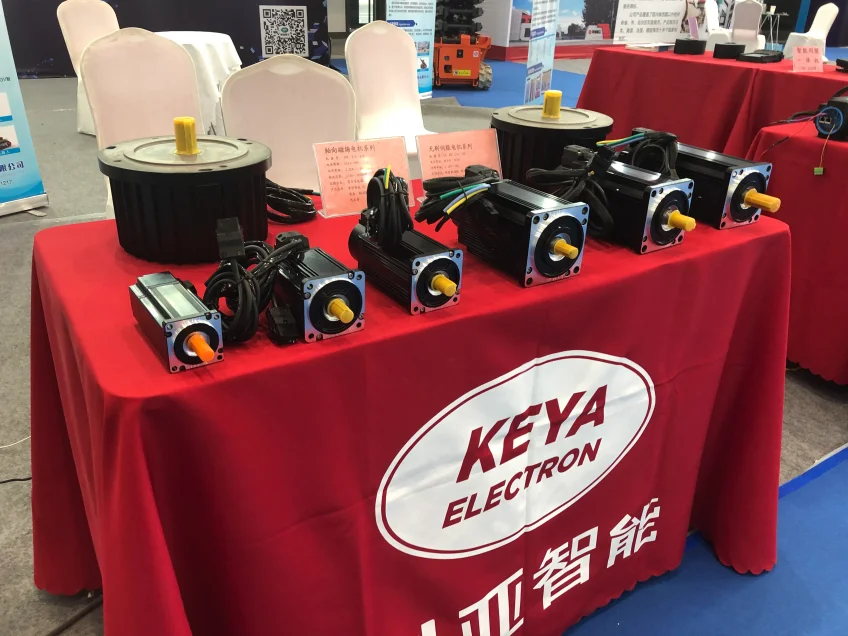

Exhibition

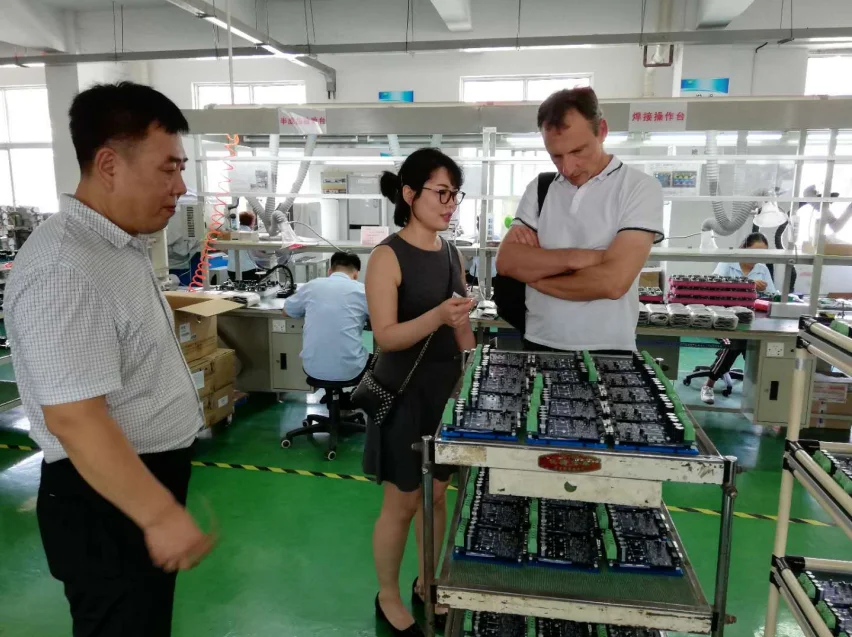

Our customers

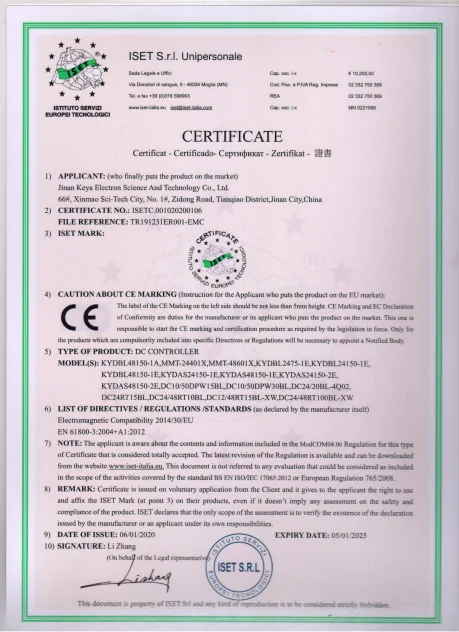

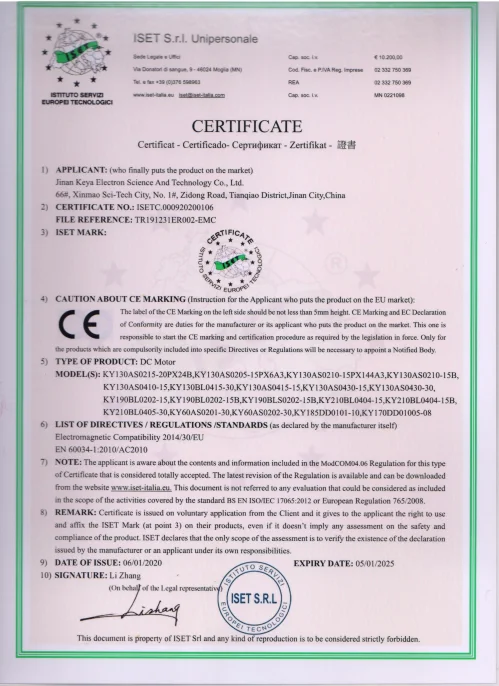

CE
