Waterproof RTU5024 GSM Gate Opener Relay Switch Remote Access Control Wireless Sliding Door Opener

Share on (1600515518469):


Price:$40.00 - $46.00

Quantity:


Product Overview

Description



Specification


Warranty
1 Year
After-sale Service
Online technical support
Application
Villa,Office Building,Workshop,Warehouse
Design Style
Modern
Place of Origin
China
Model Number
RTU5024
Product Name
RTU5024 GSM Gate Opener Operator Remote Control by Free Phone Call
Keyword
Gsm Remote Controller,GSM Gate Opener
GSM Frequency
Quad-band 850/900/1800/1900MHz;3G;4G
Digital Output
NC/NO dry contact, 3A/240VAC
DC Power supply
9~24VDC/2A
Power consumption
12V input Max. 50mA/Average 25mA
SIM Card
Support 3V SIM Card
Antenna
50Ω SMA Antenna interface
Temperature range
-20-+60 °C
Humidity range
Relative humidity 90%
Exterior dimension
W102mm*D76mm*H27mm
Net Weight
180g


Product Description

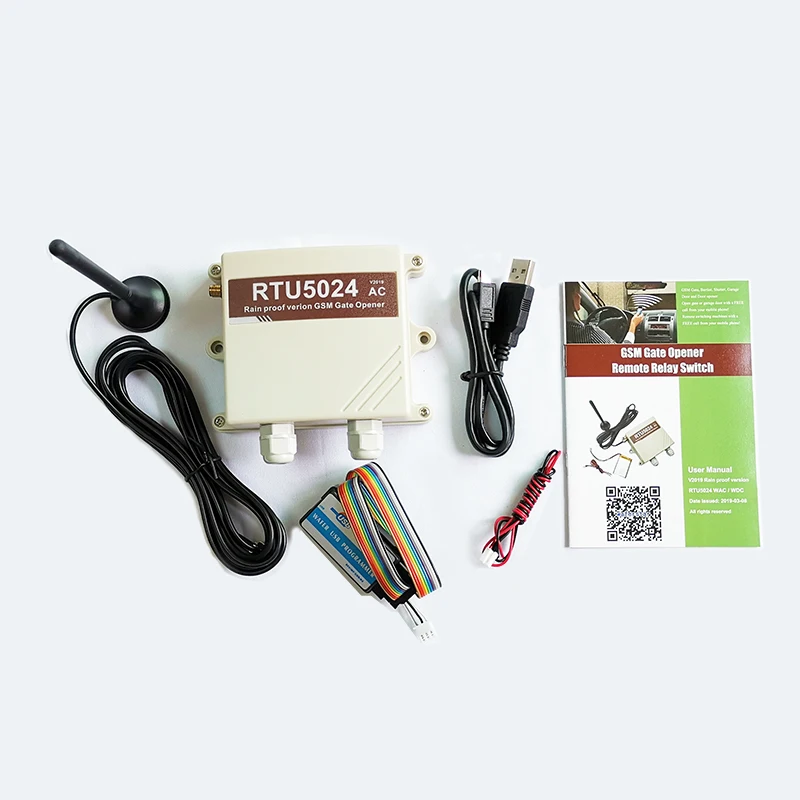

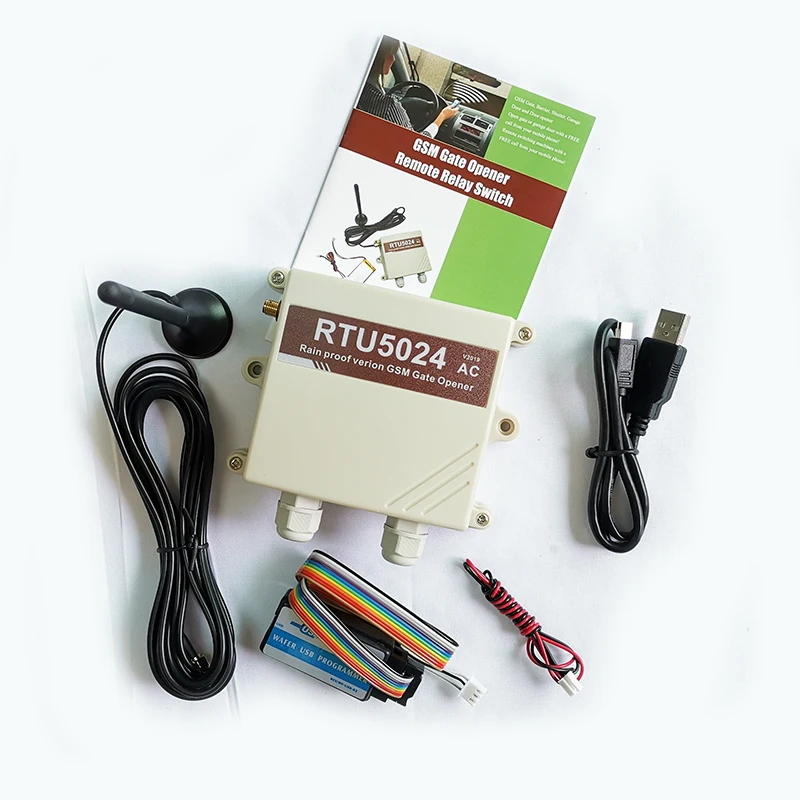

1.2 Standard Packing List
Gate Opener * 1

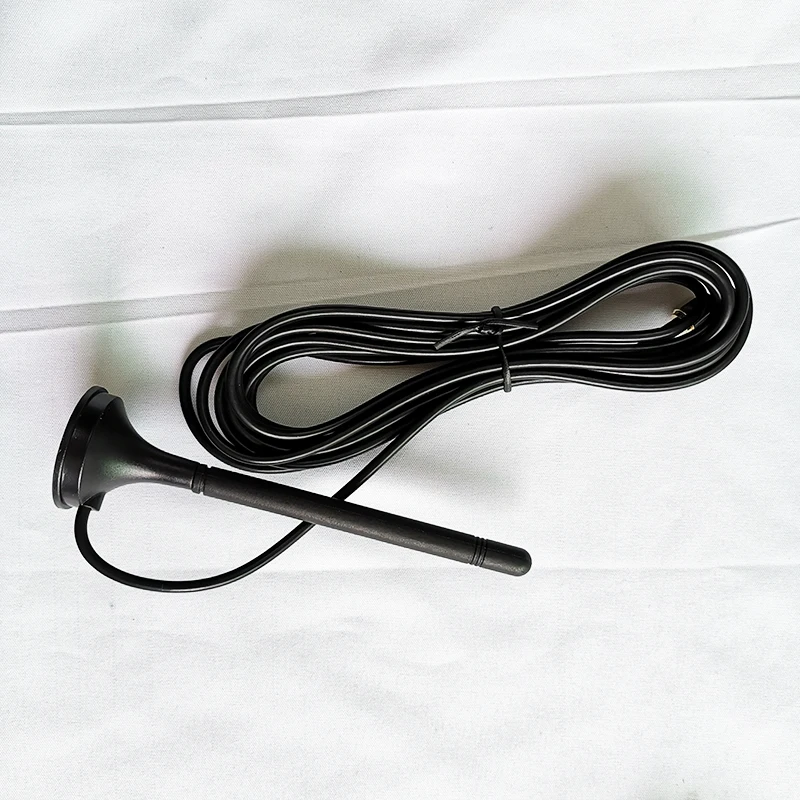

Antenna * 1
User Manual *1
Packing size: 17*9.5*4 cm
Gross Weight: 0.32kg


1.3 Applications
 Remote open/close swing/sliding gates, doors, shutters, garage doors, locks with a free call!
 Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.
 Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
 Agriculture: Remote control pumps, etc.  Business: Remote control electronic boxes, bright billboards, LED signs, etc.


1.4 Diagram


1. RTU5024 for Gate opener:
Power up the RTU5024 and electronic lock by same DC source, the lock switched ON/OFF by phone call.
2. RTU5024 for remote switch:
The pump switched ON/OFF by phone call. Pump power up by the grid/electricity, and RTU5024 power up by AC/DC adaptor.
