200tph 250tph 300tph Whole set Complete Crushing Stone Crusher Line and Screening Plants
- Category: >>>
- Supplier: Kunshan Duoling Heavy Machinery Technology Co. Ltd.
Share on (1600515530715):
Product Overview
Description
Product Overview

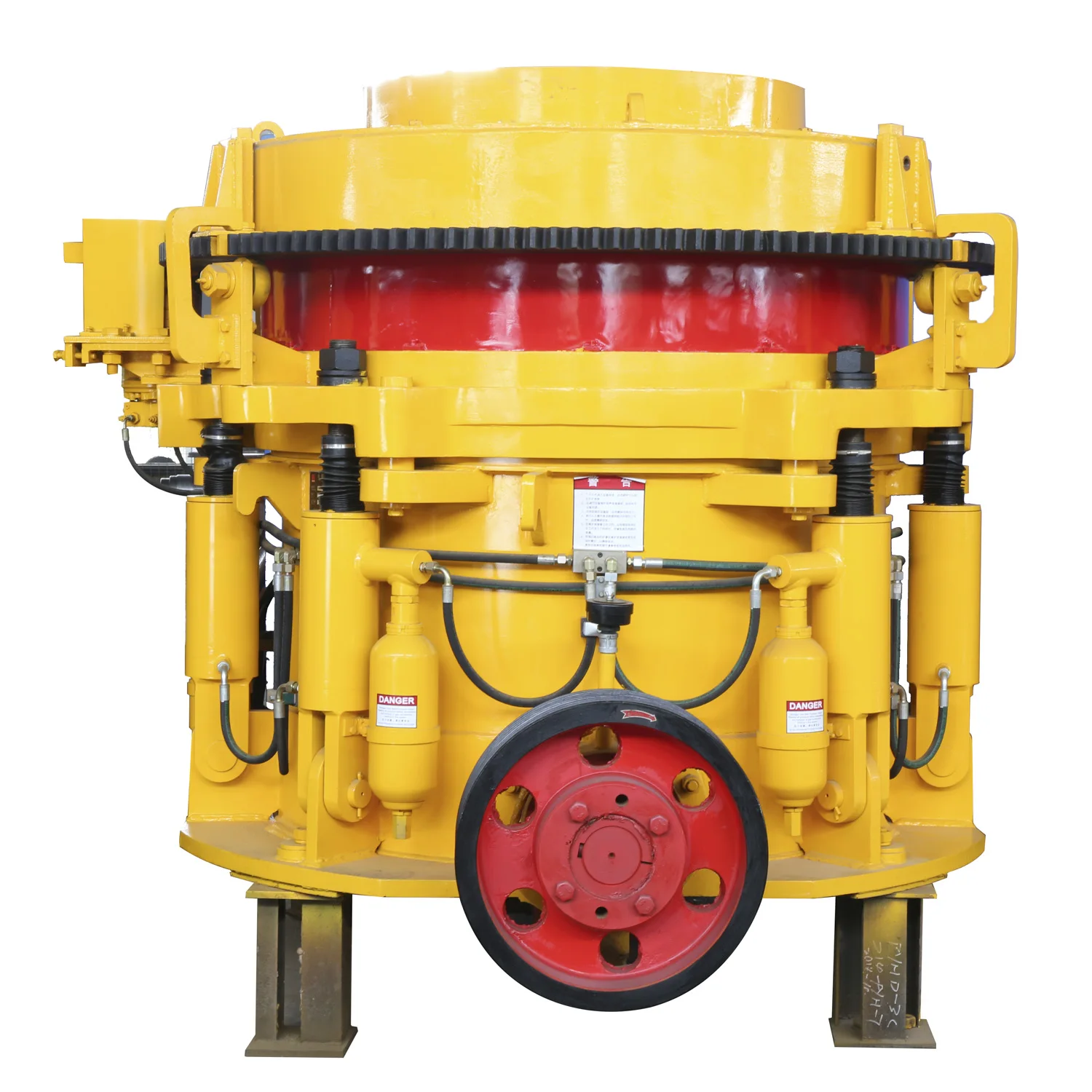

Duoling Complete Crushing and Screening plants
Different capacity from tons to hundreds toner per hour, with feeder, crushers, screens, belt conveyors, sand washers, control box, etc. setting up a whole line to crush big stones into small expected sizes for road construction, buildings, etc.
Our main advantage is the hydraulic cone crusher, and also produce jaw crusher, impact crusher, VSI, feeders, screens.
The PYH series cone crushers are characterized by the optimized combination of crusher speed, eccentricity, and cavity profile.This combination has proved revolutionary, providing higher capacity, better product quality and suitability to a wider range of applications. From limestone to compact hematite, from ballast to manufactured sand production, and from small portable plants to large mining plants, the PYH cone crushers are unbeatable in secondary, tertiary and quaternary applications.The PYH cone crusher cavity can be converted from extra-fine to extra-coarse cavity simply by replacing the mantle, bowl liner, adapter ring, and wedge bolts. In this way, the crusher is easily adapted to feed and desired product requirements.
FEATURES AT A GLANCE
Big Crushing Ratio
Much Fine Particles
High Crushing Capacity
Widely used in Secondary and Tertiary Crushing Stage

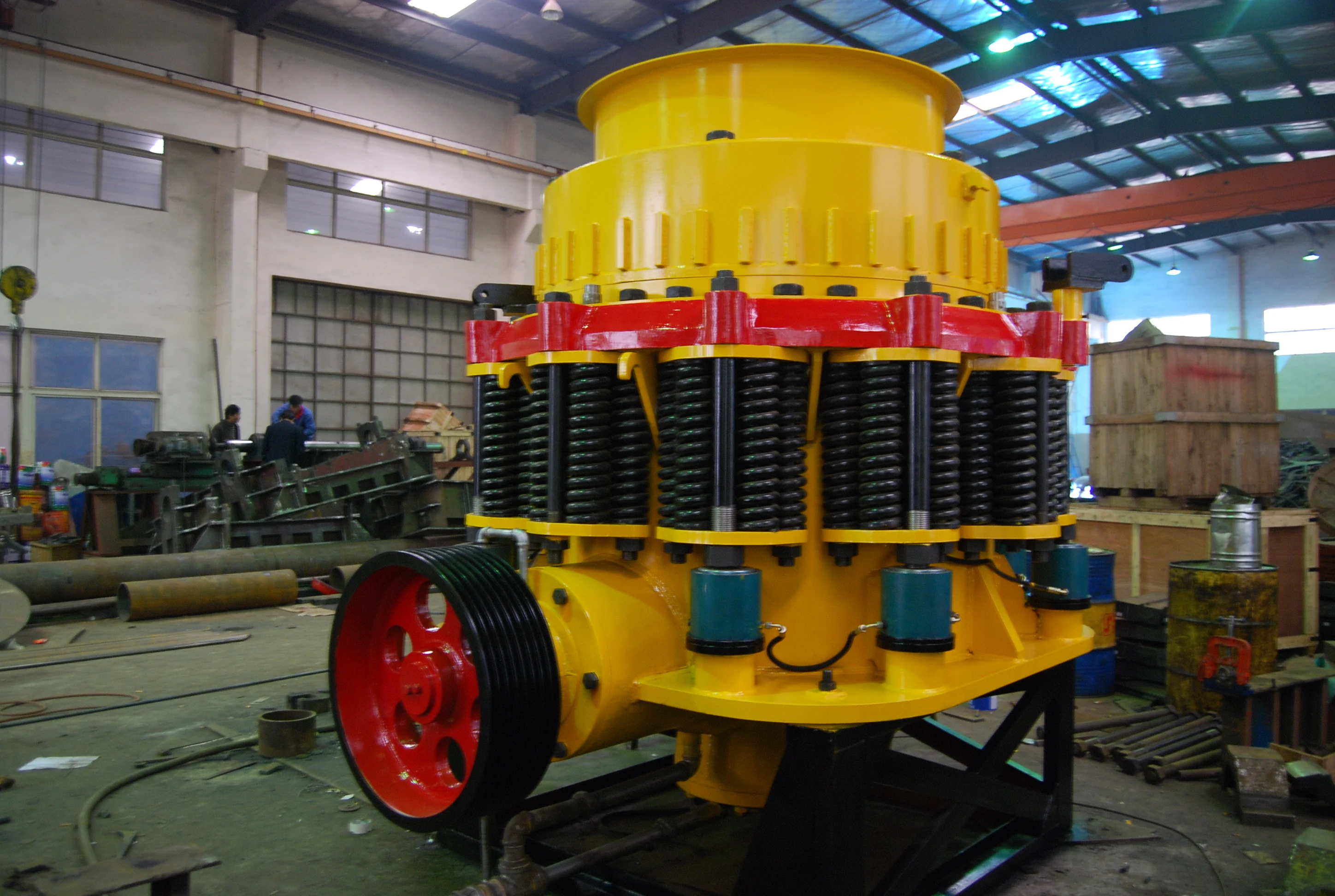

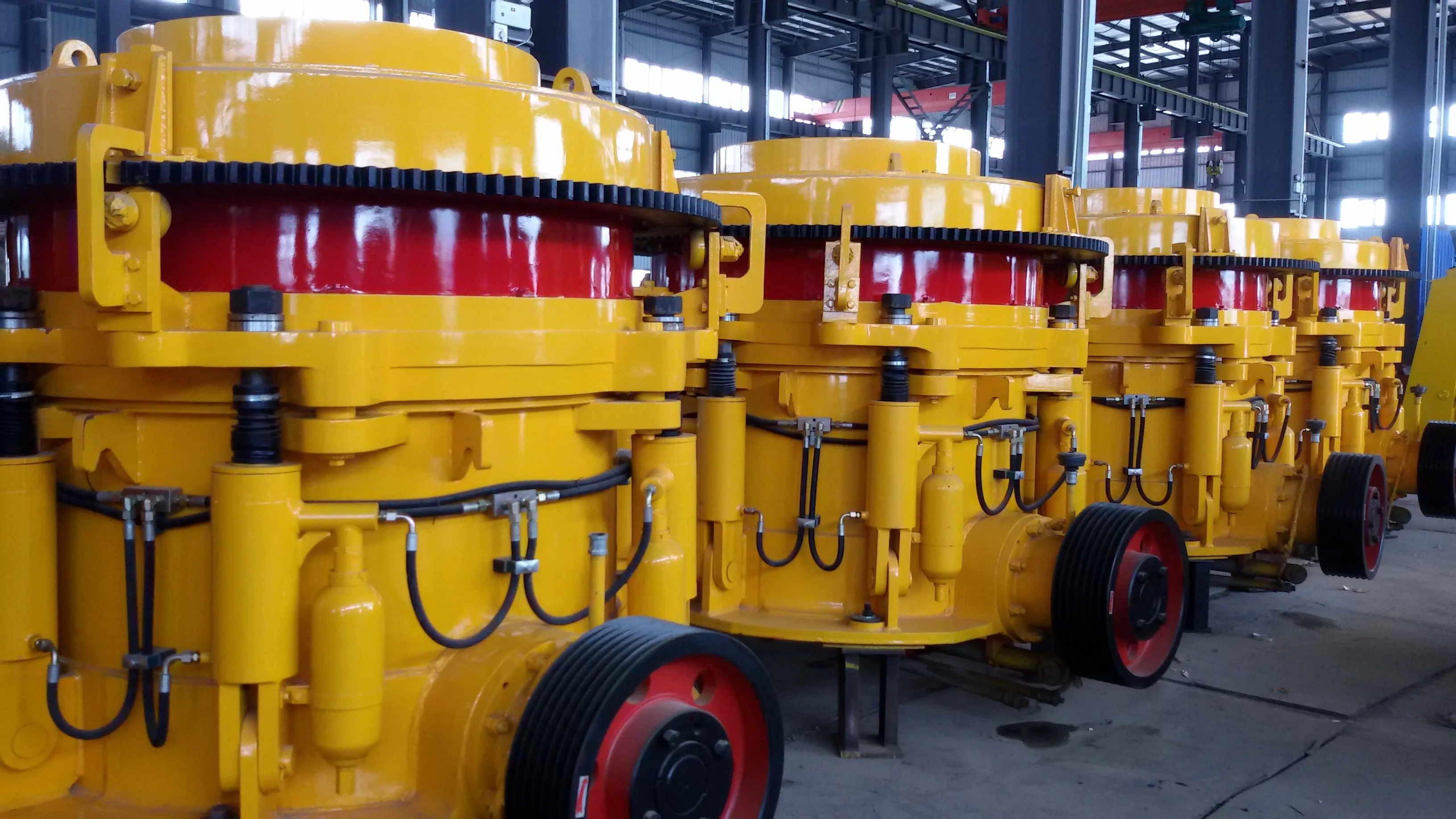

at factory

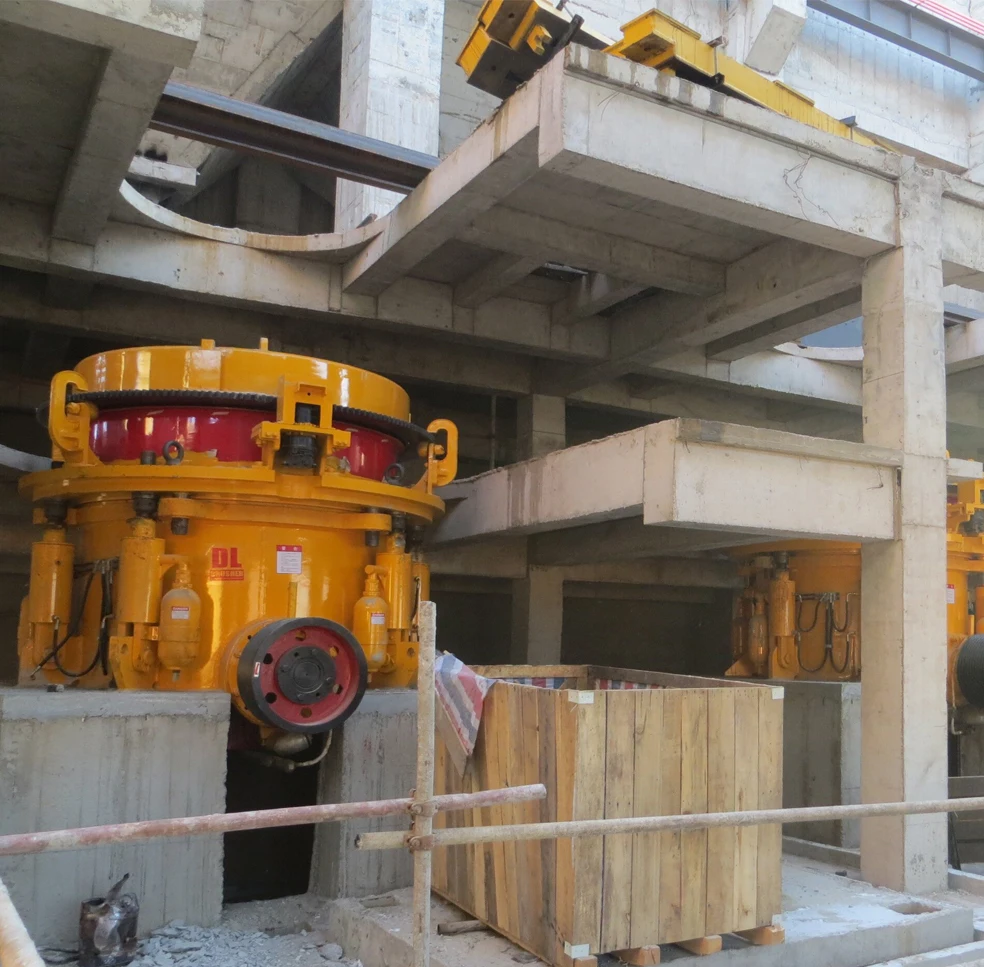

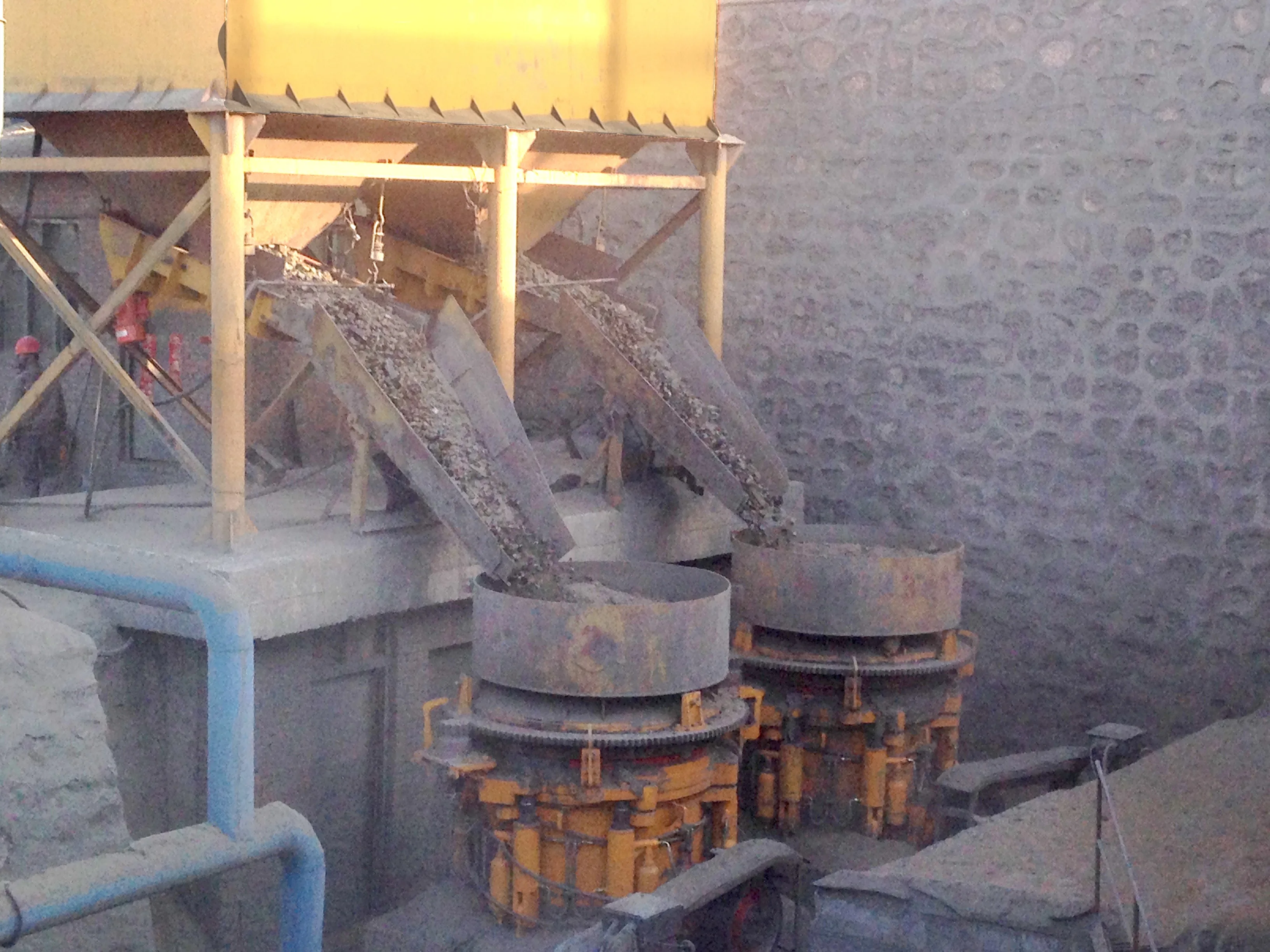

at site
at fair
PRODUCT SPECIFICATIONS
Model | Cavity | Discharge Setting Min (mm) | Feed Opening (mm) | Power (kW) | Weight (t) |
PYH-2 | X | 13 | 95 | 160 | 11.4 |
Z | 16 | 120 | |||
C | 19 | 190 | |||
PYHD-2 | Z | 6 | 54 | ||
C | 10 | 76 | |||
PYH-3 | X | 13 | 105 | 220 | 17.4 |
Z | 16 | 150 | |||
C | 19 | 215 | |||
CC | 25 | 230 | |||
PYHD-3 | X | 6 | 25 | ||
Z | 8 | 54 | |||
C | 10 | 76 | |||
PYH-4 | X | 13 | 110 | 315 | 24.5 |
Z | 20 | 200 | |||
C | 25 | 250 | |||
CC | 30 | 300 | |||
PYHD-4 | X | 6 | 40 | ||
Z | 8 | 50 | |||
C | 10 | 90 | |||
PYH-5 | X | 16 | 135 | 400 | 34.4 |
Z | 22 | 210 | |||
C | 30 | 290 | |||
CC | 38 | 330 | |||
PYHD-5 | X | 8 | 40 | ||
Z | 10 | 56 | |||
C | 13 | 95 | |||
PYH-8 | X | 16 | 220 | 630 | 63 |
Z | 25 | 265 | |||
C | 30 | 300 | |||
CC | 33 | 350 | |||
PYHD-8 | X | 5 | 35 | ||
Z | 10 | 90 | |||
C | 13 | 155 |
PRODUCT CONFIGURATION
Top Inside
Top Outside
Main frame
SALES AND SERVICE NETWORK

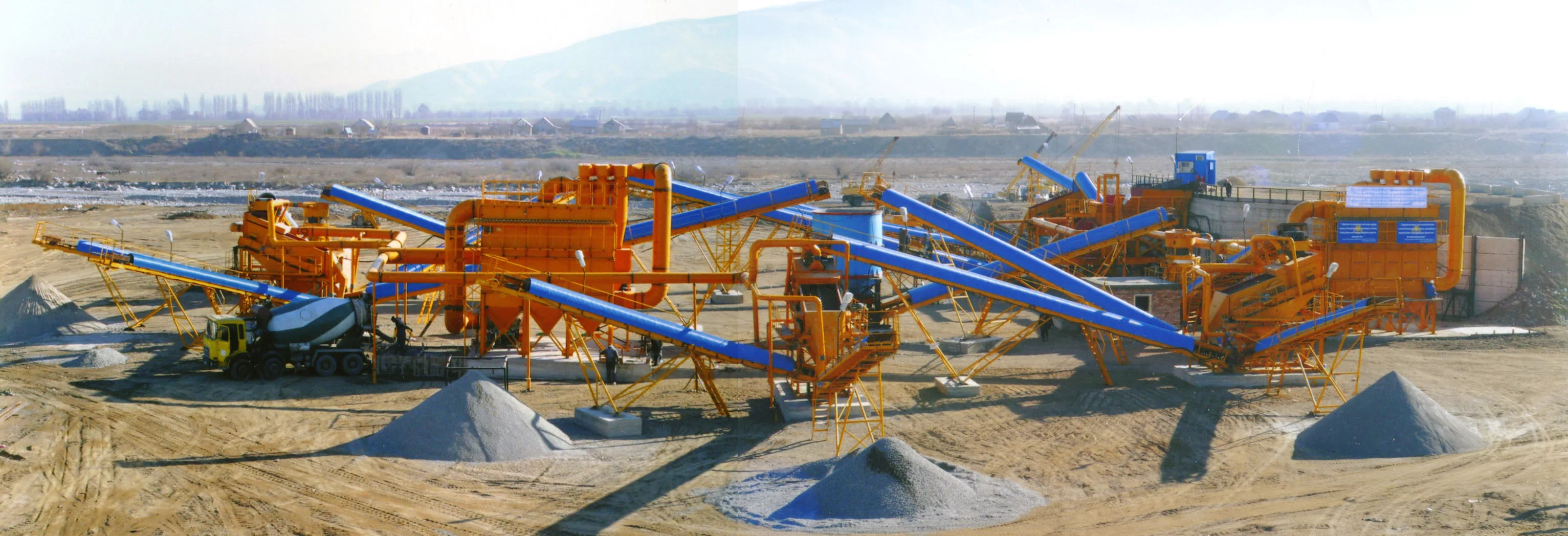

Successful Project

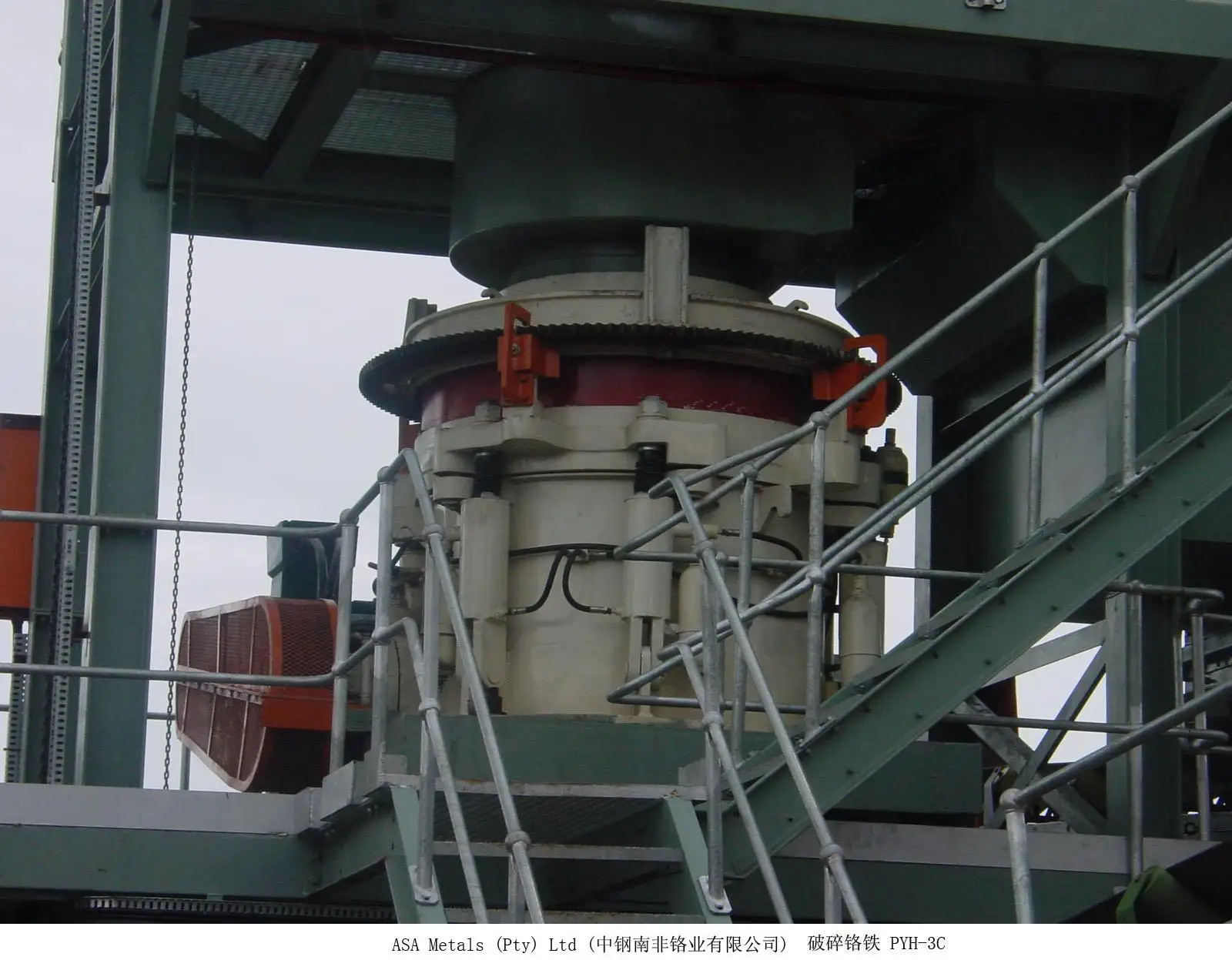

Project in South Africa
Project in Mexico
Project in Kazakhstan
SIMILAR PRODUCTS
FAQ
Q：How to choose the right model for our production?
A：Following info needed:
1) What's the raw materials? like Granite,Basalt, Limestone, Gravel,Cobble stone,etc.
2)What's the maximal size of the raw materials?
3)What's the discharging size? for example: 0-5,5-10, 10-15.15-30 mm, etc.
4)What's the required Capacity?
for example: 100TPH, 200TPH 300TPH, etc.
5)Other special requirements
