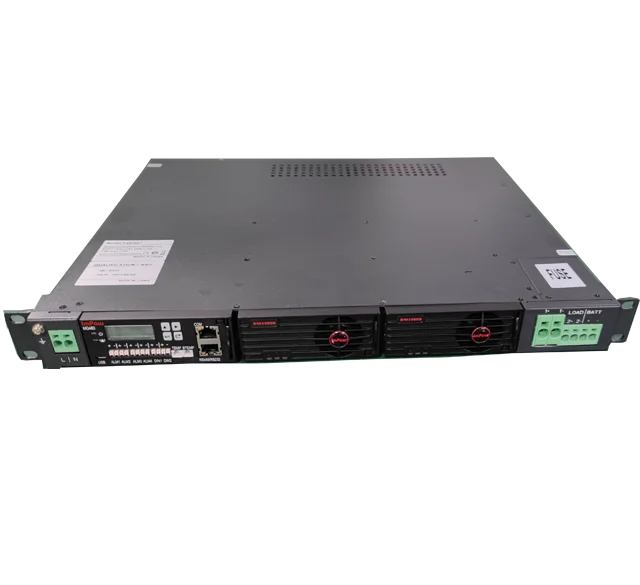

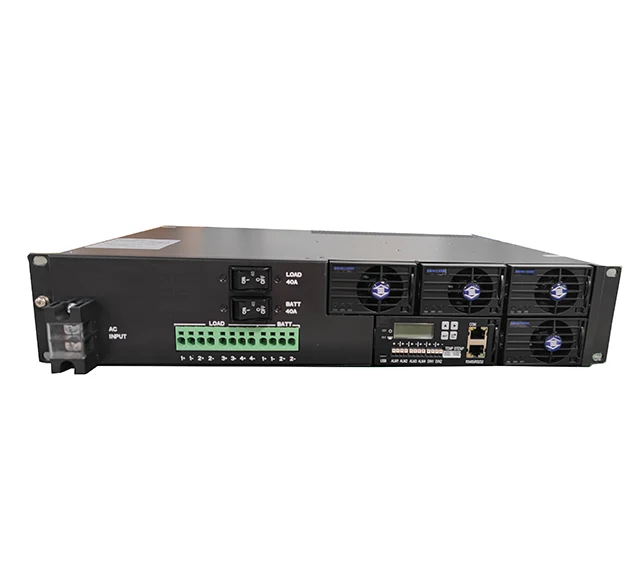

2U 48V 3KW 20A Rectifier module 80A telecom rectifier system power supply manufacture 48V dc
- Category: >>>
- Supplier: Shenzhen Impower Technology Co. Ltd.
Share on (1600515537790):
Product Overview
Description
Company Profile
Shenzhen Impower Technology Co. Ltd. is a professional high-tech company specialized in 24V,48V,60V DC Rectifier system, and solar street lights product research and development, processing and production. It has a professional processing and production base in Shenzhen. company has first-class R&D team and international standard processing and production system. Have ISO9001 quality system and ISO14001 environmental protection system certified. The products have obtained a number of national patents and multiple international product standards certifications of UL CE FCC and RoHS certifications.
Recommend Products
Products Description
Introduction

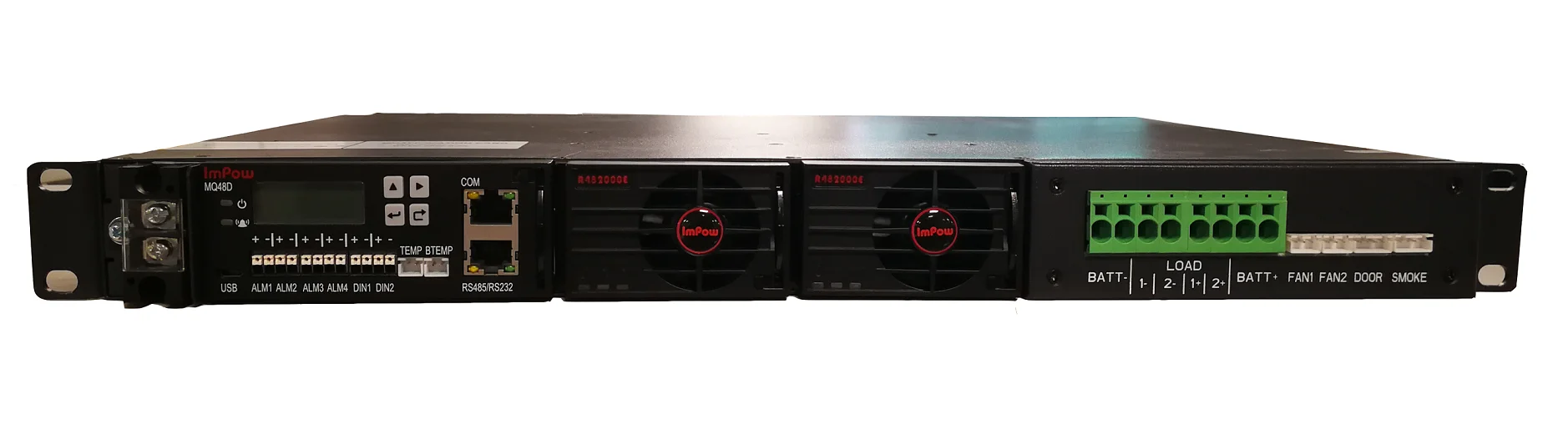

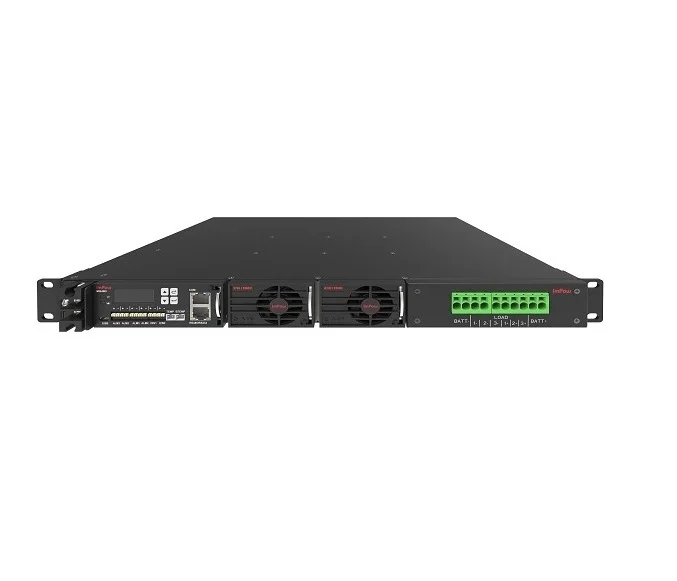

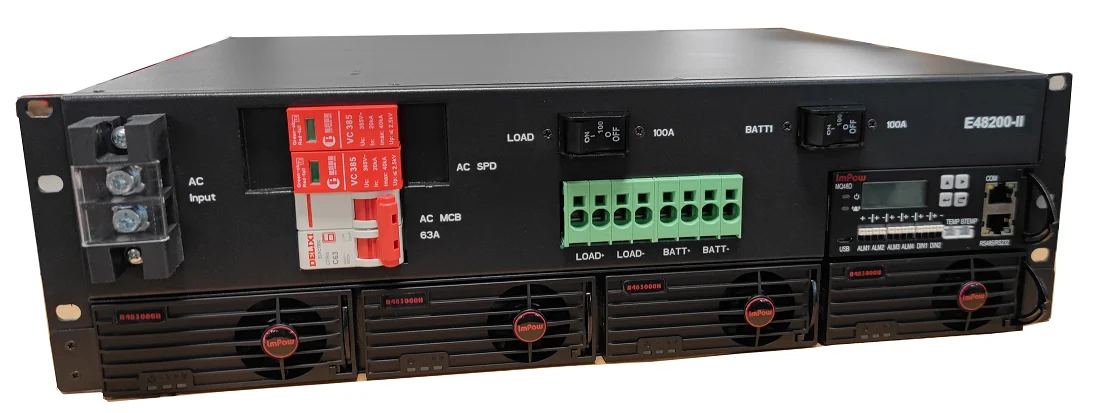

E48100-III is an AC/DC embedded power system with Excellent performance such as high power efficiency, intelligent battery management,remote management, wide range of AC input voltage, etc. The system can configure 2 pieces of 1U 50A high rectifier modules, and provides 100A rated current output.E48100-III can be embedded in 19-inch rack or cabinet.
Features:

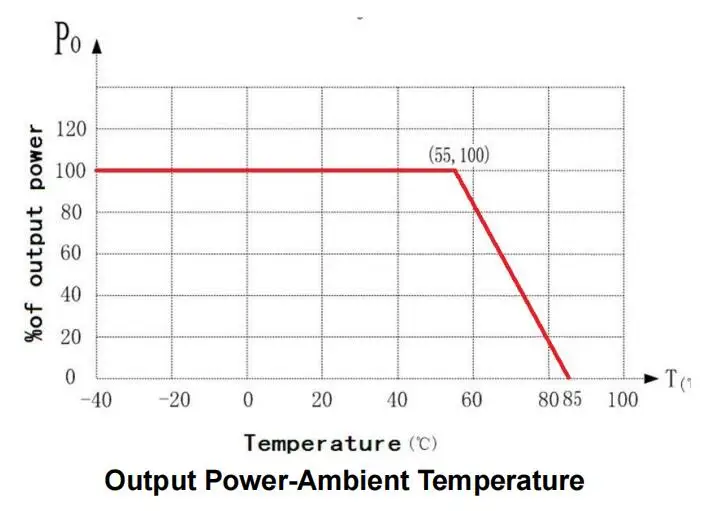

1:1U rectifier: high density, high efficiency, excellent high temperature performance(full load @ 50℃、55℃)
2: Wide operation temperature range of embedded power from -40℃ to 80℃
3: Hot-swappable rectifiers provide easy installation and maintenance
4: Standard installation structure design, adapt to various scenarios
5: Compact design(only 1U in height), saving space and installation cost
6: Excellent rectifier dormancy function helps increase system efficiency
7: Intelligent battery management and protection help to prolong battery lifespan
8: Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
2: Wide operation temperature range of embedded power from -40℃ to 80℃
3: Hot-swappable rectifiers provide easy installation and maintenance
4: Standard installation structure design, adapt to various scenarios
5: Compact design(only 1U in height), saving space and installation cost
6: Excellent rectifier dormancy function helps increase system efficiency
7: Intelligent battery management and protection help to prolong battery lifespan
8: Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
Product Paramenters
Type | R483000 | ||
Rectifier | Dimension（W×D×H） | 106×286×42.5mm | |
Weight | ≤1.9kg | ||
Cooling mode | Speed air cooling | ||
Installation mode | Installed on 19-inch rack or inside the cabinet | ||
Protection level | IP20 | ||
AC Input | Input mode | 220/380VAC three-phase or 220VAC single phase | |

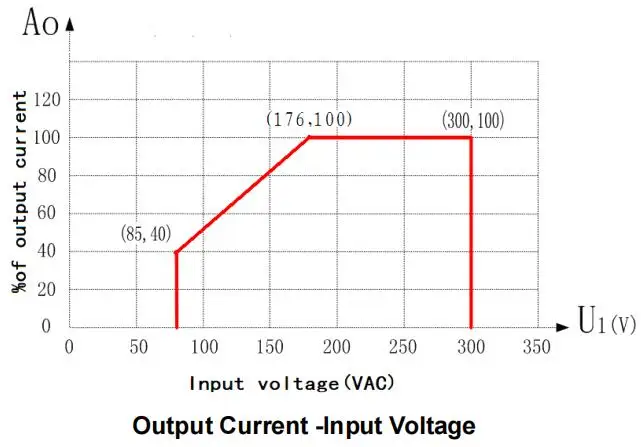

Voltage（V） | 85Vac ~ 300Vac | ||
Input frequency | 45~66Hz, rated value: 50Hz/60Hz | ||
Current（A） | ≤18A | ||
Power factor | ≥0.99 | ||

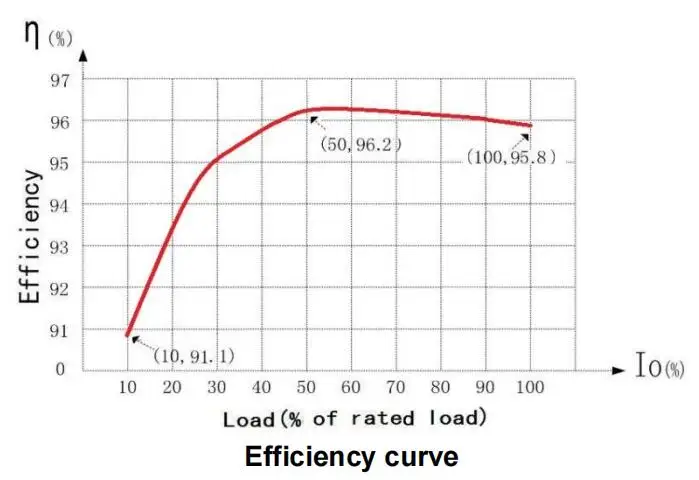

DC Output | Efficiency | >96% Peak | |
Voltage range | -42.0Vto-58.0VDC | ||
Rated Power | 3000W | ||
Load regulation | ≤±0.5% | ||
Voltage regulation factor | ≤±0.1% | ||
DC output | Error in load sharing | ≤±5% | |
Precision of voltage regulation | ≤±0.6% | ||
Reliability | MTBF | >500,000hours | |
Lightening protection | Display mode | YD 5098-2005 5KA | |
Environment | Operating temperature | -40℃~+85℃ | |
Storage temperature | -40℃~+80℃ | ||
Operating humidity | ≤95% RH | ||
Altitude | 0~2000m | ||
Certifications

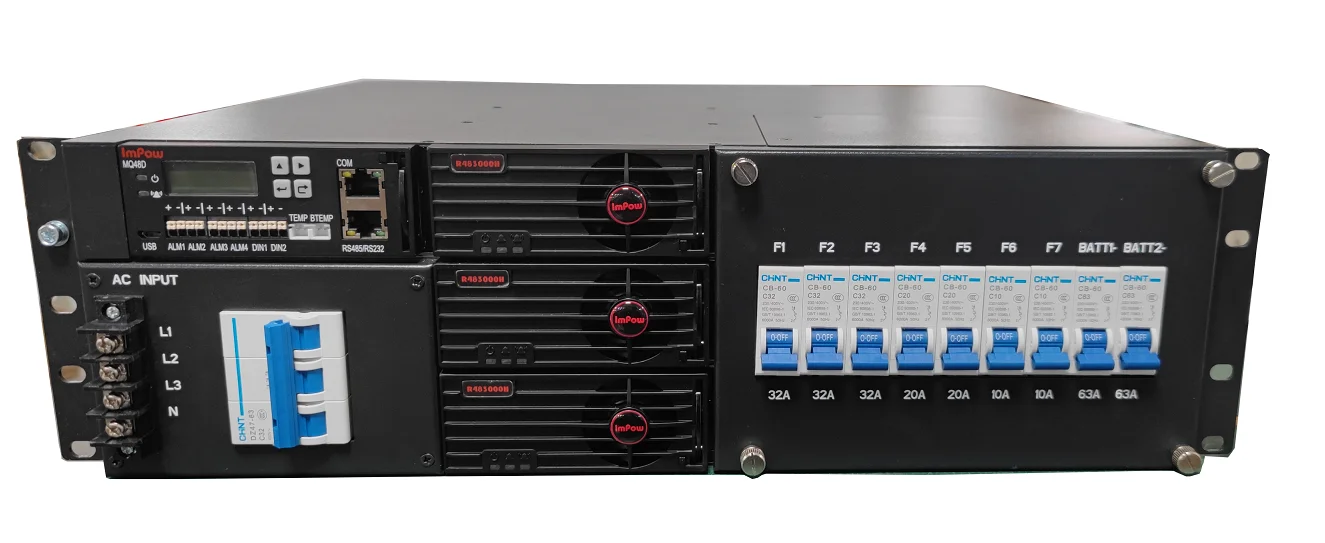

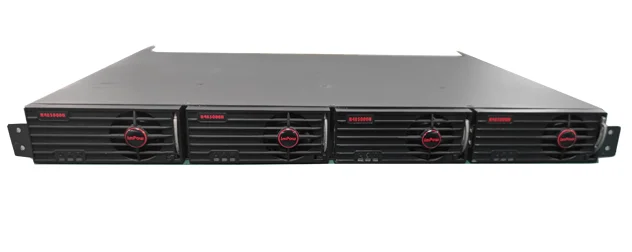

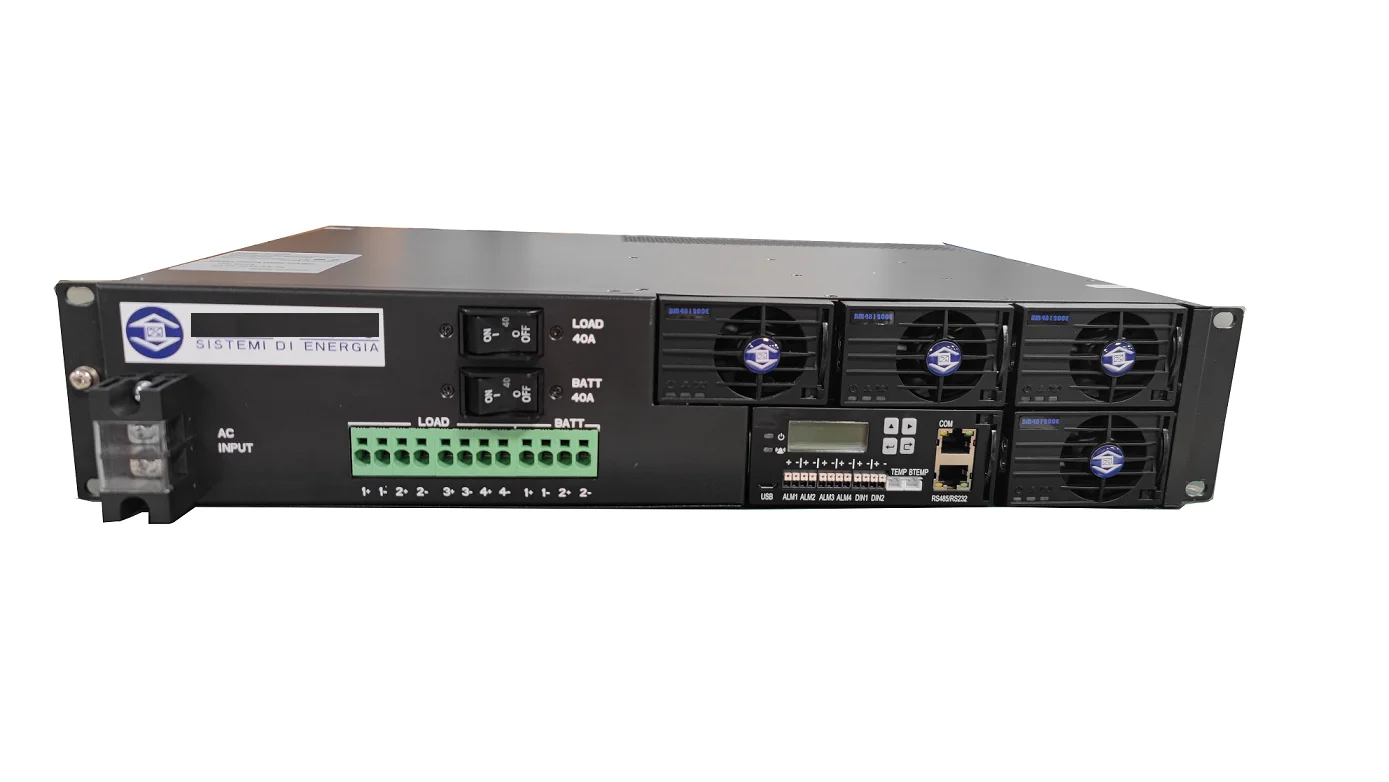

Product Pictures
