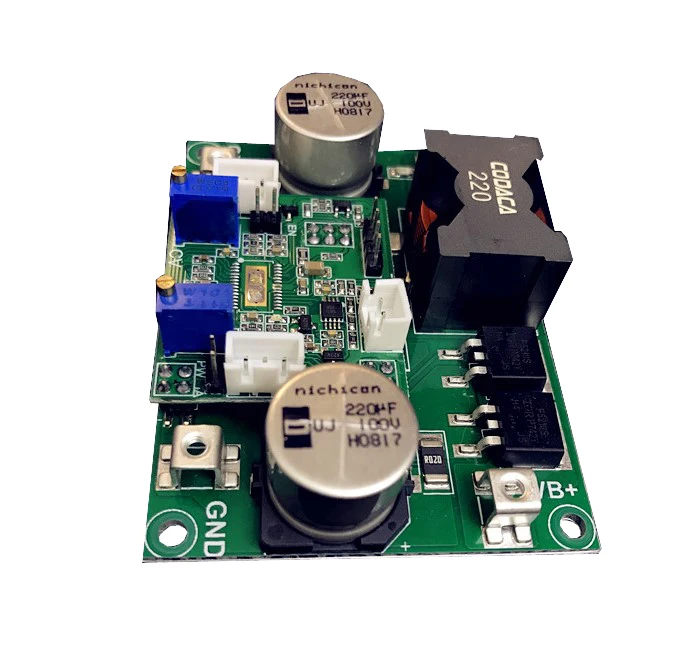

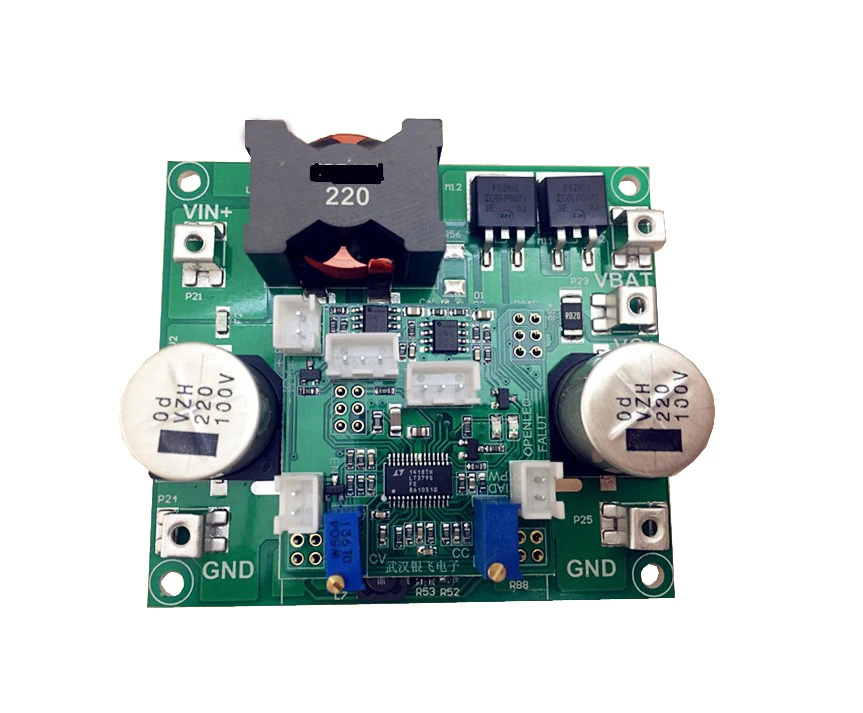

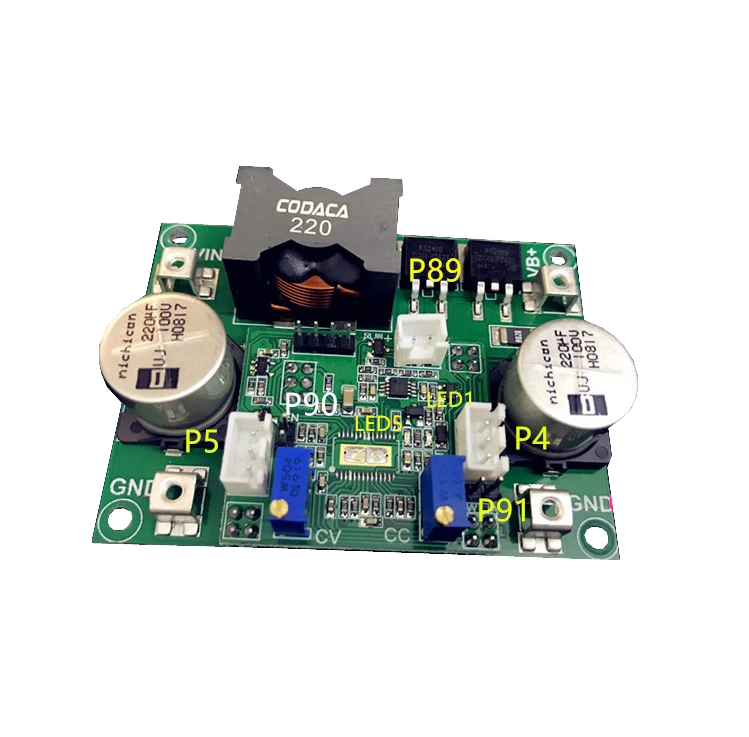

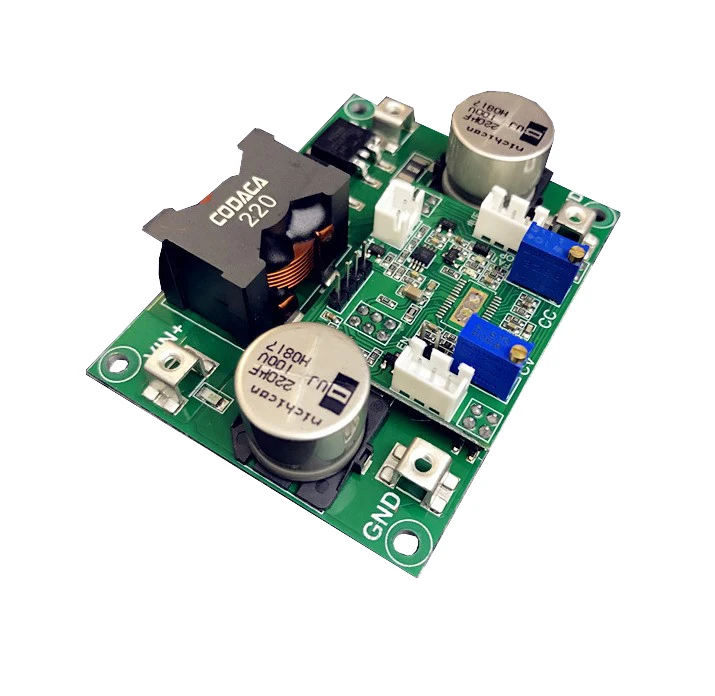

very good quality 300w 12 80V to 12v 95v LED Constant current dc dc step up boost converter module for LED PWM
- Category: >>>
- Supplier: Shenzhen Jinhe Technology Co. Ltd.
Share on (1600515538948):
Product Overview
Description
Product Description
Feature:
| Product name | non-isolated synchronous boost power supply board |
| Input | DC11-80V |
| Output | DC12-95V |
| Efficiency | 95% |
| power max | 300w |
| Protection | Over current,short-circut,reverse polarity protection,over temperature |
| application | LED Driver PWM Dimmer |
Input:
| Feature | min | typical | max | unit |
| Input voltage | 11.2 | 36 | 80 | V |
| Input current | / | 12 | 15 | A |
| optional undervoltage value | 6 | 11.2 | 60 | V |
| Input limit voltage | 100 | V | ||
| Input current max | 14.8 | 15 | 15.3 | A |
Output:
| Feature | min | typical | max | unit |
| Output voltage | 12 | 72 | 92 | V |
| Output current | 5 | 8 | A | |
| Output current adjust | 0 | / | 8 | A |
| Ripple | 300 | 400 | 500 | mVp-p |
| no-load current | 15 | 16 | 18 | mA |
| Downtime current | 400 | 500 | 600 | uA |
Other:
| Convert efficiency | 93 | 93.6 | 96 | % |
| Switch frequency | 215 | 220 | 230 | khz |
| Temperature control fan start value | 40 | 45 | 50 | ℃ |
| over temperature protection value | -20 | 25 | 85 | ℃ |
| working temperature | -20 | 25 | 105 | ℃ |
