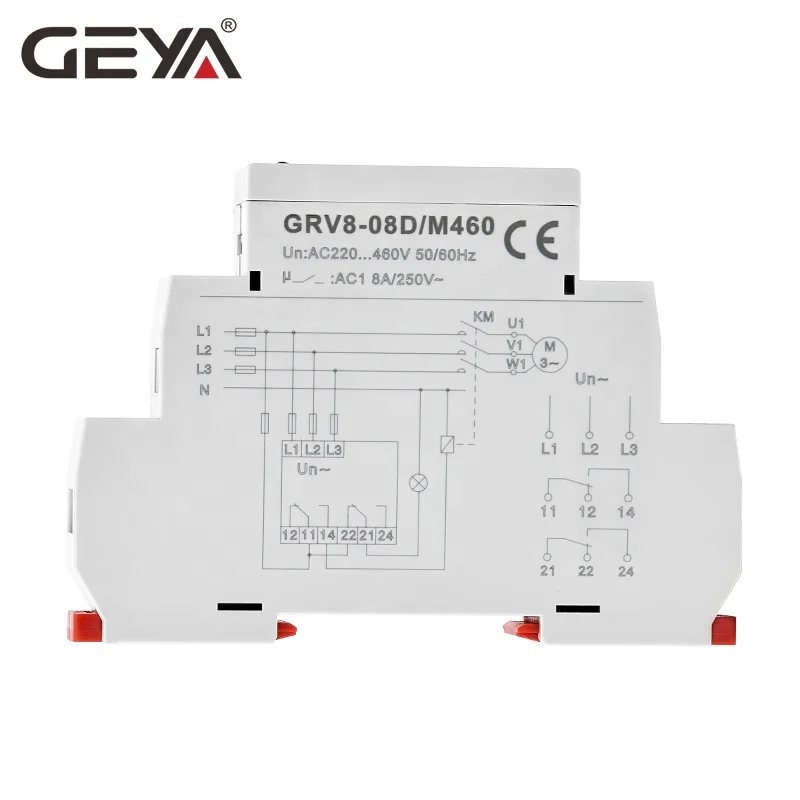

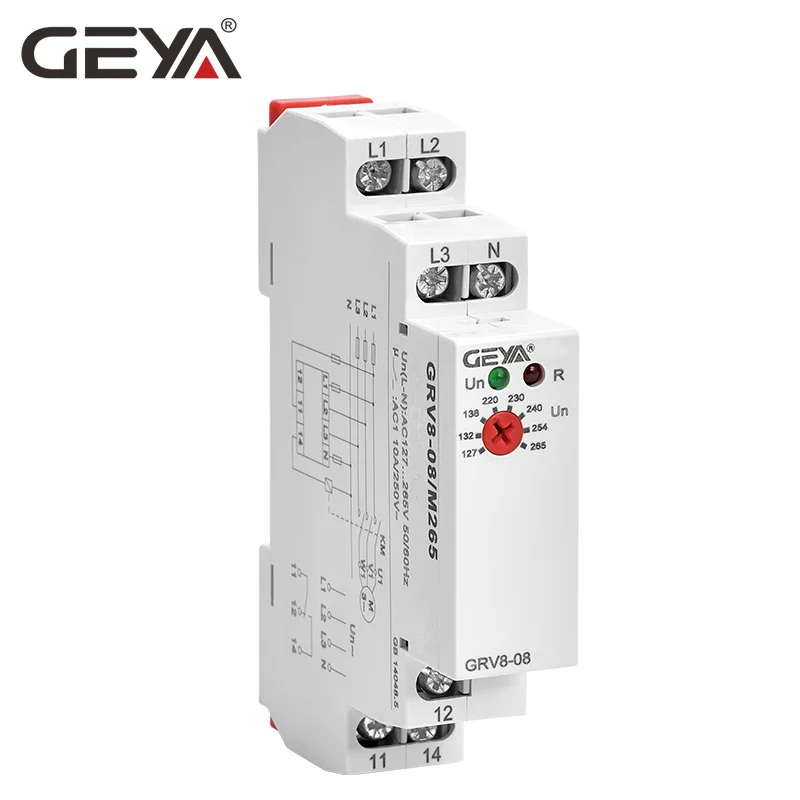

GEYA GRV8 08D M265 127V 265VAC dc voltage monitoring relay voltage protector relay 3 Phase voltage relay
- Category: >>>
- Supplier: Zhejiang Geya Electrical Co. Ltd.
Share on (1600515552069):
Product Overview
Description
··········This link price is only for GRV8-08D M265··········
Products Description
GEYA voltage monitoring relay control for connection of moving equipment(site equipment, agricultural equipment, refrigerated trucks). Control for protection of persons and equipment against the consequences of reverse running.
Normal/Emergency power supply switching. Protection against the risk of a driving load(phase failure).

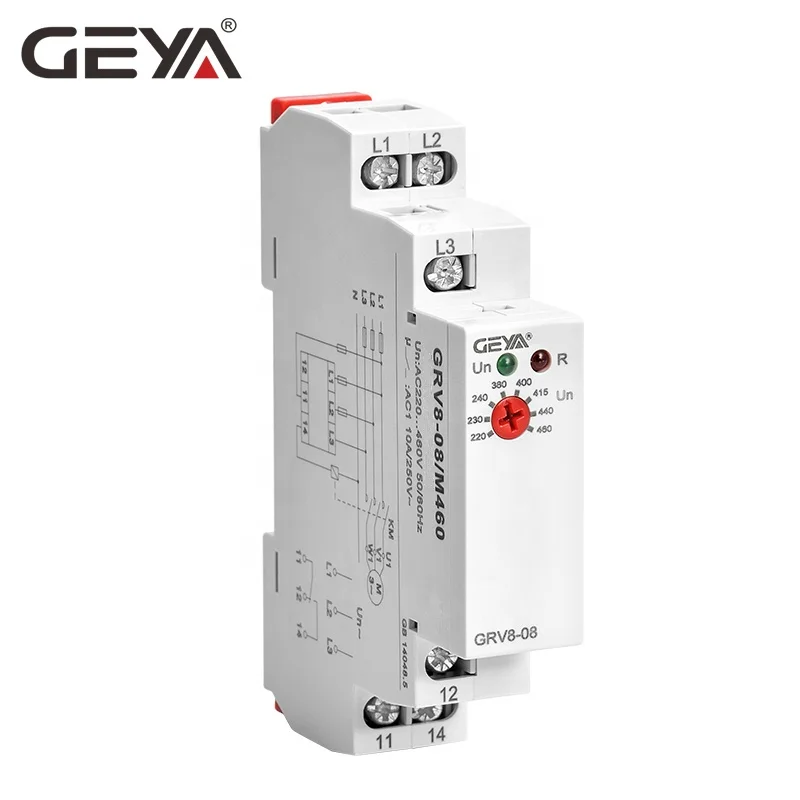

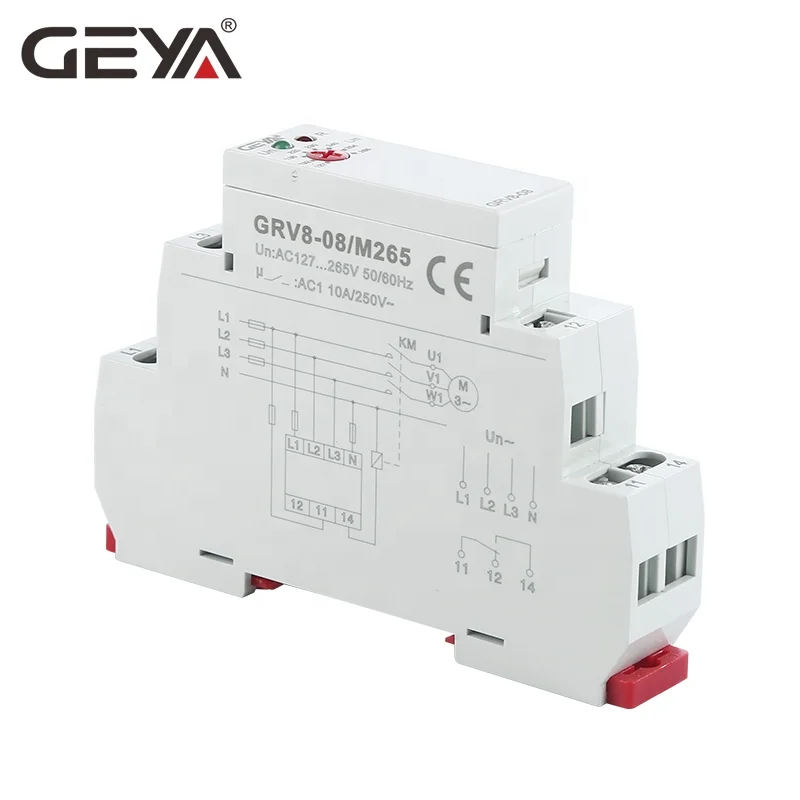

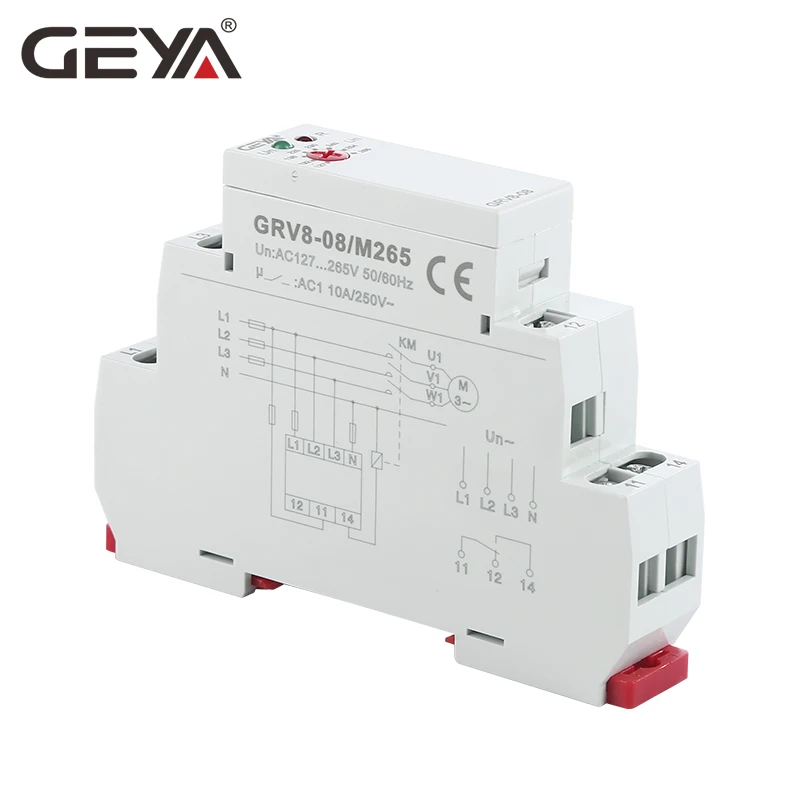

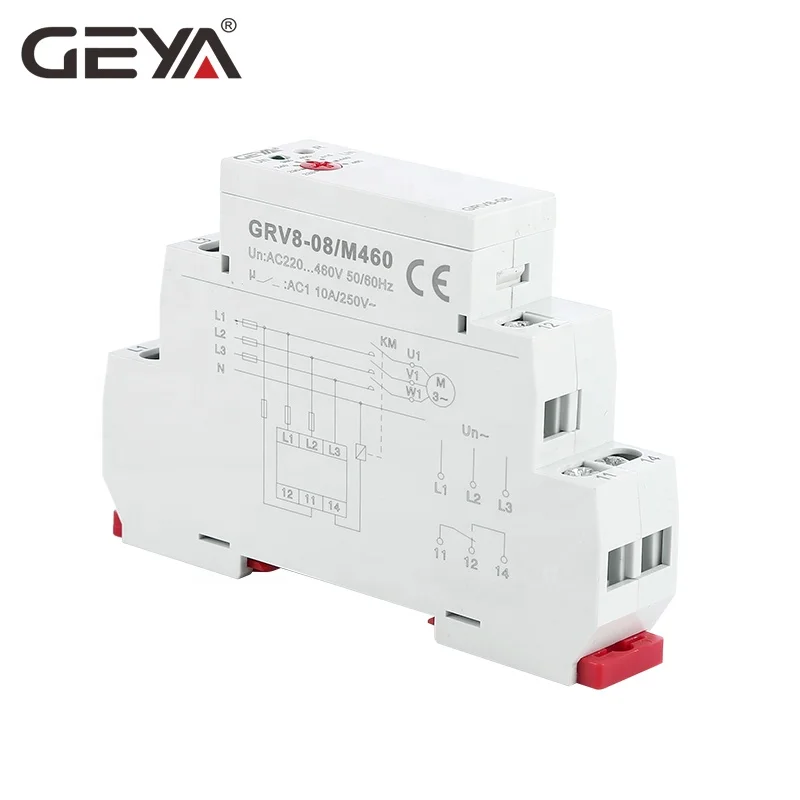

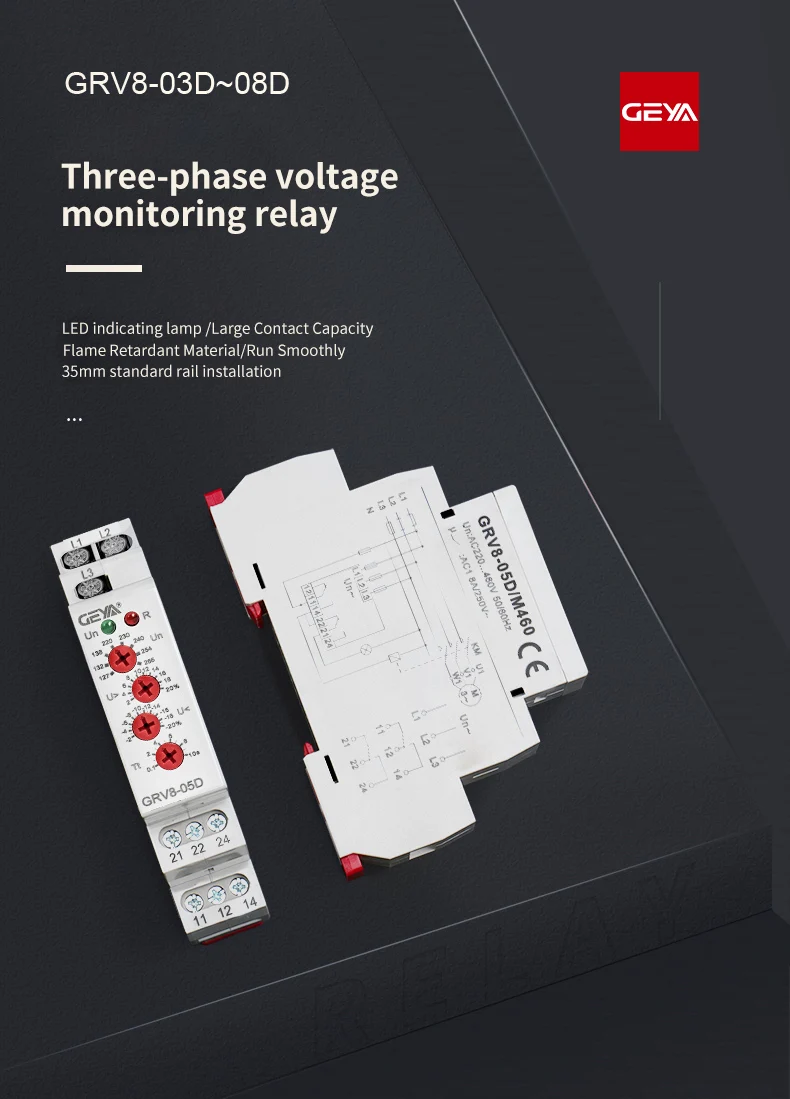

- GRV8-08 Voltage Monitoring Relay
-Voltage Range: M265 M460
-Controls its own supply voltage(True RMS measurement)

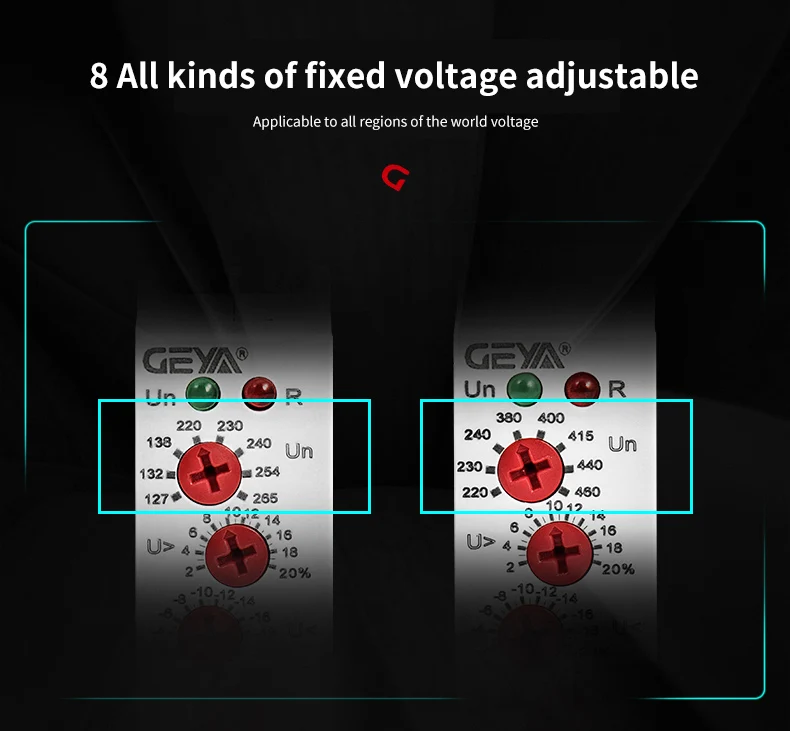

-Set 8-level rated operating voltage through knob.
-Measuring frequency range : 45Hz-65Hz.
-Voltage measurement accuracy<1%
-Relay status is indicated by LED

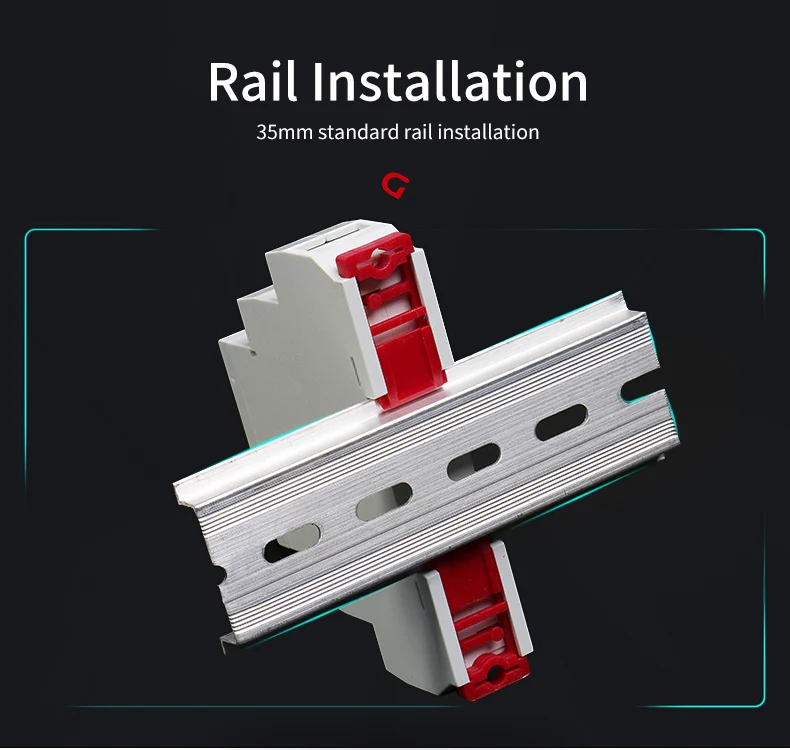

-1-MODULE,DIN rail mounting.
GRV8-08 | Voltage Relay Selection | |
M460 | 220-230-240-380-400-415-440-460VAC(P-P) | |
M265 | 127-132-138-220-230-240-254-265VAC(P-N) | |
HOW TO CHOOSE THE MODEL
Function code | Over voltage | Under voltage | Asymmetry | Delay time | Phase sequence | Phase failure | ||||||
03 | ● | ● | ||||||||||
04 | 2%~20% | -20%~2% | 0.1s~10s | ● | ● | |||||||
05 | 2%~20% | -20%~2% | 8% | 0.1s~10s | ● | ● | ||||||
06 | 2%~20% | -20%~2% | 5%~15% | 2s | ● | ● | ||||||
07 | 8% | 2s | ● | ● | ||||||||
08 | 15% | -15% | 8% | 2s | ● | ● | ||||||
Note: ● means the function is available | ||||||||||||
