JUITA JTK19F 1000A High Speed Automatic Sewing Machine Industrial Smart Touch Operation Panel Sewing Machine Motor
- Category: >>>
- Supplier: Zhejiang Juita Intelligent Technology Co. Ltd.
Share on (1600515570356):
Product Overview
Description
Specification
JTK19F-1000A JUITA Brand Large Area Fully Automatic Pattern Template Sewing Machine Double screw
1) Powerful CNC system
2) High speed sewing, the speed can reach to 3500 rpm
3) Innovative design, The upper shaft mechanism of the nose and the fuselage form a 90° angle, The part of the head over the line is the front. Easy to thread, easy to manually rotate the handwheel, more convenient to operate.
4) Innovative design Machine head intergral casting, Two servo motors drive the upper shaft and the hook shaft respectively. Small vibration and low noise during high speed sewing.
5) Automatically recognize various CAD file formats of garment factories
6) Template automatic identification system(RFID function) Intelligent recognition with high accuracy.

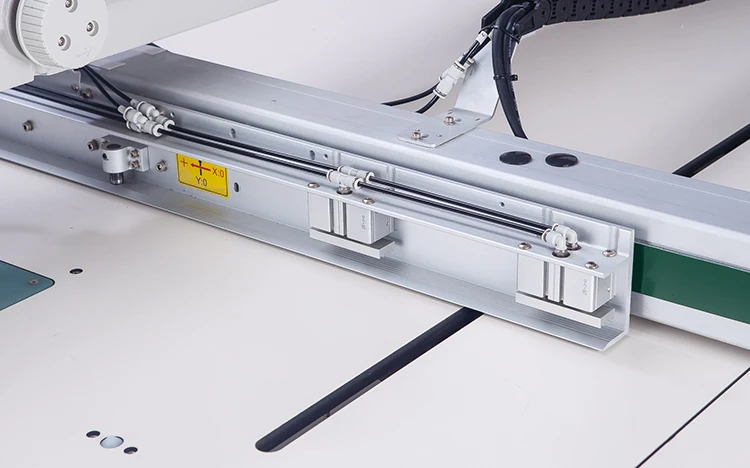

7) Effective sewing range: X-axis 130cm, Y-axis 100cm, Screw feeding, precise and stable

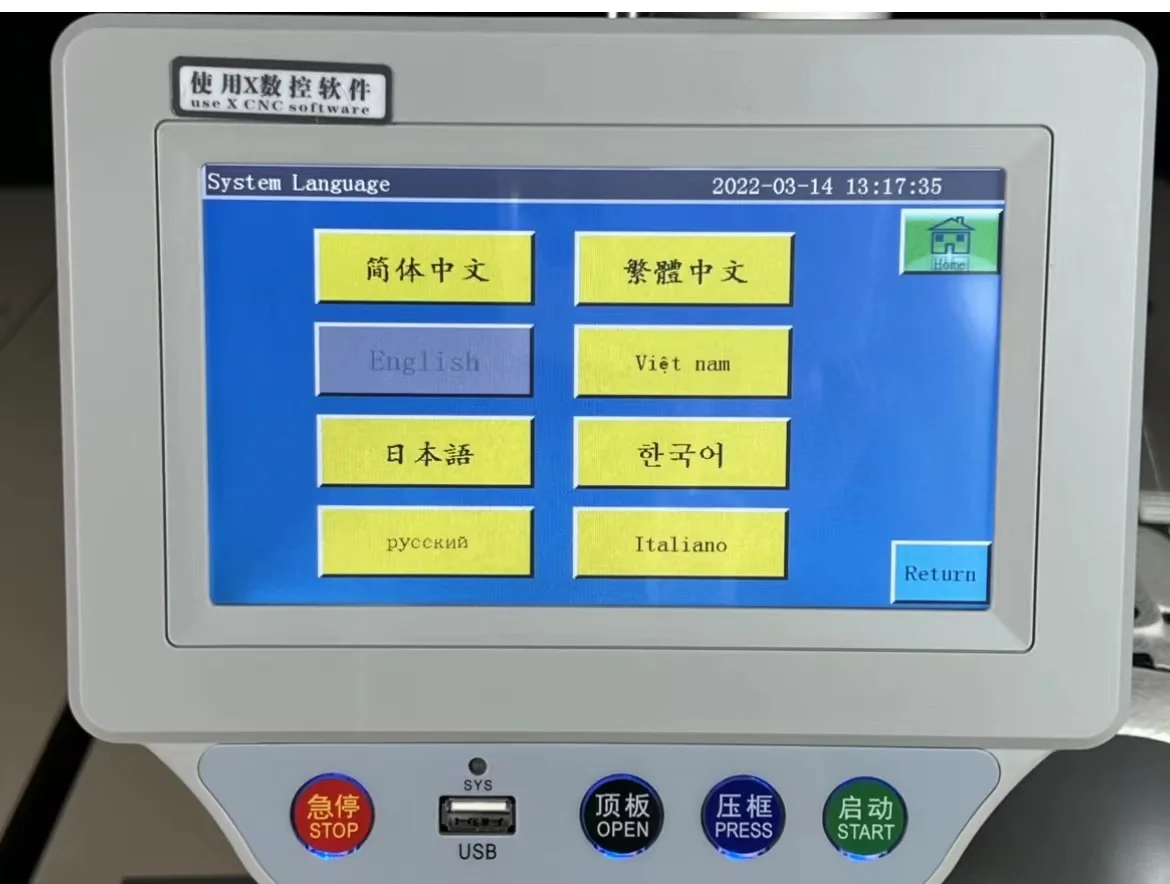

8) Equipped with eight languages
9) Smart touch operation panel,The operation panel supports U disk data transfer/ Read/Storage
10) loT capabilities required for smart factory(WIFI)

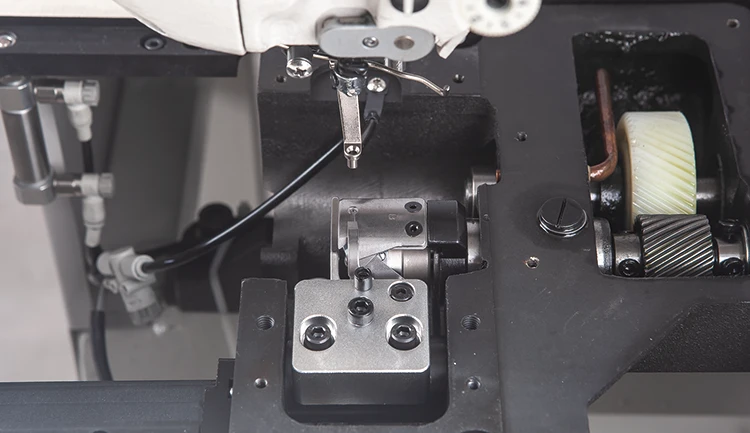

11) Imported twice as large hook, reducing the frequency of bottom thread replacement.
12) Circular knife thread trimming device
13) Bottom line detection, saving line and cloth.
14) With intelligent point and line drawing function
15) Optional super function
Laser cutting device
Products Model No: | JTK19F-1000A |
Product name | JUITA Brand Large Area Fully Automatic Pattern Template Sewing Machine |
Sewing range | X: 130cm Y: 100cm |
Transmission mode | Double screw |
Stitch type | Lockstitch form |
Speed | 200-3500 rpm (depend on the model, gauge, material,suture situation) |
Stitch length | 0.5mm - 12.7mm |
Needle type | DPx5 (#7-#24); DPx17(#11-#24) |
Hook | Imported twice large hook |
Storage of templates/pattern | From the original 999 upgrade to unlimited |
Program input device | PC USB data cable or U disk |
Program memory carrier | EPROM memory |
File format | DXF, PLT, AI, etc. |
Power supply | 220V |
System brand | X |
Gross weight | 700KG |
Volume | 220*132*138cm (LxWxH)- 4.000 CBM |
