B140QAN02.3 Original 14.0 Inch 2560x1440 Resolution Full Viewing Angle with eDP 40 Pins LCD Display Screen for Laptop
- Category: >>>
- Supplier: Shenzhen Youritech Technology Co. Limited
Share on (1600515581654):
Product Overview
Description
Products Description

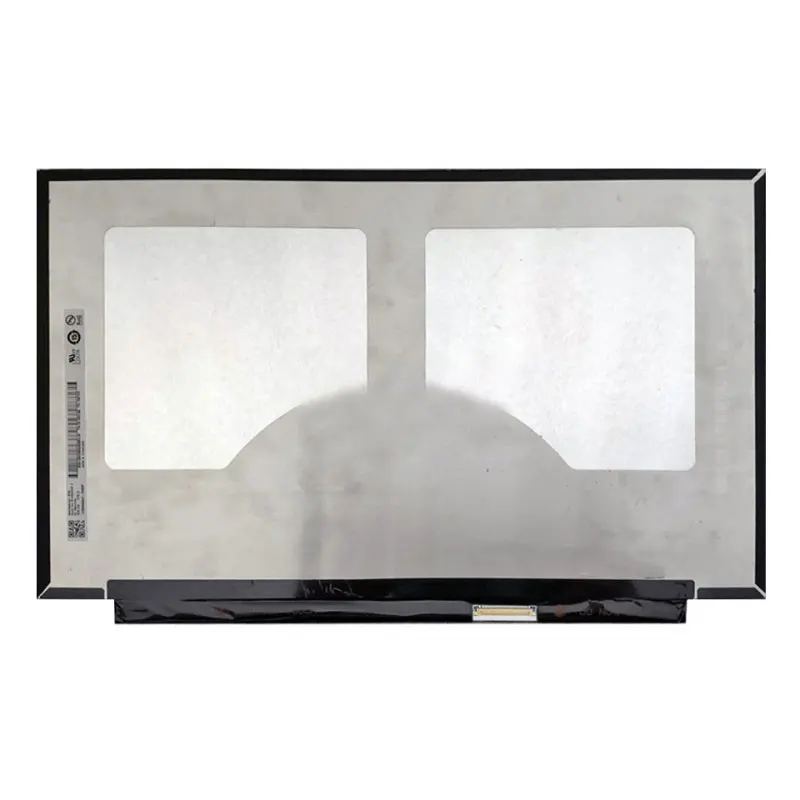

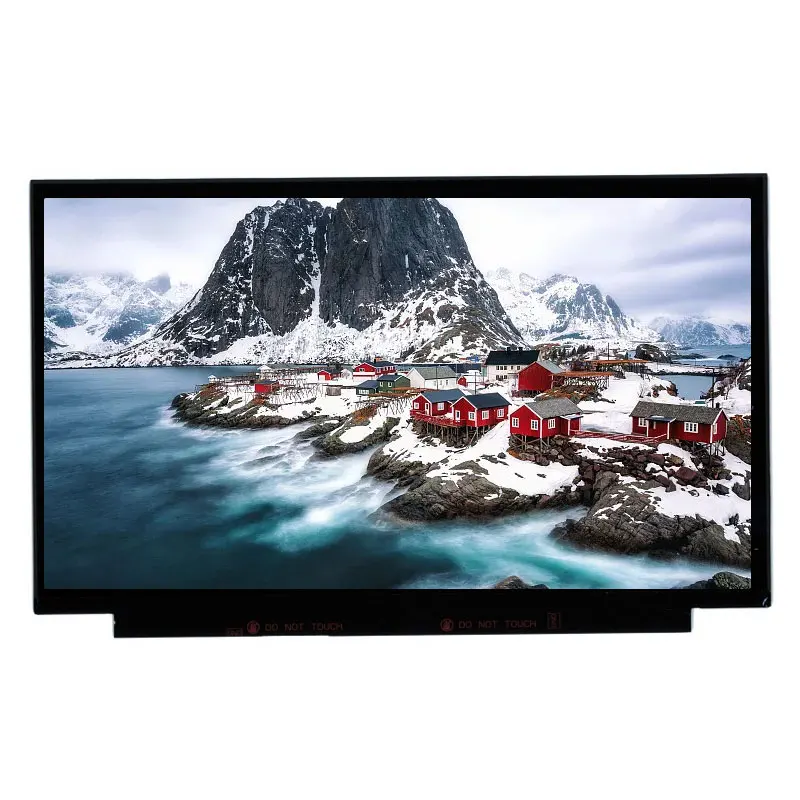

B140QAN02.3 Original 14.0 Inch 2560(RGB)*1440 Resolution Full Viewing Angle with eDP 40 Pins LCD Display Screen for Laptop
Product Paramenters
LCD SPECIFICATION | ||||||||||||
Panel Size | 14.0" | Panel Type | LTPS TFT-LCD, LCM | |||||||||
Pixel Number | 2560(RGB)×1440 (Quad-HD) 210PPI | Configuration | RGB Vertical Stripe | |||||||||
Active Area(mm) | 309.35 × 174.01 (H×V) | Outline(mm) | 315.05(H)×195.6(V) ×2.4(D) mm | |||||||||
Bezel Area(mm) | - | Treatment | Antiglare, Hard coating (3H) | |||||||||
Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) | |||||||||
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |||||||||
View Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) ms | |||||||||
Support Color | 16.7M 98% sRGB | Backlight | WLED , 15K hours , With LED Driver | |||||||||
Shape Style | Slim (PCBA Flat, T≤3.2mm) | Used for | Laptop | |||||||||
Frame Rate | 60Hz | Touchscreen | Without | |||||||||
Signal Interface | eDP (4 Lanes) , eDP1.3 , 40 pins Connector | |||||||||||
Input Voltage | 3.3V (Typ.) | |||||||||||
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | |||||||||||
Company Profile
FAQ
1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
