5 inch 720x1280 dot module with plug in 35 pins IPS panel MIPI DSI interface TFT LCD display screen
- Category: >>>
- Supplier: Shenzhen Osprey Optoelectronics Technology Co. Ltd.
Share on (1600515586865):
Product Overview
Description
Product Description

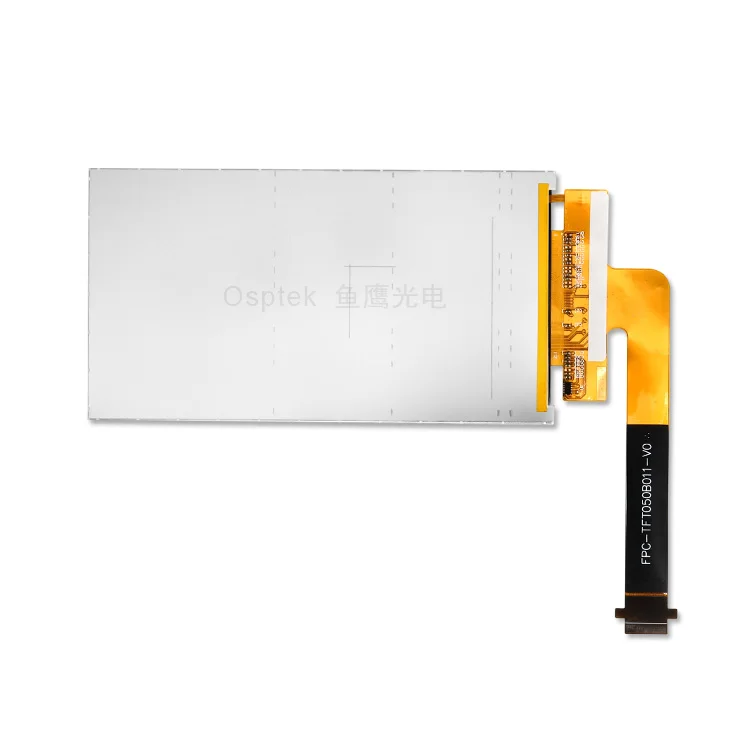

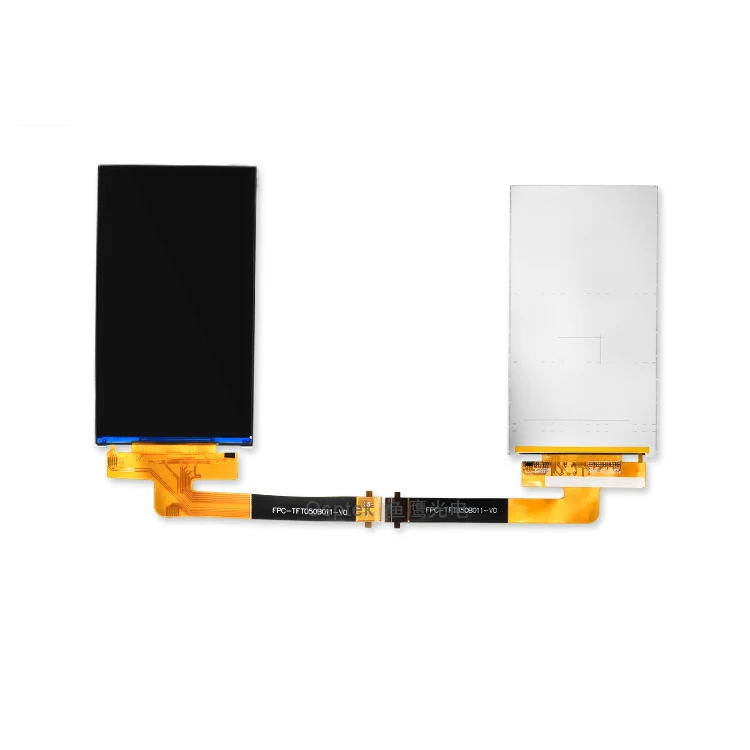

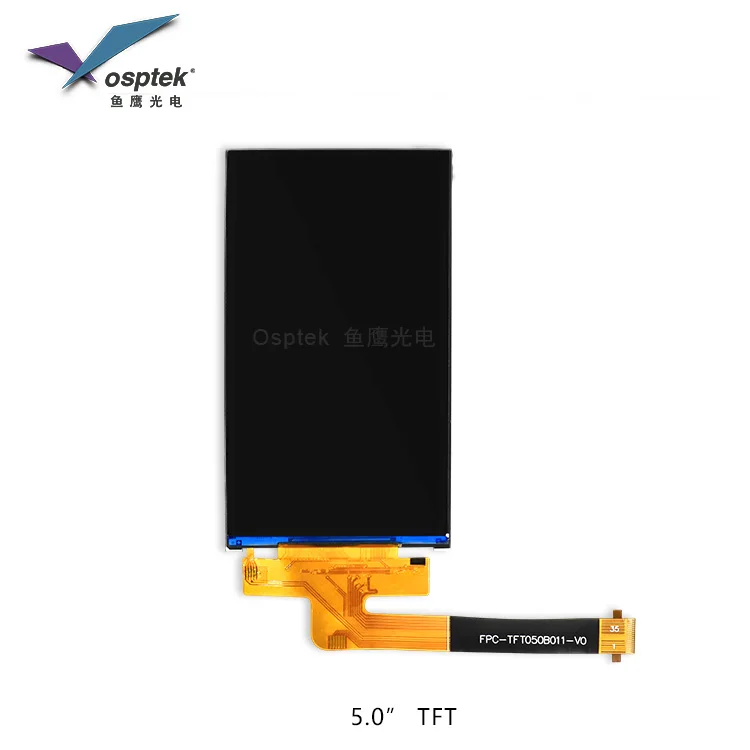

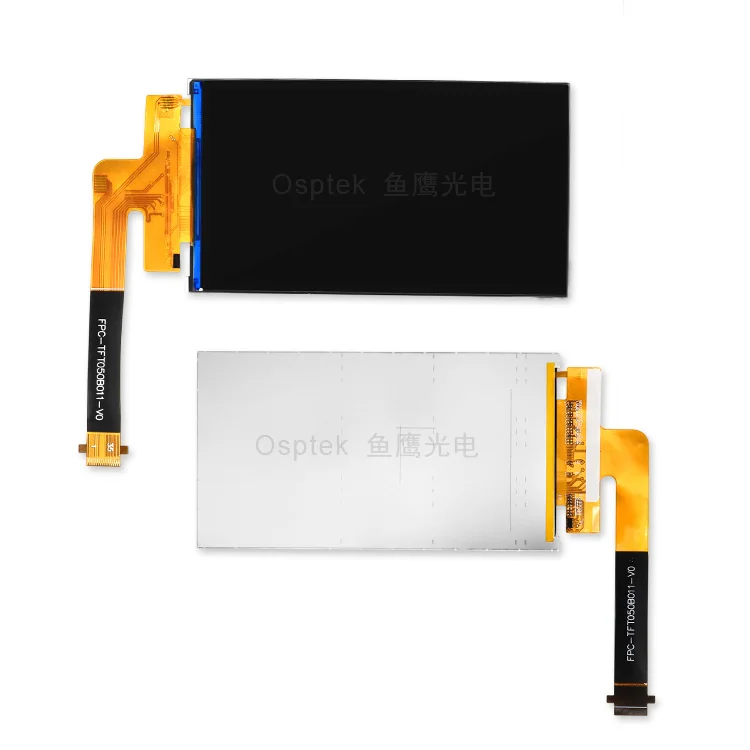

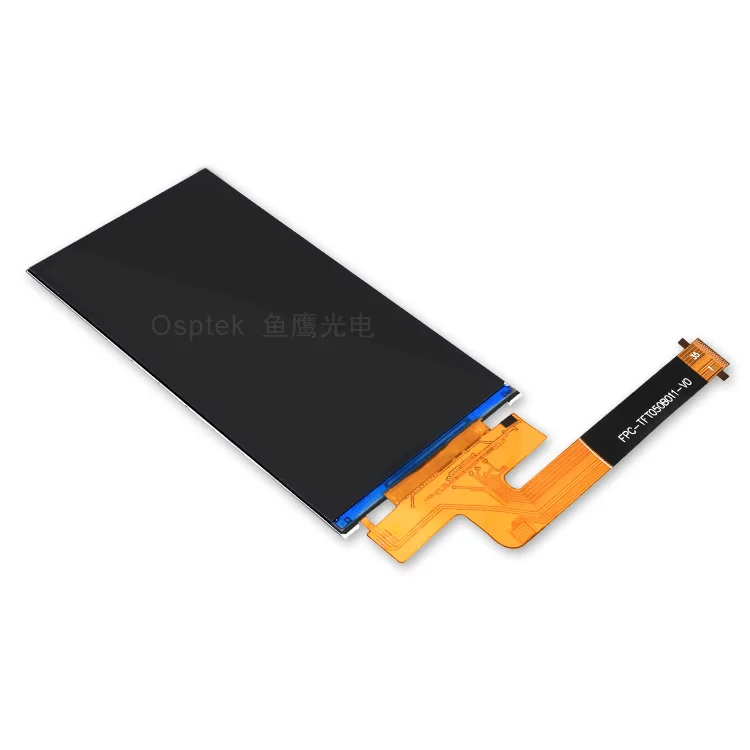

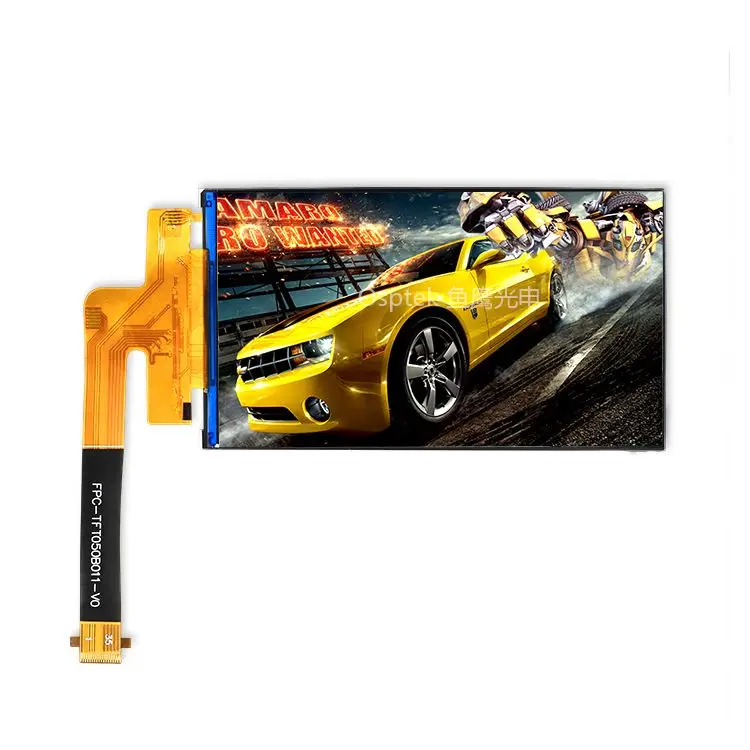

1.PRODUCT DISPLAY
2.MECHANICAL DATA
NO | ITEM | SPCIFICATION | UNIT |
1 | Display Type | TFT | |
2 | LCD Size | 4.96 | Inch |
3 | Panel Type | IPS | - |
4 | Resolution | 720RGBx1280 | Pixel |
5 | Display Mode | Normally Black | - |
6 | Number of Colors | 16.7 | M |
7 | Viewing Direction | ALL | - |
8 | Contrast Ratio | 1000 | - |
9 | Luminance | 350 | cd/m2 |
10 | Module Size | 64.6(H)x118.5(V)x2.92(D) | mm |
11 | Active Area | 61.78x110.42 | mm |
12 | Pixel Pitch | 0.0858x0.0858 | mm |
13 | Pixel Arrangement | RGB stripe | - |
14 | With / Without TP | Without TP | - |
15 | Driver IC | ILI9881C | - |
16 | TP IC | - | - |
17 | Light Source | 12 LED | - |
18 | Interface | MIPI-DSI | - |
19 | Connection Type | 35 pin FPC | |
20 | Operating Temperature | -20~+70 | ℃ |
21 | Storage Temperature | -30~+80 | ℃ |

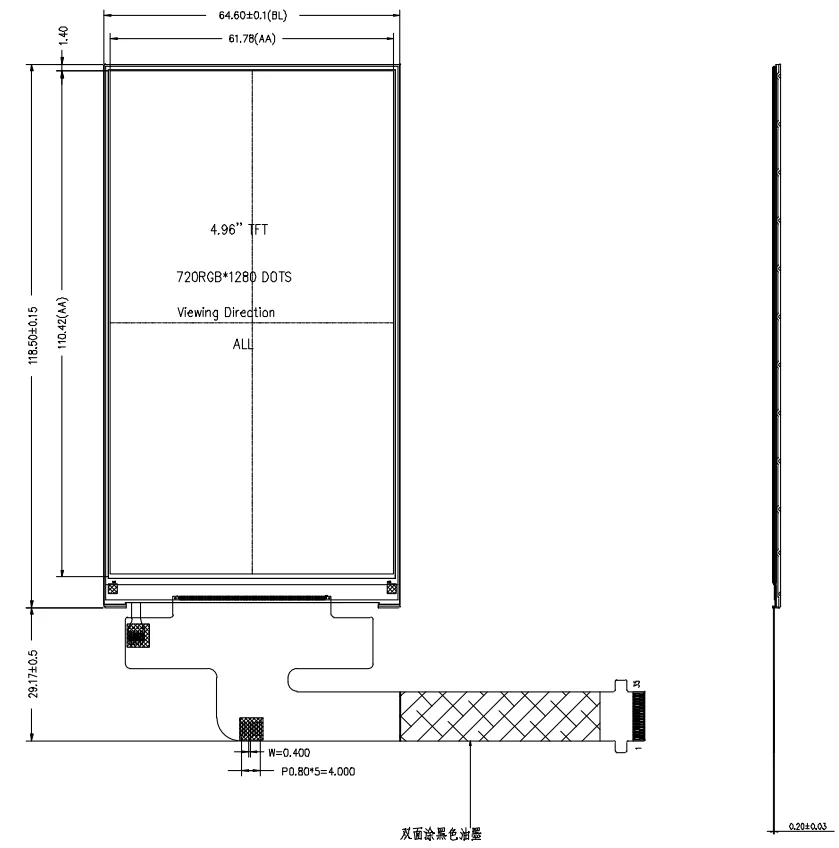

3.EXTERNAL DIMENSION

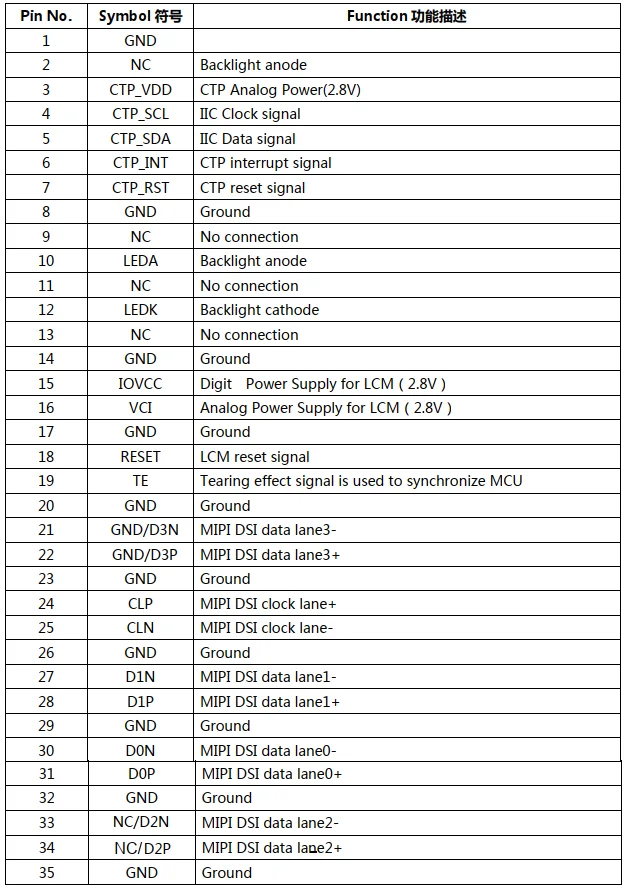

4.PIN ASSIGNMENTS
