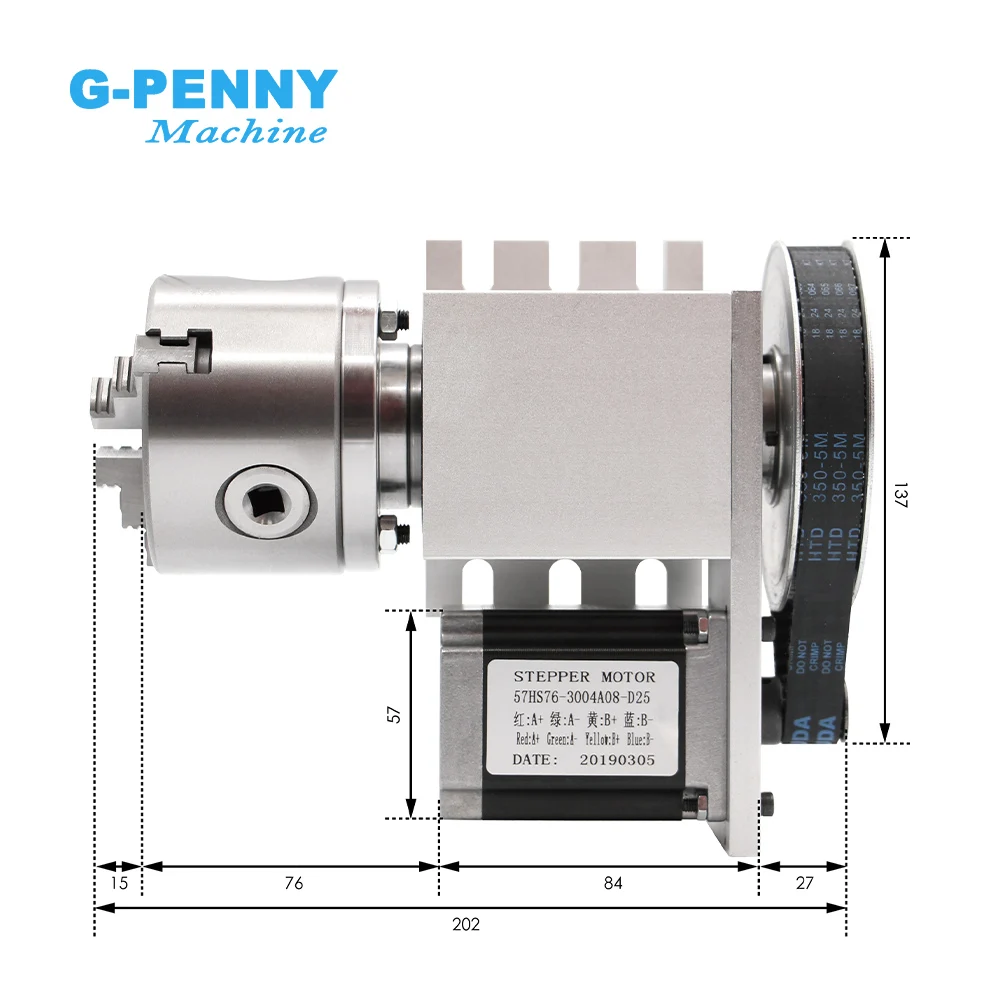

4th Axis 3/4Jaw 80mm NEMA23 dividing head/Rotation Axis/Aaxis kit
- Category: >>>
- Supplier: Suzhou Penny Machinery Equipment Co. Ltd.
Share on (1600515591121):
Product Overview
Description

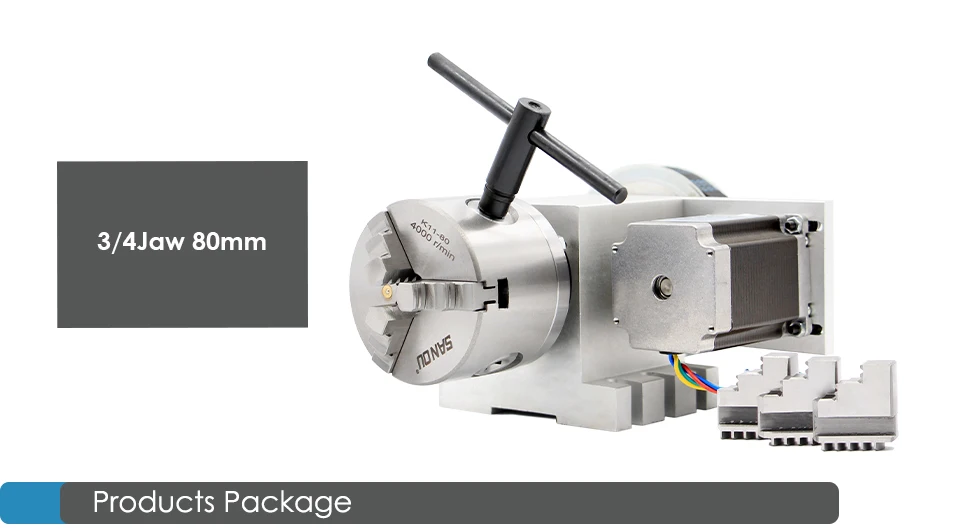

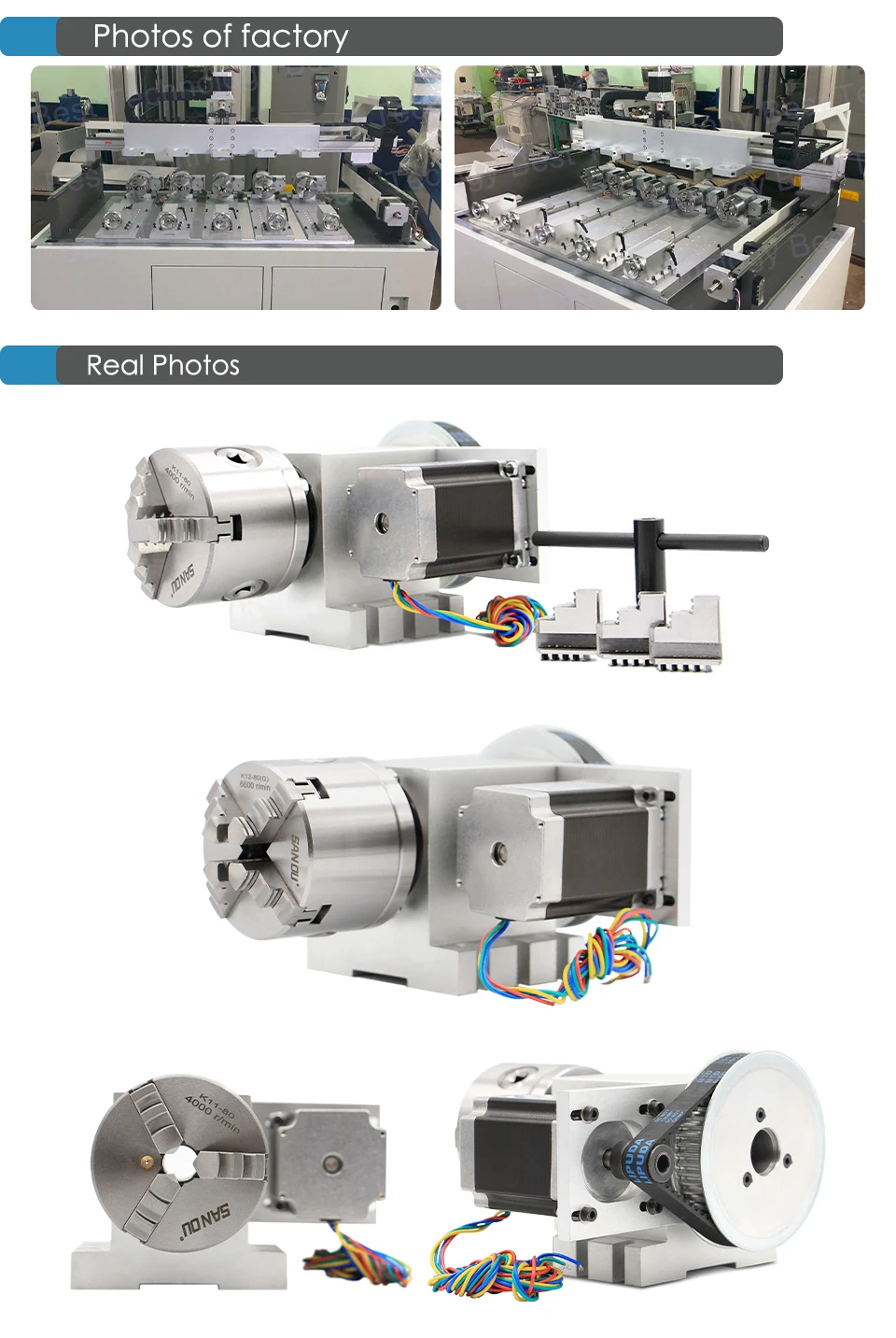

1 pcs -- 4th Axis 80mm 3/4 Jaw Chuck ( Positive jaw and counter jaw )

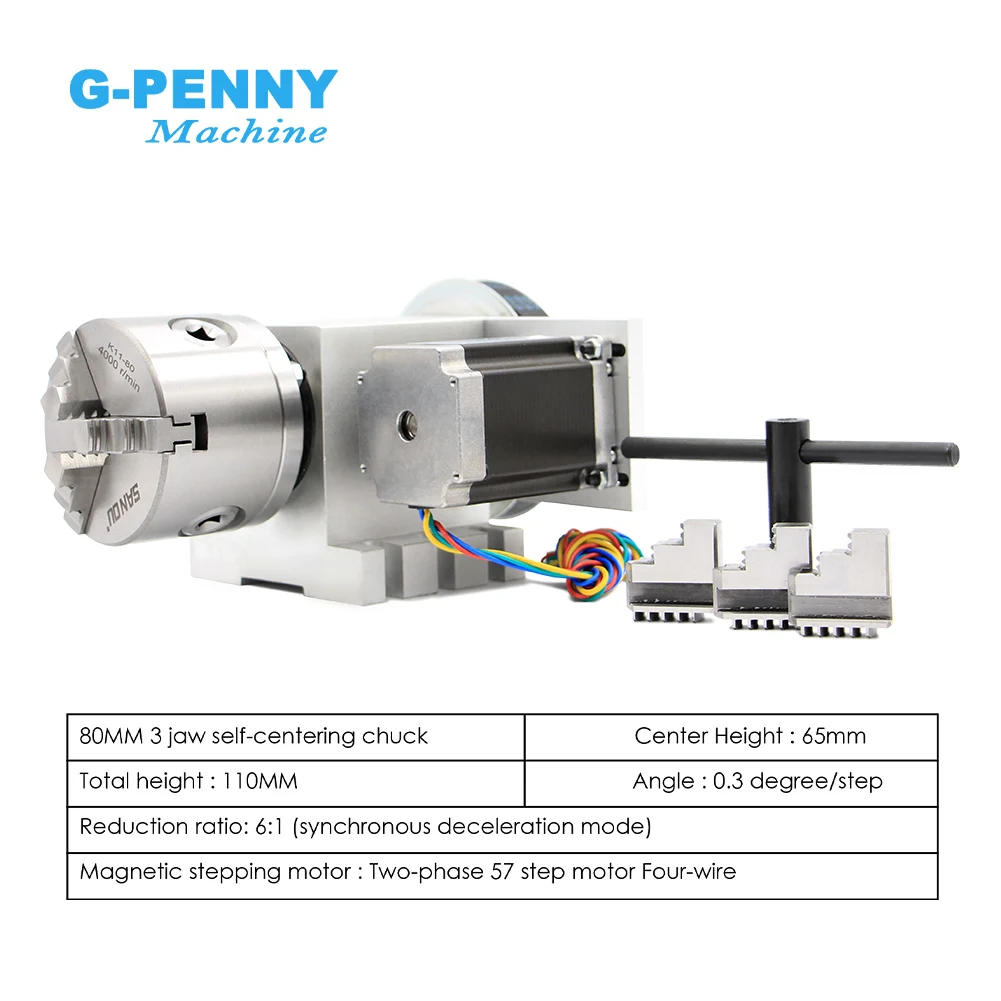

* 80MM three/four jaw self-centering chuck

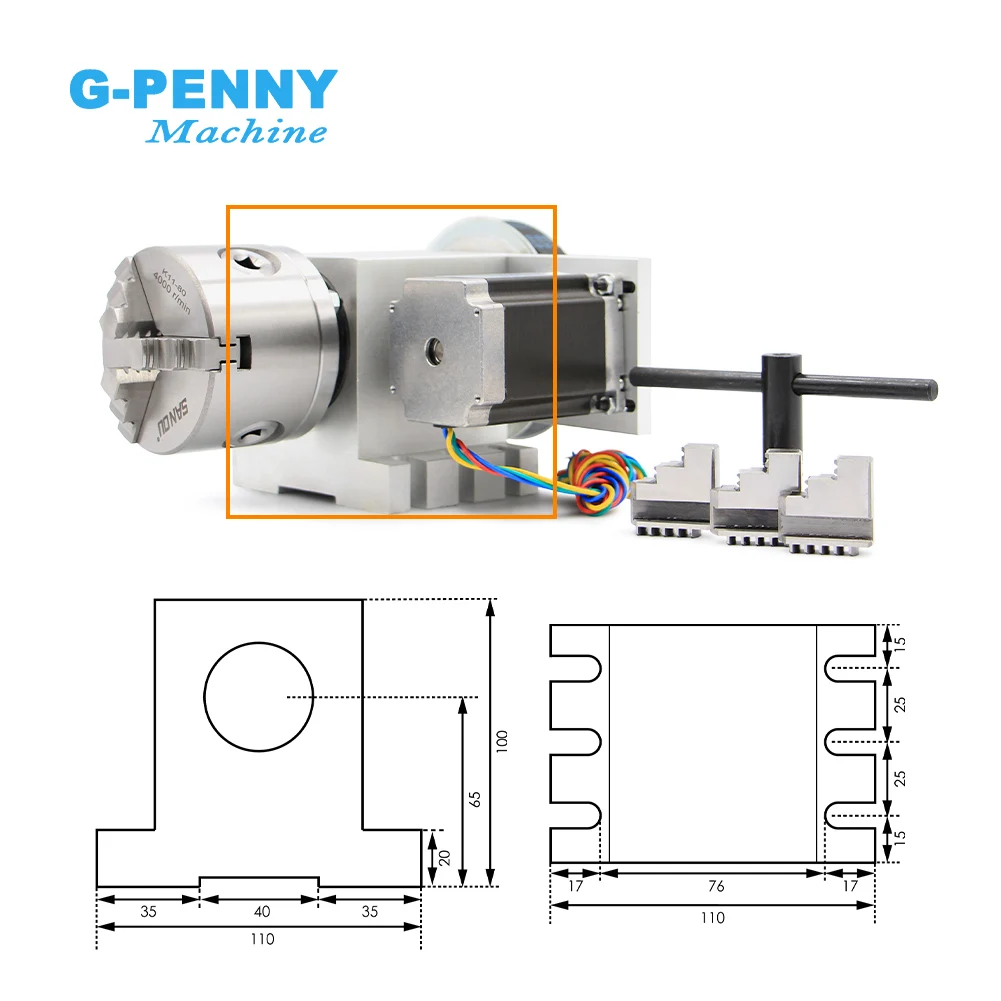

* Center Height 65mm
* Total height, 110MM
* Angle, 0.3 degree/step
* Reduction ratio:6:1 (synchronous deceleration mode)
* Magnetic stepping motor: Two-phase 57 step motor Four-wire
* Center Height 65mm
* Total height, 110MM
* Angle, 0.3 degree/step
* Reduction ratio:6:1 (synchronous deceleration mode)
* Magnetic stepping motor: Two-phase 57 step motor Four-wire

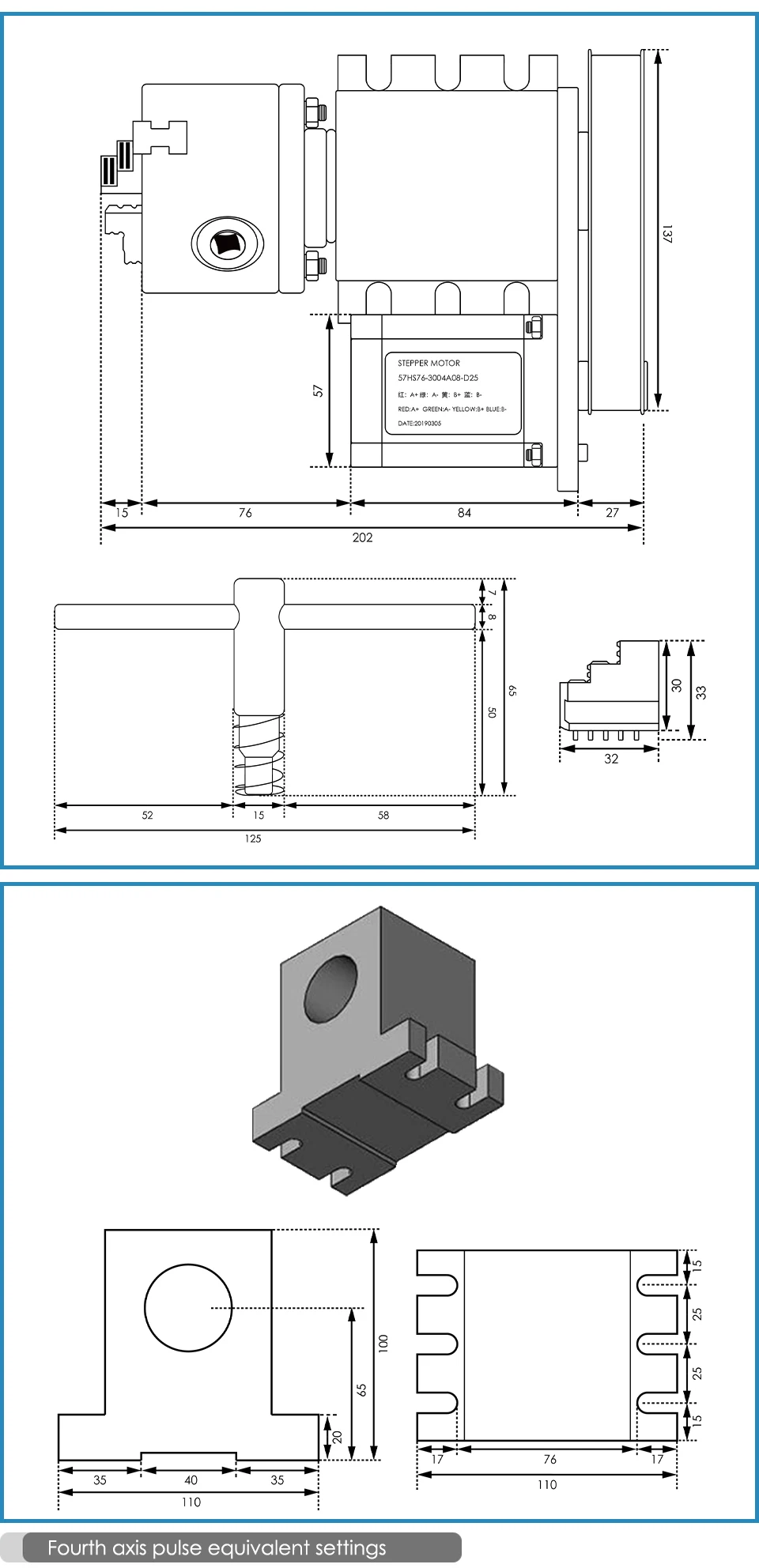

The Mach3 system settings: the pulses for 1 required:
( the motor 1 Circle of pulse number × the drive of subdivision number × reduction ratio) ÷ 360 degrees
For example, the two-phase 57 motor, the ubdivision number 16, the reduction ratio 50:1
(200 × 16 × 50) ÷ 360 = 444.44444444)
Ncstudio system settings: the angle of a pulse walking:
360 ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
For example: the two-phase 57 motor, the breakdown of the number 16, reduction ratio 50:1
360 ÷ (200 × 16 × 50) = 0.00225
X or Y axis instead of the algorithm is:
Circumference ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
Engraving different sizes of round bars, equivalent needs to be set.
( the motor 1 Circle of pulse number × the drive of subdivision number × reduction ratio) ÷ 360 degrees
For example, the two-phase 57 motor, the ubdivision number 16, the reduction ratio 50:1
(200 × 16 × 50) ÷ 360 = 444.44444444)
Ncstudio system settings: the angle of a pulse walking:
360 ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
For example: the two-phase 57 motor, the breakdown of the number 16, reduction ratio 50:1
360 ÷ (200 × 16 × 50) = 0.00225
X or Y axis instead of the algorithm is:
Circumference ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
Engraving different sizes of round bars, equivalent needs to be set.

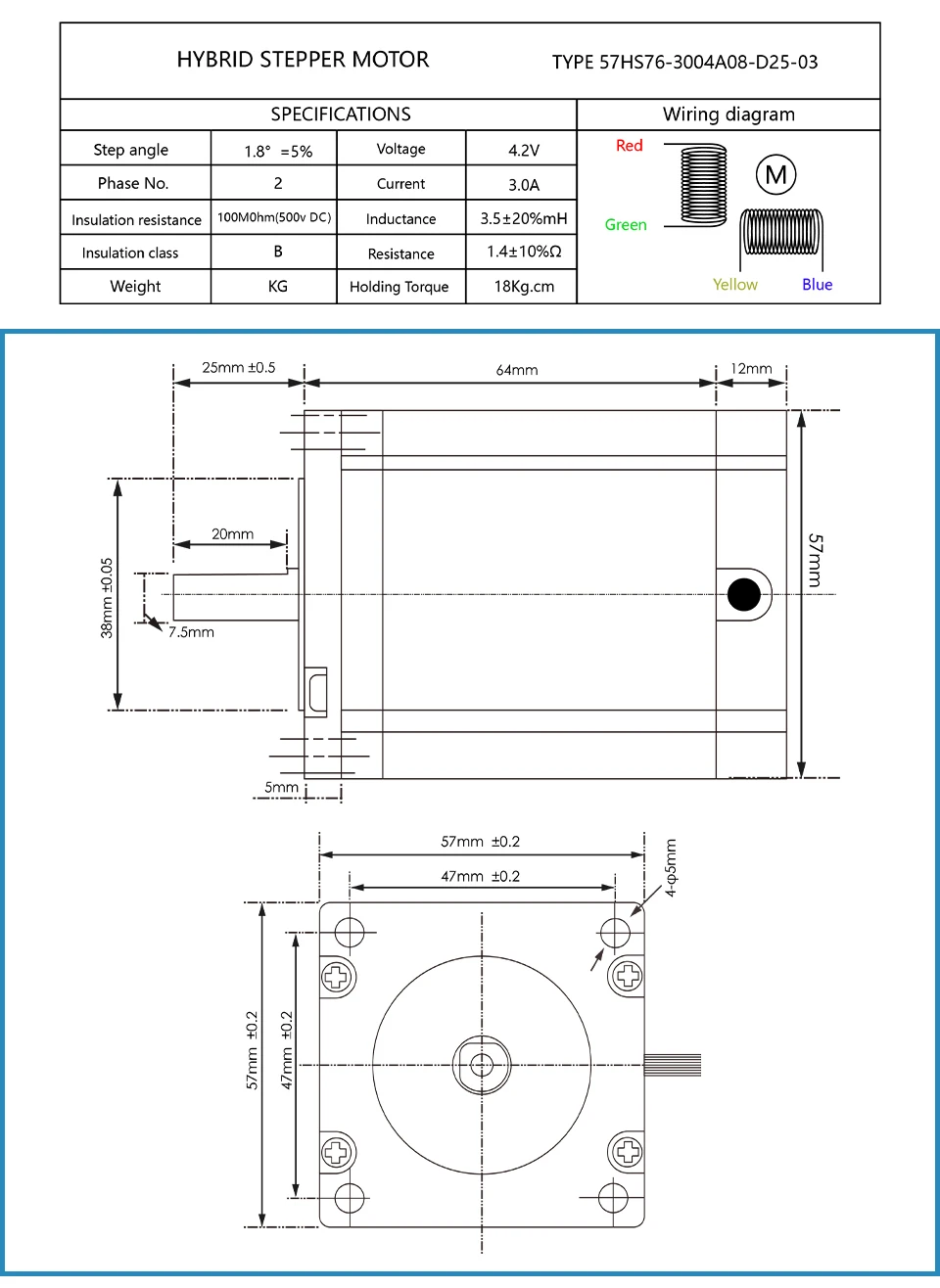

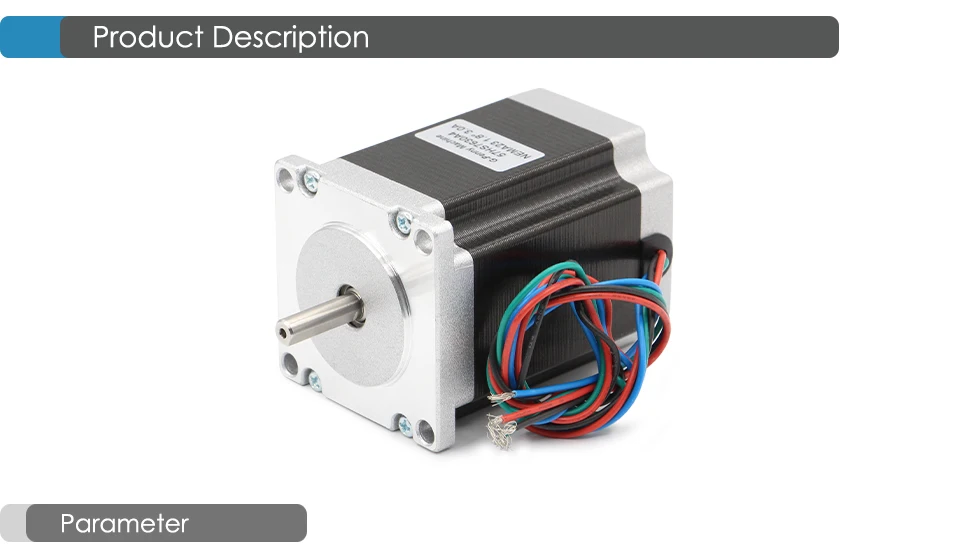

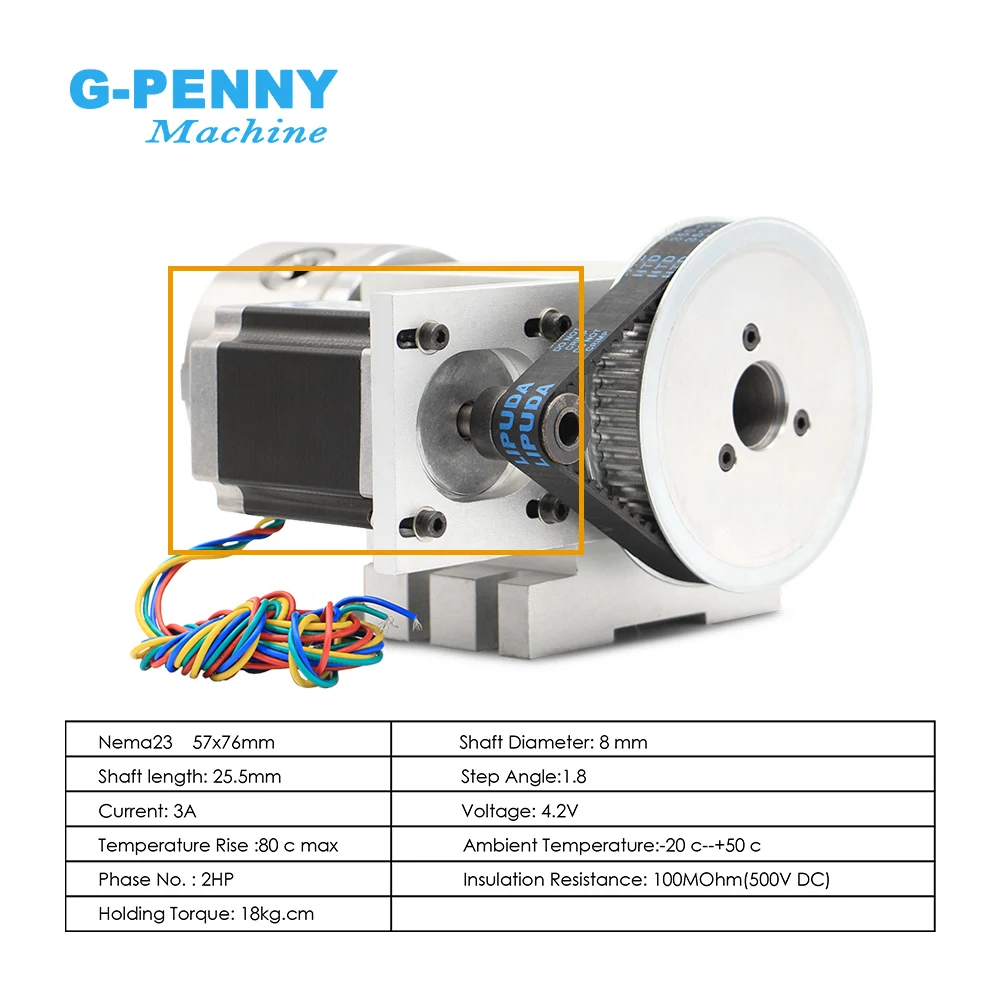

* Nema23 57x76mm
* Shaft Diameter: 8 mm
* Shaft length: 25.5mm
* Step Angle:1.8
* Current: 3A
* Voltage: 4.2V
* Temperature Rise :80 c max
* Shaft Diameter: 8 mm
* Shaft length: 25.5mm
* Step Angle:1.8
* Current: 3A
* Voltage: 4.2V
* Temperature Rise :80 c max
Ambient Temperature | -20 c--+50 c |
Phase No. | 2HP |
Insulation Resistance | 100MOhm(500V DC) |
Holding Torque | 18kg.cm |

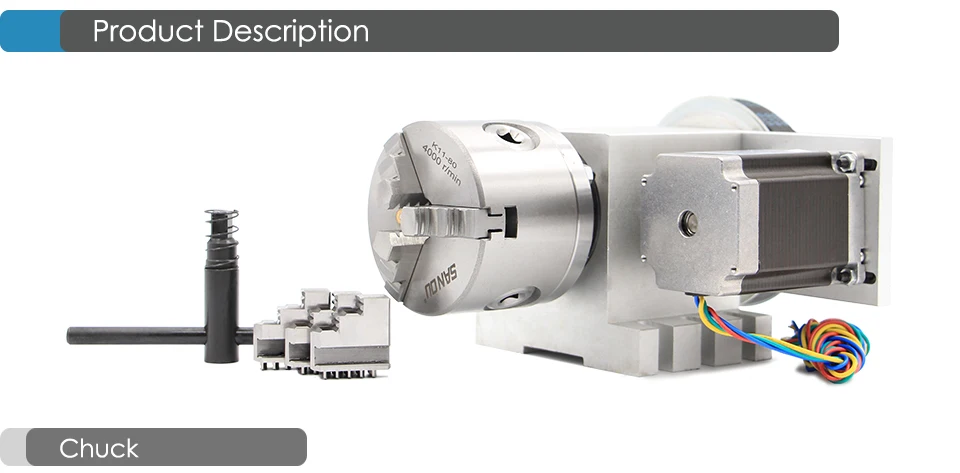

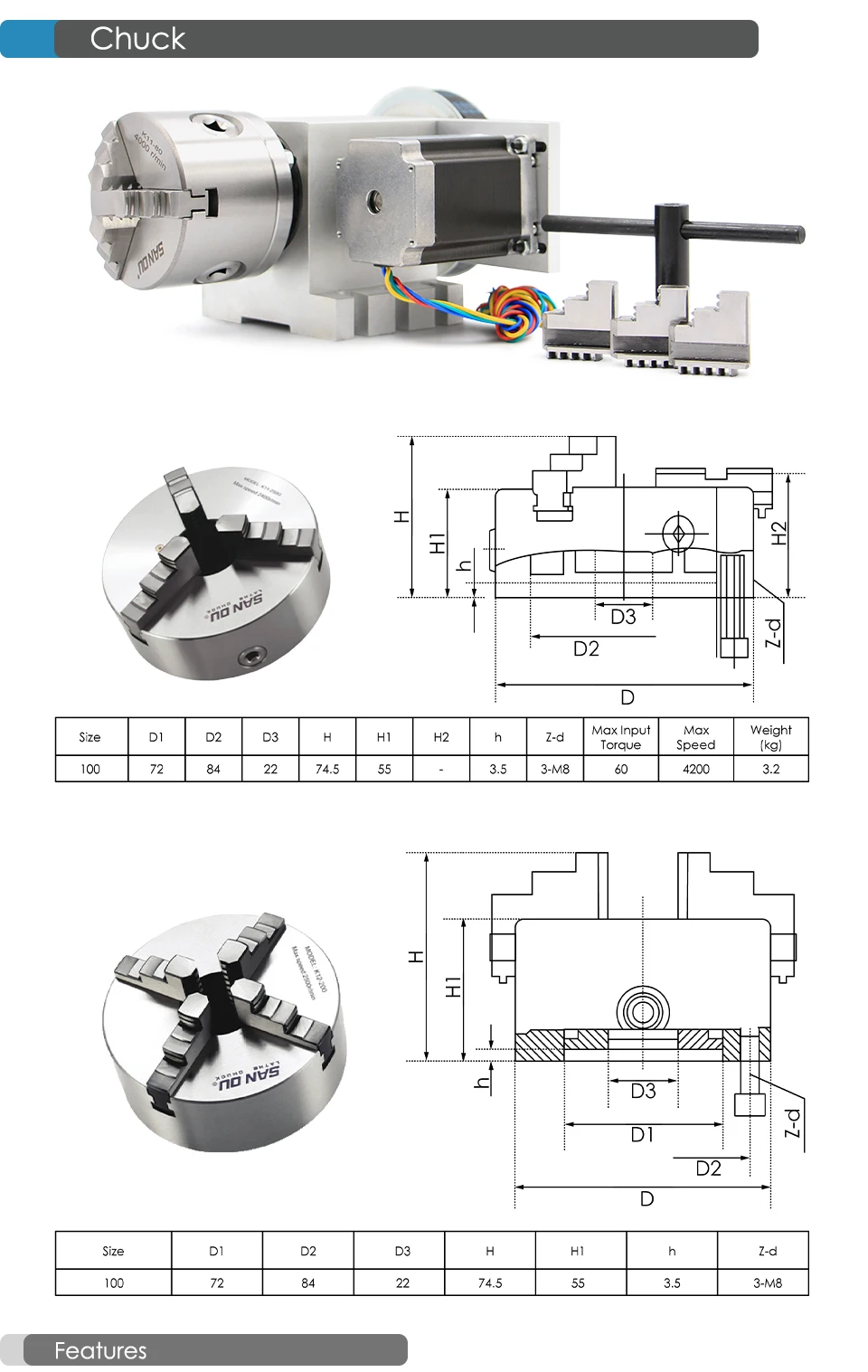

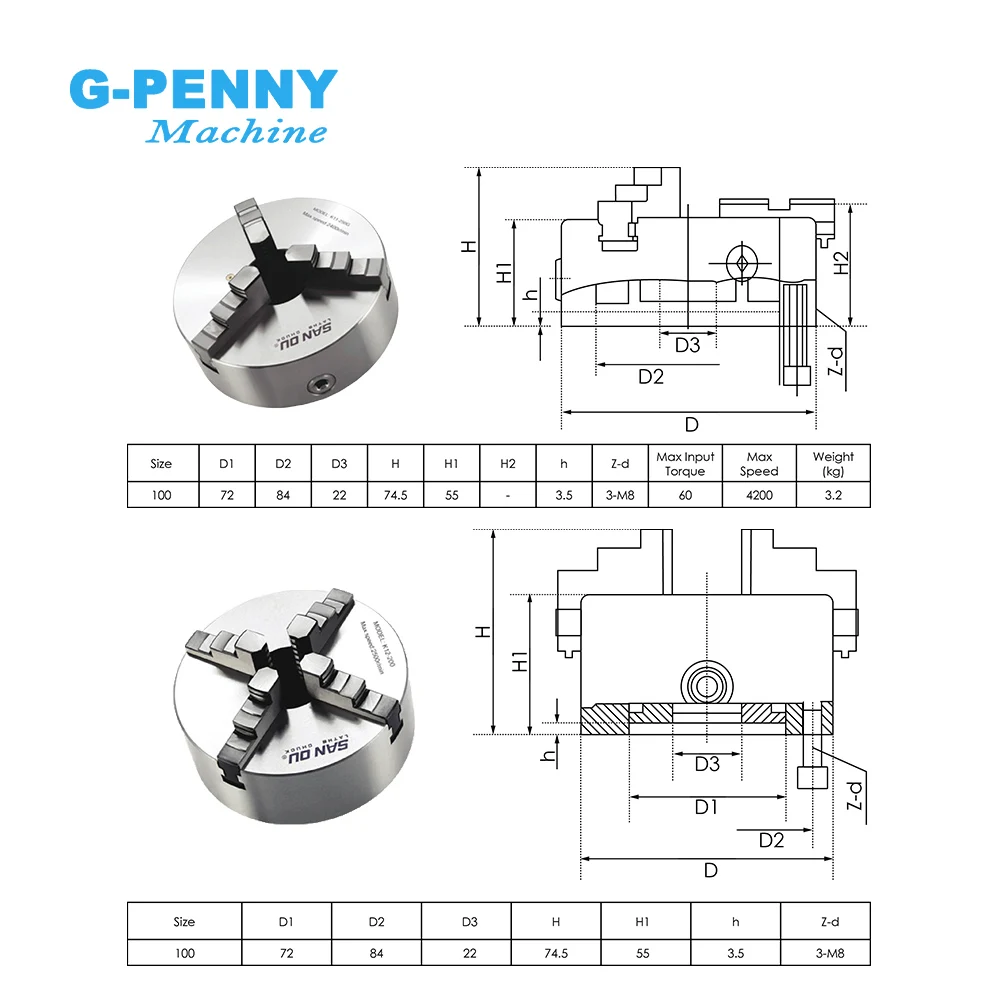

1.Short cylindrical center mounting.
2.Model K12 chucks are provided with one-piece.Jaws (which include a set of intermal jaw and a set of external ones).
3.The jaws for K12A.K12C and K12D chuck are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment.
4.The jaws for K12A and K12D chucks conform to ISO3442 standard.
5.Model K12C chucks are supplied with traditional two-piece jaws.
6.We can provide all kinds of soft jaws.
7.As requested, we can provide chucks mounted from front.
2.Model K12 chucks are provided with one-piece.Jaws (which include a set of intermal jaw and a set of external ones).
3.The jaws for K12A.K12C and K12D chuck are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment.
4.The jaws for K12A and K12D chucks conform to ISO3442 standard.
5.Model K12C chucks are supplied with traditional two-piece jaws.
6.We can provide all kinds of soft jaws.
7.As requested, we can provide chucks mounted from front.
