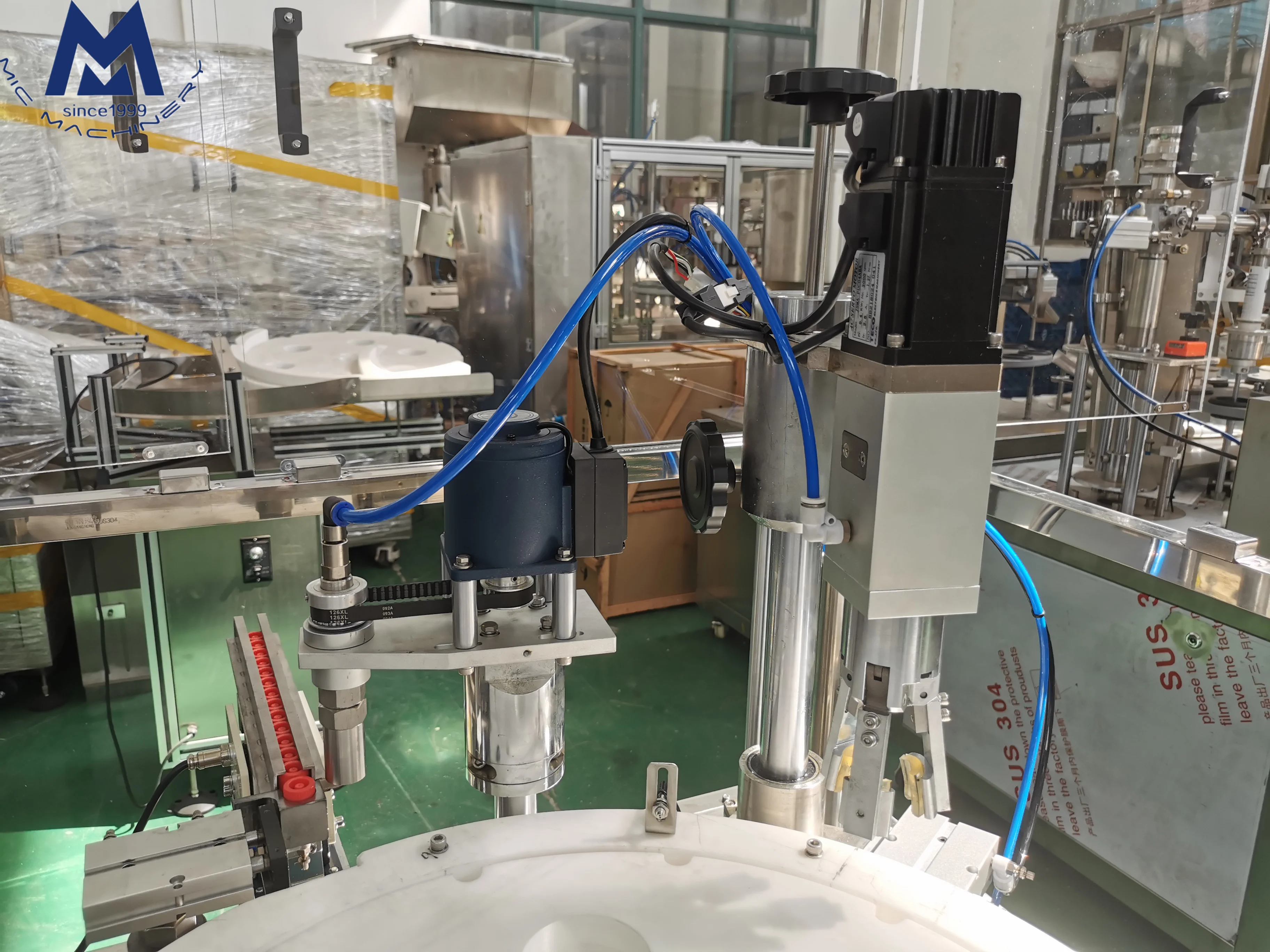

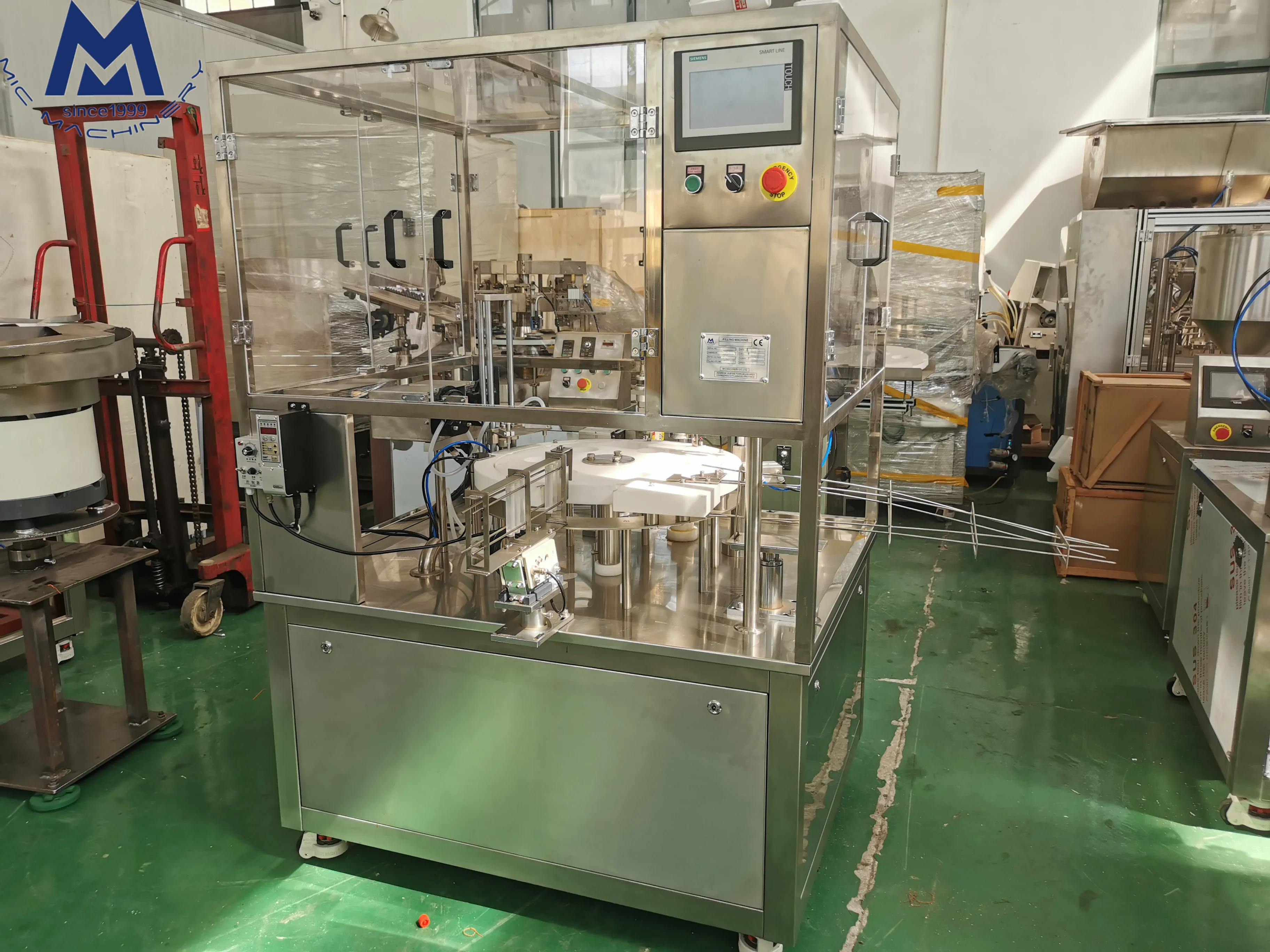

Automatic small vials antigen and capping test reagent tube pharmaceutical filling machine

Share on (1600515592280):


Price:$10,000.00 - $15,000.00

Quantity:


Product Overview

Description



PRODUCT DESCRIPTION




This machine is mainly available to fill test liquid into various round plastic tubes with the filling range from 1-10ml.

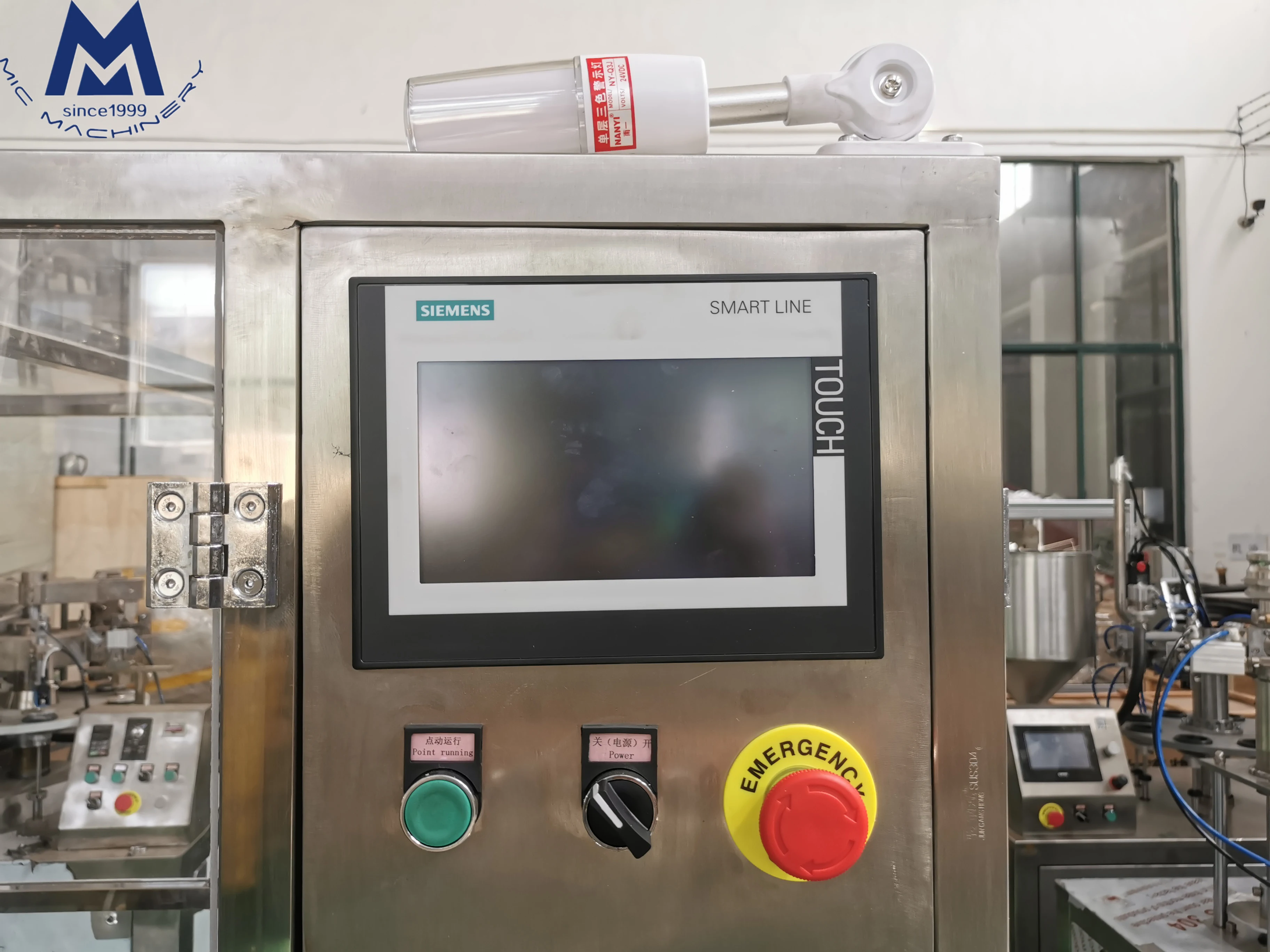

High precision swing up and down CAM provides a regular plate to position and pick up cap; constant rotate arm screws caps by servo motor; peristaltic pump to fill the liquid with adjustable volume; touch screen controls all action. No bottle no filling and no capping. If there is no cap in the bottle, it must not capping until having been detected cap in the bottle. The machine with advantage of high position.
The main functions are: Empty tube loading--filling--put outer cap--screw capping--finished output.


PRODUCT PARAMETER




Target Products

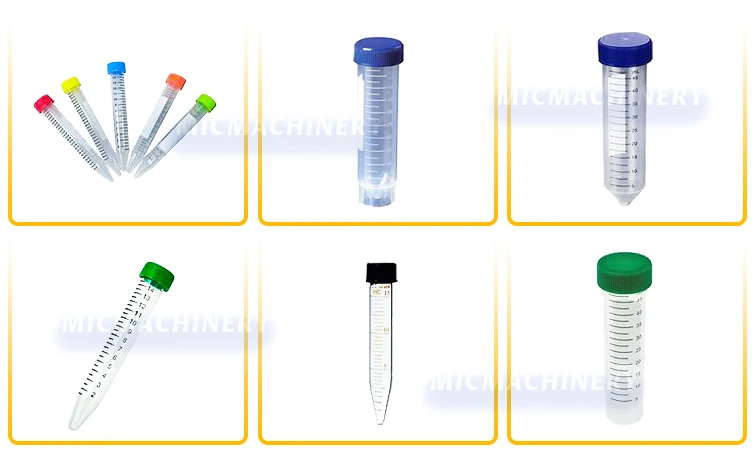

Test tube / centrifuge tube
Filling speed
20-40 PCS / minute
Power
AC 220V 50-60Hz / 750w
Air range
0.5-0.7Mpa
Filling pump
peristaltic pump, with ±0.5% accuracy


PRODUCT APPLICATION

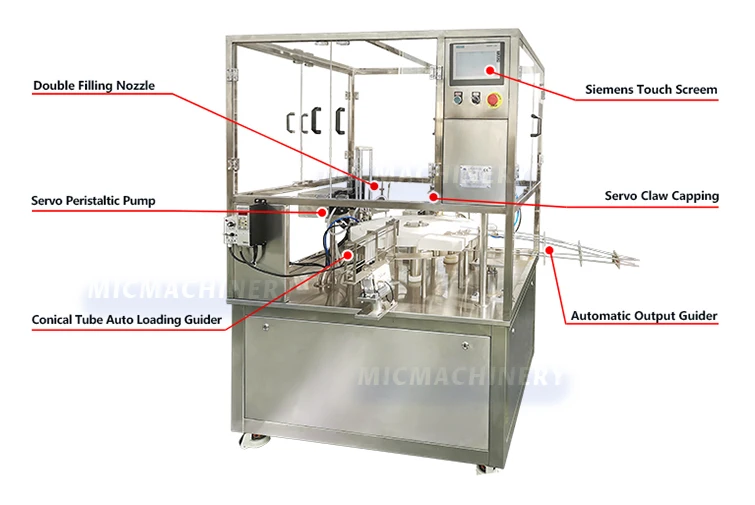

DETAILED IMAGES

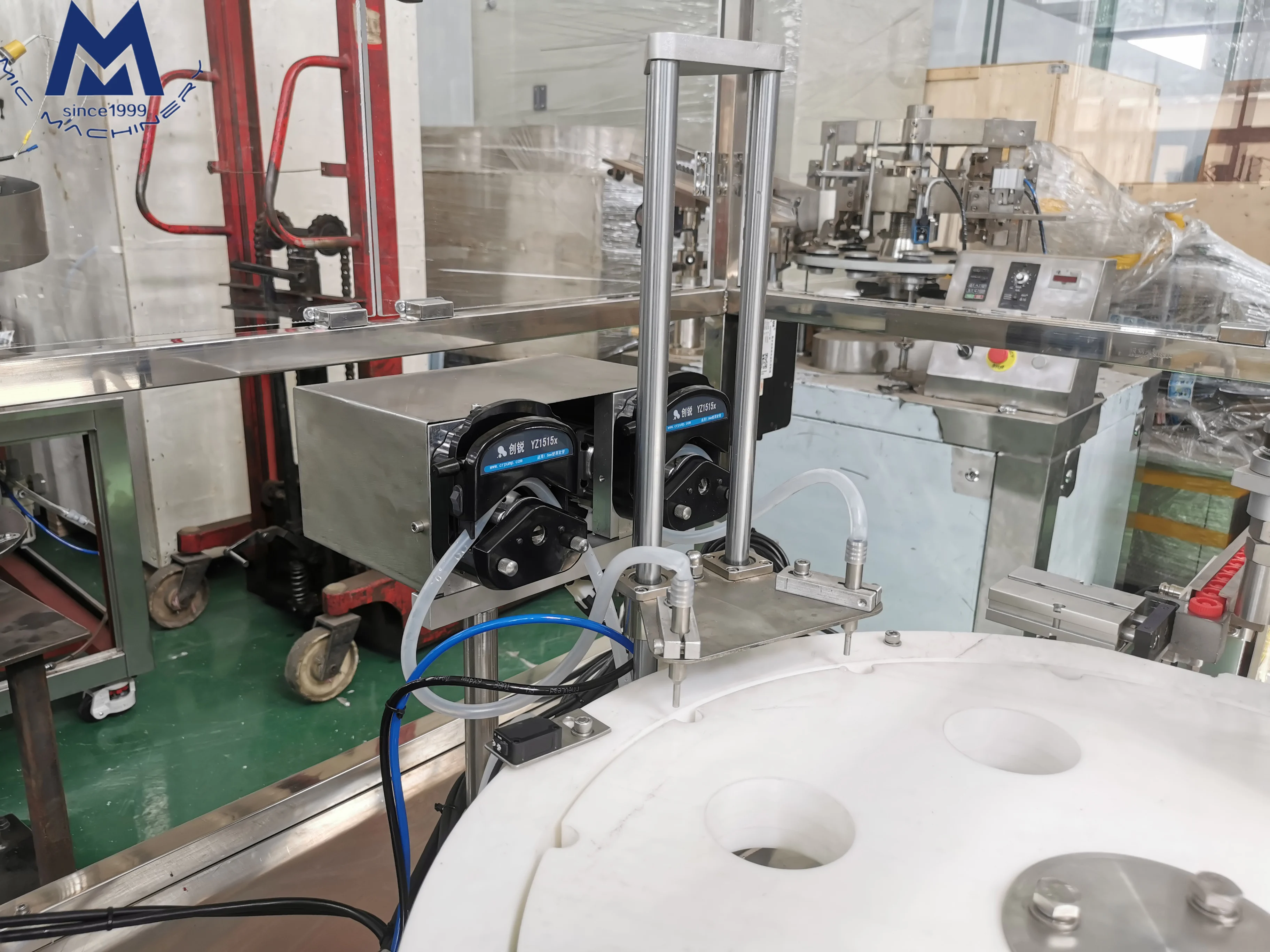

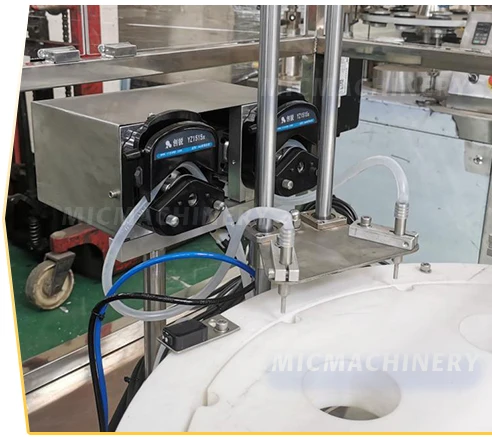

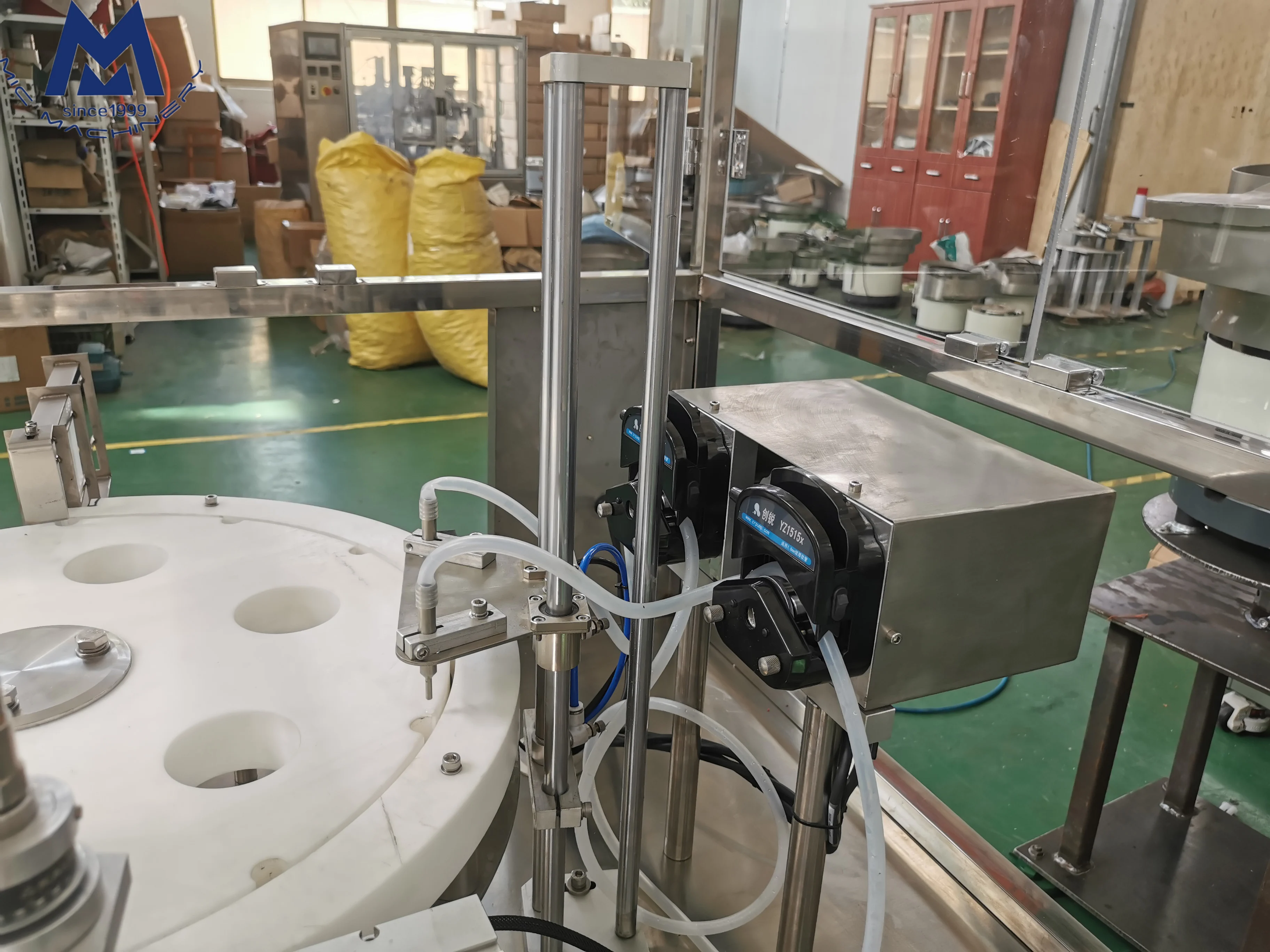

Automatic filling system
Adopts peristaltic pump filling system which has the function of diving filling. The filling nozzle will rising with the liquid level rising. And keep very high filling precision.







Cap loading system
Adopt a swing lifting cam to control the cap pick up and placing on the bottles. This updated cap loading system has more stable features than the air cylinder controlling.

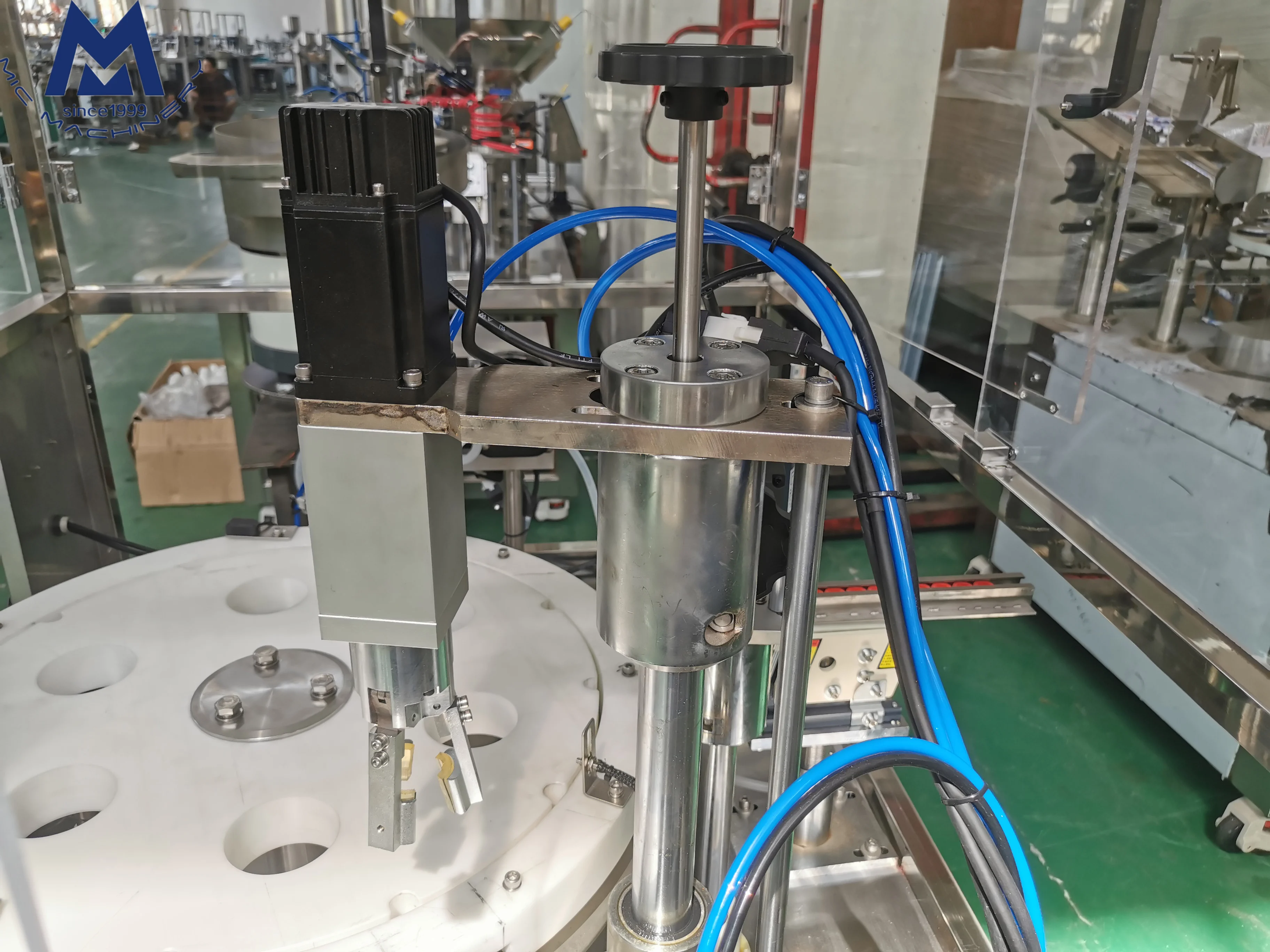

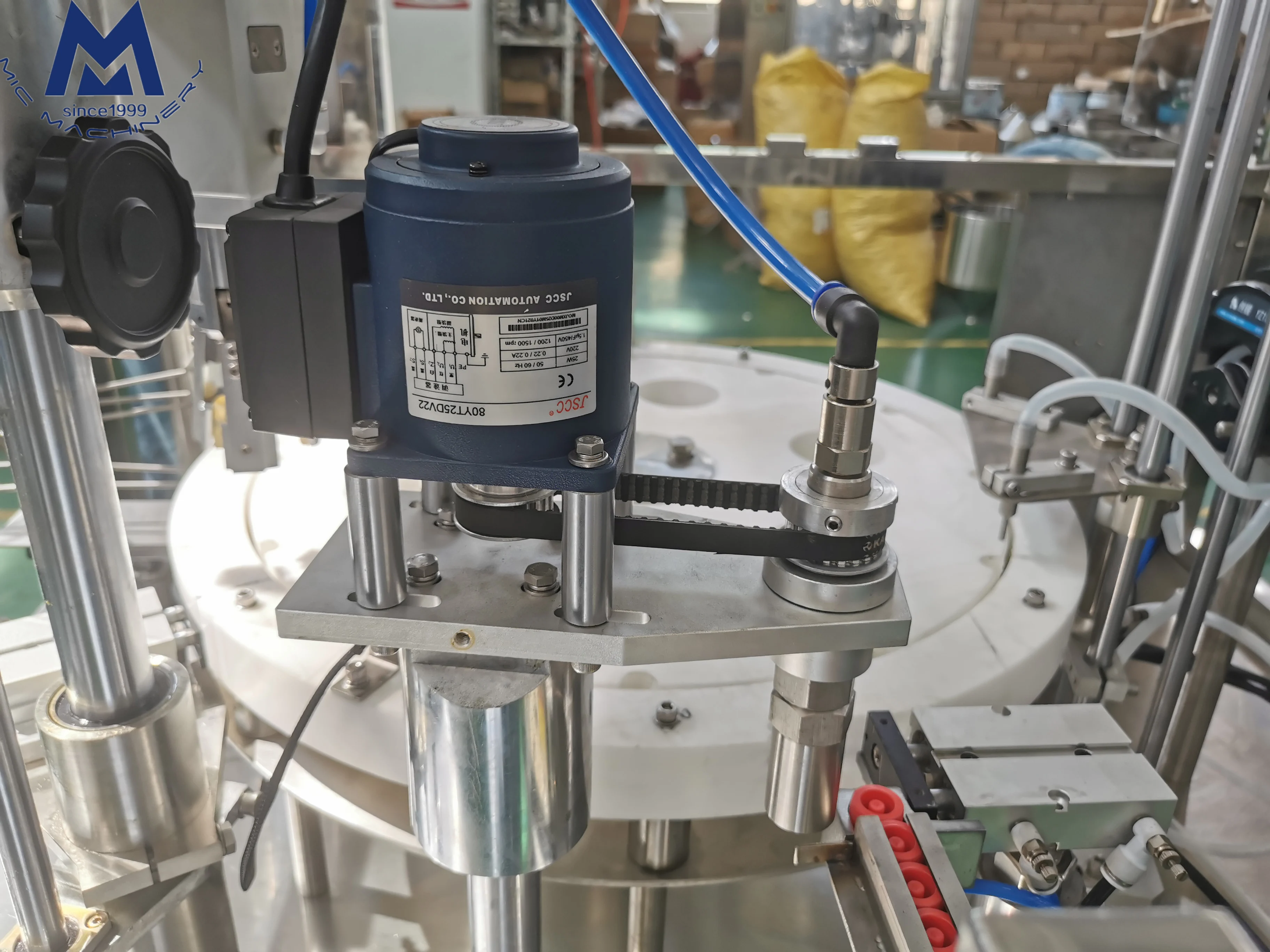

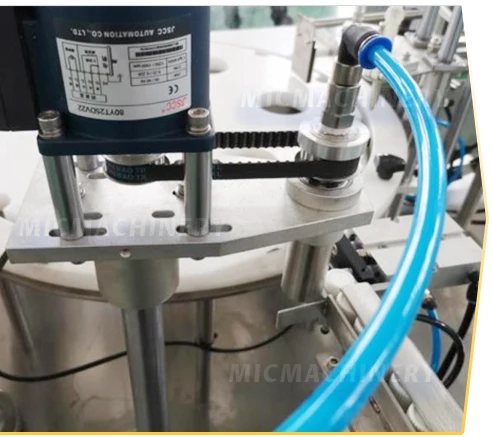

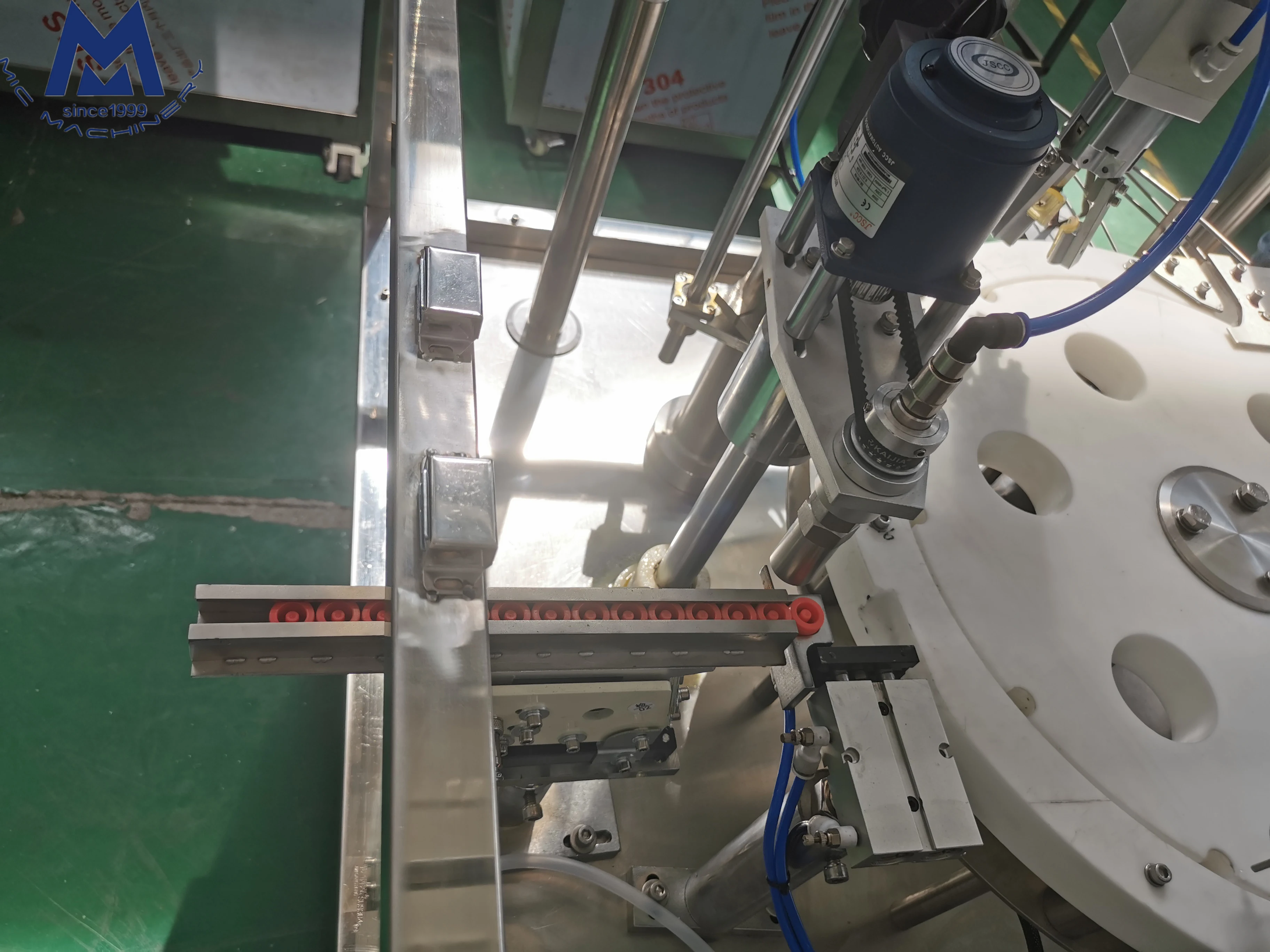

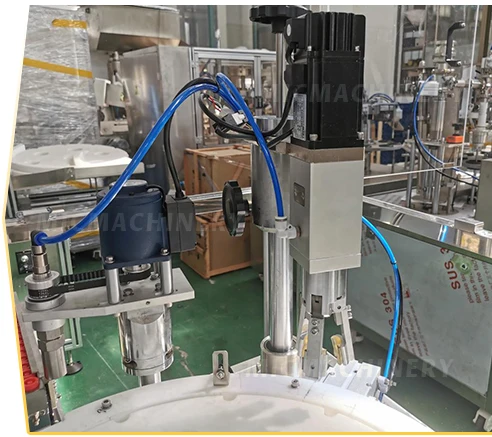

Servo drive capping system
The capping head adopts mechanical claw cover (servo motor controlled capping claw),the capping head Torque and torque are controlled by servo motor.

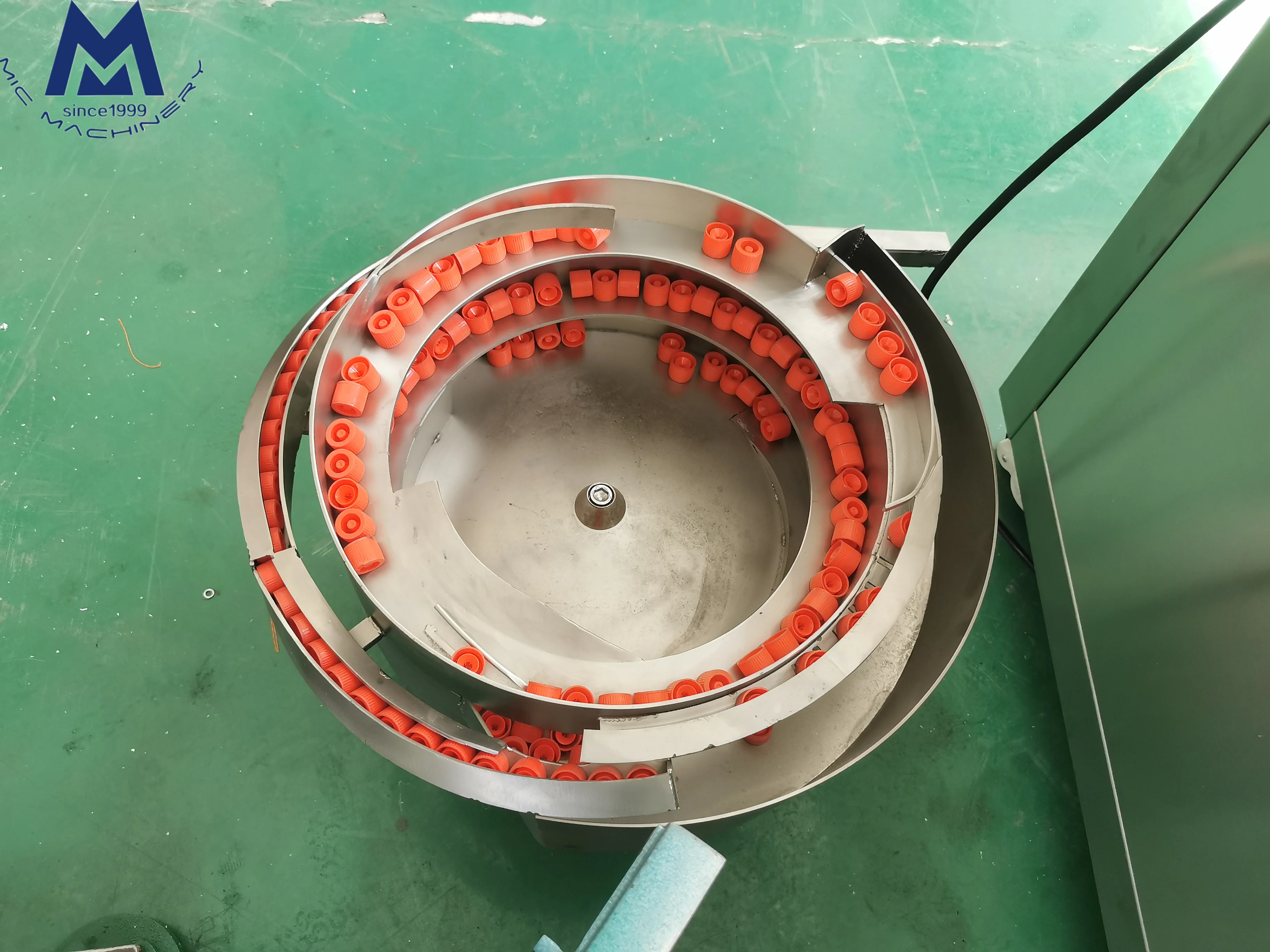

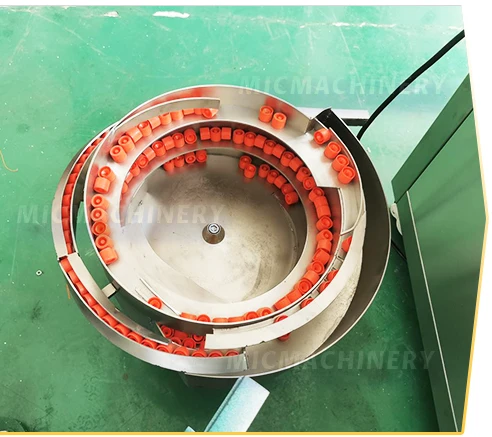

Cap vibrating plate
The cap is automatically arranged by the vibrating plate and feeding to the capping station through the cap loading guide rail.

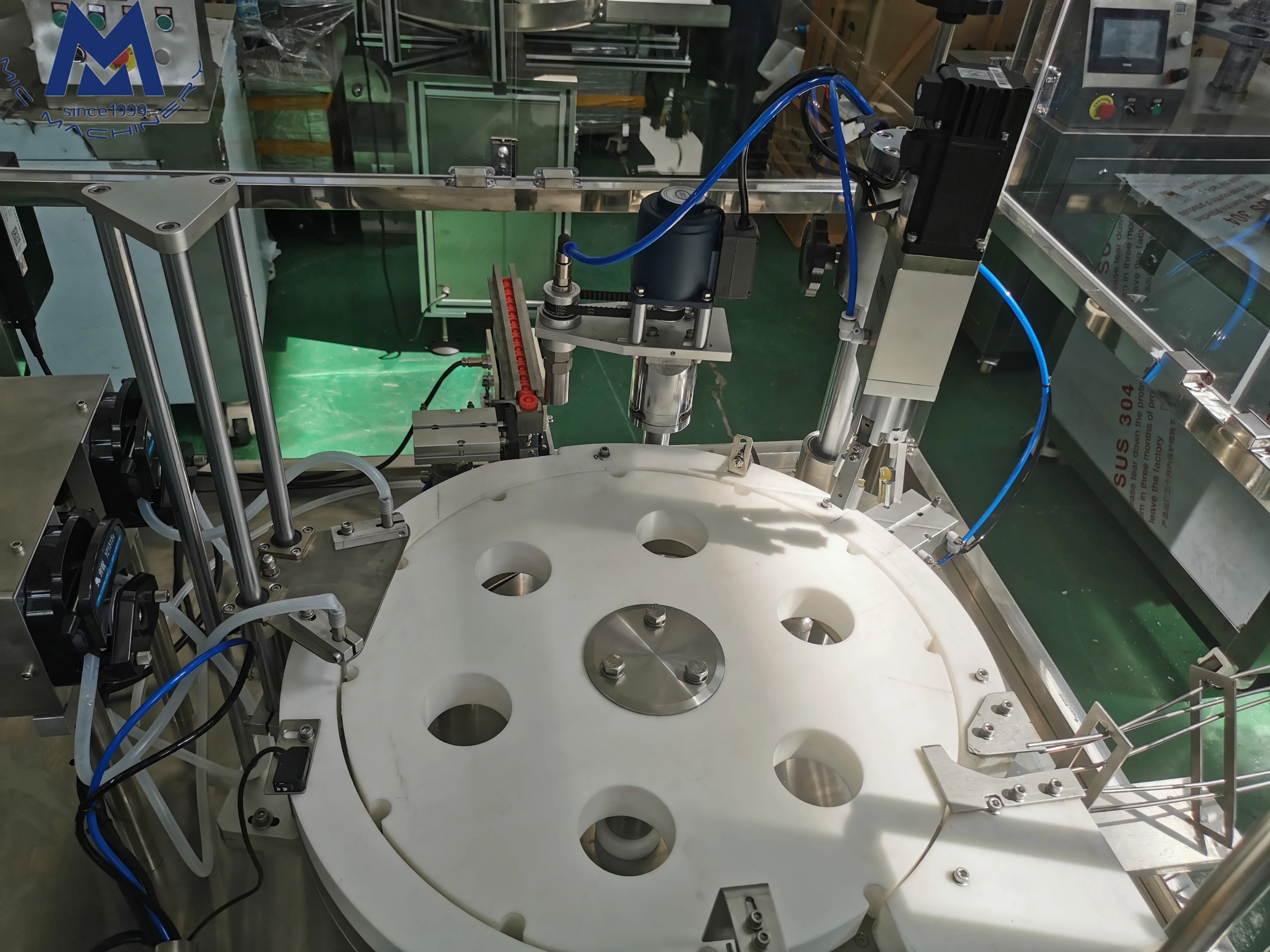

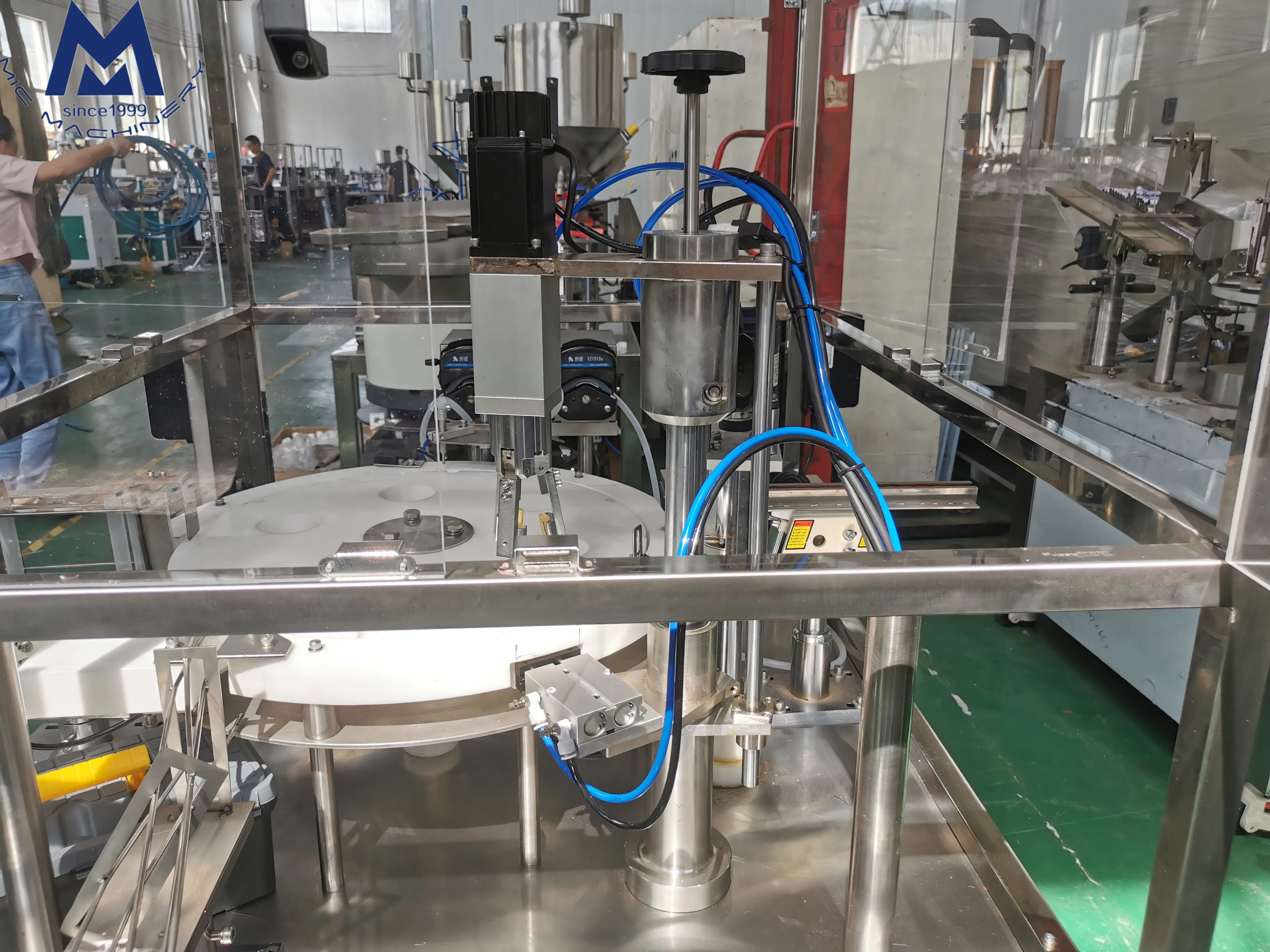

PRODUCT REAL SHOT
