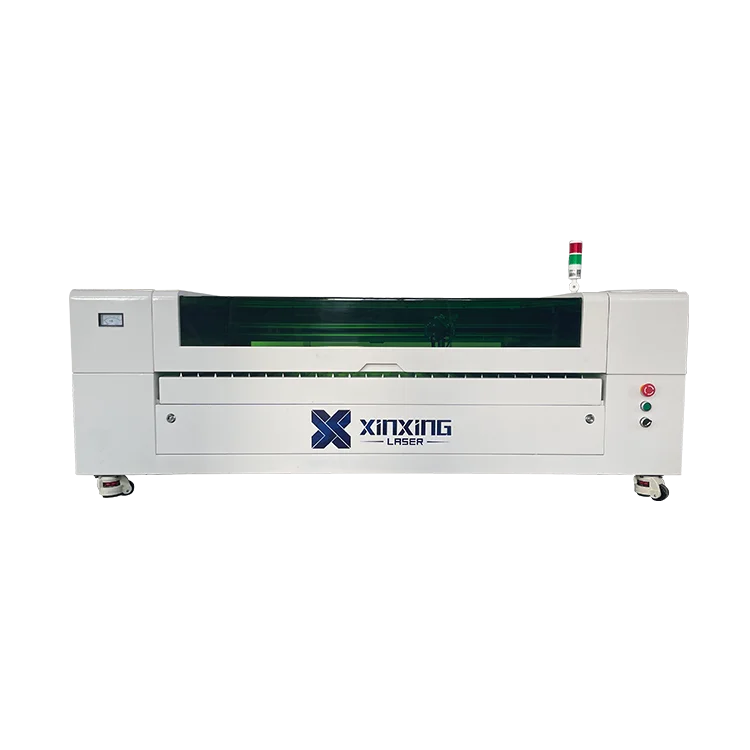

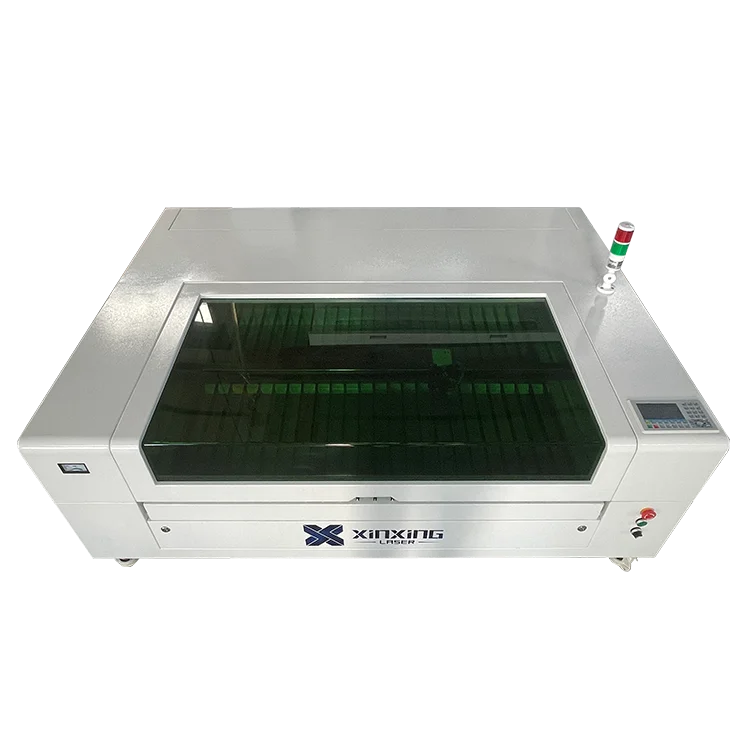

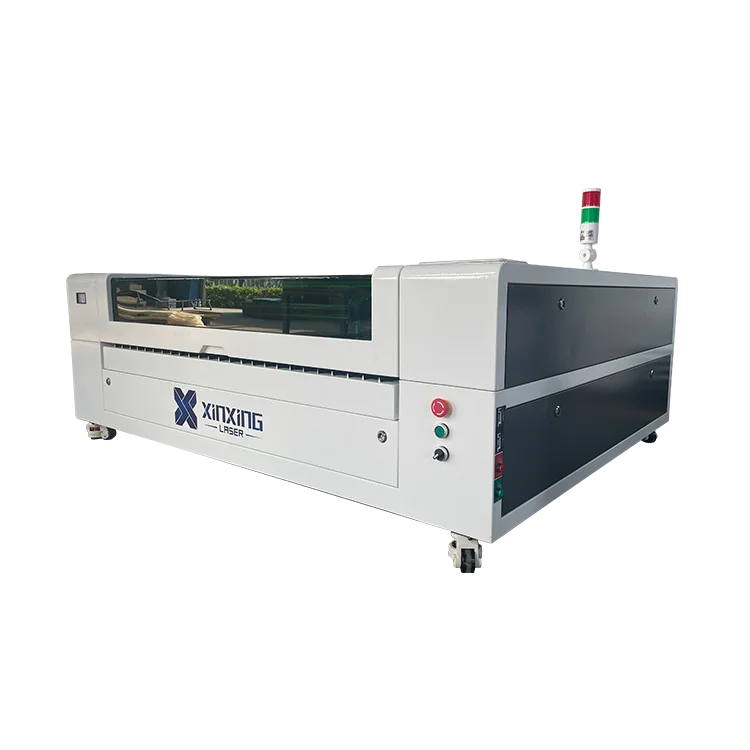

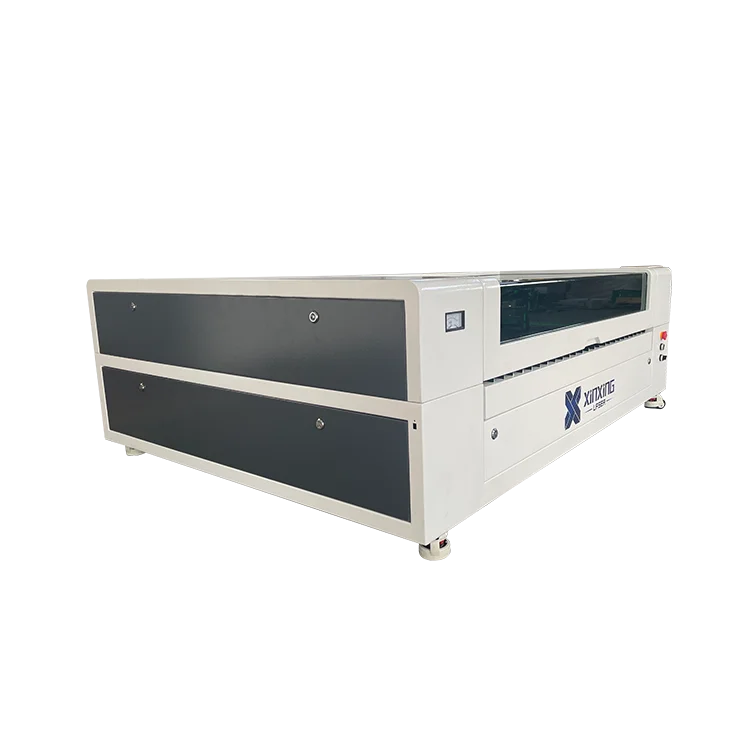

cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter
cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter

cnc wood leather acrylic co2 laser cutting machine and engraver lazer cutter

Share on (1600515608448):


Price:

Quantity:


Product Overview

Description




Spend your money on the machine, not the shipping cost.





Large Working Area,High power,1300mm*900mm


Xinxing Laser Brand Features:
1，Free Shipping.
2，Ships within one to three days after payment.
3，High Configuration. Hybrid servo motor.High speed guide rail.Ball screws motorized table.
4，3 Year Warranty.Provide installation guidance, fault diagnosis, and free spare parts delivery.
Support Product Customization.

90W/100W/120W/150W/180w Laser Engraving Machine
Desktop,Industrial level, High speed,High precision


This new model is available in two models, 9060 Smart /1390 Smart



Model
9060 Smart
1390 Smart
Power
90w/100w/120w
90w/100w/120w/150w/180w
Working Area
900mm×600mm
1300mm×900mm
Laser Source
CO2 laser tube
Laser tube Max Power
90W--130W
90W--180W
Applicable materials
Paper, Wood, Acrylic，Glass, Crystal，Leather, Textile，MDF，Rubber，Stone
Application
Engraving/Cutting
Laser Type
CO2
Weight
200KG
300KG
Key Selling Points
Industrial level,High-accuracy,High speed,Desktop,
Engraving Speed
0-60000mm/min
Cutting Speed
0-40000mm/min
Positioning Accuracy
0.01 mm
Graphic Format Supported
DST, PLT, AI, DXF, BMP, JPG







Hybrid servo motor
Fast processing speed
High precision
Low energy consumption
Stable operation
Low vibration and noise




CO2 Laser Tube
High transmittance, good spot pattern.
Longer working time and more stable performance.
For thin metal and non-metallic plates, it has better cutting and engraving effect.
9060 Smart Optional power up to 130W,1390 Smart Optional power up to 180W.







High-speed track, low friction, fast running speed, high cutting and engraving precision.





Rear detachable slats, the best smoking effect when sealed, can be directly loaded when opened.









Quiet fan
Noise 35dB
Large air volume.



Laser Head
Auto focus system to improve cutting/engraving efficiency，saving time and higher accuracy.
Industry Chiller.
90W recommanded CW3000,100W recommanded CW5000，120W/150W recommanded CW5200


Ball screw
Stable support
High positioning accuracy
Strong load resistance
High efficiency
Low sound,The decibel of the whole machine is lower than 50Hz
Air Source Processor
Standard air source processor, maximum pressure 1 MPa, dedicated to docking air compressor, it can filter impurities and moisture in the air, making the engraving and cutting effect better.



Laser Controller RDC6445
CO2 Laser Lens & Mirrors






Note: this product is currently only available in the United States, Mexico, and Spain with free shipping and door-to-door delivery




Engraving and cutting samples




Our Client




Packing
