Product Overview
Description
Product Description
Electrostatic Spray Coating Machine with Automatic Powder Coating Vertical Reciprocator
Electrostatic spray coating machine with vertical reciprocator and powder sieving system, especially designed to meet the requirements of serial production in paint, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user.
Electrostatic spray coating machine with vertical reciprocator and powder sieving system, especially designed to meet the requirements of serial production in paint, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user.
Detailed Images
COLO-191S Automatic Powder Coating Gun Machine
1. Could be easily tailored to customer's demands, offering quality finishes, large powder savings and a quick payback
2.The cabinet network could carry up to 24 controller, all parameters can be set on a host controller.
3. Get typically excellent finishes with consistent uniform film thickness.
4. Most suitable for high speed converised powder coating lines.
5. Can integrate with COLO reciprocators, part sensing system for highest efficiency.
2.The cabinet network could carry up to 24 controller, all parameters can be set on a host controller.
3. Get typically excellent finishes with consistent uniform film thickness.
4. Most suitable for high speed converised powder coating lines.
5. Can integrate with COLO reciprocators, part sensing system for highest efficiency.

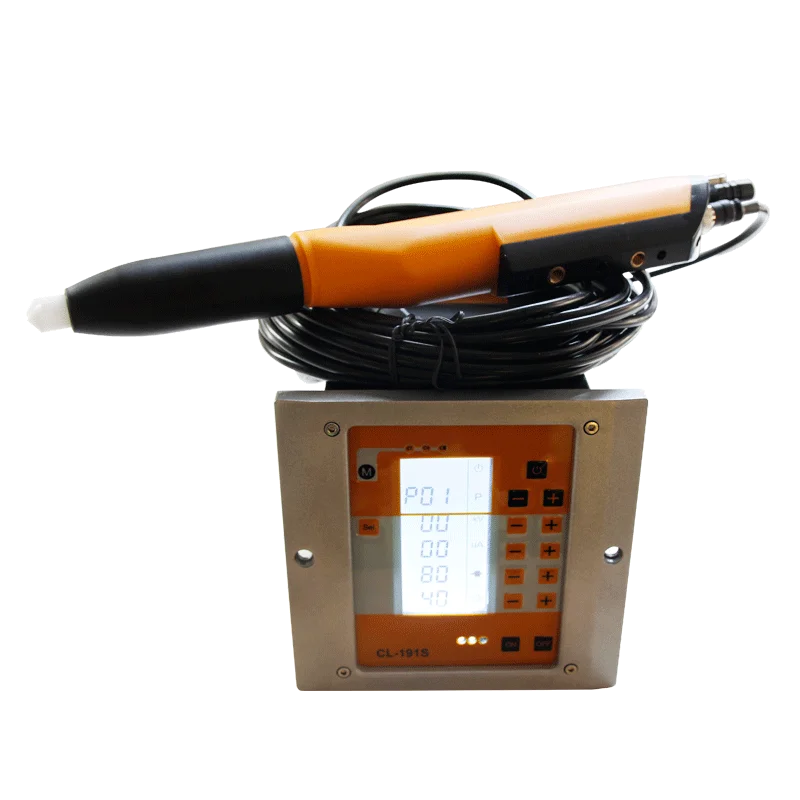

COLO-191S Powder Gun Controller
1. Offers 3 pre-set standard application programs for flat parts, profiles and recoating. Allows to create and store 20 personalized application programs for different parts and powder.
2. Voltage and current can be separately set in order to optimize the powder coating application. Digital valve control technology supports precise adjustment of pneumatic data that ensure perfect atomization and powder output.
2. Voltage and current can be separately set in order to optimize the powder coating application. Digital valve control technology supports precise adjustment of pneumatic data that ensure perfect atomization and powder output.

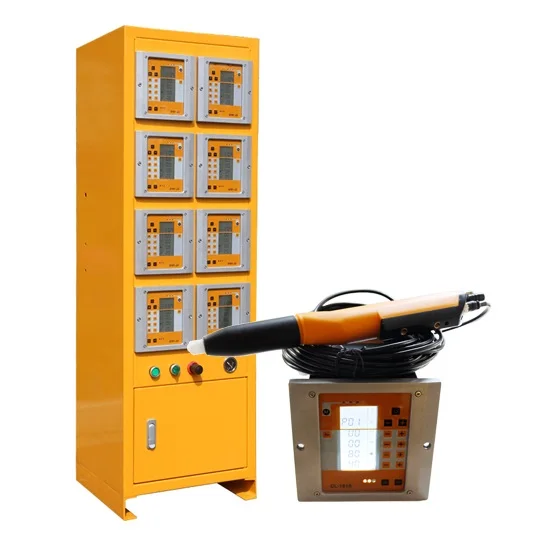

Automatic Spray Machine Cabinet
All the control units can put together into the cabinet for easy operation process. The cabinet network could carry up to 24 controller, all parameters can be set on a host controller.
The type and the number of installed control units could make as your requirements.
Especially designed to meet the requirements of serial production in powder coating, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user.

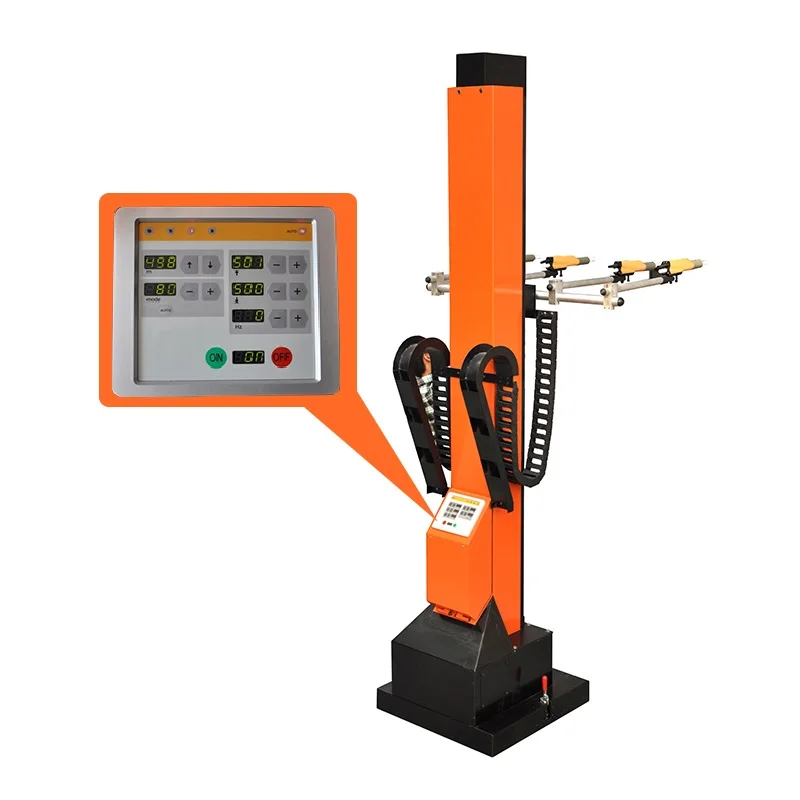

Automatic Powder Coating Reciprocator
1. Working parameters are monitored on a user-friendly panel. The digital control system can be memorized for 80 storable programs.
2. Allows to carry 2-12pcs spray gun, making smooth movement.
3. Moving Stroke also can be adjusted through PLC, each part can be arbitrarily set in specific upper and lower limited position.
4. Sturdy construction could adapt to continual load everyday operational conditions.
4. Sturdy construction could adapt to continual load everyday operational conditions.
Model | COLO-2000D |
Power Supply | AC 220V/110V 50-60hz |
Motor Power | 0.75 kW |
Speed | 0-0.8m/s(0-50m/min) |
Acceleration | 1 m/s |
Max. Loading Capacity | 25 kg |
Controller | Digital |
Motor | Frequency Adjustable |
Stroke | 1.5m / 2m / 2.5m |
Qty of Spray Guns Loading | 2-12 pcs |

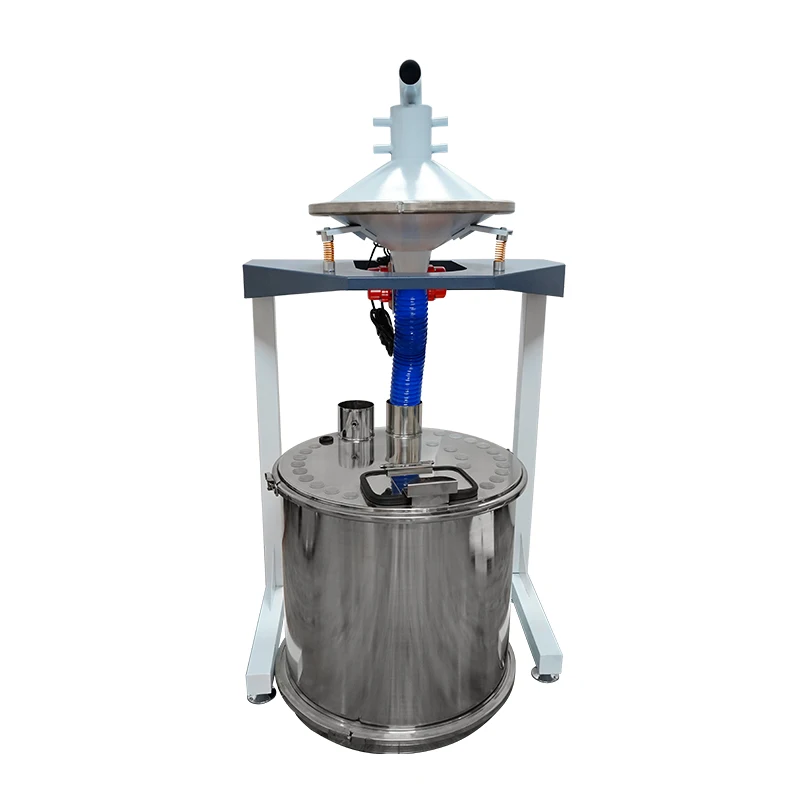

Features of Powder Sieving Machine
1. Installing sieving mesh with hoop and sealing strip, eliminates noise and prevents leakage.
2. Made of 2.5mm Coated iron, sturdy and durable. Compact structure is easy to move and saves space.
3. Durable stainless steel sieving mesh has a variety of sizes for sieving the different powder particles
4. Mounted with big capacity powder hopper supports continuous production
Model | COLO-3000-S |
Weight | 22 kg |
Voltage | 220V / 110V |
Power | 50 W |
Operating Frequency | 50 Hz |
Motor Rotation | positive and reverse can be |
Powder Tank | 55*55 cm or 68*68cm |
Application

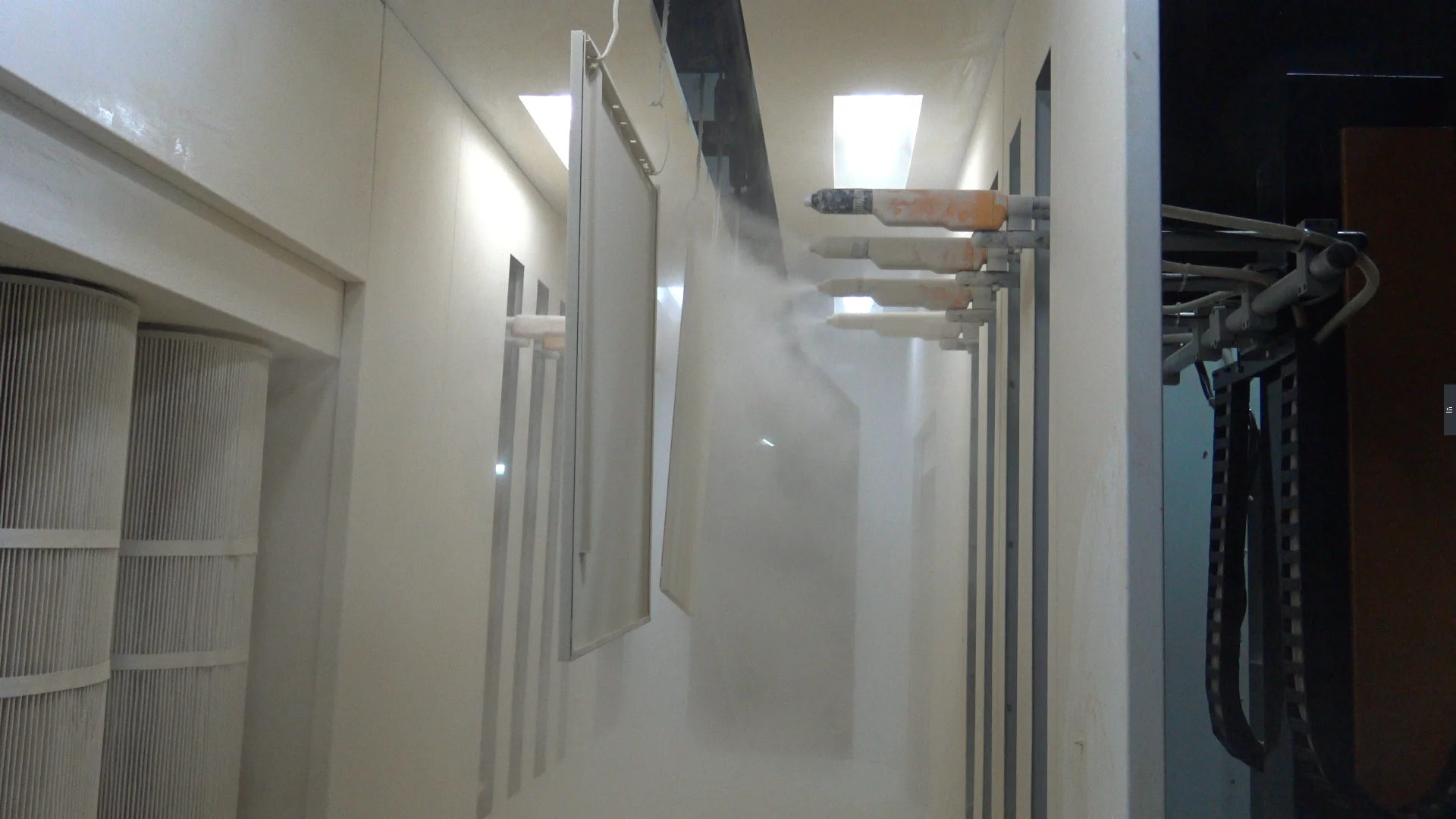

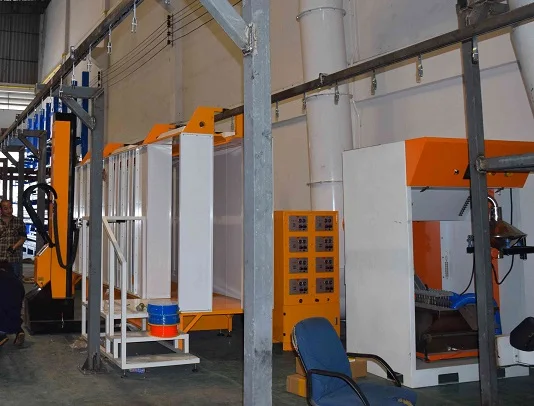

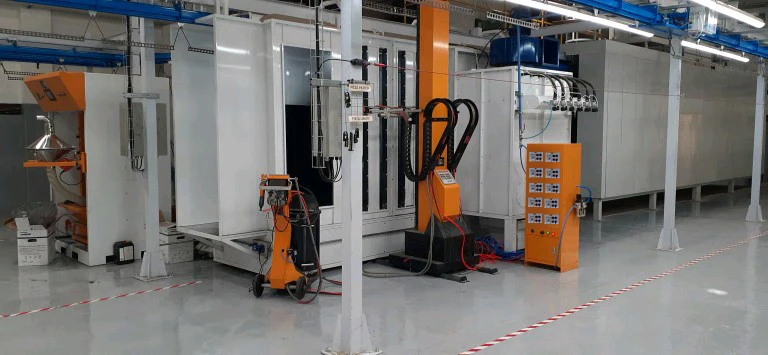

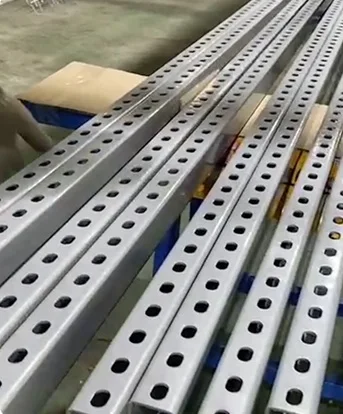

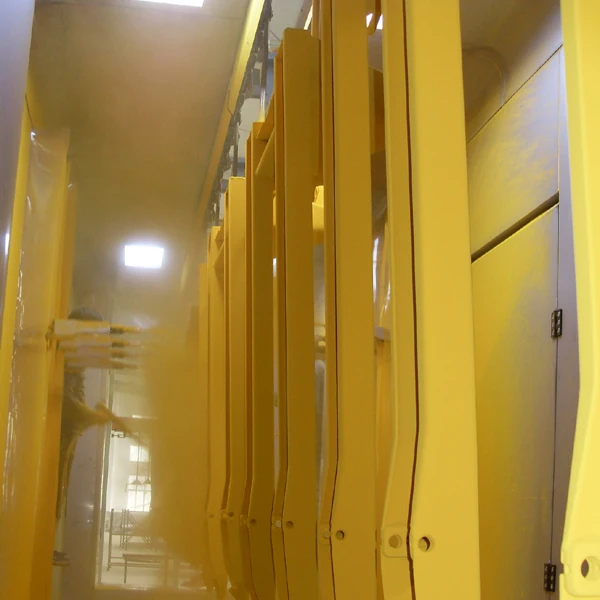

The automatic powder coating gun machine system is specially designed for small space factory that requires high volume production of long length workparts, while minimize budget and labor efforts. It is ideal for powder coating aluminum profiles, metal frames, furniture, etc.
Related Products
Packing&Shipping
Standard exportation packages
1. Inside sofy poly Bubble wrapped well
2. Five-layer corrugated box for air delivery
3. Strong wooden box for sea shipping
2. Five-layer corrugated box for air delivery
3. Strong wooden box for sea shipping

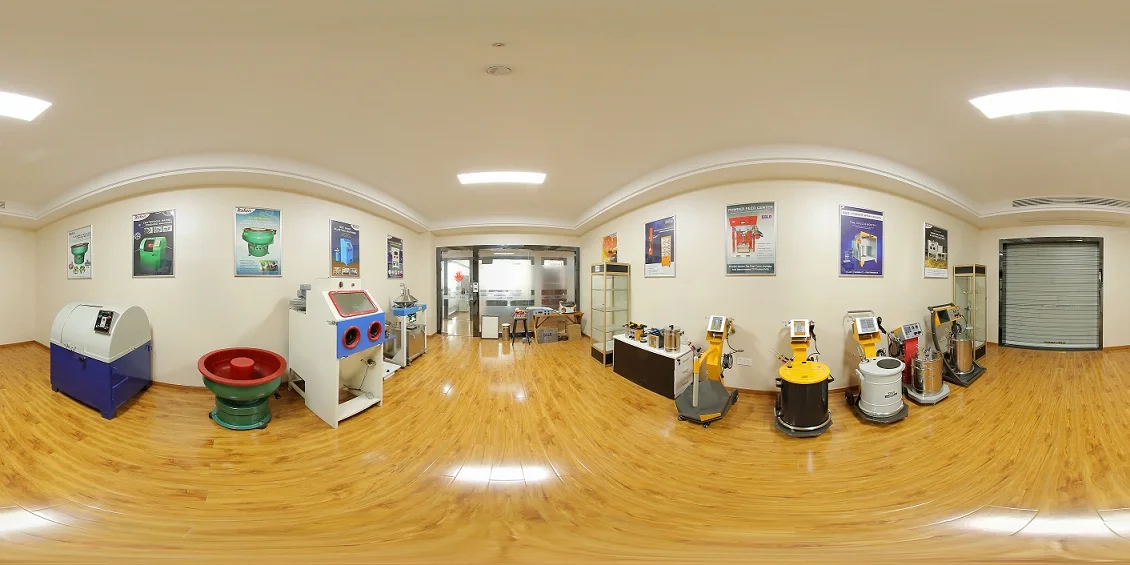

Company Introduction
Colo is the leading powder coating equipment manufacturer in China, which provides high quality equipments all oven the world with advanced manufacturing machines and professional technicians.
Colo offers a wide range of powercoating equipments, namely powder coating machine, powder coating gun, spray booth, curing oven, automatic powder coating applicator, powder coating line.
Welcome guests from all countries in the world to visit our factory.
Our Services & Strength
Whole life service for the machines we sold
Customized designs
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for the spare parts but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What is the package standard?
A: Products are packed with carton or wooden box, compliance with exporting standard, tough and safe.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for the spare parts but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What is the package standard?
A: Products are packed with carton or wooden box, compliance with exporting standard, tough and safe.
