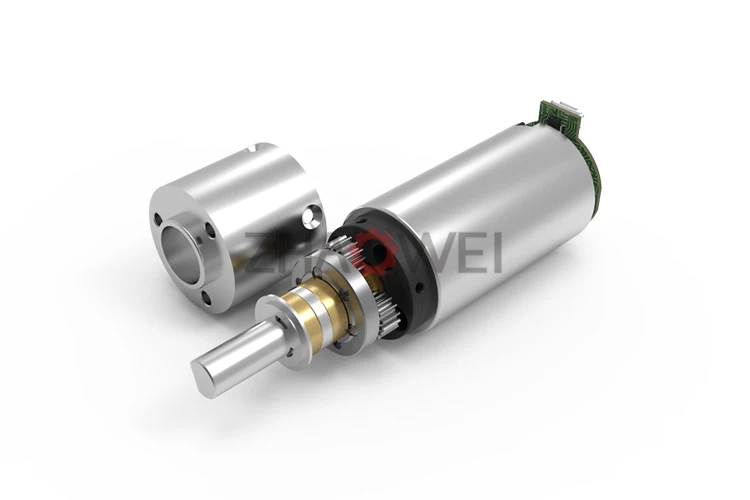

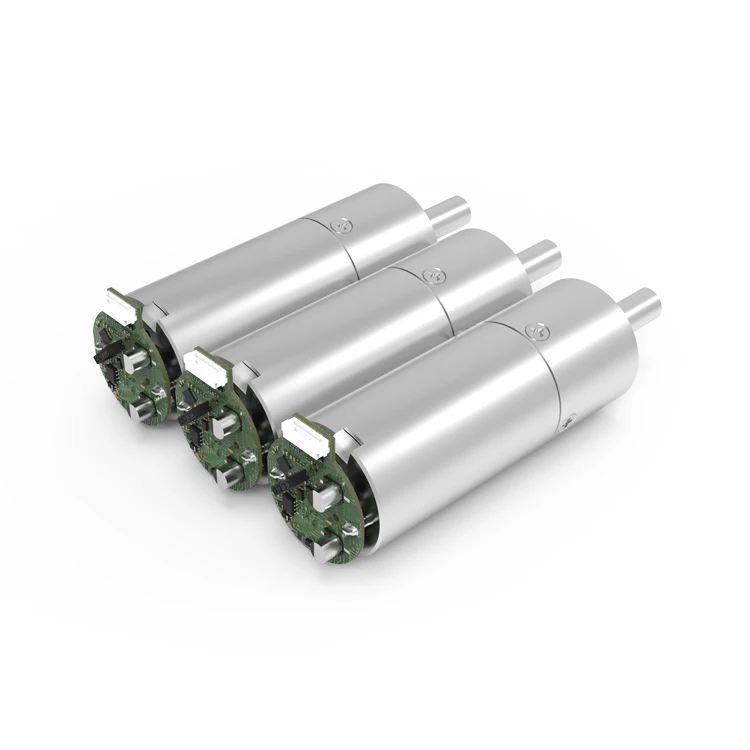

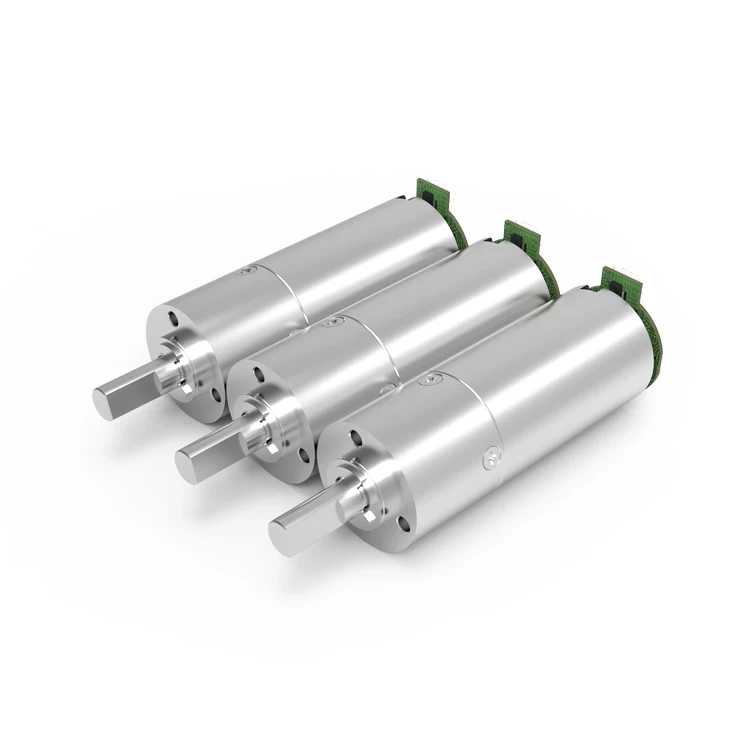

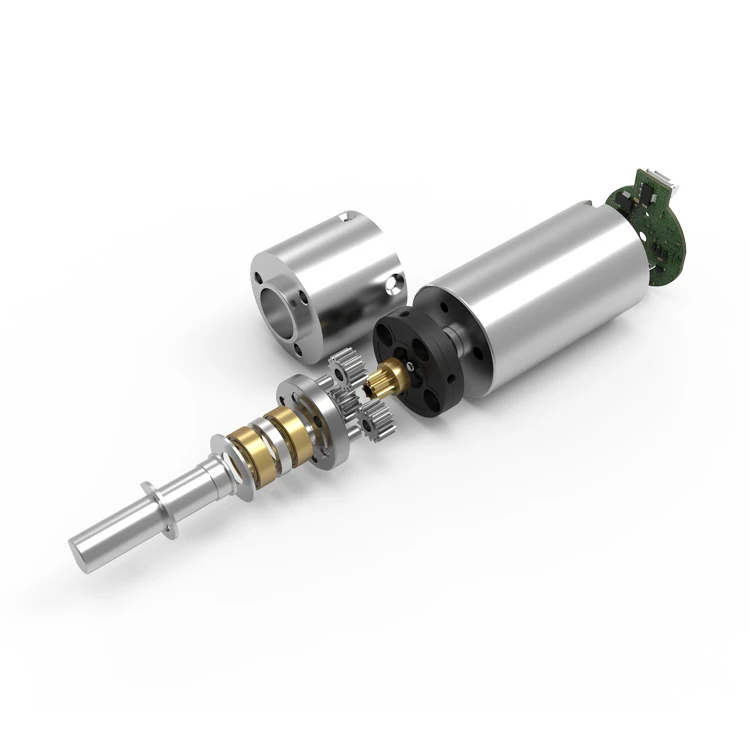

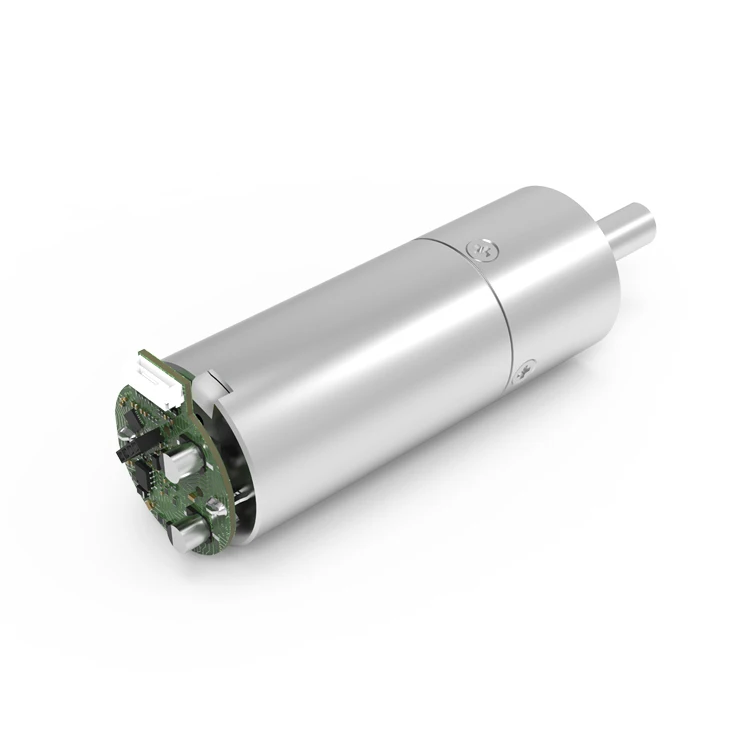

ZHAOWEI MD022022 1296 22mm 3v 6v 12v 24v 15kg.cm 6rpm low rpm Planetary Gearbox Brushless gear Motor for PTZ deceleration module
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1600515617987):
Product Overview
Description
| Motor Specifications:22mm motor | |
| motors(optional) | coreless motor,brushless dc motor,stepper motor |
| voltage(optional) | DC 3-24v |
| input speed | <=15000rpm |
| current | 300mA max |
| Performance Data:22mm Metal planetary gear motor | |||||||
| Model | Rated Speed | Max Speed | Max Rated Torque | Max Instant Torque | Reduction Ratio | gearbox Length | Overall Length |
| rpm | rpm | gf.cm | gf.cm | mm | mm | ||
| MD022022-4 | 1875 | 7500 | 15000 | 36000 | 4 | 19.1 | 57.5 |
| MD022022-6 | 1250 | 5000 | 15000 | 36000 | 6 | 19.1 | 57.5 |
| MD022022-16 | 469 | 1875 | 15000 | 36000 | 16 | 26.4 | 64.8 |
| MD022022-24 | 313 | 1250 | 15000 | 36000 | 24 | 26.4 | 64.8 |
| MD022022-36 | 208 | 833 | 15000 | 36000 | 36 | 26.4 | 64.8 |
| MD022022-64 | 117 | 469 | 15000 | 36000 | 64 | 33.7 | 72.1 |
| MD022022-96 | 78 | 313 | 15000 | 36000 | 96 | 33.7 | 72.1 |
| MD022022-144 | 52 | 208 | 15000 | 36000 | 144 | 33.7 | 72.1 |
| MD022022-216 | 35 | 139 | 15000 | 36000 | 216 | 33.7 | 72.1 |
| MD022022-256 | 29 | 117 | 15000 | 36000 | 256 | 41.0 | 79.4 |
| MD022022-384 | 20 | 78 | 15000 | 36000 | 384 | 41.0 | 79.4 |
| MD022022-576 | 13 | 52 | 15000 | 36000 | 576 | 41.0 | 79.4 |
| MD022022-864 | 9 | 35 | 15000 | 36000 | 864 | 41.0 | 79.4 |
| MD022022-1296 | 6 | 23 | 15000 | 36000 | 1296 | 41.0 | 79.4 |
| * The above specifications are subject to change without prior notice. They are for reference only and can be customized as required. | |||||||
