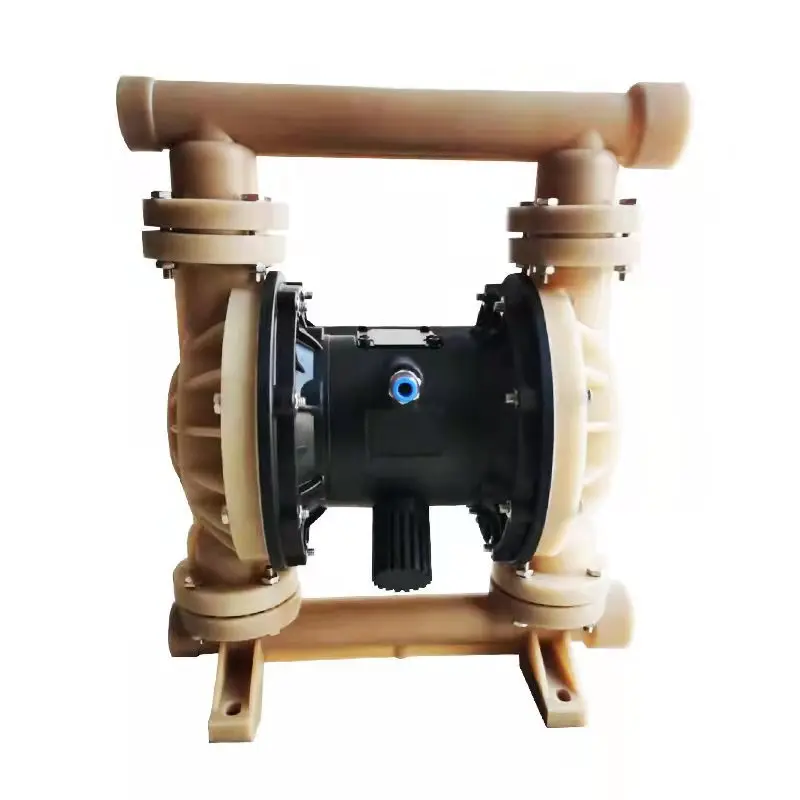

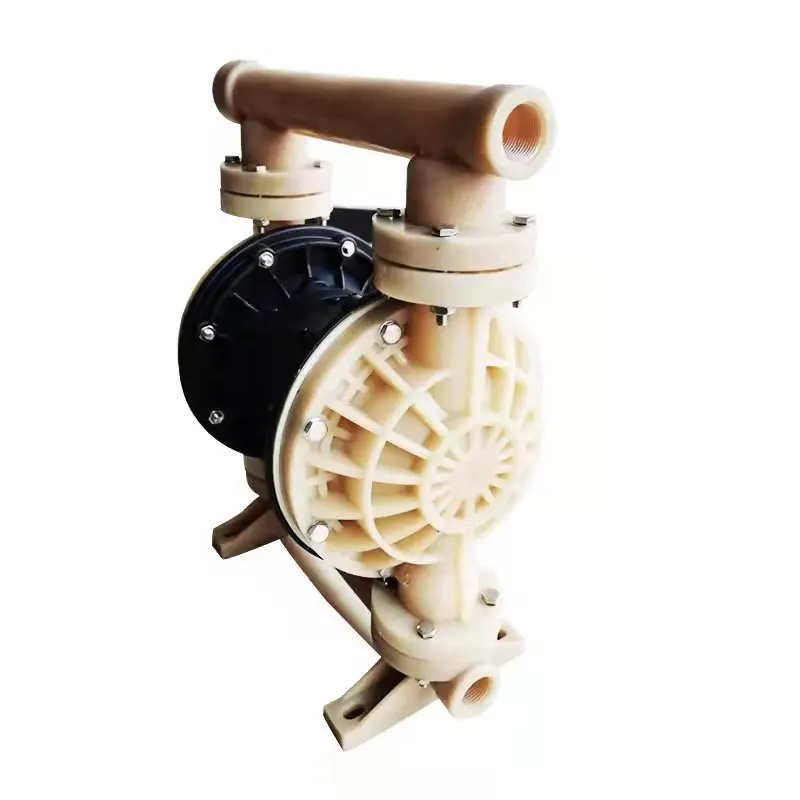

Durable plastic chemical resistance air operated pneumatic double diaphragm pump PVDF material
- Category: >>>
- Supplier: Shanghai Ressea Filtration Equipment Co. Ltd.
Share on (1600515683304):
Product Overview
Description
Product Description
Metering Pump
1. No need to irrigate and divert water, the suction lift is up to 5m, the lift is up to 70m, and the outlet pressure is ≥6kgf/cm2;
2. The flow is spacious, the passing performance is good, and the maximum particle diameter allowed to pass is 10mm. When pumping mud and impurities, the pump wears very little;
3. The lift and flow can be adjusted steplessly through the opening of the air valve (the air pressure is adjusted between 1-7kgf/cm2);
4. The pump has no rotating parts and no shaft seal. The diaphragm completely separates the pumped medium from the moving parts and working medium of the pump, and the conveyed medium will not leak to the outside. Therefore, when pumping toxic, easy-to-play or corrosive media, it will not cause environmental pollution and endanger personal safety;
5. There is no need to use electricity, and it is safe and reliable to use in flammable and explosive places;
6. Can be immersed in the medium to work
7. It can transport viscous liquid (viscosity below 10,000 centipoise);
8. The pump does not need to be lubricated with oil, even if it is idling, it has no effect on the pump, which is a major feature of the pump
2. The flow is spacious, the passing performance is good, and the maximum particle diameter allowed to pass is 10mm. When pumping mud and impurities, the pump wears very little;
3. The lift and flow can be adjusted steplessly through the opening of the air valve (the air pressure is adjusted between 1-7kgf/cm2);
4. The pump has no rotating parts and no shaft seal. The diaphragm completely separates the pumped medium from the moving parts and working medium of the pump, and the conveyed medium will not leak to the outside. Therefore, when pumping toxic, easy-to-play or corrosive media, it will not cause environmental pollution and endanger personal safety;
5. There is no need to use electricity, and it is safe and reliable to use in flammable and explosive places;
6. Can be immersed in the medium to work
7. It can transport viscous liquid (viscosity below 10,000 centipoise);
8. The pump does not need to be lubricated with oil, even if it is idling, it has no effect on the pump, which is a major feature of the pump

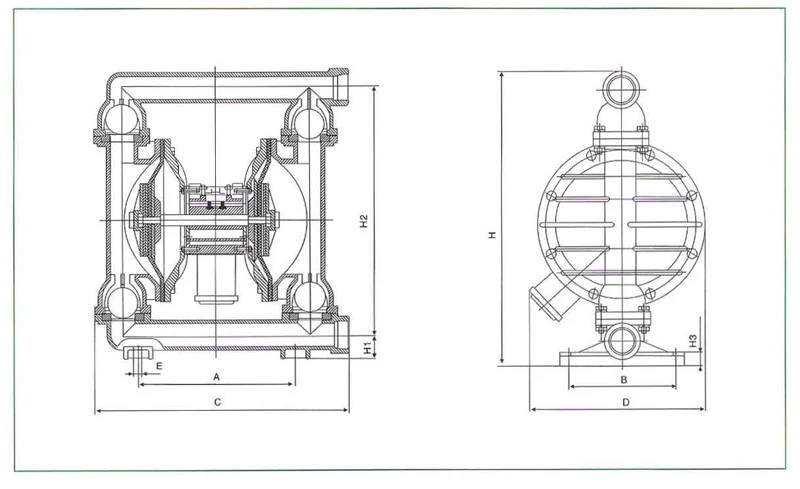

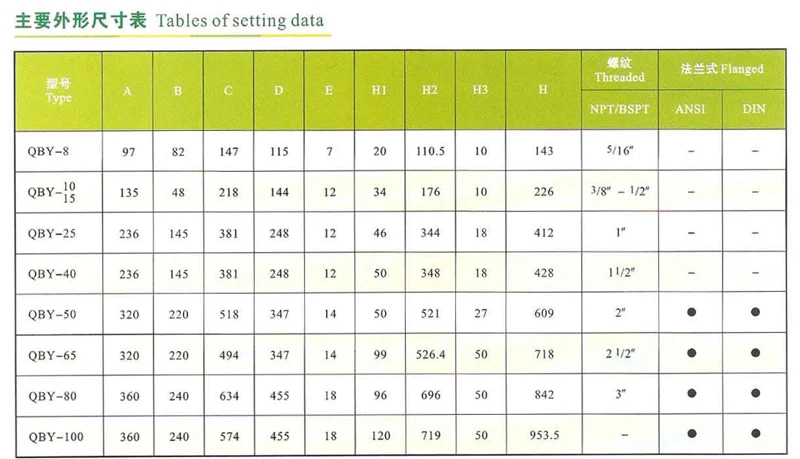

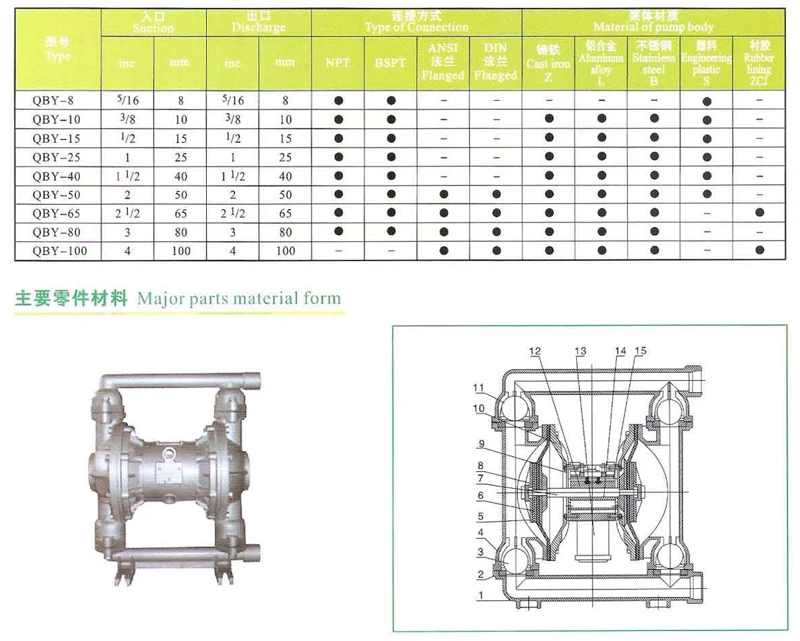

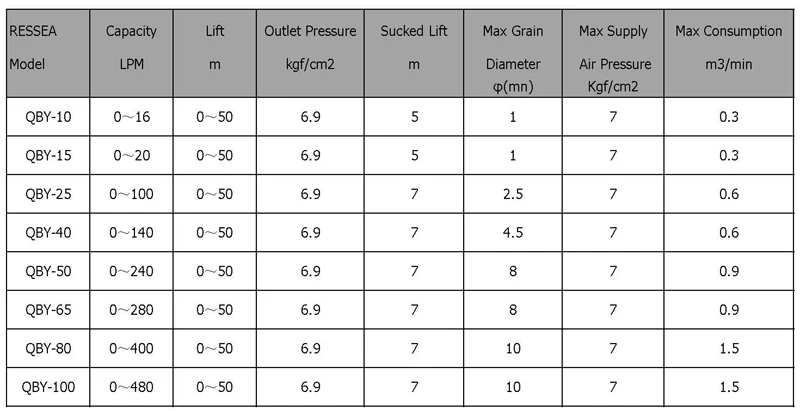

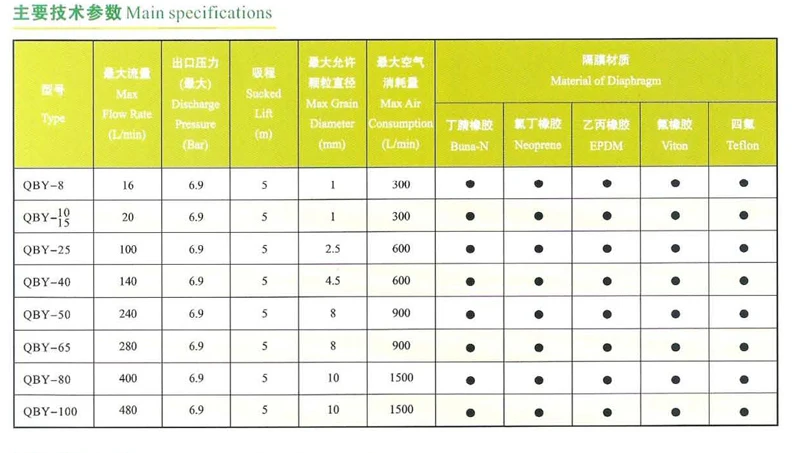

Specification
pneumatic diaphragm pump | Qty | Box | - | - | ||||

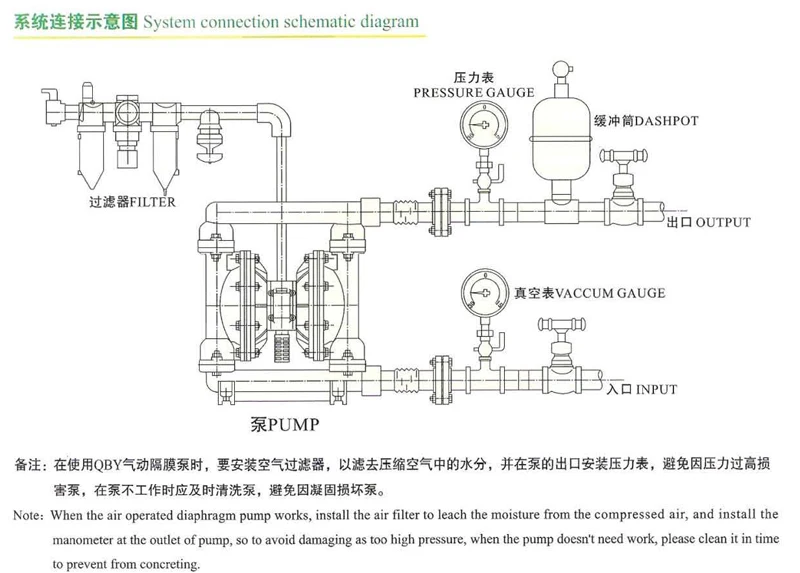

Installation Instructions
Order Information
Company Profile
Shanghai Ressea Filtration Equipment Co., Ltd devoted our efforts into the
water treatment products , pneumatic diaphragm pump
Along with more than 10 years history,our company has enlarge its product lines and supply chains to mainly following,
With the belief of innovation, quality control, and service, we established the relationship with our customers not only business but also friendship and partnership.
water treatment products , pneumatic diaphragm pump
Along with more than 10 years history,our company has enlarge its product lines and supply chains to mainly following,
With the belief of innovation, quality control, and service, we established the relationship with our customers not only business but also friendship and partnership.
FAQ
A: Are you manufacturers
B: Yes, we are manufactures
B:Usually about 10 days
A:How do you shipping the products ?
B: Usually we shipping by air/by sea/by express
A: Can we make our own label ?
B: Yes, you can , but need bulk quantity.
