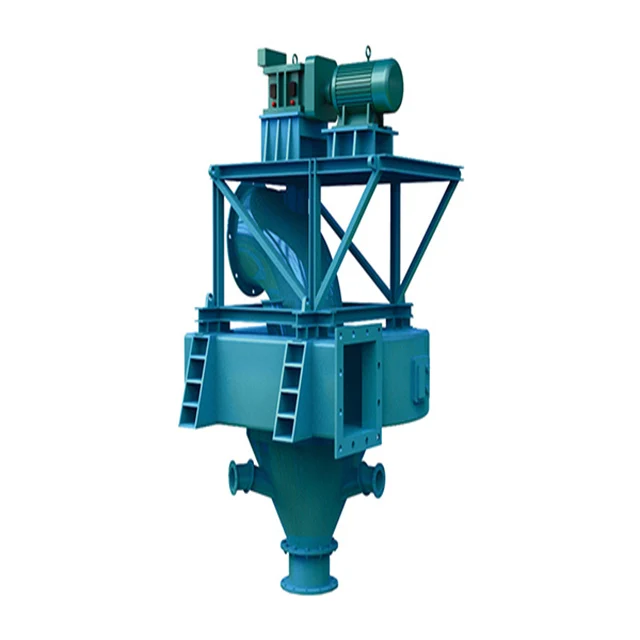

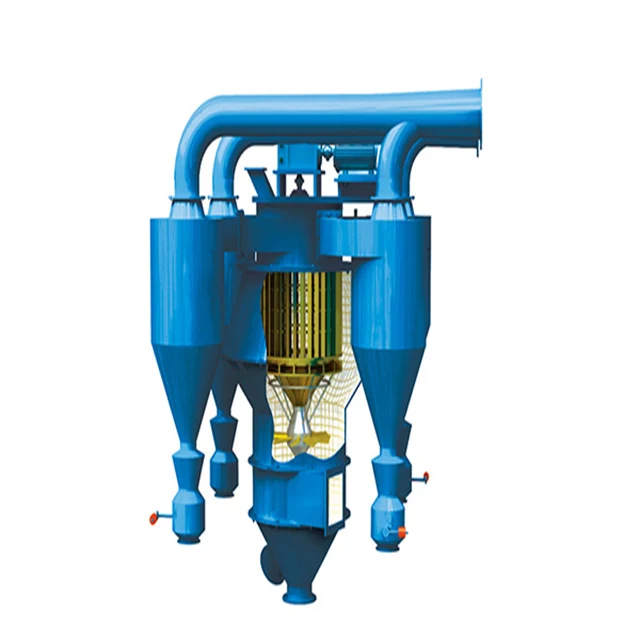

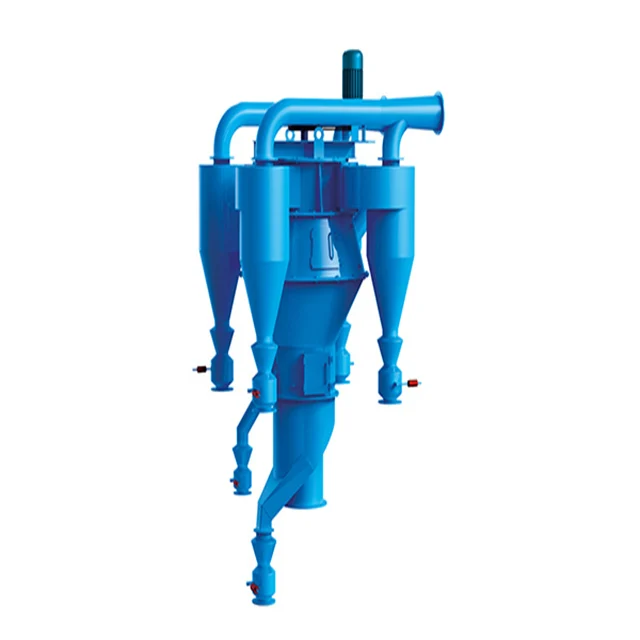

Cement vertical mill spare parts powder concentrator rotor assembly Cage rotor of cement plant separator
- Category: >>>
- Supplier: Jiangsu Lafa International Engineering Group Co. Ltd.
Share on (1600515698267):
Product Overview
Description

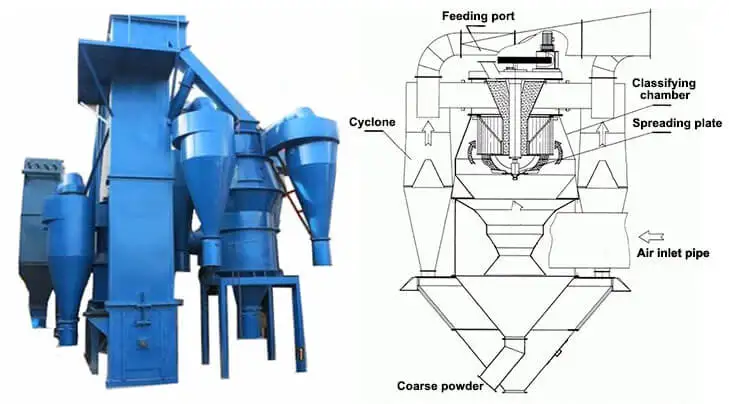

The circulating air of the cement cyclone separator is generated by the air blower. During the powder classifying process, the air is sent by the air blower from the center of the separator in a tangential direction and then spirals up to the classifying chamber. After being ground in the mill, materials are fed through the top feeding port of cyclone air separator and falls onto a rotating spreading plate. Due to the action of inertial centrifugal force, the material is evenly scattered around the spreading plate and meets with the updraft. The finer particles rise to the position of blades with the airflow, among which some of the larger particles sink along the inner cone and enter the coarse powder duct. The smaller particles enter the cyclone with the updraft after passing through the blades and then collected by the centrifugal force. After being separated by the cyclone, the airflow comes out from the air duct and enters the air blower again, thus forming a closed circulation air.
