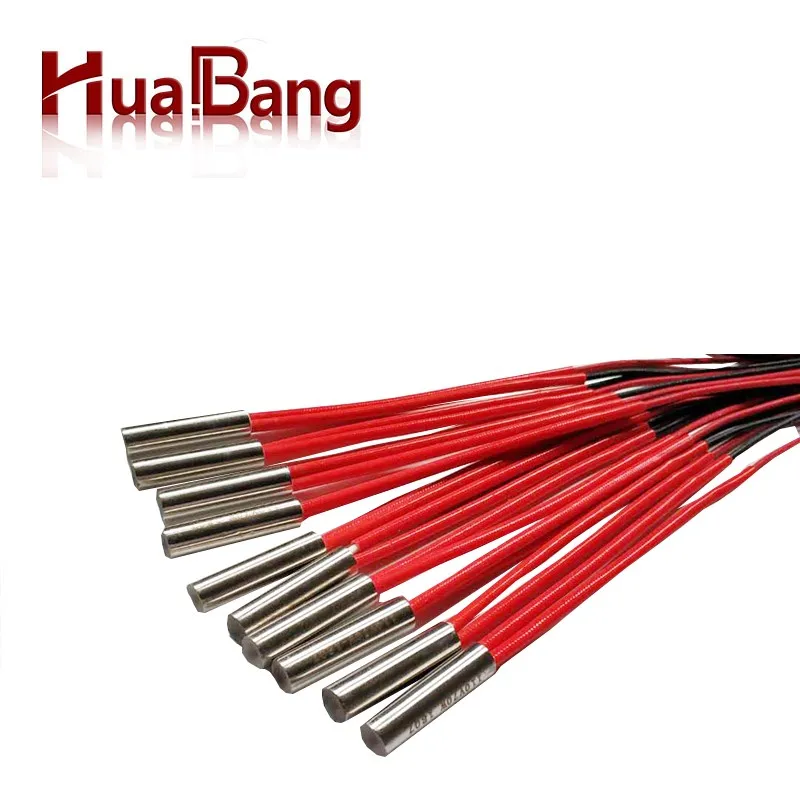

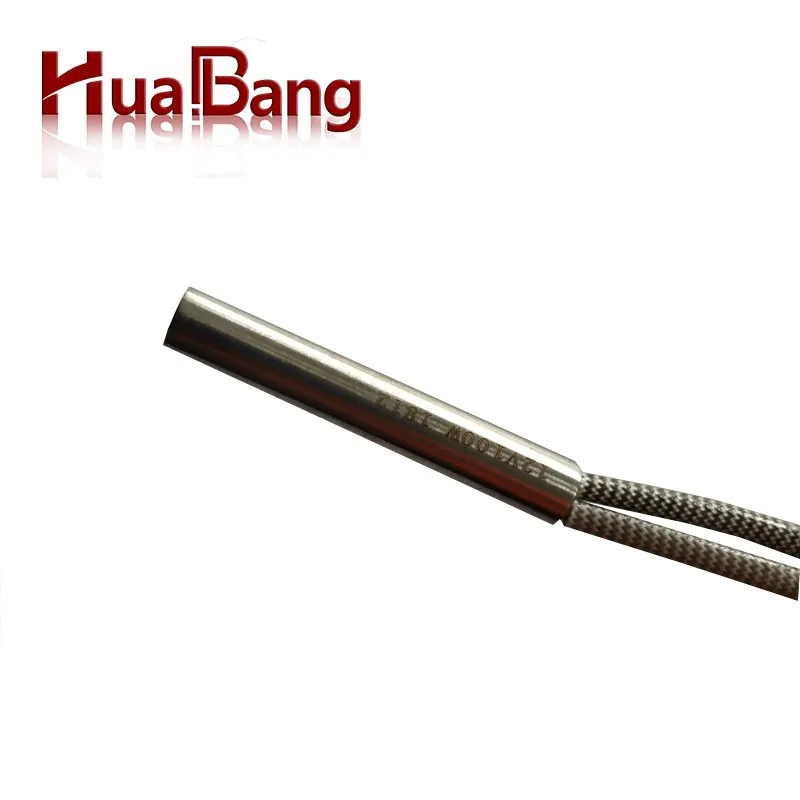

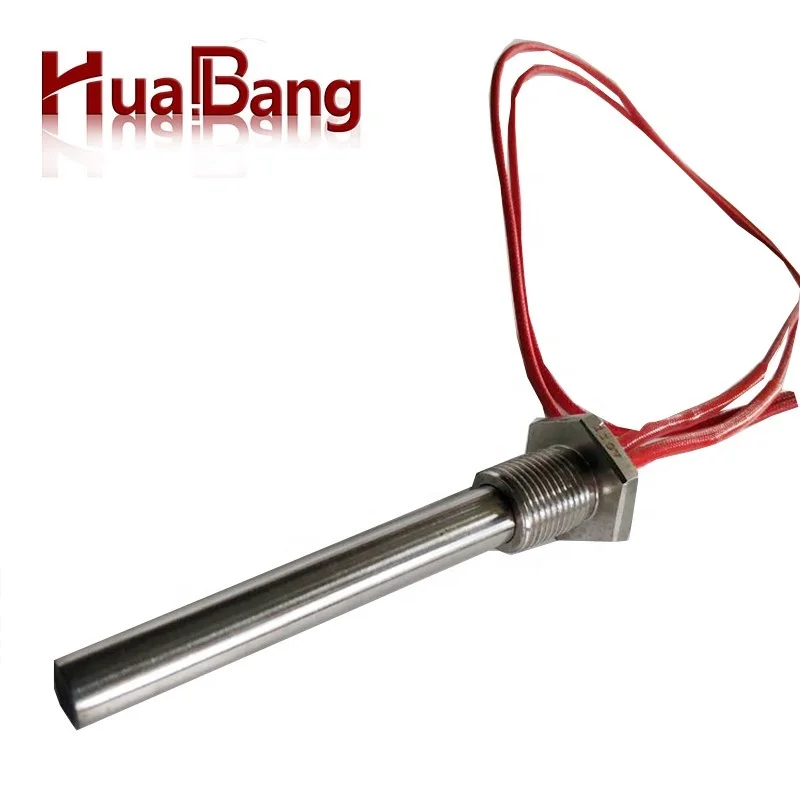

high density industrial Electric stainless steel 240v 1000w cartridge heater heating rod for injection mold
- Category: >>>
- Supplier: China Hopebond Eco Tech Co. Ltd.
Share on (1600515716204):
Product Overview
Description
Product Description
Feature of Cartridge Heater :
1. The smallest diameter could be 3 mm.
2. Unlimited length, 15 to 2000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year

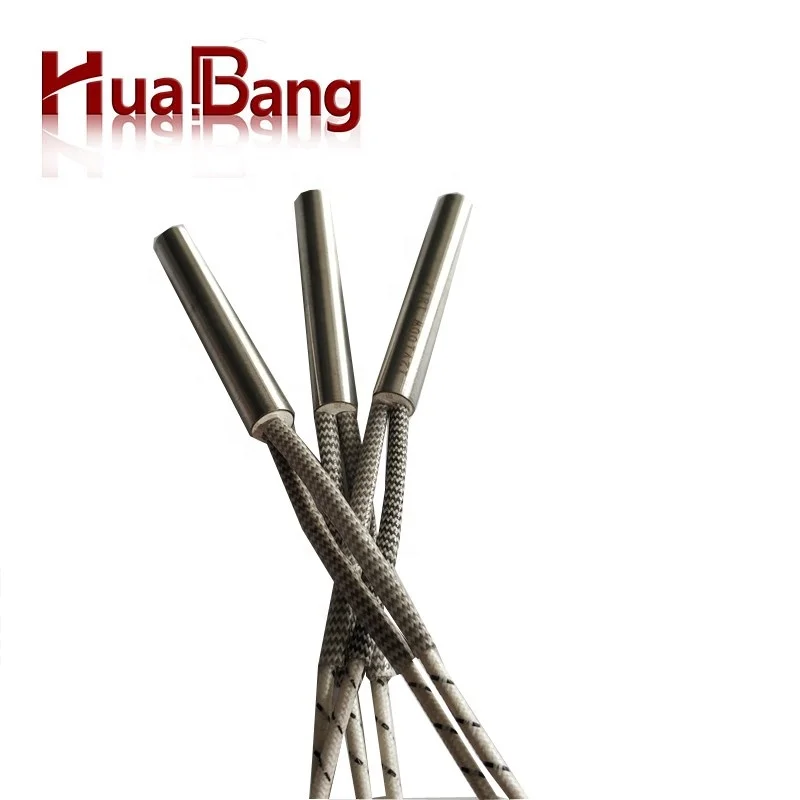

6. Different type of wire available according to the usage environment.
PRODUCT NAME: cartridge heater | ||||||
SIZE: | DIA 3-50MM* LENGTH 15-3000MM | |||||
MATERIAL: | SS304/316/321/310S/Incoloy 800 etc. | |||||
VOLTAGE: | 12-480V | |||||
POWER: | 10W-3KW | |||||
SURFACE LOADING: | 2-30W/CM2 | |||||

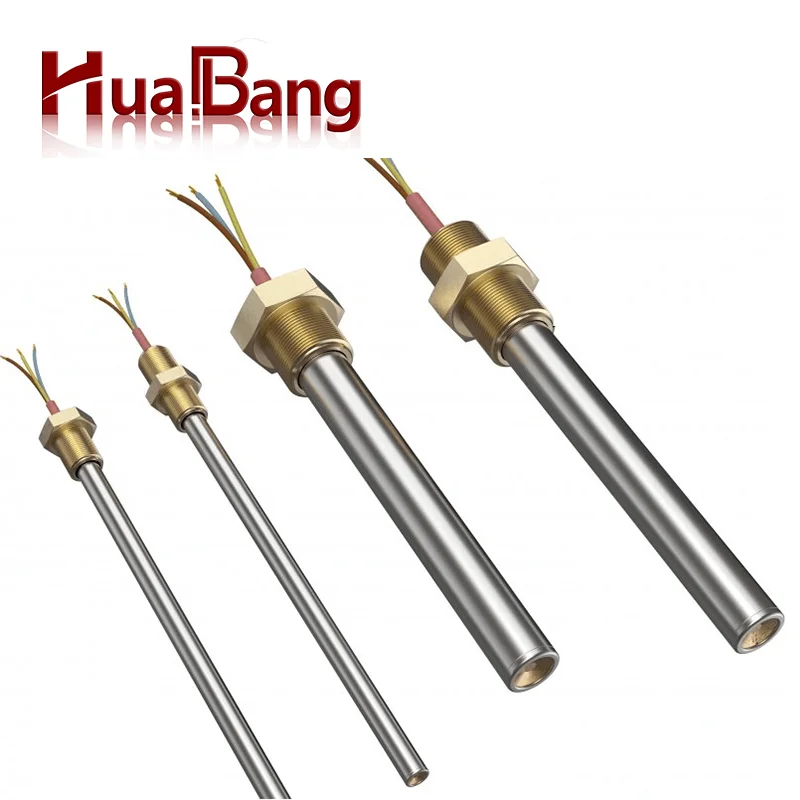

THREAD STANARD: | GB/BSP/NPT | |||||

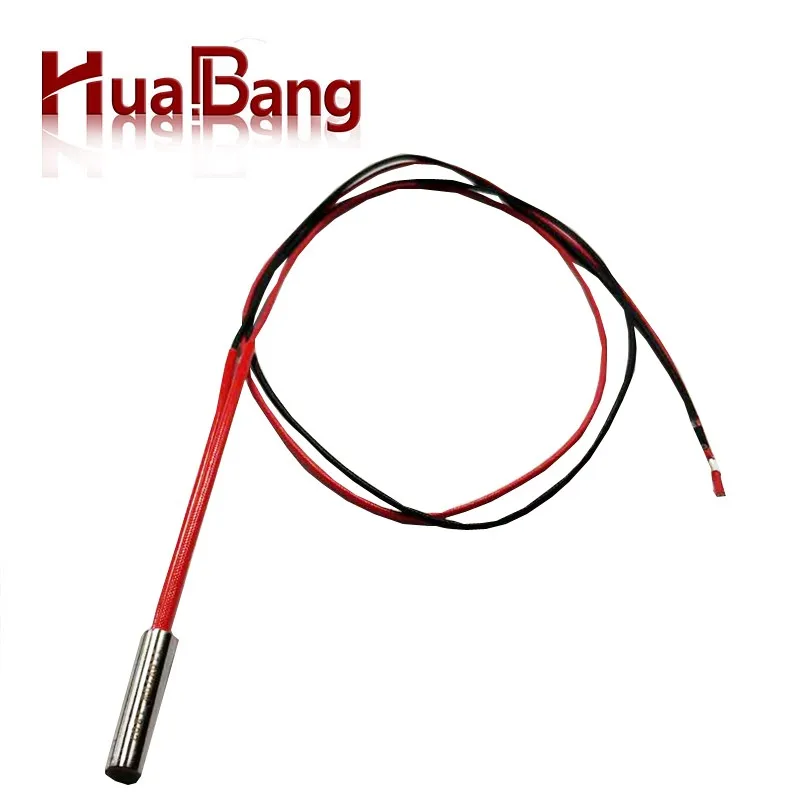

LEAD WIRE: | 300MM | |||||
APPLICATION: | WATER, AIR, OIL, MOULD etc. | |||||
Applications of Cartridge Heater :
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Medical equipment.
Detailed Images

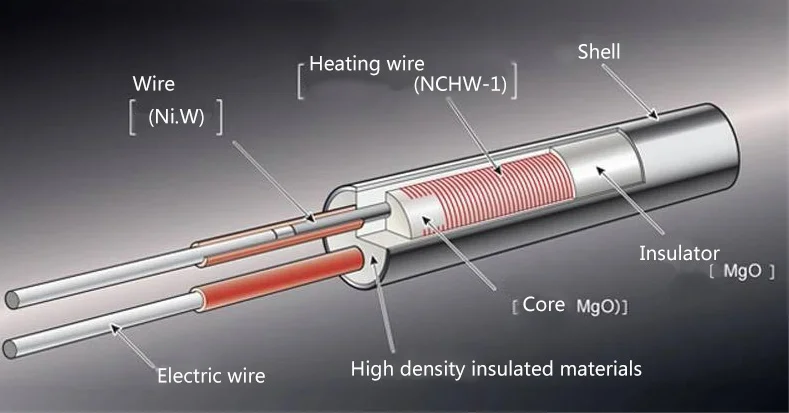

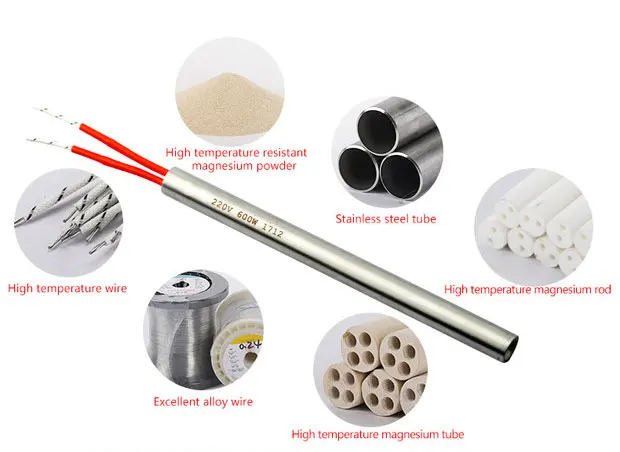

1. Sheath material: stainless steel ss304/316/321/Incoloy 800 etc.
2. Insulation Material:High-purity Mgo powder
3. Heating resistance wire:Cr20Ni80
4. Working temperature: max 800°C
5. Diameter range (mm):3mm-50mm
6. Length range (mm):15mm-3000mm
7. Rated voltage (110-220):max1.27 times
8. Insulation resistance: min5Ω
9. With(and voltage:1500v/min)
10. Designed life:3000 hours
Packing & Delivery
Packaging | ||
Name | cartridge heater | |
Size | 450(L) * 450(W) * 300 (H) of 8mm cartridge heater | |
Weight | 20kg of 8mm cartridge heater | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
