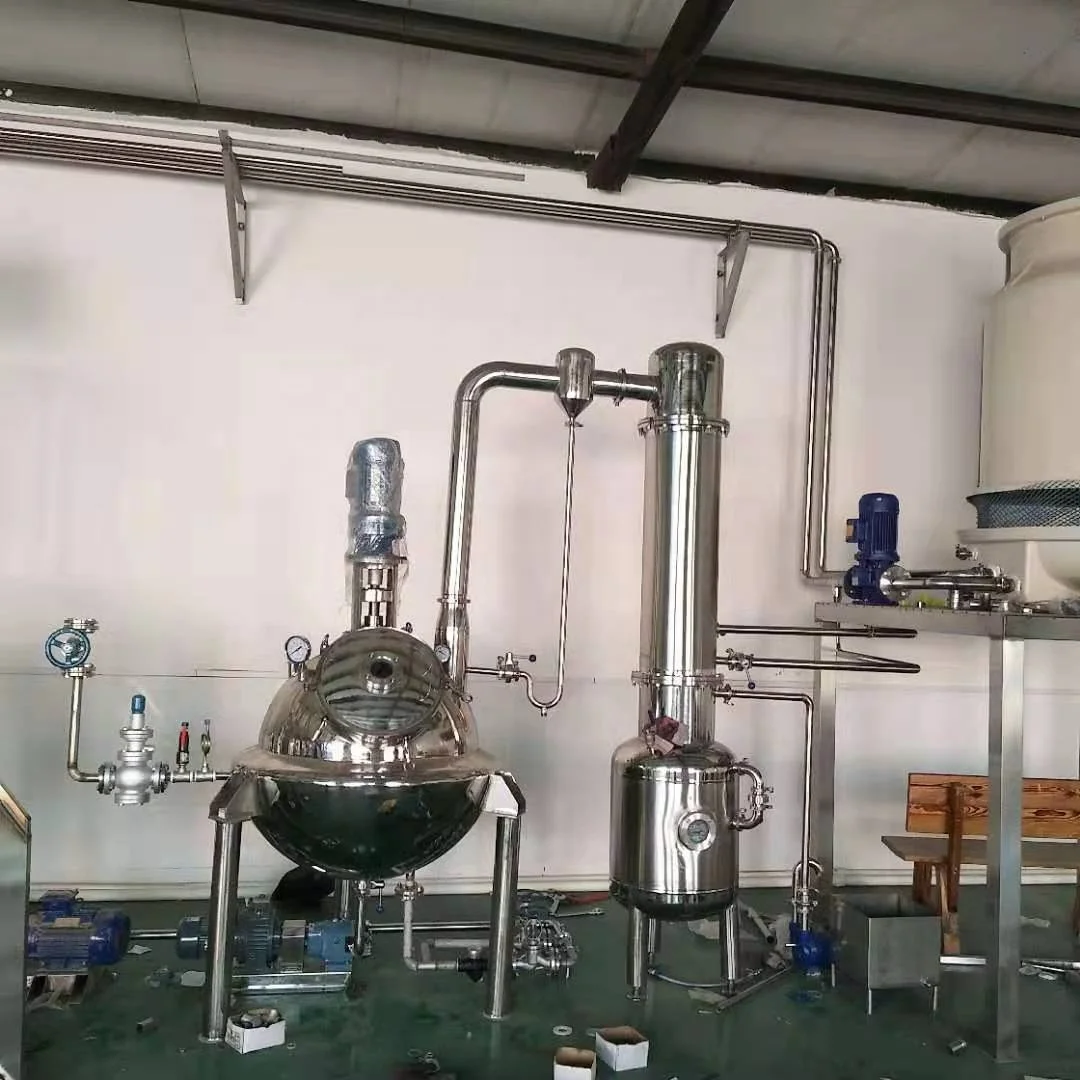

Herbal Plant Extraction Vacuum Concentrator Distillation Equipment Food Pharmaceutical Heat Reflux Extractor
- Category: >>>
- Supplier: Henan Zgcm Machinery Co. ltd.
Share on (1600515746146):
Product Overview
Description
Technical specifications
model | ZG-50 | ZG-100 | ZG-200 | ZG-300 | |||||||
Effective volume L | extraction tank | 55 | 115 | 230 | 350 | ||||||
Concentration tank | 55 | 115 | 230 | 350 | |||||||
Heating power KW | extraction tank | 6 | 9 | 12 | 12 | ||||||
Concentration tank | 6 | 9 | 12 | 12 | |||||||
Sandwich pressure MPA | extraction tank | 0.2-normal pressure | |||||||||
Concentration tank | 0.2-normal pressure | ||||||||||
tank pressure | extraction tank | -0.95-normal pressure | |||||||||
Concentration tank | -0.95-normal pressure | ||||||||||
Concentration temperature | 46-85 degrees | ||||||||||
stirring power | extraction tank | 0.55 | 0.75 | 0.75 | 1.1 | ||||||
Concentration tank | 0.55 | 0.75 | 0.75 | 1.1 | |||||||
Condensing area | 2 | 2 | 3 | 3 | |||||||
Vacuum pump KW | 1.5 | 1,5 | 2.2 | 2.2 | |||||||
Feed pump power KW | 0.37 | 0.37 | 0.75 | 0.75 | |||||||
Application products
The multi-functional extraction and concentration equipment has various functions such as water decoction, alcohol extraction, extraction liquid filtration, vacuum low-temperature concentration, thermal reflux, organic solvent recovery, etc. Food and beverage factory, condiment factory, product factory, cosmetics factory, plant extraction chemical factory, flavor and fragrance factory, hospital and other fields. The small multi-functional extraction and concentration unit in the laboratory is suitable for the determination of new product development, process experiments and technical parameters in various enterprise laboratories, colleges and universities, scientific research institutions, etc. Alcohol recovery, aromatic oil recovery, etc. for small-scale or pilot-scale production

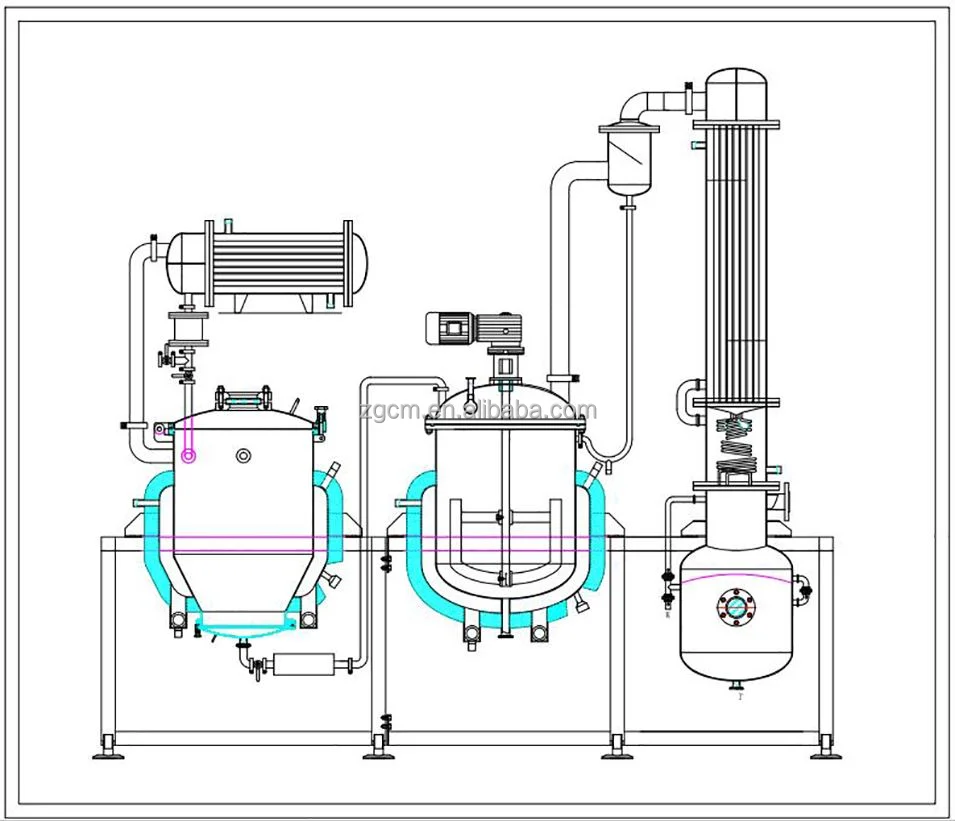

working principle
Small multi-functional extraction and concentration unit, mainly in 50L, 100L, 200L, 300L and other volume specifications, users can choose according to their own needs. The complete set of equipment mainly includes extraction tank (static or dynamic), vacuum concentration tank, condenser, condensate collection tank, oil-water separator, extraction liquid filter, material liquid transfer pump, vacuum pump, internal valve piping system, electric control system, Several parts of the integrated platform. The equipment is made of 304 or 316L stainless steel, the inner and outer surfaces are finely polished, easy to clean, and meet the requirements of the new version of GMP. The heating form of the equipment can be designed as a steam heating type or an electric heating type according to the user's working conditions, and the user can use it without a boiler heat source.
The extraction tank and the concentration tank are equipped with heating interlayer, high temperature resistant insulation layer, sight glass, sight lamp, CIP automatic rotating cleaning ball, and convenient disassembly flange cover, which is convenient for maintenance and cleaning. The extraction tank can be equipped with a stirring device according to user requirements to realize dynamic extraction, and is equipped with a feeding port, a quick-open slag discharge door and a filter screen; the vacuum concentration tank ensures that the extraction liquid can be evaporated and concentrated rapidly at a low temperature in a high vacuum state, and a customized stirring device The wall sticking phenomenon caused by the high concentration of the material liquid is effectively avoided. The stirring device adopts a mechanical seal, which will not cause air leakage due to high vacuum. The tubular heat exchange device ensures that the extraction tank and the concentration tank are heated due to The steam can be condensed into liquid phase and recovered in time; the condensate collection tank is equipped with a glass tube liquid level gauge, which can observe the water level; the oil-water separator adopts a glass viewing cup type, which is convenient for observation; the right-angle pipe filter is equipped with a 60-100 mesh (Optional precision) stainless steel filter screen, easy to disassemble and clean; centrifugal sanitary-grade material-liquid conveying pump realizes material transfer and circulation functions; water ring vacuum pump, reliable performance, low noise, to ensure the stability of the vacuum system; pipe inside the system The pipelines are made of sanitary mirror pipes, sanitary valves and other pipe fittings, which conform to GMP pharmaceutical standards; the electric control system is equipped with a stainless steel electric control cabinet, which can realize the display and automatic control of extraction temperature and concentration temperature, and the on-off control and operation of each motor. Simple and convenient; the whole set of equipment is installed on an integrated stainless steel integrated platform, and the bottom is equipped with a rolling wheel with a locking function.
The extraction tank and the concentration tank are equipped with heating interlayer, high temperature resistant insulation layer, sight glass, sight lamp, CIP automatic rotating cleaning ball, and convenient disassembly flange cover, which is convenient for maintenance and cleaning. The extraction tank can be equipped with a stirring device according to user requirements to realize dynamic extraction, and is equipped with a feeding port, a quick-open slag discharge door and a filter screen; the vacuum concentration tank ensures that the extraction liquid can be evaporated and concentrated rapidly at a low temperature in a high vacuum state, and a customized stirring device The wall sticking phenomenon caused by the high concentration of the material liquid is effectively avoided. The stirring device adopts a mechanical seal, which will not cause air leakage due to high vacuum. The tubular heat exchange device ensures that the extraction tank and the concentration tank are heated due to The steam can be condensed into liquid phase and recovered in time; the condensate collection tank is equipped with a glass tube liquid level gauge, which can observe the water level; the oil-water separator adopts a glass viewing cup type, which is convenient for observation; the right-angle pipe filter is equipped with a 60-100 mesh (Optional precision) stainless steel filter screen, easy to disassemble and clean; centrifugal sanitary-grade material-liquid conveying pump realizes material transfer and circulation functions; water ring vacuum pump, reliable performance, low noise, to ensure the stability of the vacuum system; pipe inside the system The pipelines are made of sanitary mirror pipes, sanitary valves and other pipe fittings, which conform to GMP pharmaceutical standards; the electric control system is equipped with a stainless steel electric control cabinet, which can realize the display and automatic control of extraction temperature and concentration temperature, and the on-off control and operation of each motor. Simple and convenient; the whole set of equipment is installed on an integrated stainless steel integrated platform, and the bottom is equipped with a rolling wheel with a locking function.

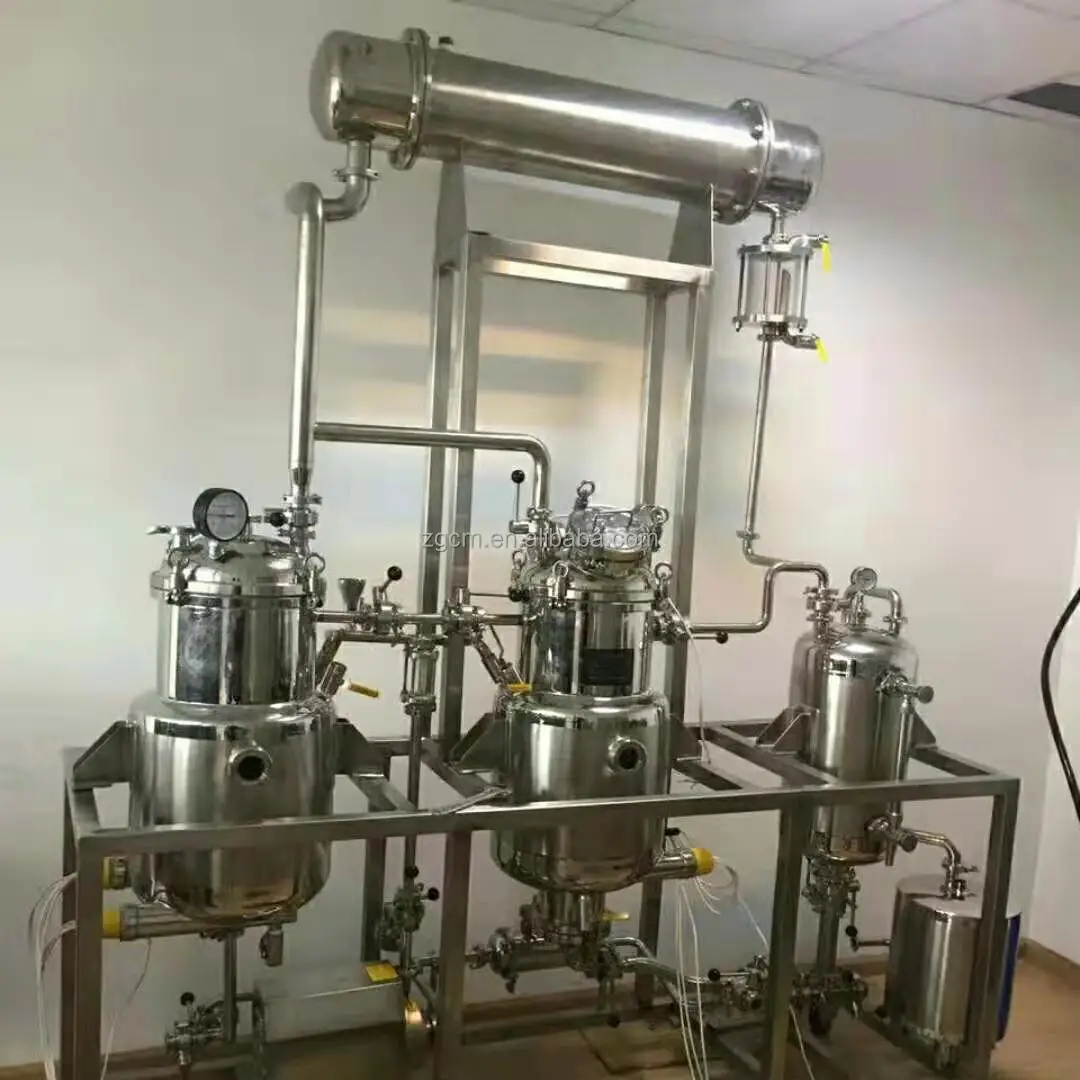

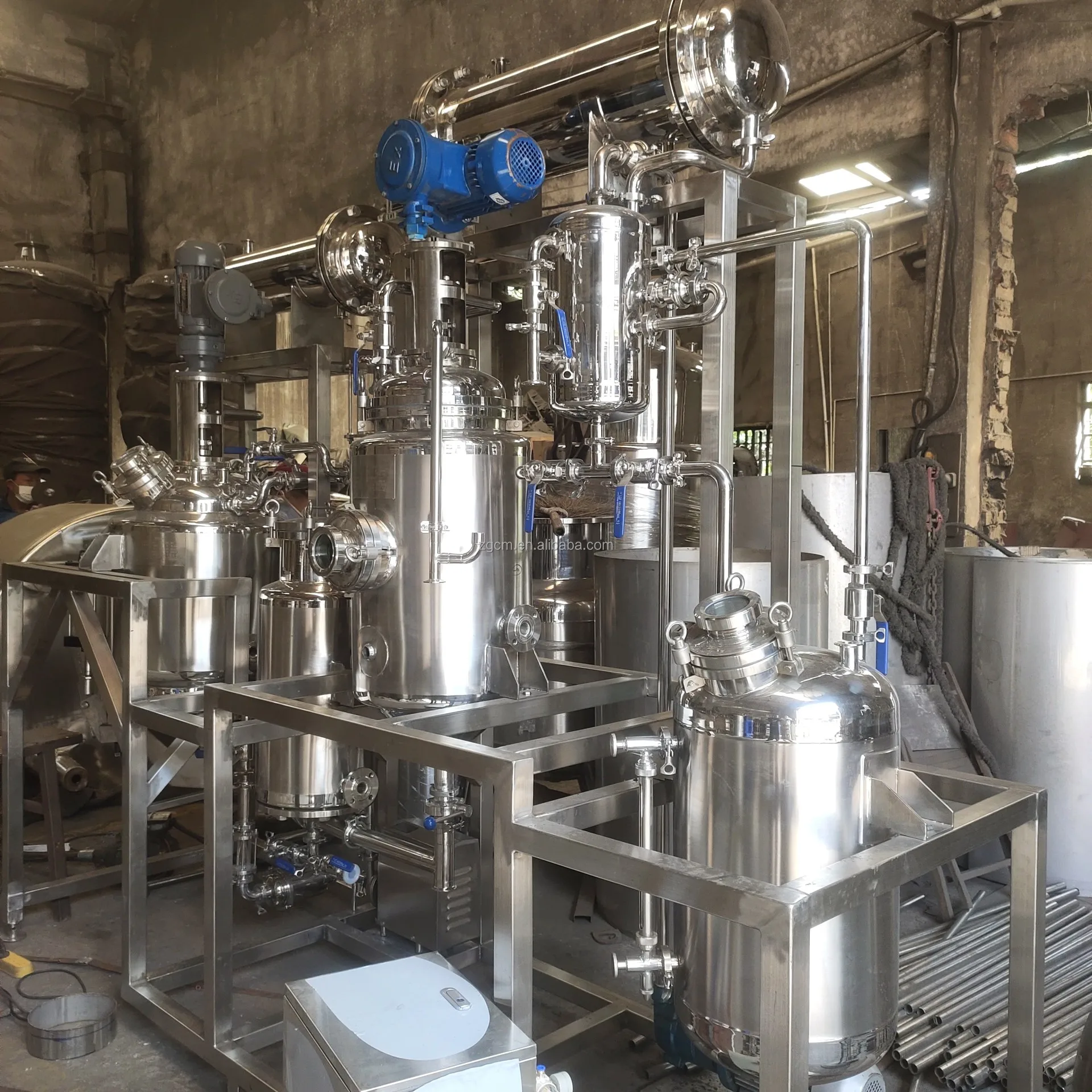

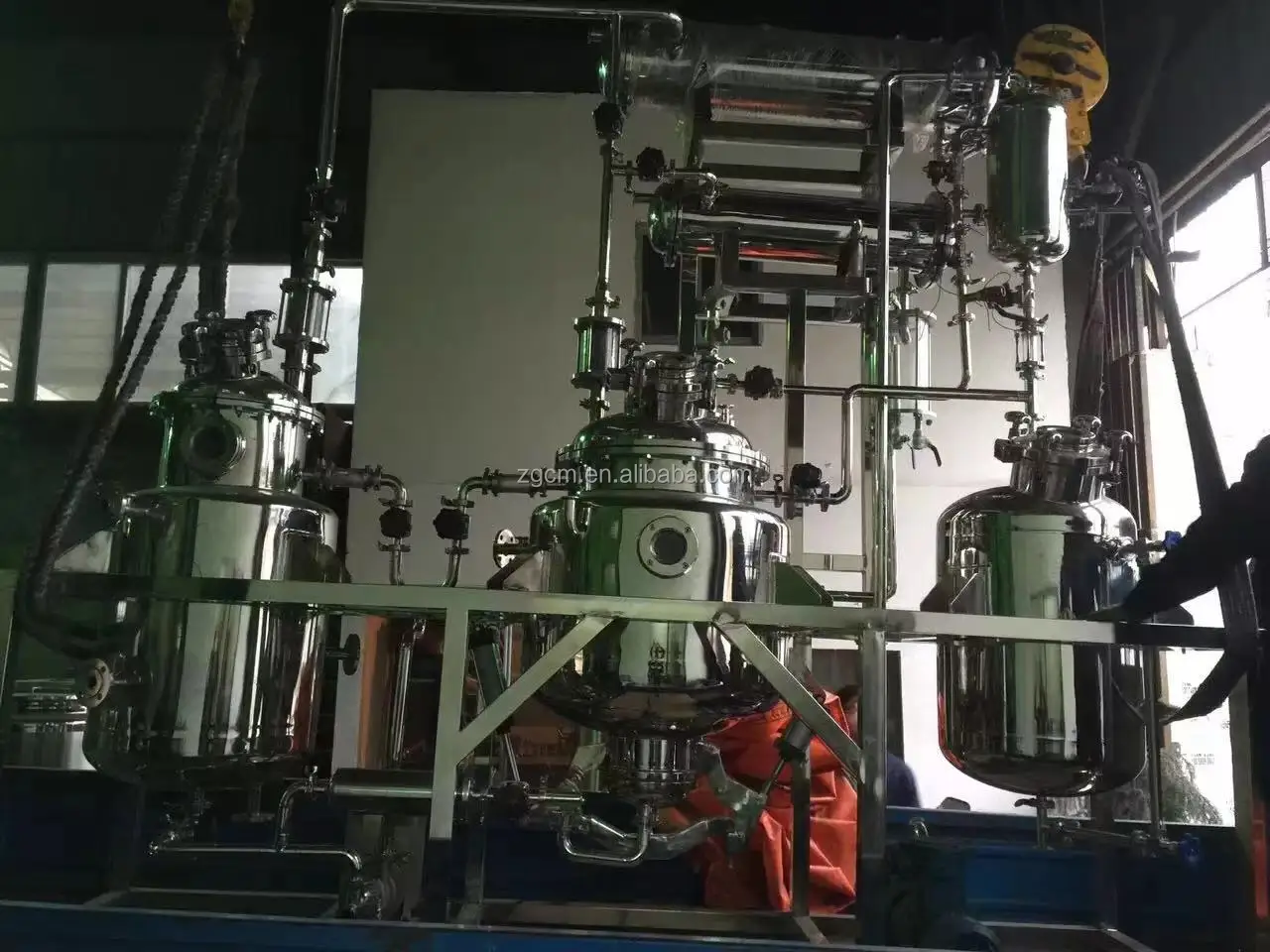

Production case
General efficacy
Design and manufacture by simulating industrial production conditions, close to the state of industrialized large-scale production, and avoid the occurrence of inconsistency between the results of the small test and the results of industrialized production;
Have a variety of functions, suitable for a variety of materials, strong versatility, and a wide range of applications;
A variety of specifications for users to choose or customize, suitable for small batches and large varieties of materials for small and pilot trials
Made of 304 or 316L stainless steel, smooth polished and corrosion resistant;
Arc-shaped design, complete discharge, no dead angle, no residue, in line with GMP pharmaceutical standards;
Steam heating or electric heating are two heating methods, which are heated evenly and meet the needs of users of non-steam boilers;
The high temperature insulation layer can effectively heat insulation, reduce energy consumption, and avoid operator burn accidents;
Dynamic (optional) extraction and vacuum concentration are adopted, with high efficiency;
Stainless steel control cabinet, realize automatic control and display of extraction and concentration temperature, easy to operate;
The internal circuits and pipelines of the system are connected, and users only need to connect external water and electricity to use;
One-piece integrated platform with rolling wheels, easy to move as a whole, compact structure and small footprint;
The performance of the whole machine is stable and reliable, the appearance is beautiful and generous, and the cleaning and maintenance are convenient.
Have a variety of functions, suitable for a variety of materials, strong versatility, and a wide range of applications;
A variety of specifications for users to choose or customize, suitable for small batches and large varieties of materials for small and pilot trials
Made of 304 or 316L stainless steel, smooth polished and corrosion resistant;
Arc-shaped design, complete discharge, no dead angle, no residue, in line with GMP pharmaceutical standards;
Steam heating or electric heating are two heating methods, which are heated evenly and meet the needs of users of non-steam boilers;
The high temperature insulation layer can effectively heat insulation, reduce energy consumption, and avoid operator burn accidents;
Dynamic (optional) extraction and vacuum concentration are adopted, with high efficiency;
Stainless steel control cabinet, realize automatic control and display of extraction and concentration temperature, easy to operate;
The internal circuits and pipelines of the system are connected, and users only need to connect external water and electricity to use;
One-piece integrated platform with rolling wheels, easy to move as a whole, compact structure and small footprint;
The performance of the whole machine is stable and reliable, the appearance is beautiful and generous, and the cleaning and maintenance are convenient.
Our factory
Henan Zhongguan Machinery Co., Ltd. has a plant area of more than 10,000 square meters, producing mixing tanks, heating tanks, fermentation tanks, homogenizers, vacuum homogenizers, extractors, thickeners, filling production lines, reverse osmosis systems, etc. The main products are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchange of talents and technologies with well-known enterprises at home and abroad. The factory has more than 180 employees, including 35 in the R&D department, responsible for the R&D and design of non-standard equipment and advanced technology in the industry. The after-sales department has 30 masters with more than 20 years of after-sales experience, responsible for the installation of equipment sold at home and abroad. Commissioning, operation training and technical maintenance. We aim to realize the intelligent packaging of enterprises, liberate people from heavy packaging production, let machines replace labor, reduce production costs and improve production efficiency
Company history

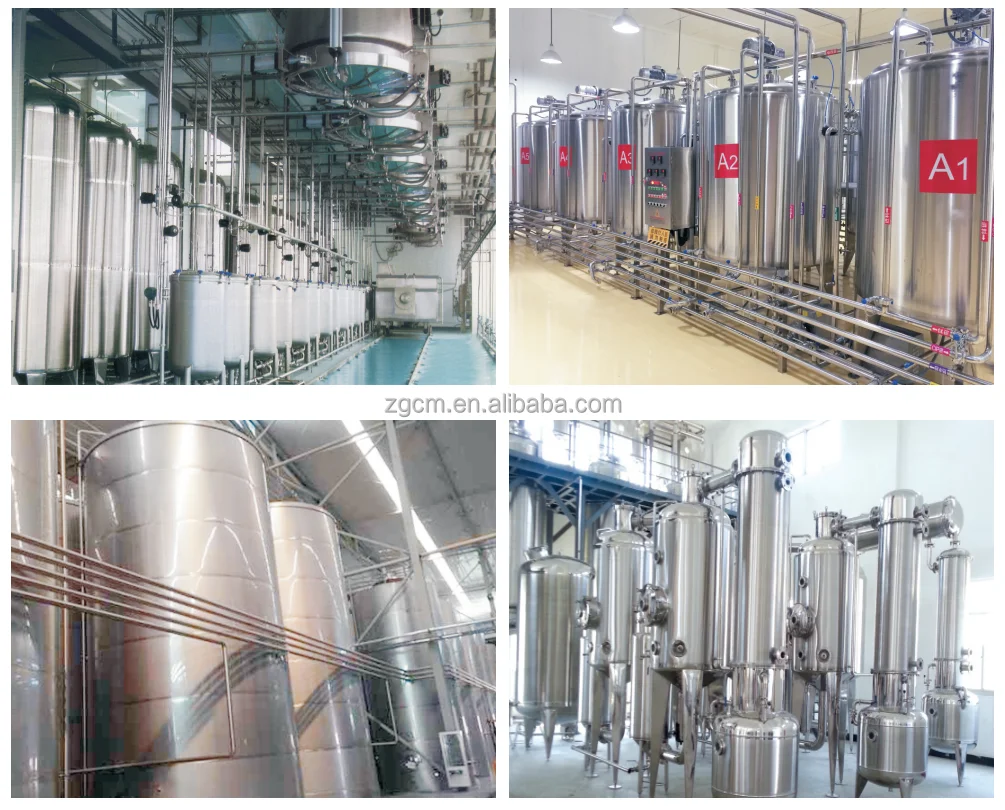

Cooperation Case
Our client
transport
Frequently Asked Questions and Answers
1. Q: Do you have a finished machine to see?
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
