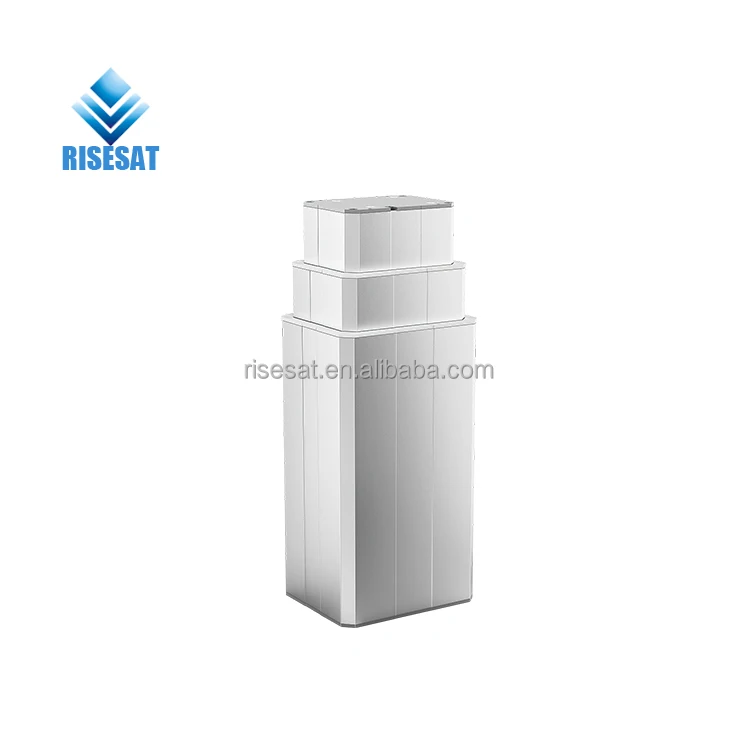

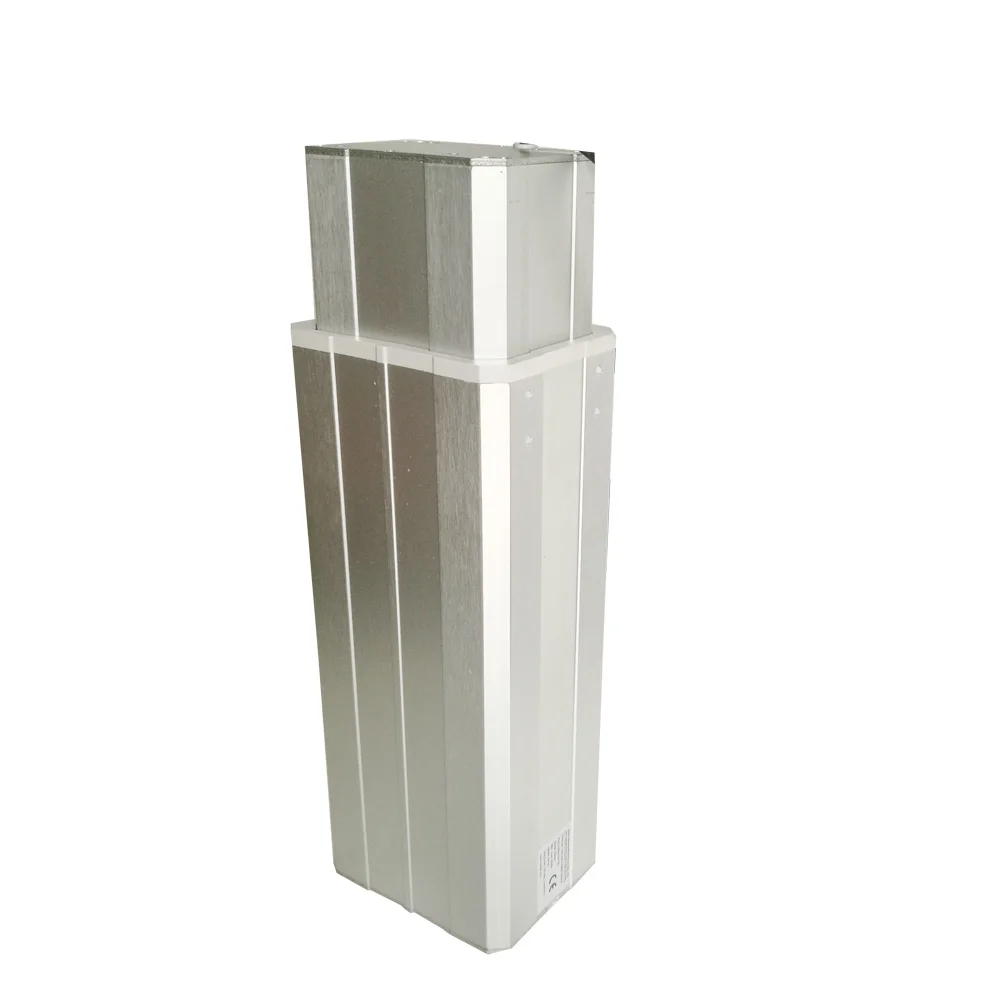

3 stage 24V 6000N big bending moment(1750N.m) heavy load capacity low noise Electric Lifting Column actuator RS LC3 3A
- Category: >>>
- Supplier: Anhui Risesat Electronics Co. Ltd.
Share on (1600515750119):
Product Overview
Description
Product Description
WE ARE PROFESSIOANL FACTORY
FEATURES
1. Motor:24 VDC
2. Available Load: 2000N/4000N6000N
3. Stroke Length: 100-400mm(+/-3mm)
4. Built-in Dimension: 350mm
5. Static Bending Moment: 1000/1500/2000Nm
6. Dynamic Bending Moment: 750/1250/1750Nm
7. Low Noise Level: ≤48dB (ambient noise≤40dB)
8. Surface: Anodized aluminium
9. Protection Level: IP54
10. Built-in Electronic Limit Switches
1. Motor:24 VDC
2. Available Load: 2000N/4000N6000N
3. Stroke Length: 100-400mm(+/-3mm)
4. Built-in Dimension: 350mm
5. Static Bending Moment: 1000/1500/2000Nm
6. Dynamic Bending Moment: 750/1250/1750Nm
7. Low Noise Level: ≤48dB (ambient noise≤40dB)
8. Surface: Anodized aluminium
9. Protection Level: IP54
10. Built-in Electronic Limit Switches

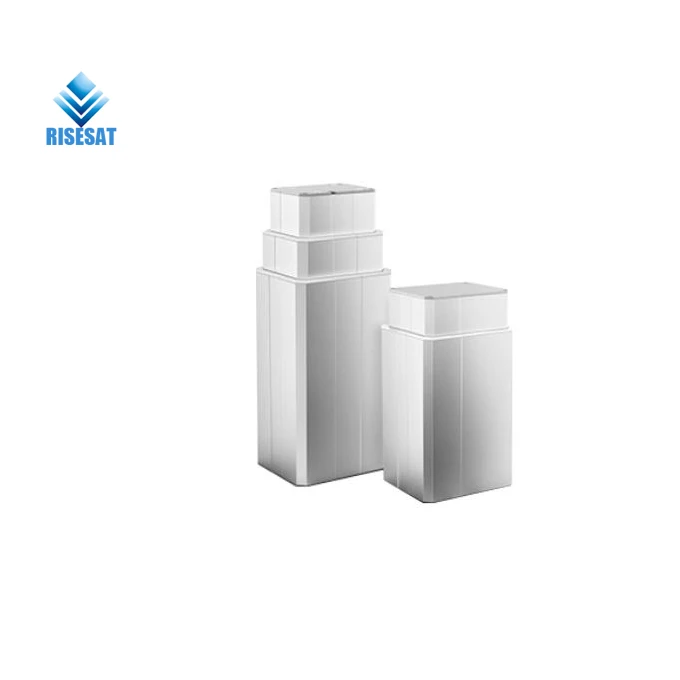

3 Stages liftin columns
Product Paramenters
Dynamic Load Push(N) | 6000 | 4000 | 2000 | ||
Static Load Push*(N) | 6000 | 4000 | 2000 | ||
Speed at Full Load(mm/s) | 1750N.m | 1250N.m | 750N.m | ||
Speed(mm/s) | 5.5 | 9 | 12 | ||
Stroke Length(mm) | 100~400 (option >400) | ||||
Colour | Grey | ||||
Mounting | By screws on bottom plate or aluminium holder | ||||
Overload Protection | Yes | ||||
Limit Switch | Build-in | ||||
Duty Cycle | 10%,max.2min. continuous use | ||||
IP Grade | IP43 | ||||
Operation Temperature | +5°C ~ +40°C | ||||
Optional Feature | Hall sensor option | ||||

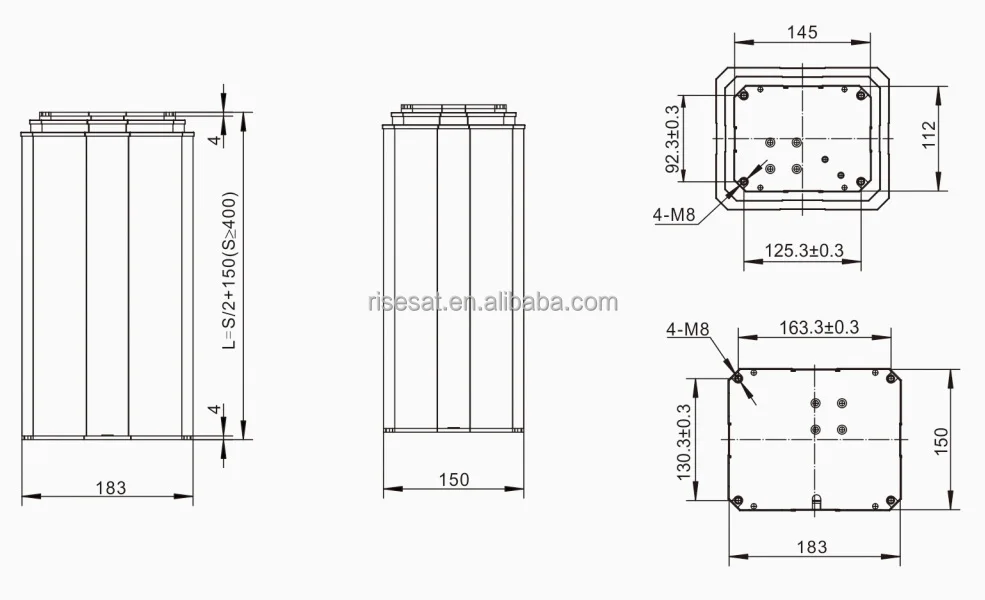

Details Images
We can OEM controller system as your request.
We can make 1000N, 2000N , 4000N, 6000N,Super power lifting columns .
The Control box is for 1pc to 4pcs working together.
Don't hesitate to send us Inquiry with your requirement.
Certifications
Company Profile
Recommend Products
shipping
By Sea | Delivery from Shanghai or Ningbo seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | By FEDEX, UPS, TNT, DHL, EMS , etc. | ||||
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 1)10~15days for sample 2)20~25days after receiving payment for bulk order | ||||
