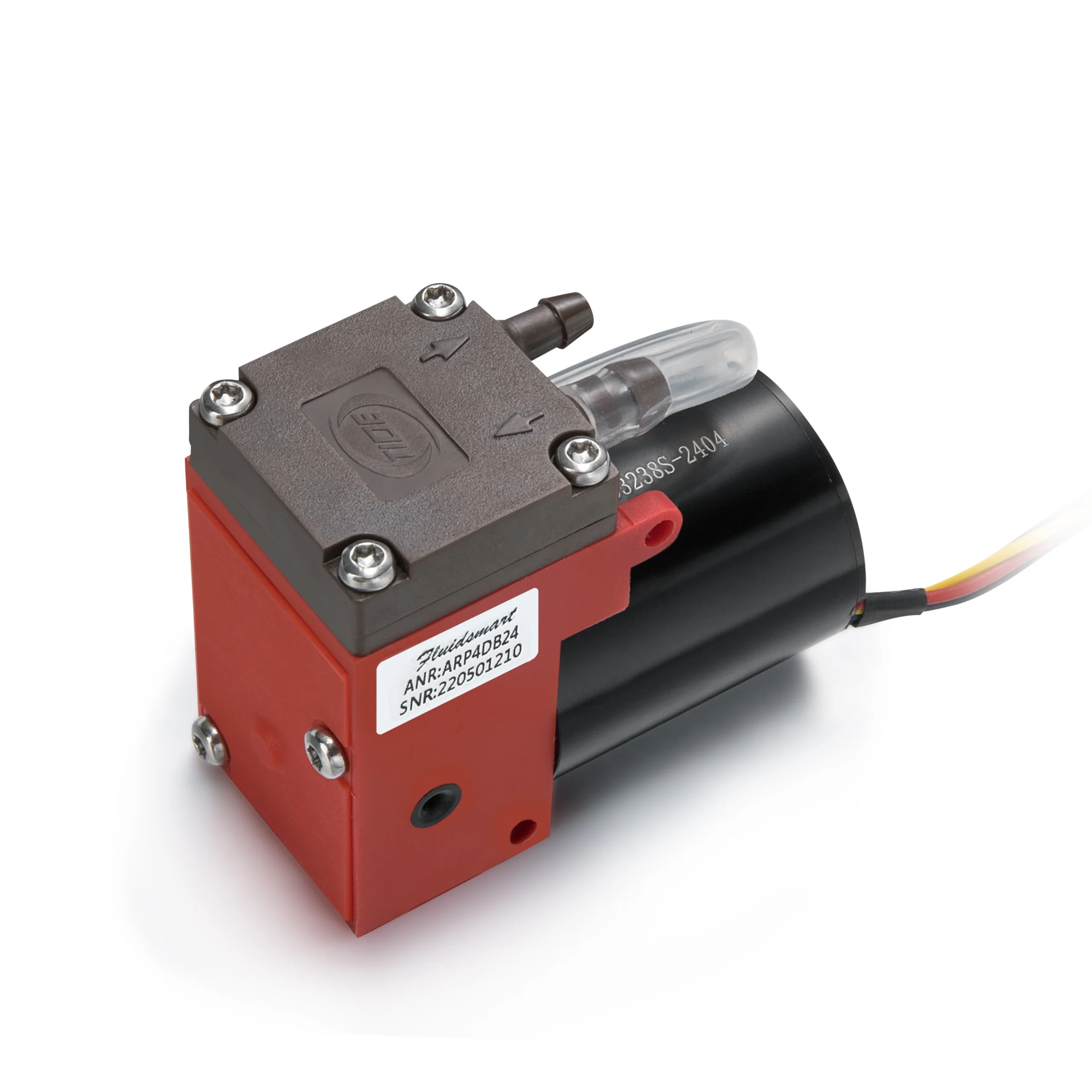

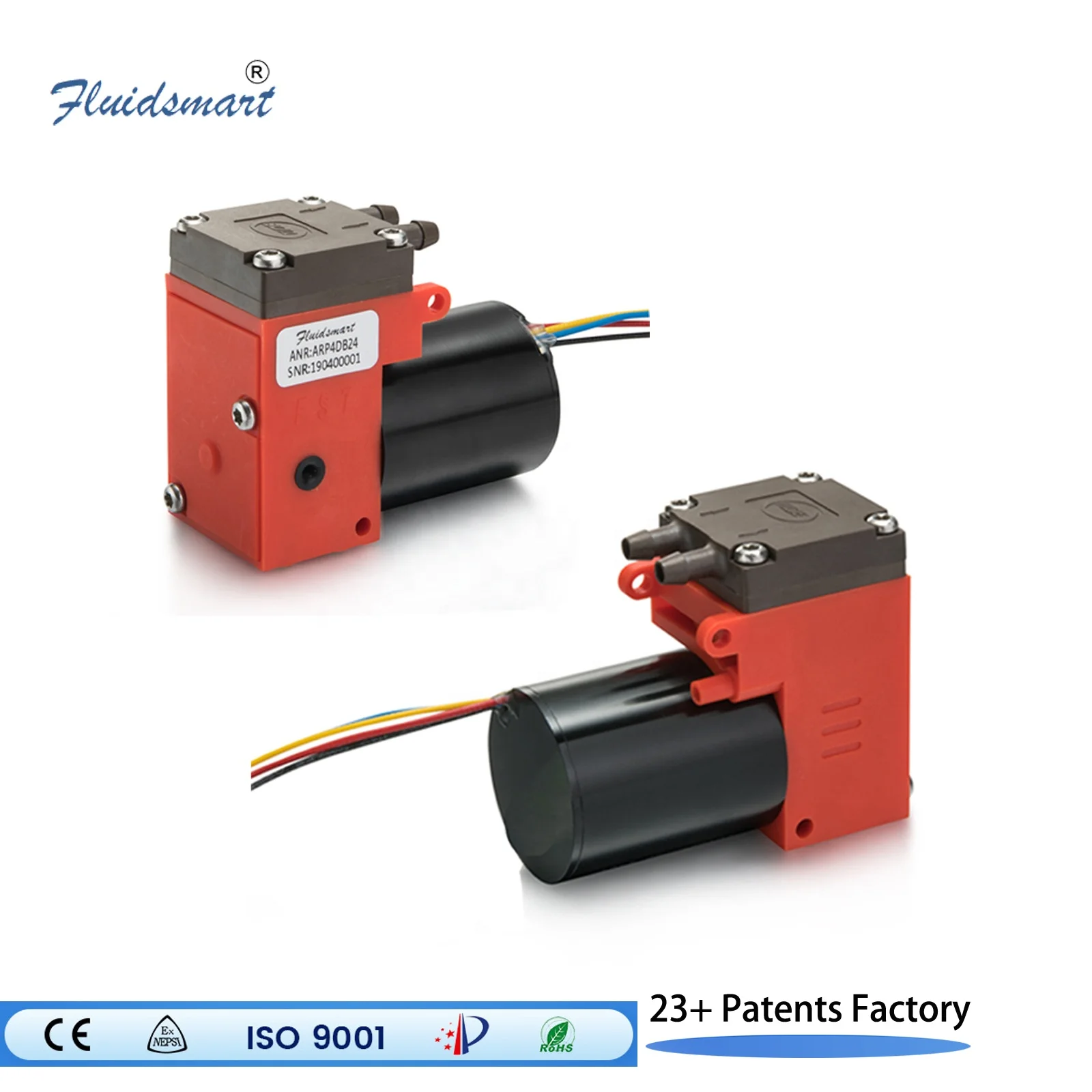

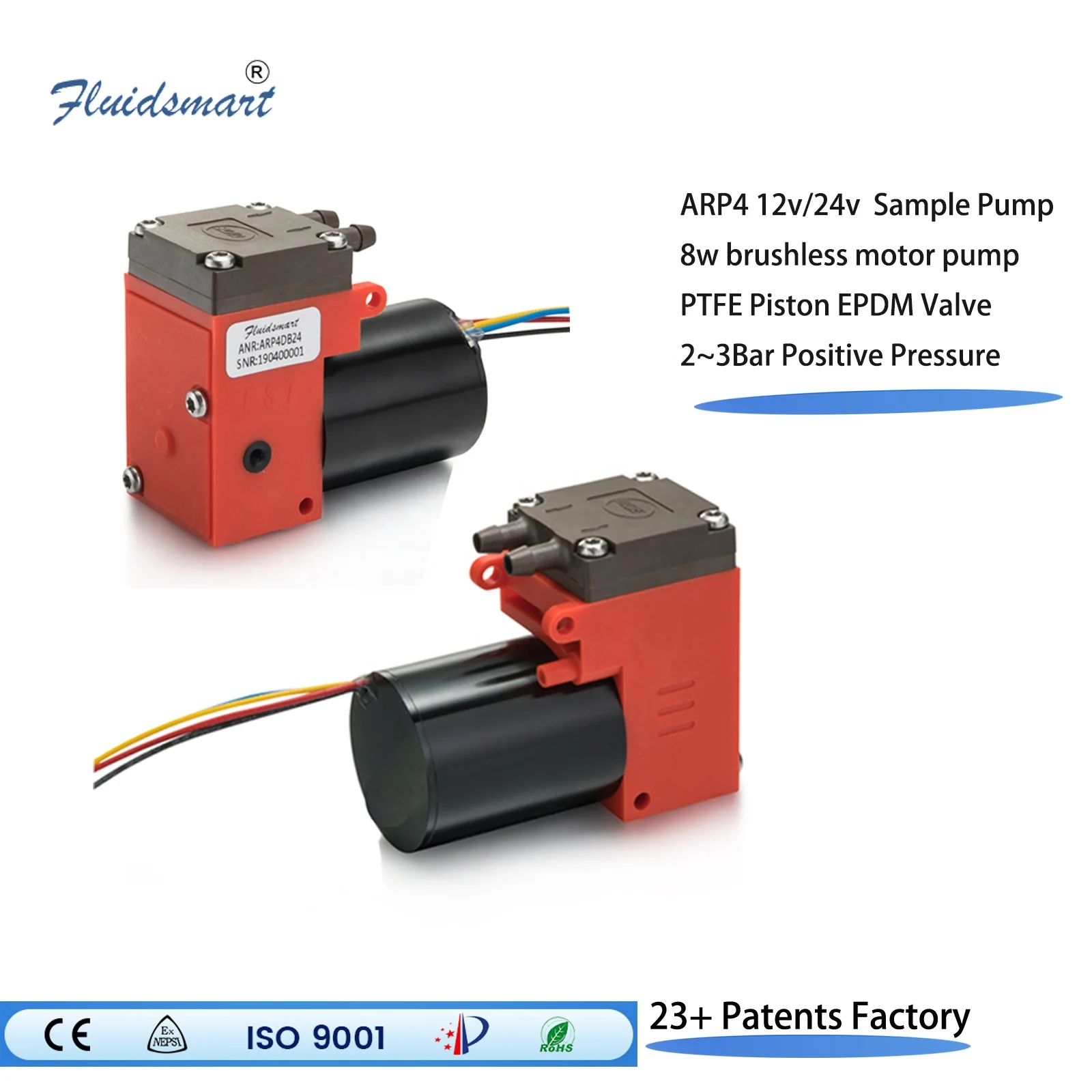

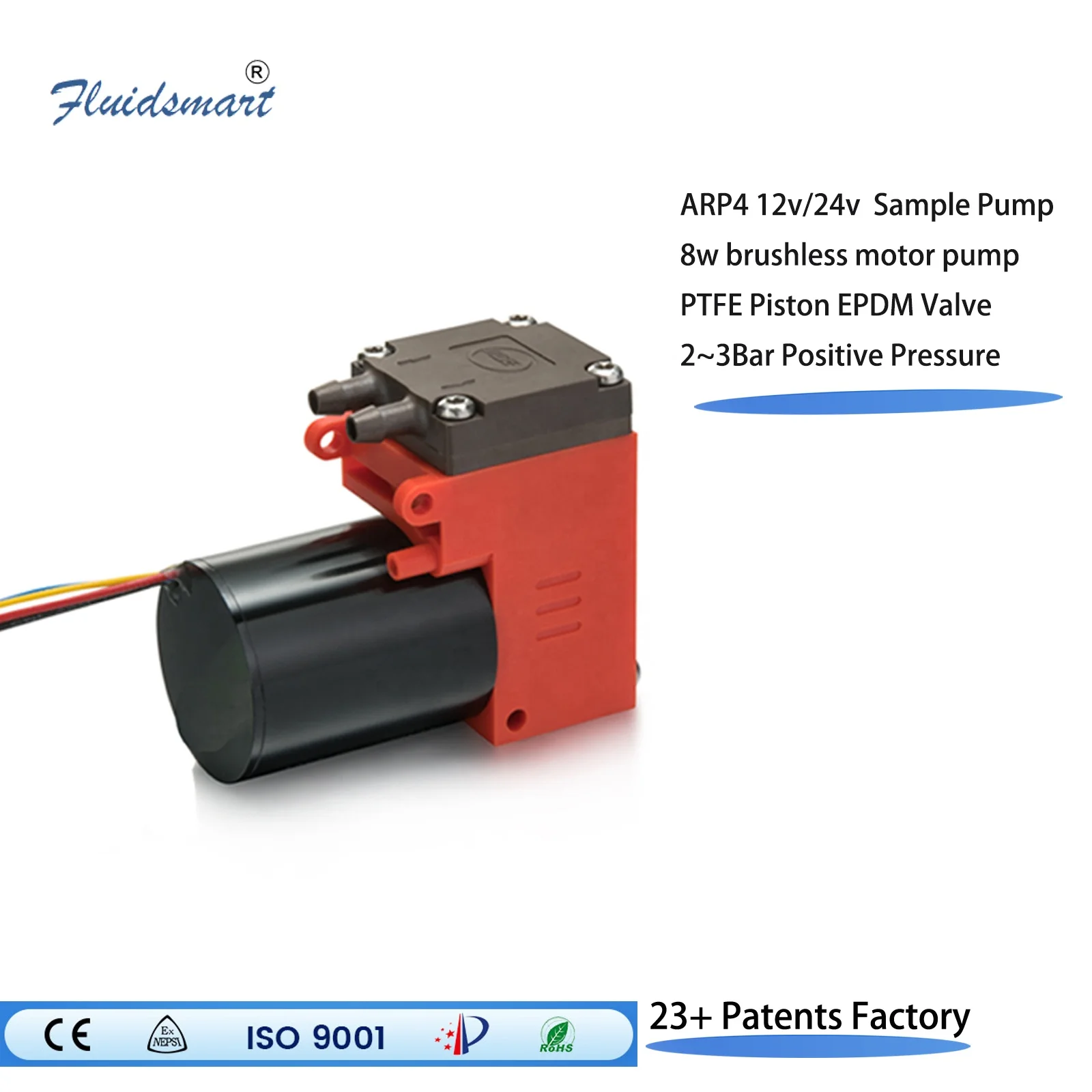

Fluidsmart ARP4DB24 electric micro pump lab oil free piston pump brushless motor 12dc air pump
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (1600515759546):
Product Overview
Description
Brushless Piston Pump 24V
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
* piston valve: EPDM or FKM
Model: | ARP4DB24 |
Voltage range: | 24VDC |
Maximum flow(in series): | 5.5L/min |
Max. Negative Pressure: | -70KPa |
Max. Positive Pressure: | 2-3Bar |
DMotor type: | Dc brushless motor |
Max. power: | 8w |
Waterproof grade: | IP00 |
Storage environment temp.: | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ |
Pump head material: | Imported PPS |
Pump cup material: | Imported PTFE |
Pump valve material: | Imported EPDM |
Pump Body material: | Imported PPS |
Dimensions(mm): | 80*31*54mm |
