Product Overview
Description
Product Overview

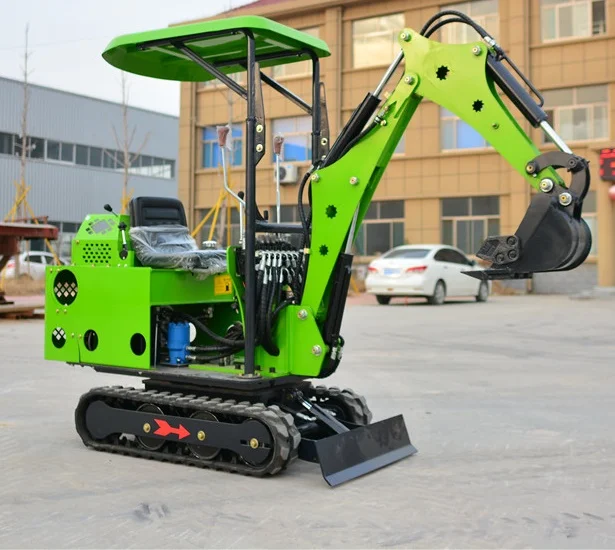

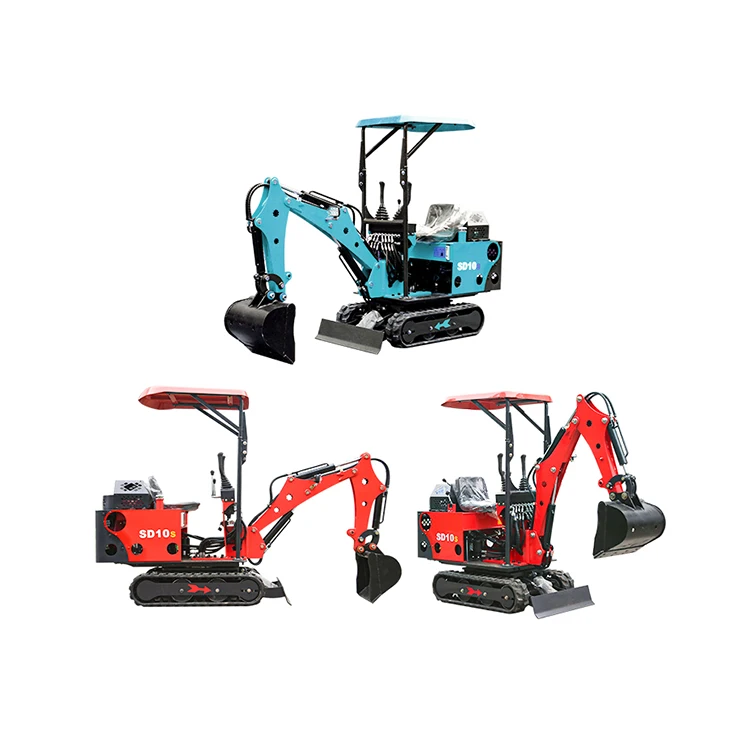

SD10S 0.8 Ton Excavator
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.Its' width only 750mm.It uses Euro v standard KP192 engine, boom swing optional;can work with hammer,auger,grab,etc.
COMPACT DIMENSIONS
SAFETY FRAME

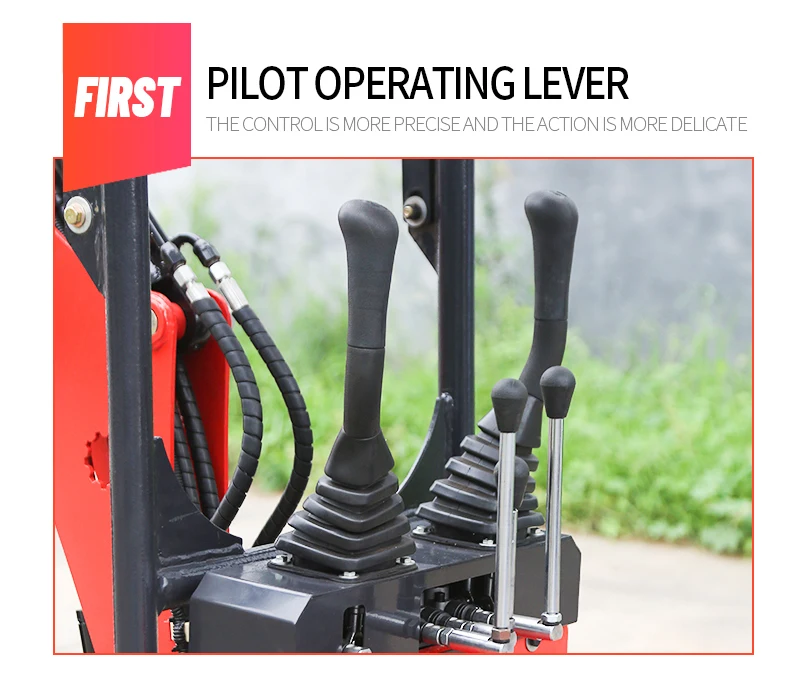

SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | ENGINE MODEL | KP192F | Emission Standard | Euro V standard |
1 | Rated Power | 8.6KW | Main pump | Shimadu |
2 | Bucket capacity | 0.02 M3 | Main Valve | Beifang |
3 | Operating weight | 0.8 Ton | Walking MOTOR | sanyo |
4 | Max. tractive force | 9.2kN | Rotary Motor | sanyo |
5 | Max. Digging Height | 2350mm | Bucket Width | 300mm |
6 | Max. Dumping Height | 1450mm | Max. Grade | 30° |
7 | Max. Digging Depth | 1300mm | Boom swing | optional |
8 | Max. Digging Radius | 2280mm | Overall Size | 2480*720*1500mm |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor

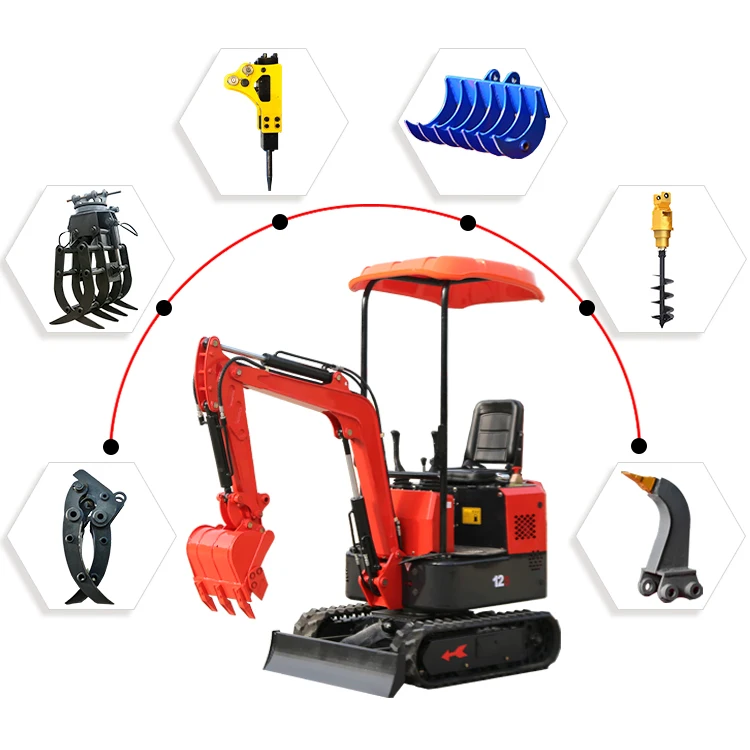

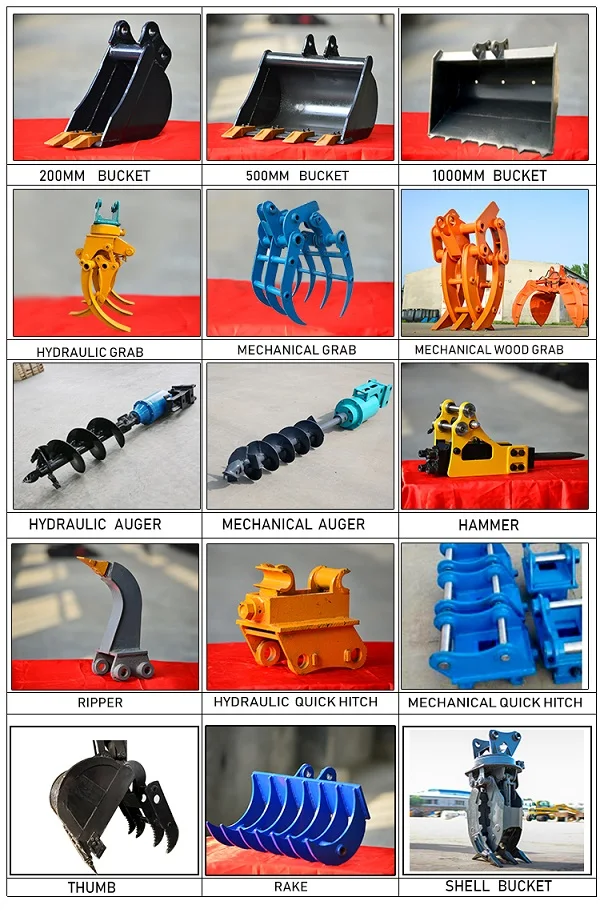

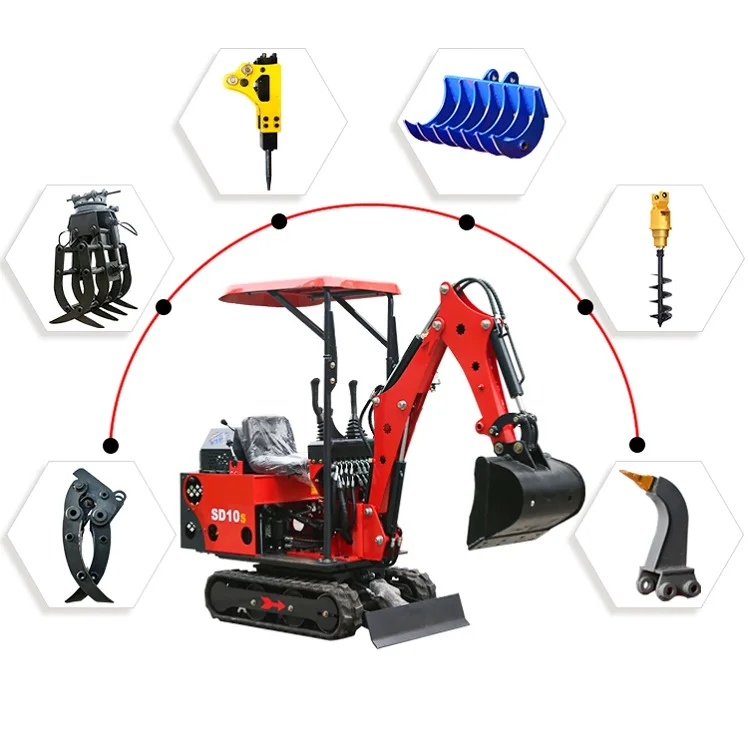

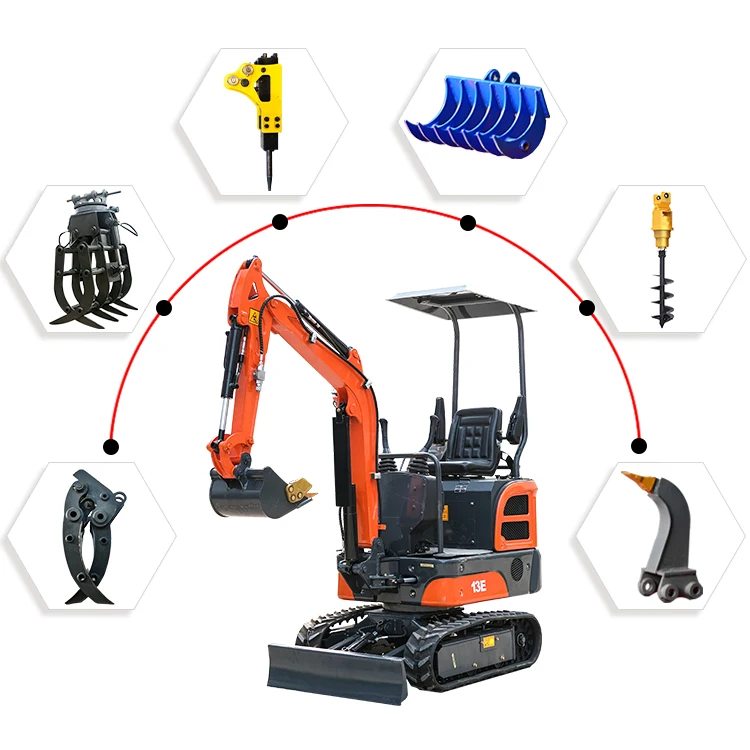

OPTIONAL ATTACHMENTS:

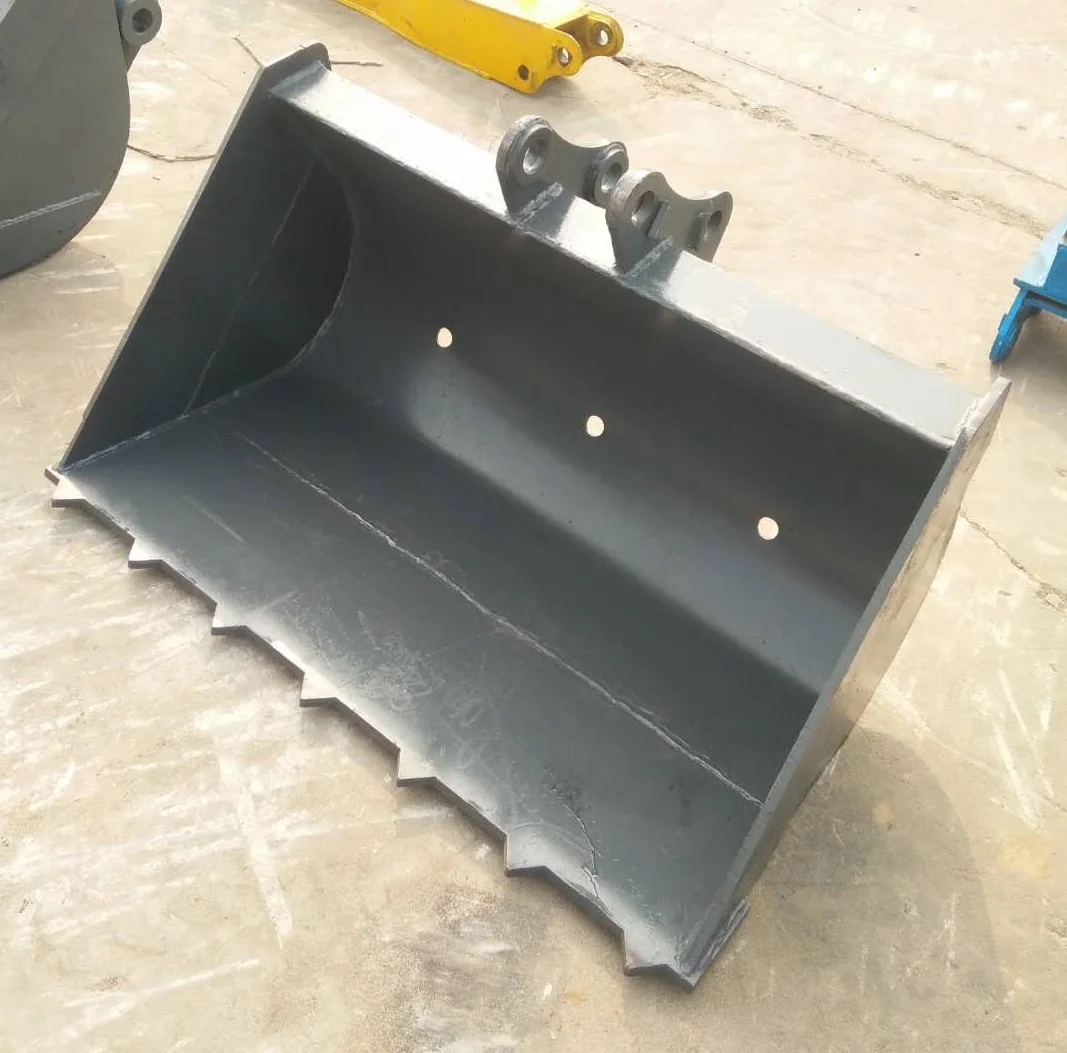

HOW TO CHOOSE THE BUCKETS:

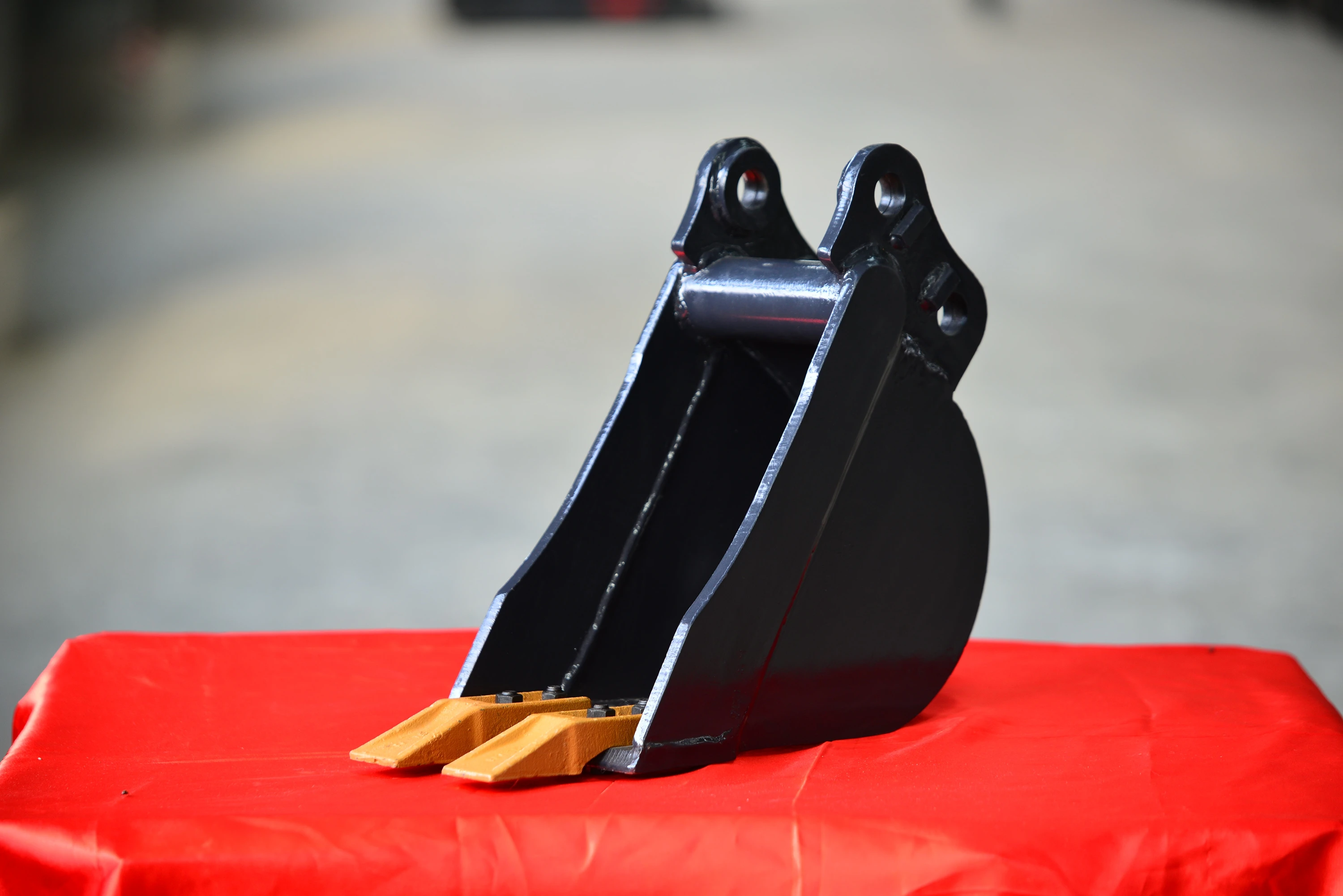

200MM BUCKET.
Useful for mini mising disruption and great for digging around tree stumps to undermine them.
SALES AND SERVICE NETWORK

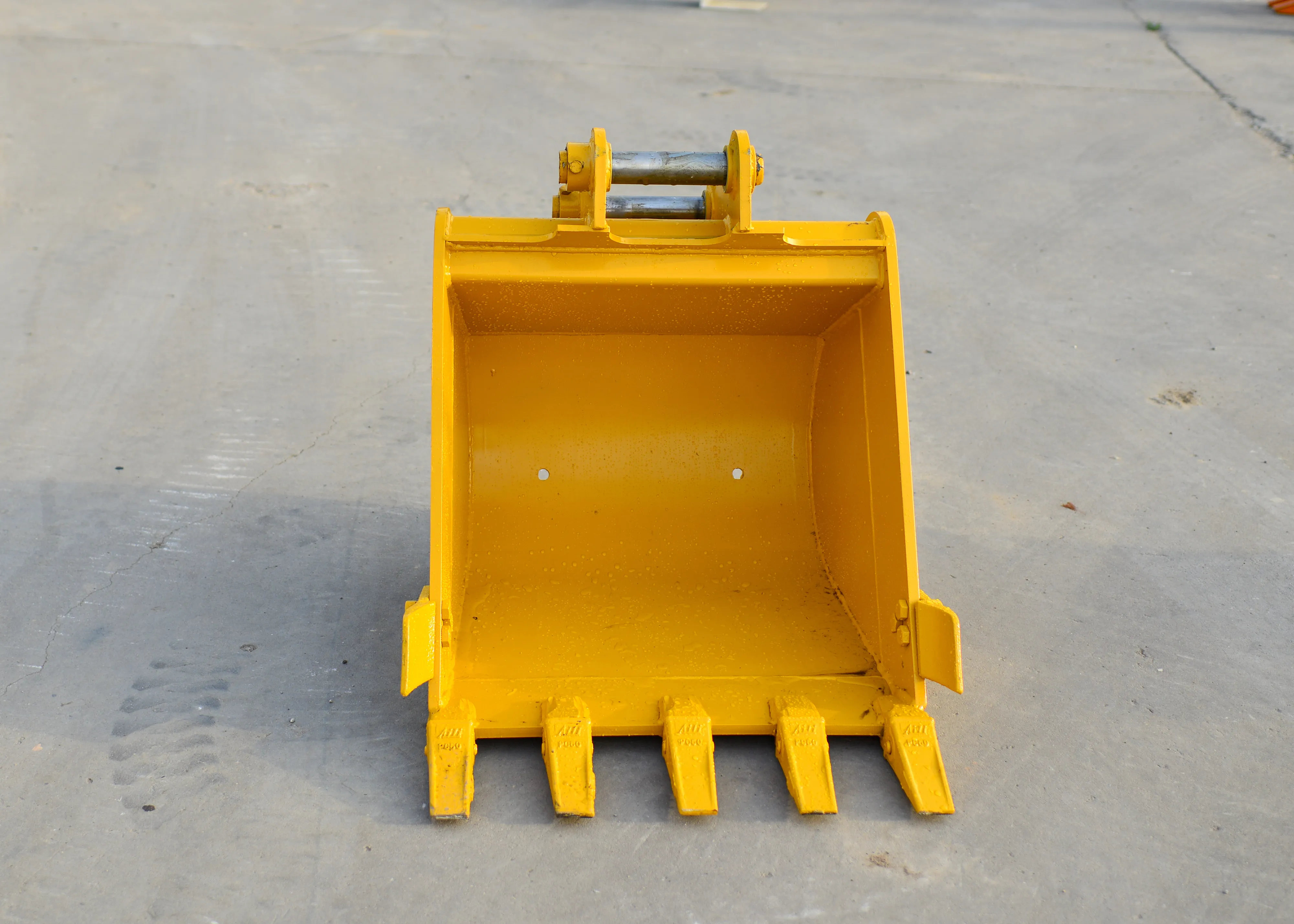

350MM BUCKET
For hardbaked sand and clay, as well as areas with scattered limestone. Good for ripping up roots.
600MM MUD BUCKET
Great for excavations in sand and highly efficient at moving spoil.

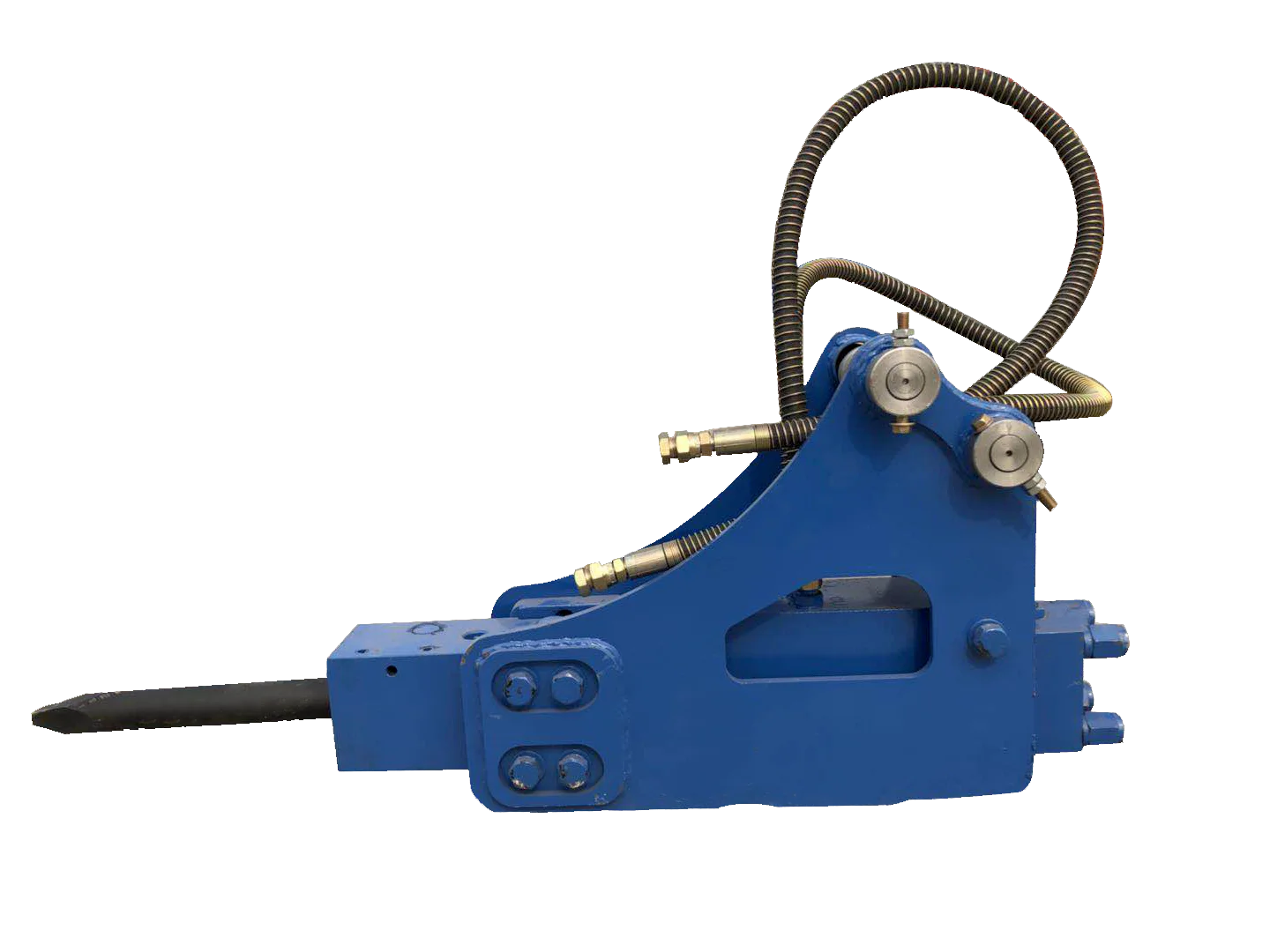

HAMMER
Use for breaking the hard rock and concrete
ground.
BLADE
Push sand around for backfilling, scrape the top off or level areas and tidy up.
