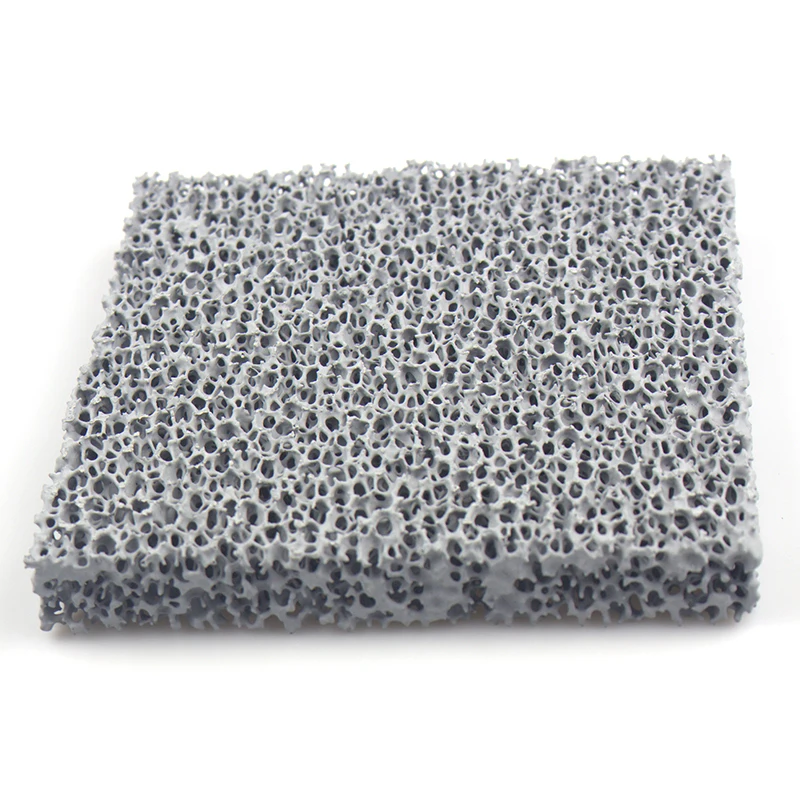

Porous Ceramic Honeycomb Ceramics Silicon Carbide Ceramic SIC Foam Filter For Casting
- Category: >>>
- Supplier: Pingxiang Zhongtai Environmental Chemical Packing Co. Ltd.
Share on (1600516287808):
Product Overview
Description
Products Description
Operating Principles
Ceramic foam filter with a high temperature, corrosion resistance, resistance to molten metal erosion, high strength, high pass rate, and the characteristics of the large surface area is mainly used in the field of metallurgy and casting metal liquid
filtration and purification. The flow of a mixture of molten metal passes through foam ceramic porous structure becomes uniform smooth clean molten metal filled the mold to remove the molten steel in the fineness of micron inclusions and some parcels gas reduce the erosion of the sand mold, and reduce product obsolescence rate. Ceramic foam filters can be made of different pore size and porosity, in order to obtain satisfactory filtration effect.

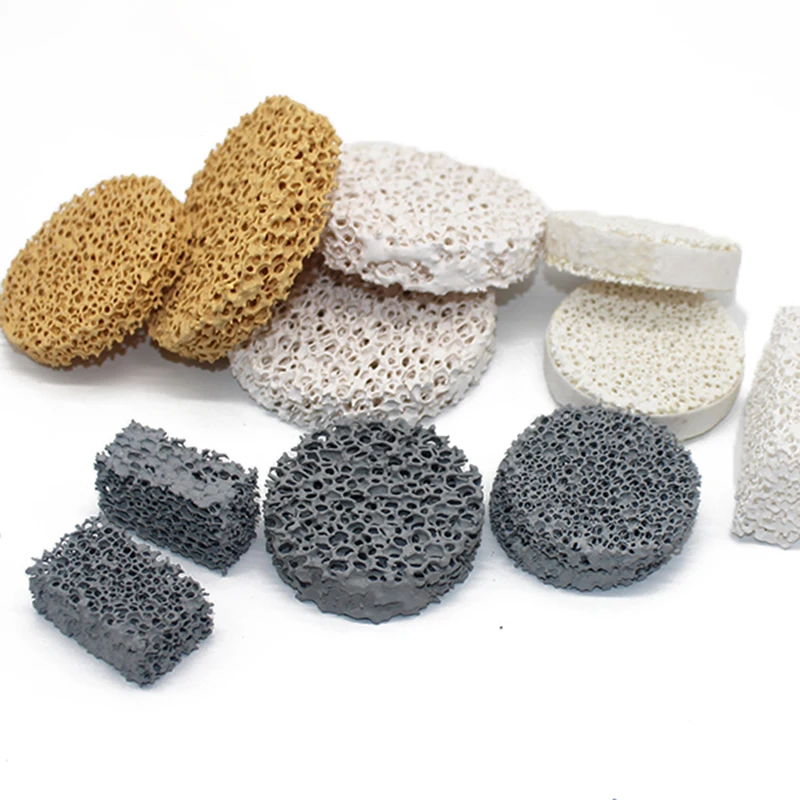

Ceramic Foam Material Ceramic foam filter, depending on the materials: alumina foam ceramic filters, silicon carbide ceramic foam filter, zirconia ceramic foam filter, and magnesium oxide foam ceramic filter.
1. Silicon Carbide Ceramic Foam Filter:
Working Temperature is 1560 Degree Centigrade. In the bronze casting process, the use of silicon carbide ceramic foam filter material is of SiC.
2. Zirconia Ceramic Foam Filter:
Working Temperature is 1700 Degree Centigrade. Steel castings uses zirconia ceramic foam filters. Zirconia ceramic foam filters material of ZrO2 zirconia. Zirconia heat-resistant temperature of the filter is higher than about 1760 ° C, with very high strength and excellent high-temperature impact.
3. Alumina Ceramic Foam Filter:
Working Temperature is 1200 Degree Centigrade. Alumina ceramic foam filter products effectively remove solid-state mixed with the molten metal, so aluminum alloy can be successfully forged, aluminum foil manufacturing, extrusion processing technology, perfect aluminum products. 10ppi coarse porosity 60ppi of fine porosity range of options.
Ceramic Foam Filter Size:
The size are available in square, round and custom geometric shapes; sizes ranging from 10mm up to 500mm, and thicknesses from 10-50mm. The most common porosities are 10ppi, 20ppi, 30ppi. Higher porosities are available upon request. Custom-made cut-to-size filters are also possible.
Package: Hard Carton or Wooden Carton with Pallet
Ceramic foam filter with a high temperature, corrosion resistance, resistance to molten metal erosion, high strength, high pass rate, and the characteristics of the large surface area is mainly used in the field of metallurgy and casting metal liquid
filtration and purification. The flow of a mixture of molten metal passes through foam ceramic porous structure becomes uniform smooth clean molten metal filled the mold to remove the molten steel in the fineness of micron inclusions and some parcels gas reduce the erosion of the sand mold, and reduce product obsolescence rate. Ceramic foam filters can be made of different pore size and porosity, in order to obtain satisfactory filtration effect.
Ceramic Foam Material Ceramic foam filter, depending on the materials: alumina foam ceramic filters, silicon carbide ceramic foam filter, zirconia ceramic foam filter, and magnesium oxide foam ceramic filter.
1. Silicon Carbide Ceramic Foam Filter:
Working Temperature is 1560 Degree Centigrade. In the bronze casting process, the use of silicon carbide ceramic foam filter material is of SiC.
2. Zirconia Ceramic Foam Filter:
Working Temperature is 1700 Degree Centigrade. Steel castings uses zirconia ceramic foam filters. Zirconia ceramic foam filters material of ZrO2 zirconia. Zirconia heat-resistant temperature of the filter is higher than about 1760 ° C, with very high strength and excellent high-temperature impact.
3. Alumina Ceramic Foam Filter:
Working Temperature is 1200 Degree Centigrade. Alumina ceramic foam filter products effectively remove solid-state mixed with the molten metal, so aluminum alloy can be successfully forged, aluminum foil manufacturing, extrusion processing technology, perfect aluminum products. 10ppi coarse porosity 60ppi of fine porosity range of options.
Ceramic Foam Filter Size:
The size are available in square, round and custom geometric shapes; sizes ranging from 10mm up to 500mm, and thicknesses from 10-50mm. The most common porosities are 10ppi, 20ppi, 30ppi. Higher porosities are available upon request. Custom-made cut-to-size filters are also possible.
Package: Hard Carton or Wooden Carton with Pallet
Material | Alumina | Silicon Carbide | Zirconia |
Color | White | Grey black | Yellow |
Pore Density | 10-60ppi | 10-60ppi | 10-60ppi |
Porosity | 80-90% | 80-90% | 80-90% |
Refractoriness | ≤1100℃ | ≤1500℃ | ≤1700℃ |
Bending Strength | >0.6Mpa | >0.8Mpa | >1.0Mpa |
Compression Strength | >0.8Mpa | >0.9Mpa | >1.2Mpa |
Volume-weight | 0.3-0.45g/cm³ | 0.35-0.5g/cm³ | 0.9-1.5g/cm³ |
Thermal shock resistance | 6times/1100℃ | 6times/1100℃ | 6times/1100℃ |
Application | Aluminium Aluminium alloys and other Non-ferrous alloys | Ductile Cast Iron Malleable Cast Iron Gray iron and other Cast Iron | High melting point metal alloys like Steel Alloy Steel Stainless Steel etc |
Working | ≤1200℃ | ||||||
Porosity | 80-90% | ||||||
Compression Strength (Indoor Temperature) | ≥1.0Mpa | ||||||
Volume Density | ≤0.5g/cm3 | ||||||
Thermal Shock Resistance | 800℃--Indoor Temperature 5 times | ||||||
Application | Non-ferrous and alumina alloys, high temperature gas filter, chemical fillings and catalysis carrier | ||||||
Silicon Carbide Ceramic Foam Filters | ||||||||
Dimensions (mm) | Pouring Rate(kg/s) | Filtration Capacity(ton) | ||||||
Grey Iron | Ductile Iron | Grey Iron | Ductile Iron | |||||
40x40x22 | 4 | 3 | 65 | 32 | ||||
50x50x22 | 6 | 4 | 100 | 52 | ||||
75x50x22 | 9 | 6 | 150 | 75 | ||||
75x75x22 | 14 | 9 | 220 | 100 | ||||
100x50x22 | 12 | 8 | 200 | 100 | ||||
100x75x22 | 18 | 12 | 300 | 150 | ||||
100x100x22 | 25 | 16 | 400 | 200 | ||||
150x150x22 | 50 | 36 | 900 | 450 | ||||
Detailed Images

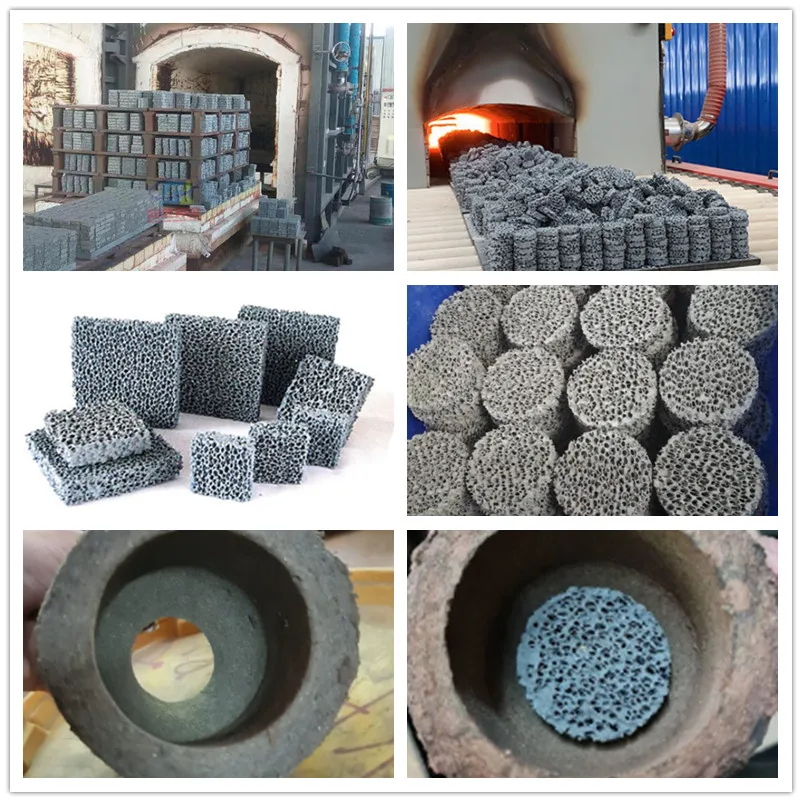

Product Line
ZhongTai Factory Supplying Silicon Carbide SIC Ceramic Foam Filter
Application
ZhongTai Factory Supplying Silicon Carbide SIC Ceramic Foam Filter
Application:Ductile Cast Iron
Malleable Cast Iron
Gray iron and other Cast Iron etc.
Malleable Cast Iron
Gray iron and other Cast Iron etc.

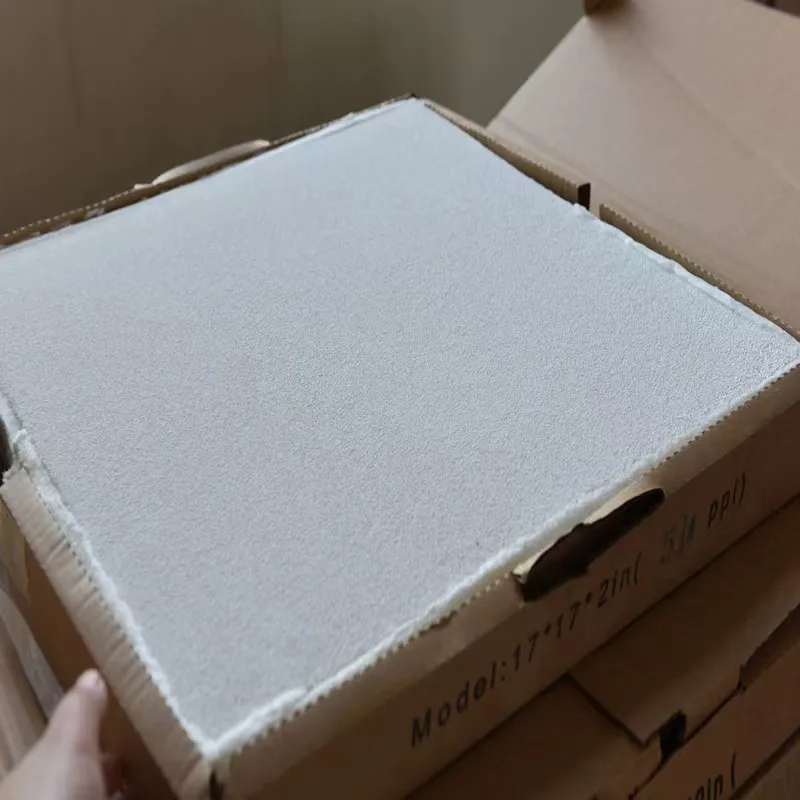

Packing & Delivery
ZhongTai Factory Supplying Silicon Carbide SIC Ceramic Foam Filter
ceramic foam filter
1.In carton box then on pallet.
2.Inner Package:Carton
Outer Package:Wooden Case
Certifications
Our Service
1.Quality: Excellent quality is our first pursuite, we have strict quality contral by our QC team.
2.Capacity: Constantly introducing new equipment to meet clients production requirment and market changing
3.Team: Specilized in Chemical Packing for more than 12 years, professional export team give customer comprehensive service
4.Efficiency: 24 hours on line service to solve all your questions.(Email, Trademanager, Skype, MSN, WhatsApp, Telphone), Factory direct sale price will be provided in 24 hours.
5.Customized: size & shape could be made as customer requirments
6.Payment: flexible and diverse payment ways can be chosen, make you more convenient
