Product Overview

Description









Large Film Greenhouse With Aquaponic System Used For Sale

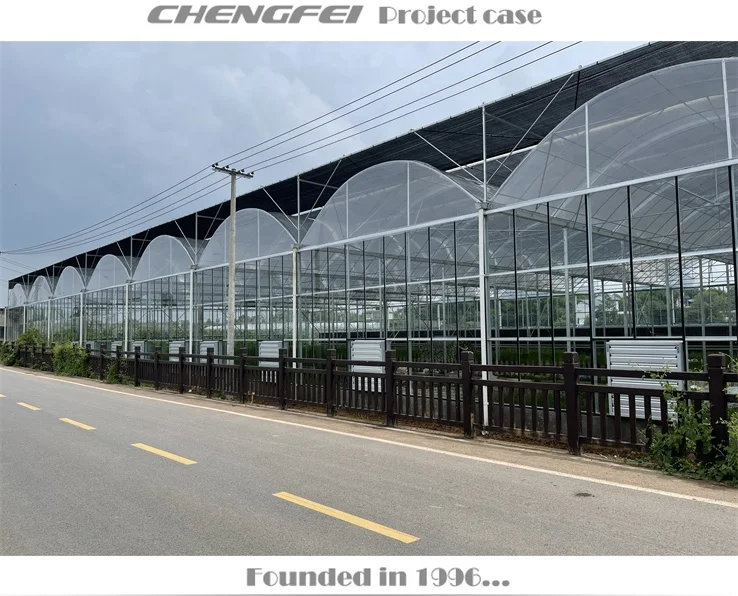

Chengfei greenhouse Multi-span film greenhouse series products. This type of greenhouse adopts a round arch structure design with a strong bearing capacity. After 25 years of exploration and improvement, they have formed mature products with full standard fastenings and modular installation.

This type of greenhouse has the following characteristics:

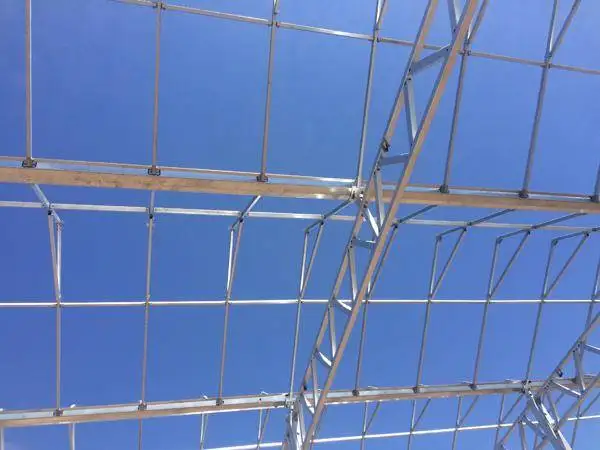

1. Strong structure: the frame is made of national standard hot-dip galvanized material and special fasteners independently designed by CHENGfei Greenhouse.
2. Good lighting: large lighting area, uniform lighting, such as the use of high permeability PO film, light transmittance can reach more than 80%.
3. High utilization rate: the multi-span and multi-compartment form a large area, and the land use is significantly improved.
4. Widely used: can be used in seedling, vegetable and flower cultivation, animal husbandry, and poultry breeding.
5. Good expansibility: arbitrary space combination, more intelligent systems for matching.
6. Product structure and size can be customized according to customer needs.




Technical Parameter
Version
Plastic Film Covering

Regular Dimension
1. Span: 6 m~10 m
2. Common span: 8m
3. Section length: Multiples of 4m or 8m, length range 20~72m
4. Shoulder height (from the gutter to the ground) : 2m~6m
Framework Material
GB Standard hot dip galvanized steel, steel 15~20 years rust proof
Covering Material
80~200 Micron PE film (Anti-dew)

Supporting Systems
Common configuration:

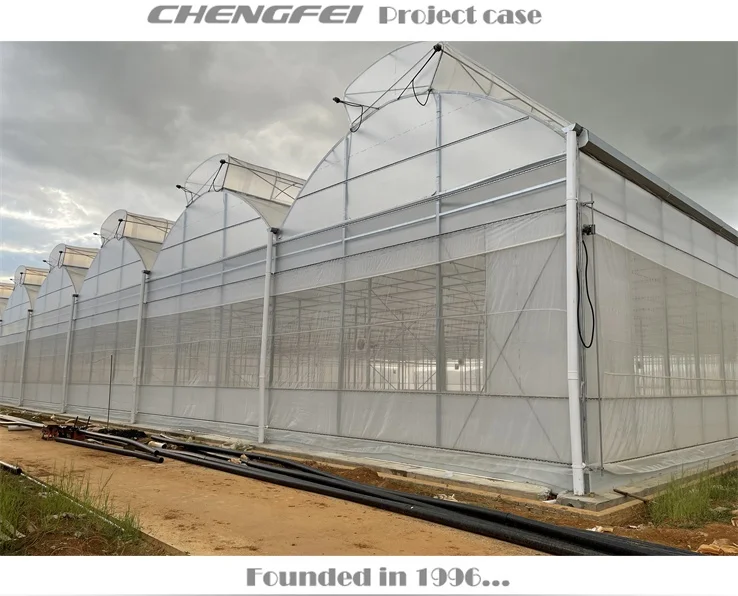

1. Both sides of the film ventilation
 2. The top film ventilation
3. Electric external shading (Other supporting equipment or system can be added)
Connections
Full accessories connection, on-site assembly
Snow load
0.25KN/M2
Wind load
0.35KN/M2
Drainability
140mm/h




















The covering materials used in greenhouse are mainly divided into three categories

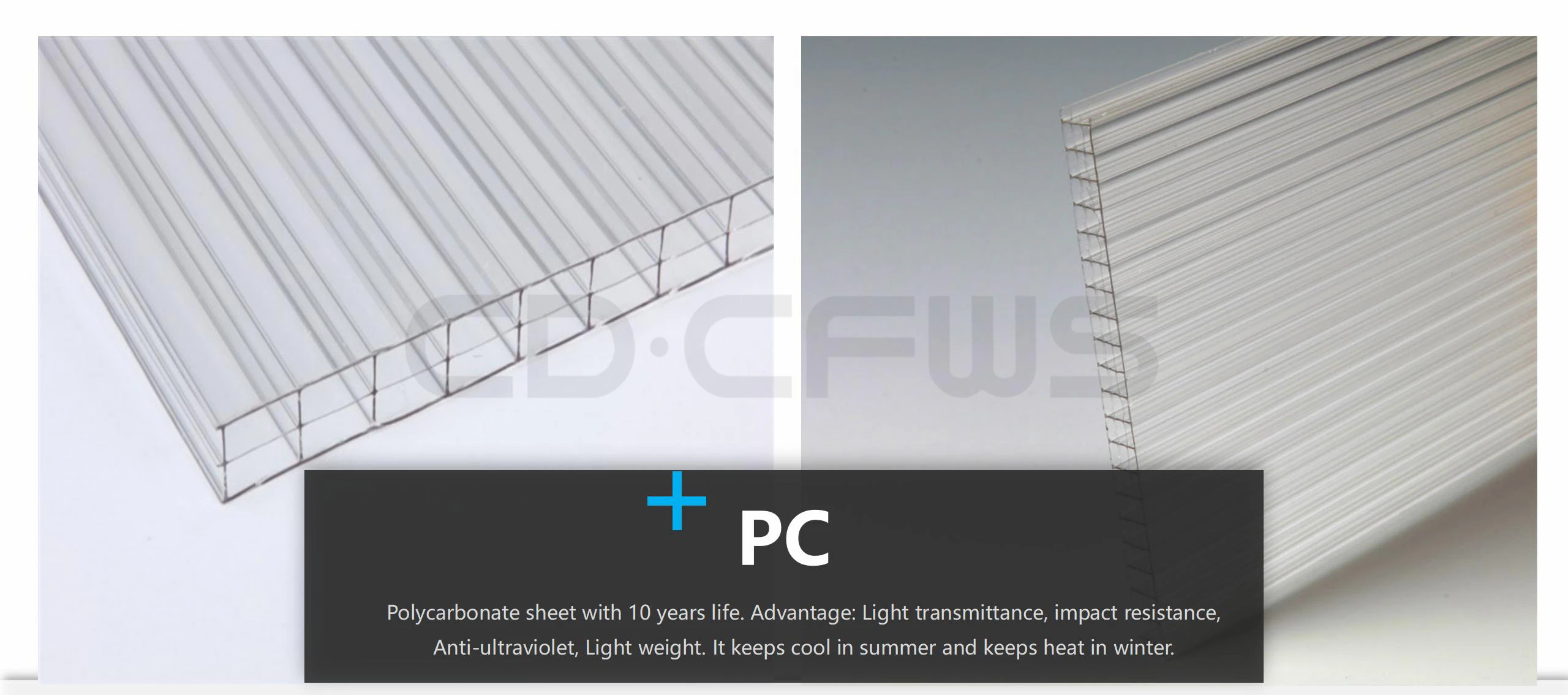

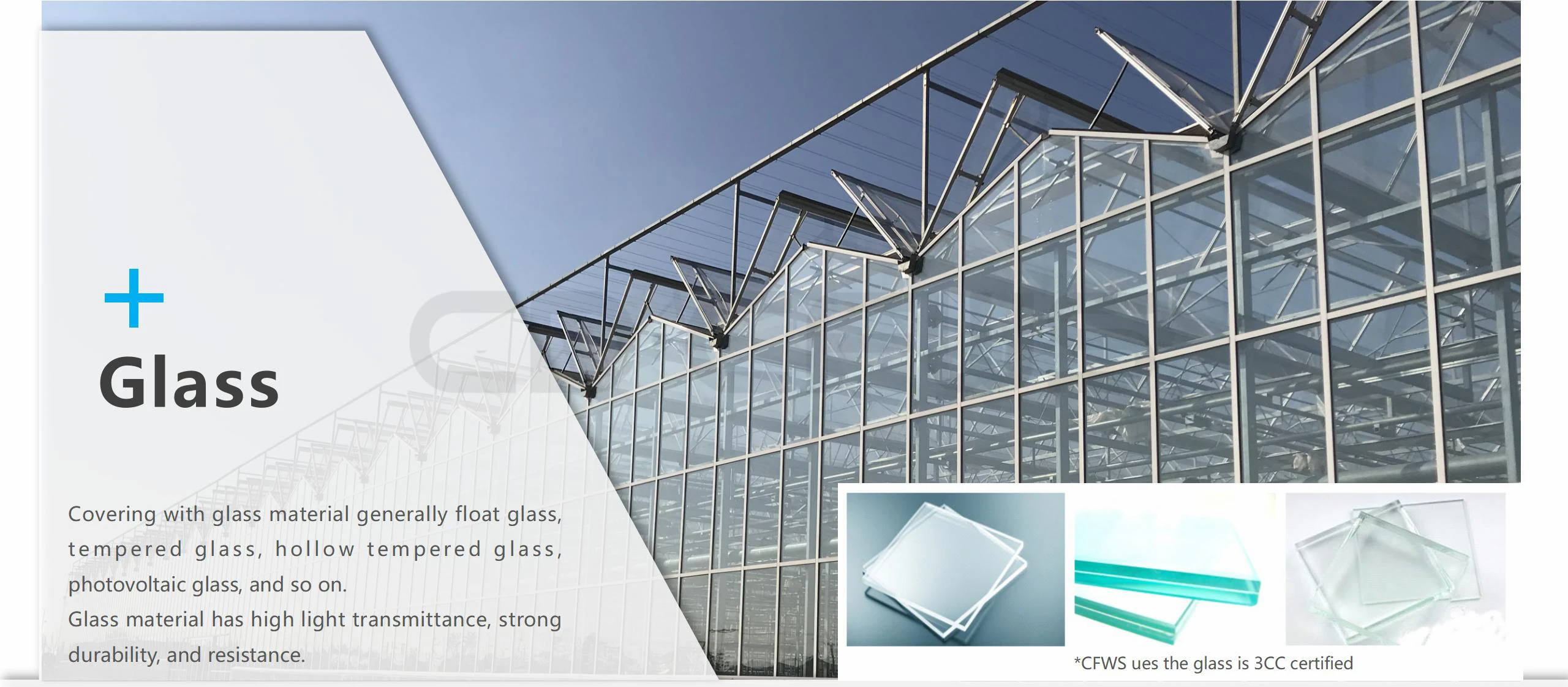

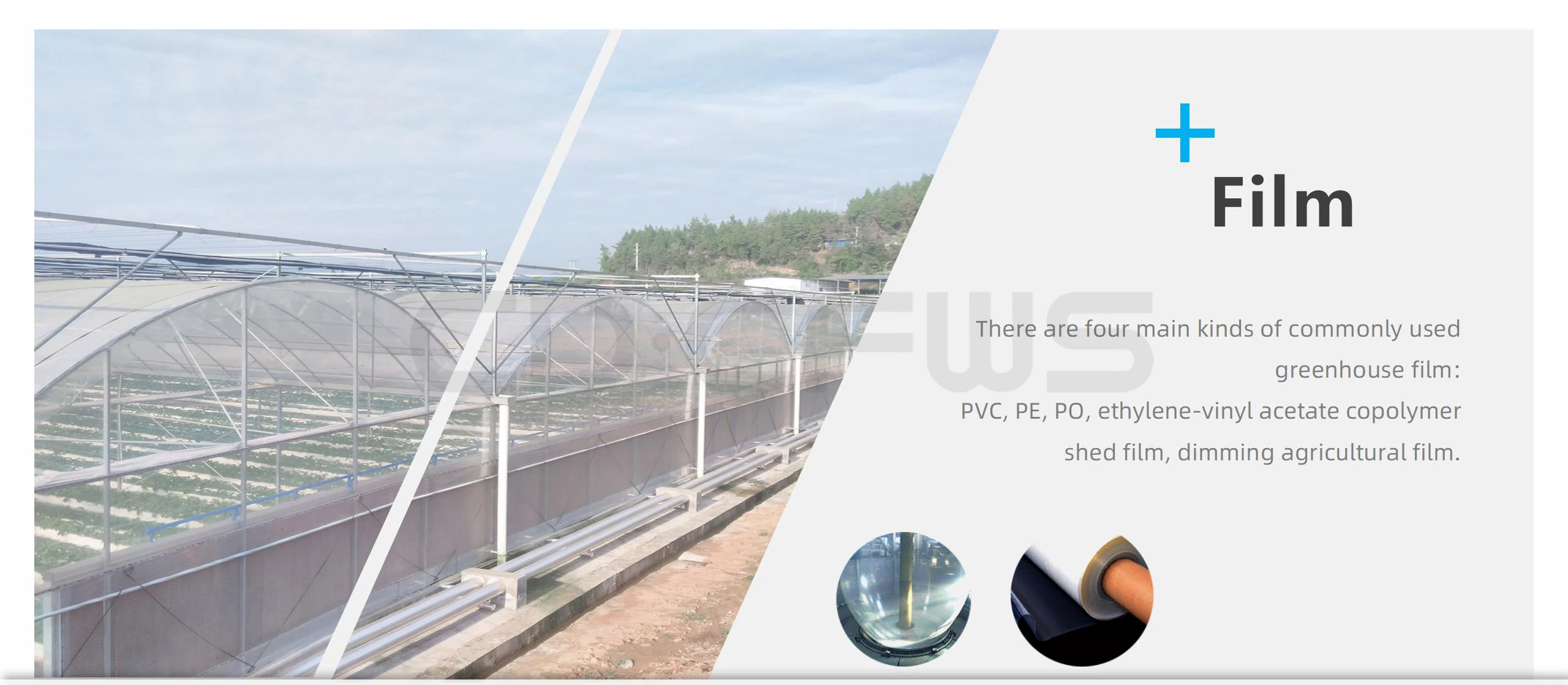

Glass, polycarbonate board (PC), film (PE, PO)
This type can be selected as follows：

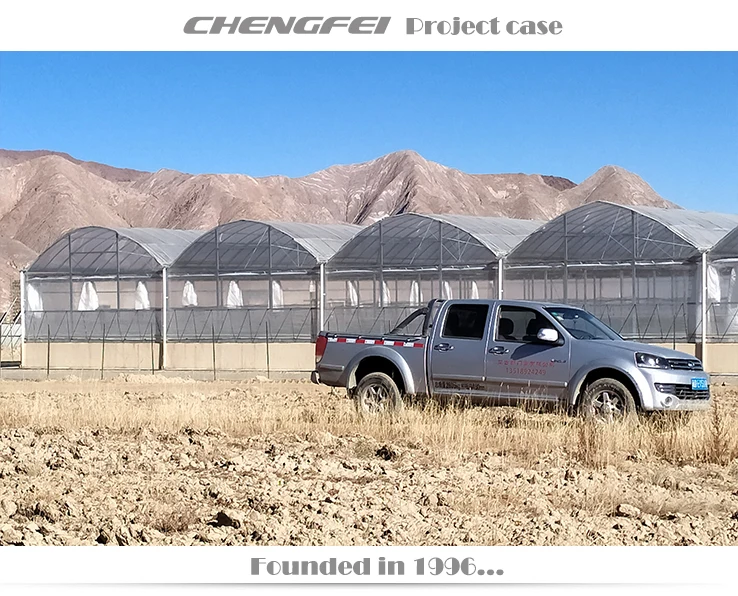

Our greenhouse products

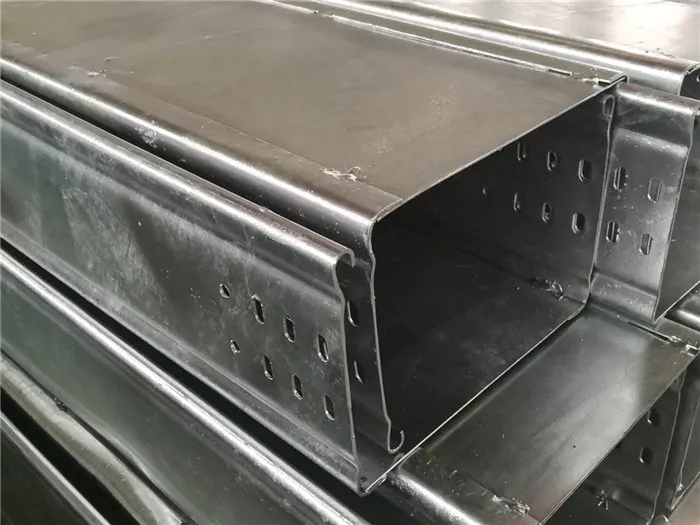

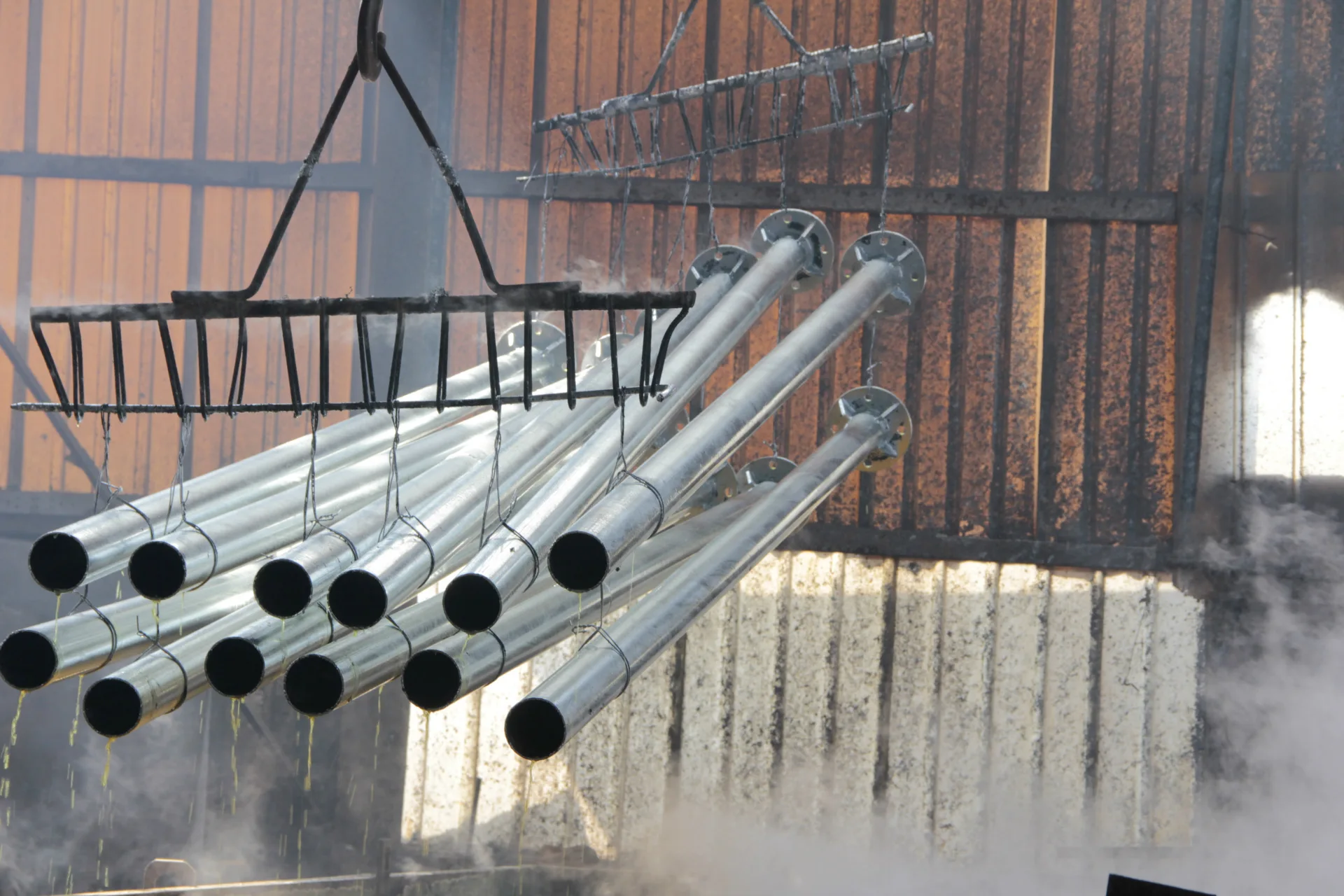

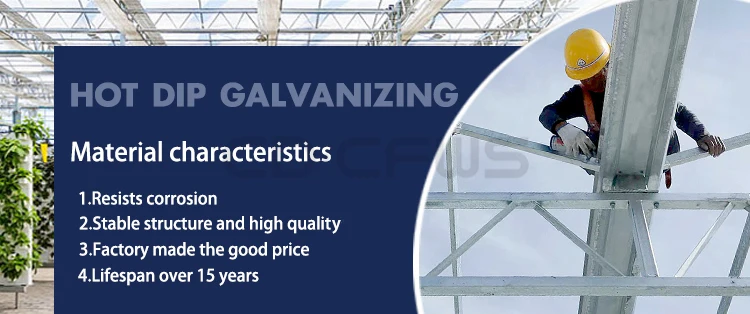

This kind of special treated steel has good anticorrosion and antirust effects, which extends the service life of the greenhouse.


























Q1 Are you manufacturer or trading company?
We are professional greenhouse manufacturer in China for more than 25 years
Q2 Do you provide samples? Is it free or extra?
Yes, we can provide samples free of charge, but the freight charges are by your side.
Q3 How long is your delivery?
According to your greenhouse size and system, the delivery time is usually 15-20 work days delivery on time.
Q4 What information do I provide before I get a quote?
In order to provide you with the most suitable suggestions, pls let me know the following info:
1 Which city are you going to build this greenhouse?
2 What is the greenhouse size includes length, width and height?
3 What covering material do you want to use?
4 What is the greenhouse purpose? Commercial or Plant (which crops)?
Q5 What is the payment terms?
Usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own payment terms, then we can negotiate it.
