Mass Flowmeter Full Automatic High Accurate Linear Lube Engine Lubricant Motor Oil Flowmeter Filling Oil Machine
- Category: >>>
- Supplier: Changzhou Jerry Packaging Technology Co. Ltd.
Share on (1600516321709):
Product Overview
Description
Products Description

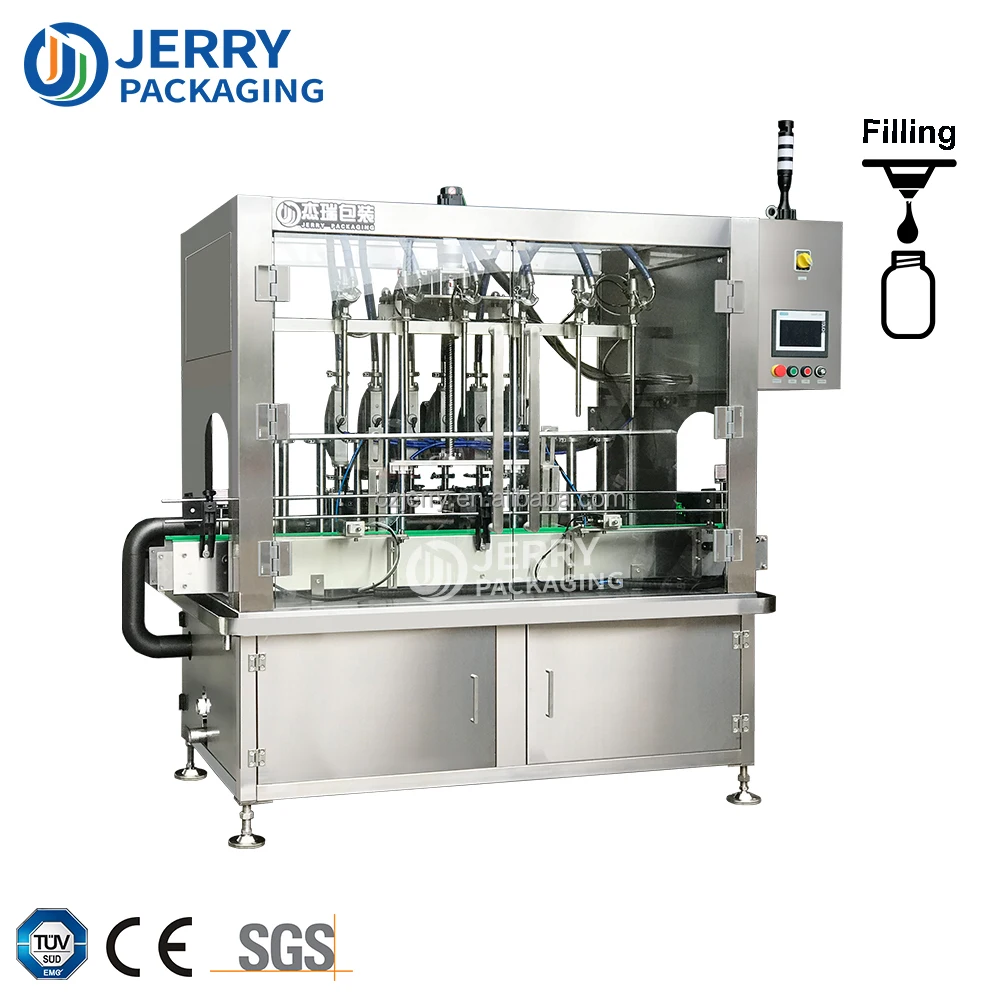

The intelligent mass flowmeter liquid filling machine offers the state of the KROHNE flow meter technology to fill a wide variety of liquids. No other filling technology offers this advanced combination of features and benefits.
Changes in product viscosity, temperature, pressure, and specific gravity are compensated for automatically. Flow meter filling provides the fill by measure the volume flow of conducting liquid without the issues of using conventional net weight methods.
Changes in product viscosity, temperature, pressure, and specific gravity are compensated for automatically. Flow meter filling provides the fill by measure the volume flow of conducting liquid without the issues of using conventional net weight methods.
Product Application
Product Features
Touch Screen
Chinese and English interface. Other languages can be specified.
Parameter settings are all operated on the touch screen.
Parameter settings are all operated on the touch screen.

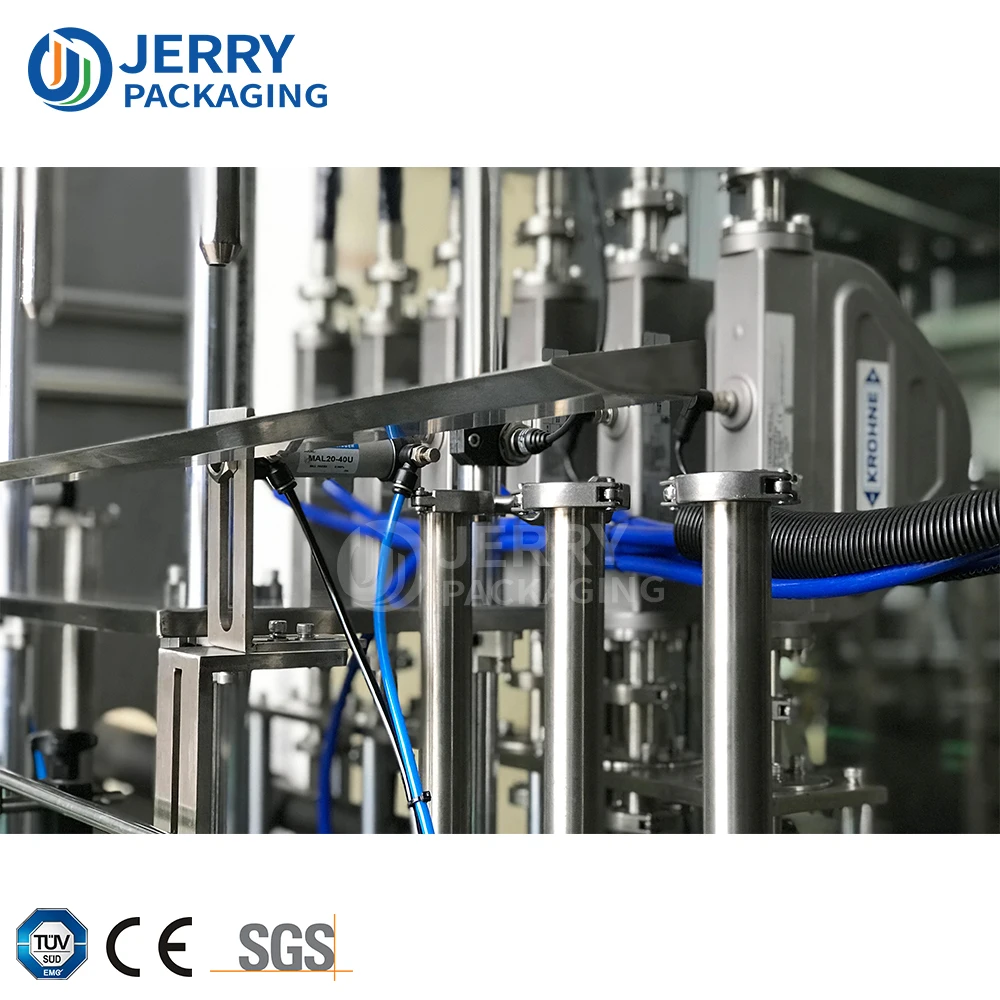

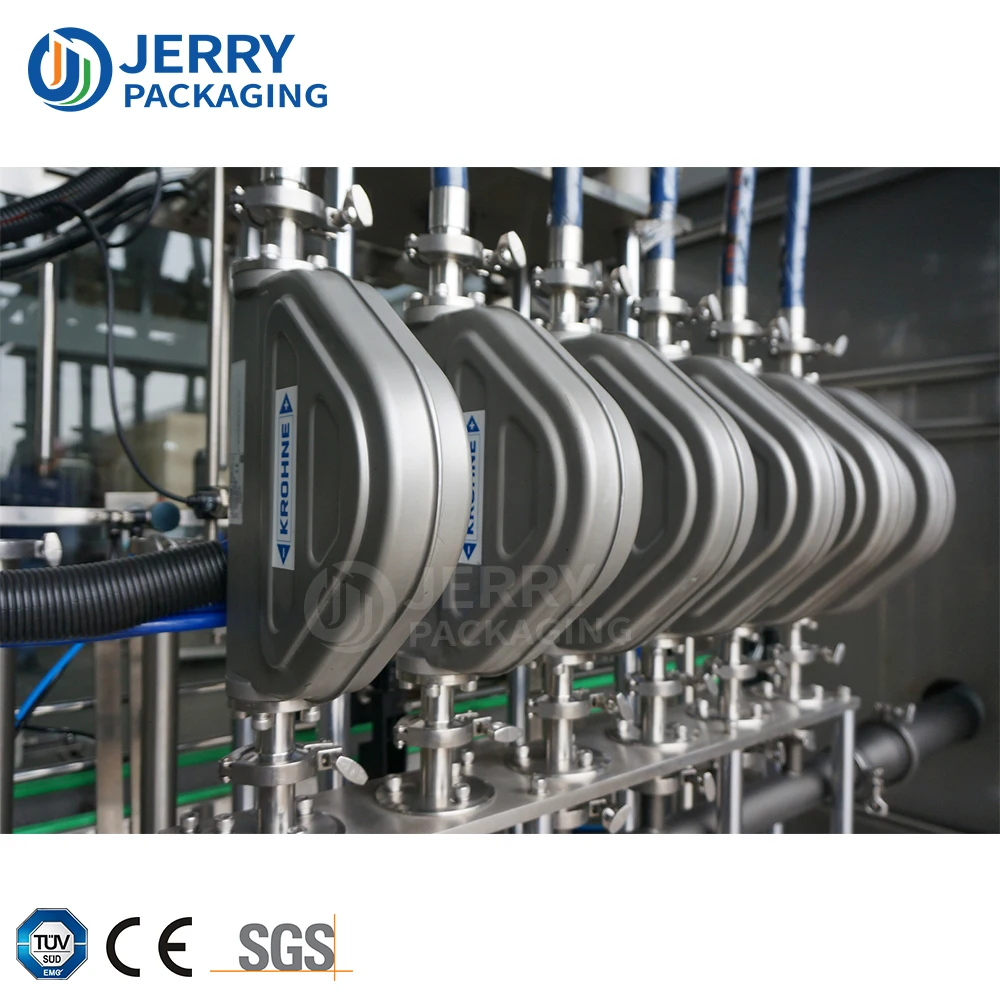

KROHNE Mass Flowmeter Technology
Mass flowmeter for process batching of conductive and non-conductive liquids.It is a highly accurate and specialised meter for filling machines. The fully welded maintenance-free device with twin U-shape is particularly suitable for hygienic applications in the pharmaceutical or food and beverage industries.

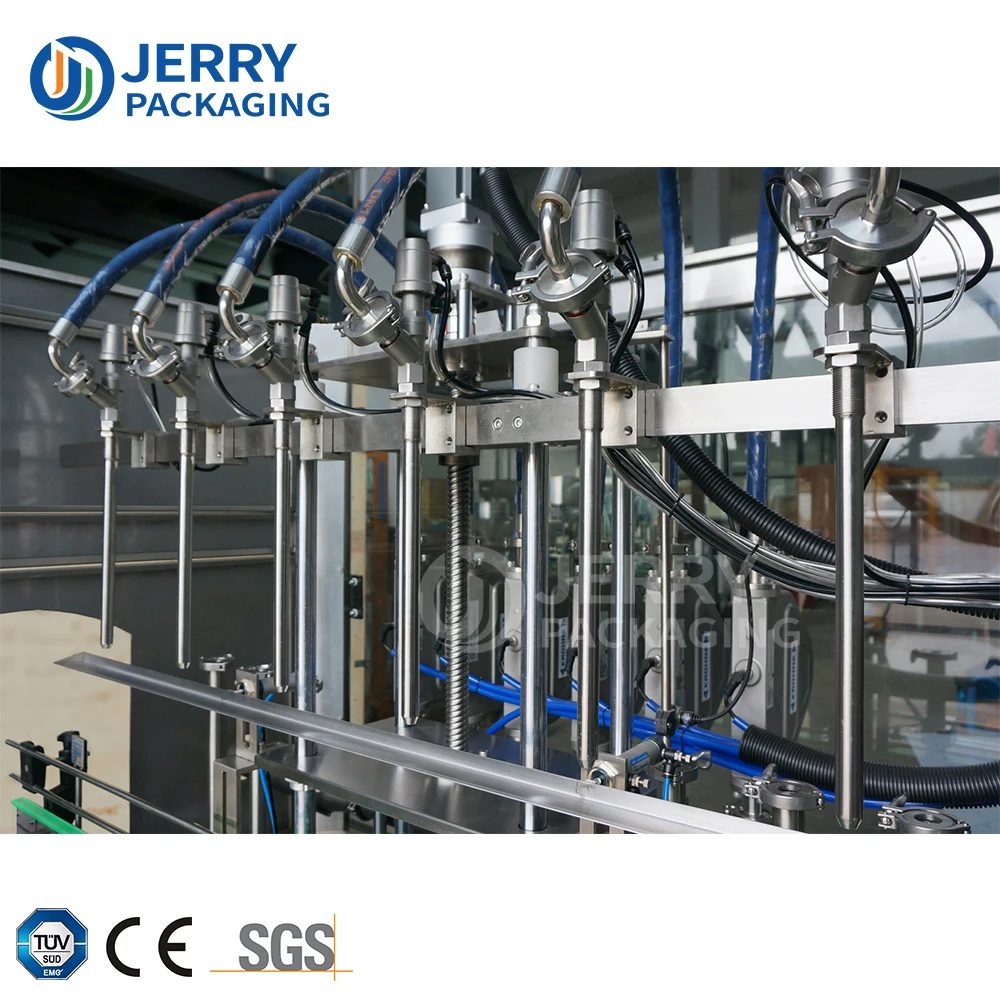

Filling Nozzles
The filling nozzle will be chosen by different bottles and liquids.The lifting of them is controlled by servo ,so they can diving into the bottle bottom to up with the liquid.
Equipped with a anti-dripping tray.
Cleaning Station
Special cleaning station for filling nozzle and pipe, and discharge through the sewage pipe on one side of the machine.More friendly with CIP system.

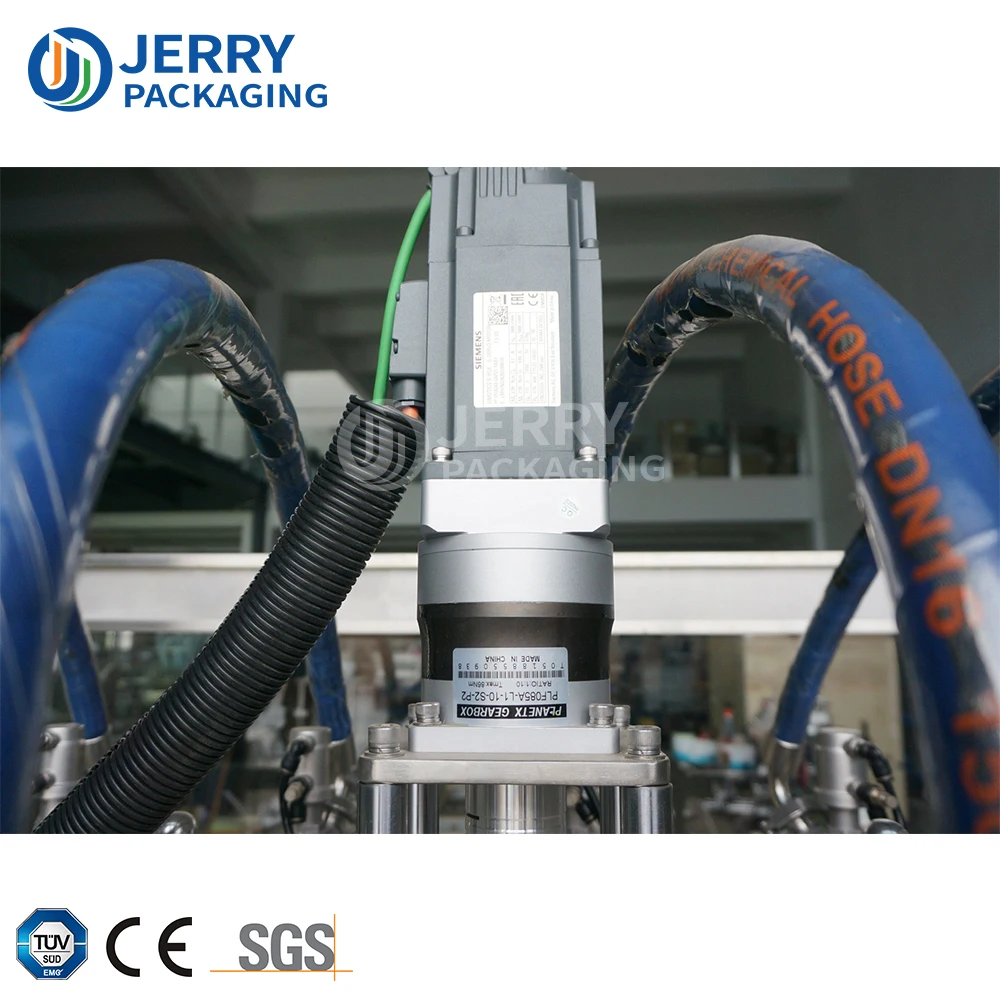

Servo Control
Filling controlled by servo.Equipped with a servo rotary lobe pump to feeding the liquid.Pipes can be optionally plated with Teflon to avoid corrosion by some liquids

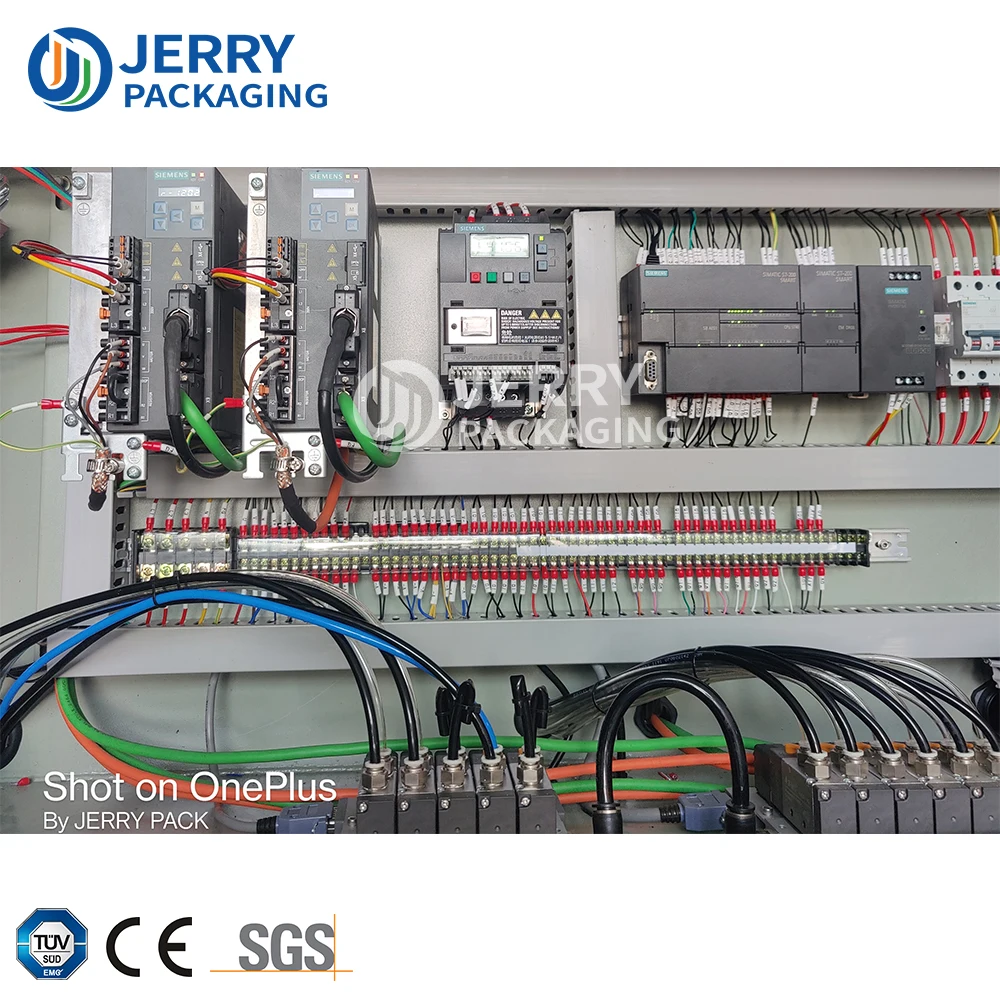

Electrical Cabinet
Famous electrical components ensure that the machine is stable and durable.
Technical Parameters
Production Capacity | 2000BPH (Based on 6 filling nozzle,1L/bottle) | ||||||
Filling Accuracy | ±0.1% | ||||||
Supply Voltage | 220V,50Hz/60Hz | ||||||
Power Consumption | 3Kw | ||||||
Air Pressure | 0.4-0.6Mpa | ||||||
Machine Dimension | L2000*W1100*H1900mm | ||||||
Recommend Products

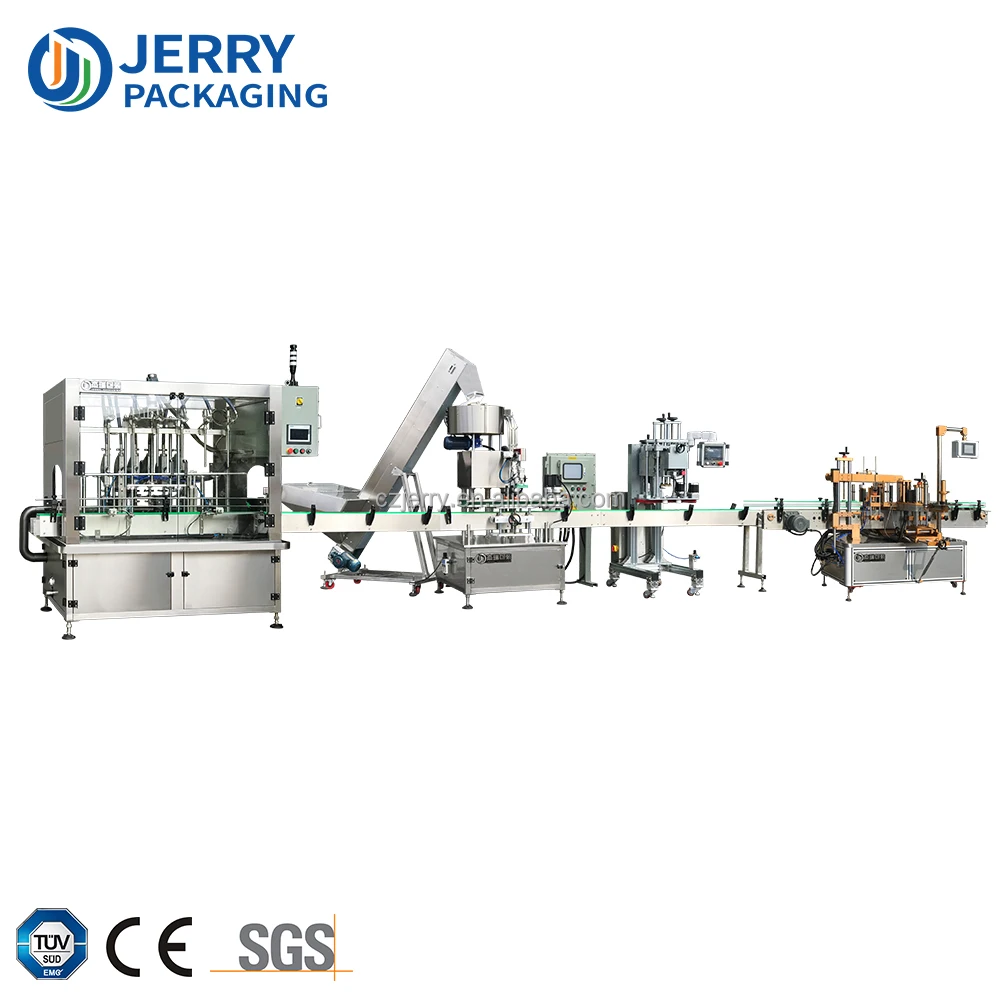

Automatic Mass Flowmeter Filling Production Line
