Product Overview
Description

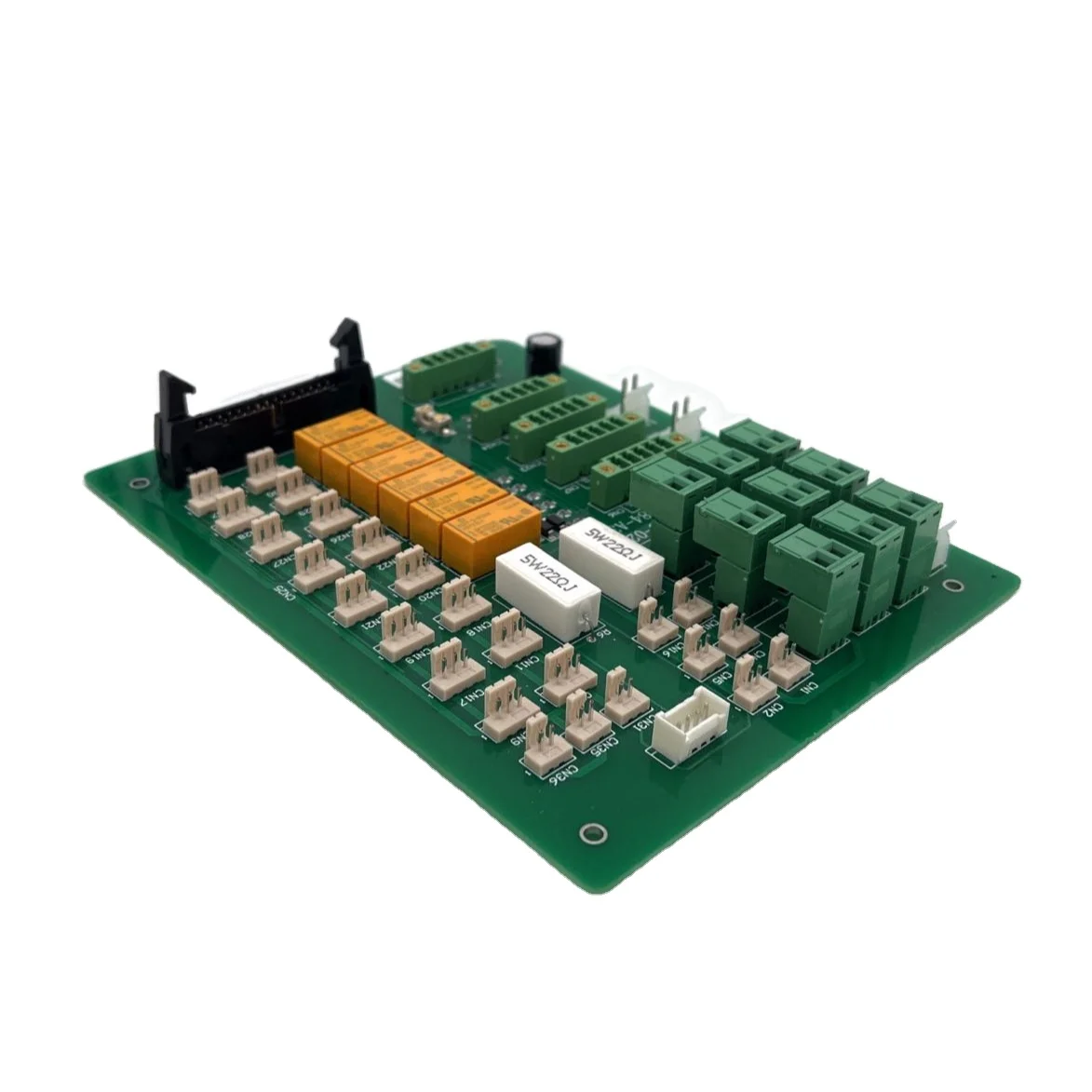

Product Description
specified load | 10A 250VAC (NO) 10A 24VDC (NO) 5A 125VAC (NO/NC) 5A 24VDC (NO/NC) |
Rated current | 10A(NO) 5A(NC) |
Maximum switching voltage | 250VAC 24VDC |
Maximum switching current | AC10A DC10A( NO) AC5A DC5A (NC) |
Maximum switching power | AC2500VA DC240W(NO) AC625VA DC120W(NC) |
Contact resistance | Less than 100 mΩ |
Insulation resistance | Above 500MΩ |
Withstand voltage | AC750V 50/60Hz 1min |
I. Overview

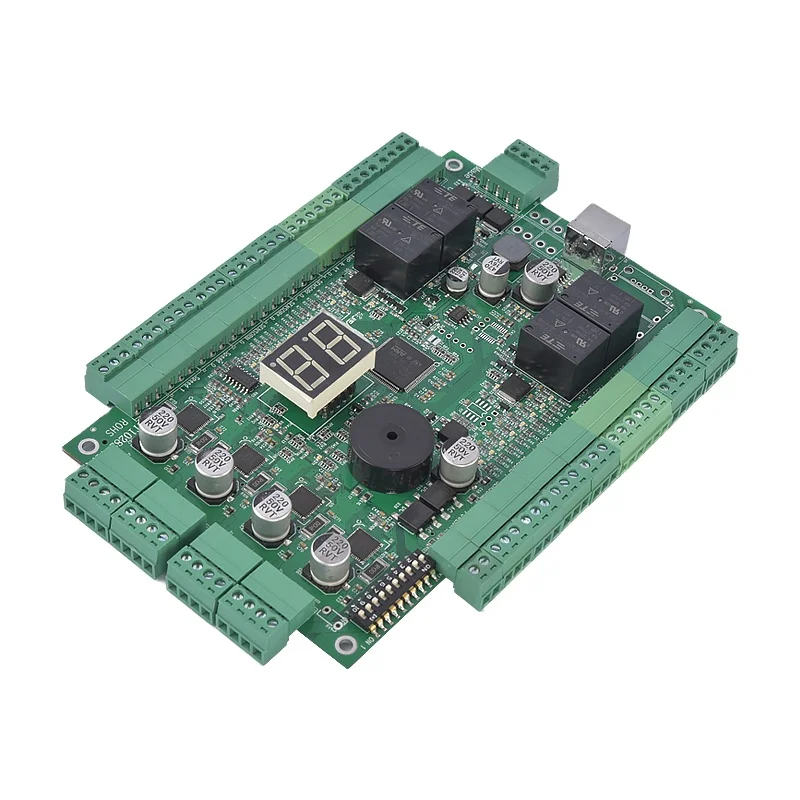

ETP 1018S is an industrial control module specially developed by our company with independent intellectual property rights (patent number: 201220015921.1). It is suitable for single-stage stepper motor connecting equipment (commonly known as bridge). The control module adopts industrial-grade microcomputer as the main control. Components, low power consumption, strong anti-interference ability, compatible with all placement machine signals (SMEMA interface signals), with waiting timeout 10&80 seconds selection, easy switching of directions and other functions, high-quality Omron, Tyco relay output control, high torque, The advantages of low failure rate, stable performance and long service life have been recognized and trusted by the majority of users.
Ⅱ. Electrical characteristics
1. Power input voltage range:DC 18-28V & AC18V
2. Working current:Maximum 1.5A (Only bare board & stepper motor current, excluding electric eye and other peripheral equipment current)
3. Input terminal characteristics:
Input level range: DC 0-28V
Input impedance: 3KΩ@12-24VDC
High level voltage: >10V
Low level voltage: <5.0V
Corresponding time: 300mS
Input type:
IN1—IN7 support NPN type input
ETP 1018S is an industrial control module specially developed by our company with independent intellectual property rights (patent number: 201220015921.1). It is suitable for single-stage stepper motor connecting equipment (commonly known as bridge). The control module adopts industrial-grade microcomputer as the main control. Components, low power consumption, strong anti-interference ability, compatible with all placement machine signals (SMEMA interface signals), with waiting timeout 10&80 seconds selection, easy switching of directions and other functions, high-quality Omron, Tyco relay output control, high torque, The advantages of low failure rate, stable performance and long service life have been recognized and trusted by the majority of users.
Ⅱ. Electrical characteristics
1. Power input voltage range:DC 18-28V & AC18V
2. Working current:Maximum 1.5A (Only bare board & stepper motor current, excluding electric eye and other peripheral equipment current)
3. Input terminal characteristics:
Input level range: DC 0-28V
Input impedance: 3KΩ@12-24VDC
High level voltage: >10V
Low level voltage: <5.0V
Corresponding time: 300mS
Input type:
IN1—IN7 support NPN type input
Ⅳ, Environmental Requirements
1. Temperature
Operating Temperature:-25°C-+70°C
Storage Temperature:-40°C-+85°C
2. Humidity
Operating Humiity:10% to 90% Non Condensing
Storage Humiity:5% to 95% non-condensing
Note: Input is limited to DC signal
1. Temperature
Operating Temperature:-25°C-+70°C
Storage Temperature:-40°C-+85°C
2. Humidity
Operating Humiity:10% to 90% Non Condensing
Storage Humiity:5% to 95% non-condensing
Note: Input is limited to DC signal
M0 is used to select the photoelectric eye mode, 0 selects the three photoelectric eye mode, 1 selects the two photoelectric eye mode, and the two photoelectric eye mode only needs to enter the board photoelectric eye and the middle photoelectric eye (the power-on setting is valid)
M1 is used to select the cache mode, 0 selects the normal mode, 1 selects the cache mode (only in the dual-eye mode) (valid after power-on)
M2 is used to change the running direction of the machine (the setting is valid after power-on)
T is used to select the delay: 10&160 seconds delay selection is realized by dialing (the new delay setting is valid after power-on)
M1 is used to select the cache mode, 0 selects the normal mode, 1 selects the cache mode (only in the dual-eye mode) (valid after power-on)
M2 is used to change the running direction of the machine (the setting is valid after power-on)
T is used to select the delay: 10&160 seconds delay selection is realized by dialing (the new delay setting is valid after power-on)
