SMCPM A3H Fully Automatic Machine For Cutting And Packaging Insurance Cards, A3 And A4 Paper

Product Overview

Description

SMCPM-A3H Full Automatic Playing Poker Card Cutting Machine is used to punch A3 or A3+ plastic sheet and paper sheet into playing cards.

1. Machine automatic adjust sheet position by optical sensors, automatic feed sheet for punching cards.
2. Servo motor and photographic sensor to make correct feeding position.
3. Hydraulic or Servo punching by your order.
4. Automatic collect punched cards into one pack poker and remove the waste sheet.



bigger format machine can be made by your order

Full automatic servo punching machines can be made by your order

Hydraulic punching machines can be made by your order

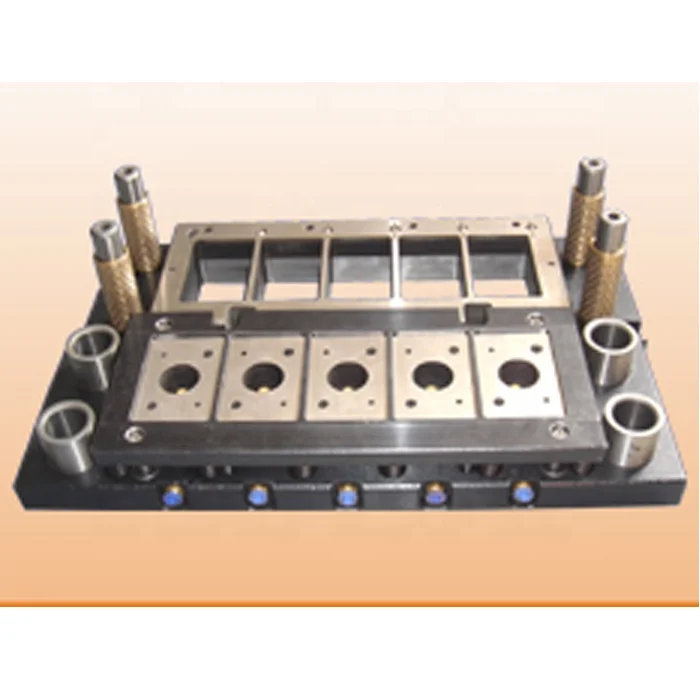

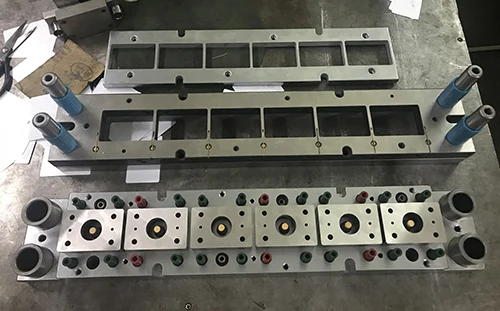

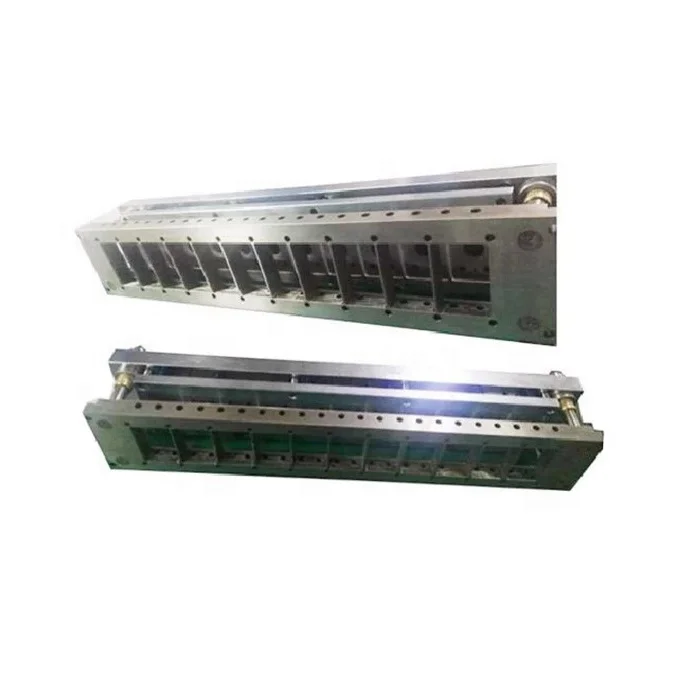

Special size card mold punching can be made by your order



Suitable Material	Plastic and Paper like Teslin, PVC, Polycarbonate, PET, PETG, ABS
Punching Layout	3*7,   3*8,   3*9,   3*10,   3*11,    3*12      4*8,   4*9,   4*10,  4*11,   4*12      5*5,   5*11,  6*9,   7*8
Punching Die	3 dies, 4 dies, 5 dies, 6 dies, 7 dies
Control Method	PLC and Touch Screen and Servo Motor
Cylinder Travel	18mm
Air Source	0.6Mpa
Air Consumption	100L/minute
Power Source	380V or 220V       50/60Hz
Oil Tank	120L hydraulic oil
Work Efficiency	20000-25000pcs standard card per hour
Dimension	2670mm*1250mm*1550mm
Net/Gross Weight	1150KGS/1300KGS

Quality Warranty: 2years.

Delivery Time: 20days from receive advance payment.

Installation and training: we offer engineers to buyer's factory for installation and training, or buyers arrange engineers to our factory for training.

Professional vacuum packaging with standard export wooden box.



Contact Us: www.smartmanufacture.com

Shenzhen Smart Industry Co., Ltd.            ISO9001:2015 and CE certificated

Mobile number & What'sapp & Wechat: +8613088669057
