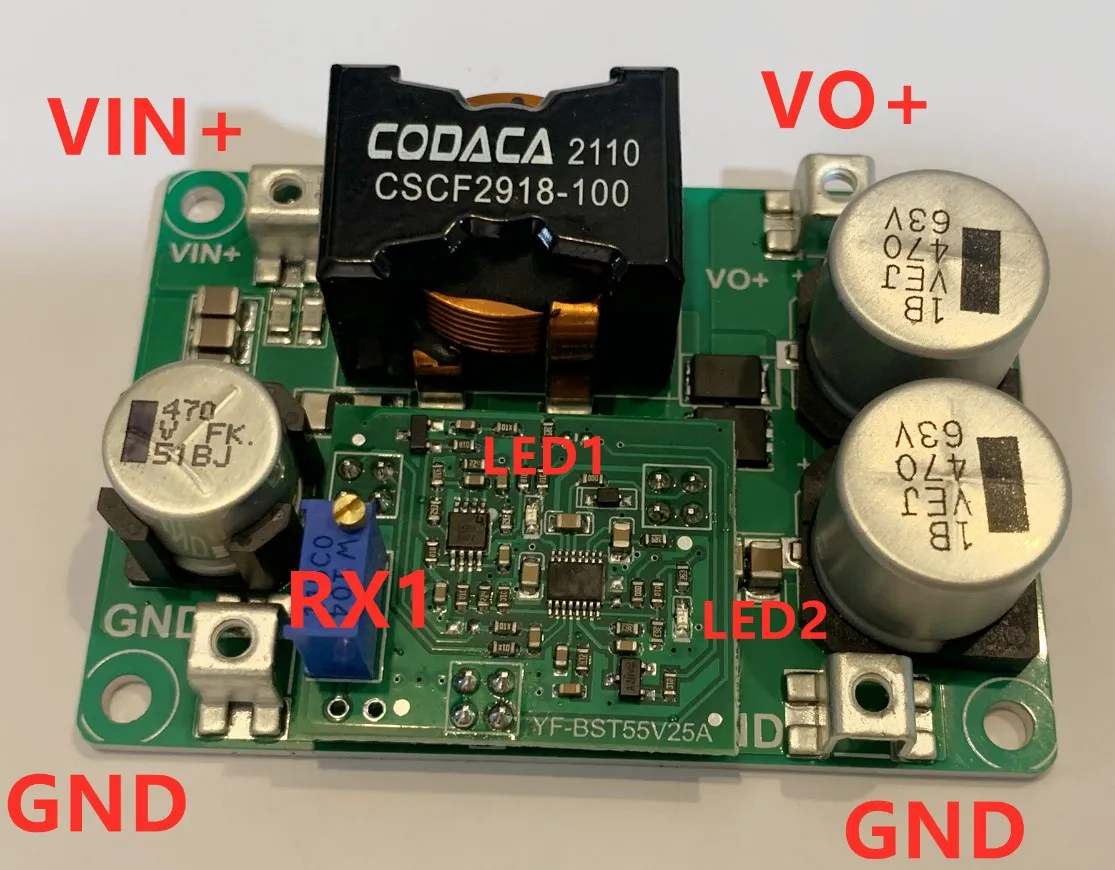

very good quality 300w 500w 12V 14V 24V to 48v 24v dc 5 32v to 9v 52v step up boost power converter 12v 48v
- Category: >>>
- Supplier: Shenzhen Jinhe Technology Co. Ltd.
Share on (1600516364417):
Product Overview
Description
Product Description
Feature:
| Product name | non-isolated boost power supply board |
| Input | DC5-32V |
| Output | DC9-52V |
| Efficiency | 97.5% |
| power max | 500W |
| Protection | Over current,short-circut,reverse polarity protection,over temperature |
Input:
| Feature | min | typical | max | unit |
| Input voltage | 5 | / | 32 | V |
| Input current | / | 20 | 25 | A |
| optional undervoltage value | 4.5 | 5.0 | 20 | V |
| Input limit voltage | / | 33 | / | V |
| No load input current value | 4.0 | 6.5 | 7.0 | mA |
Output:
| Feature | min | typical | max | unit |
| Output voltage | 9 | / | 52 | V |
| Output current | / | 10 | 15 | A |
| Output current limited | / | 20.2 | / | A |
| Ripple(14V step up to 48v) | 800 | 1100 | 1200 | mVp-p |
| Ripple(24V step up to 48v) | 600 | 800 | 900 | mVp-p |
| Load regulation | -0.3 | -0.5 | -0.8 | % |
| Downtime current | 0.08 | 0.2 | 0.4 | mA |
Other:
| Convert efficiency | 93.8 | 95 | 96.9 | % |
| Switch frequency | 295 | 300 | 305 | khz |
| over temperature protection value | / | 90 | 95 | ℃ |
| working temperature | -45 | 25 | 85 | ℃ |
