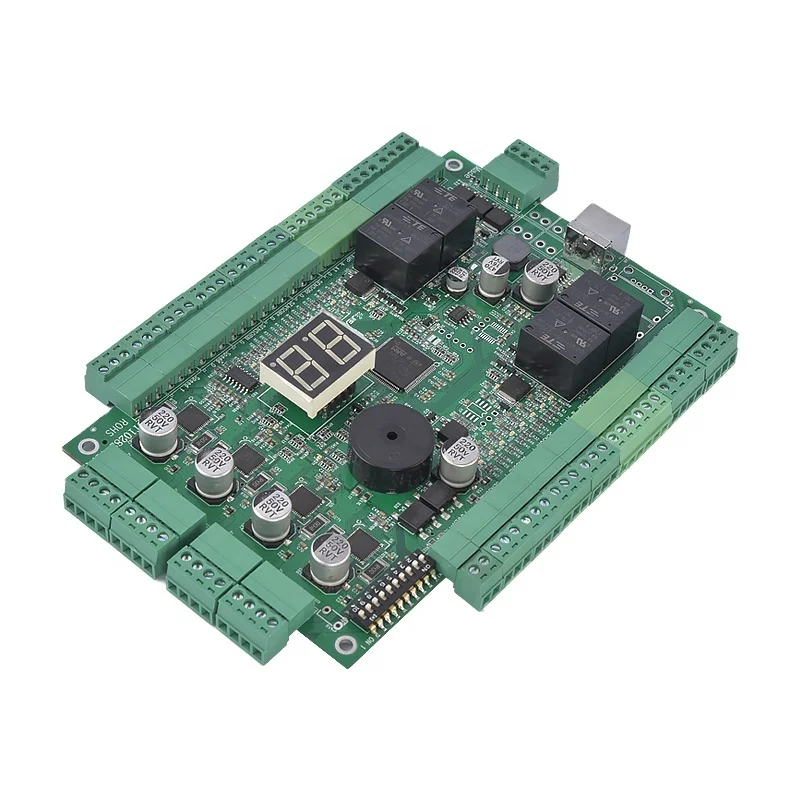

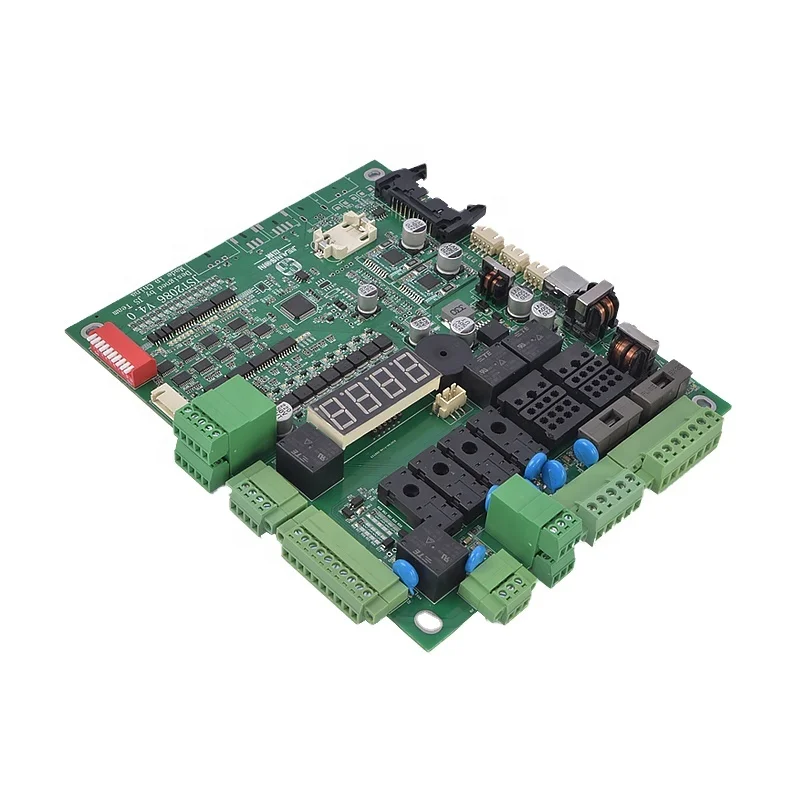

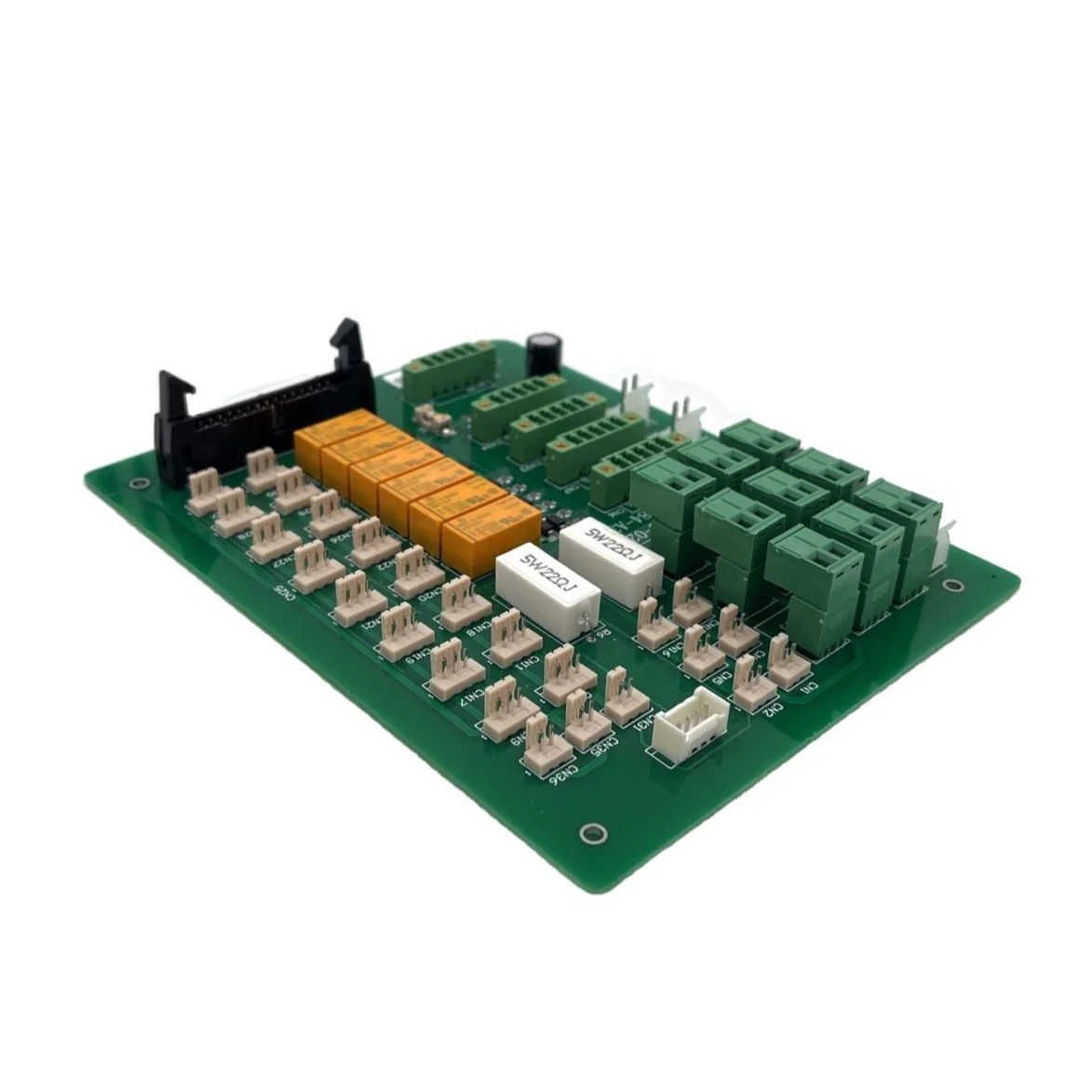

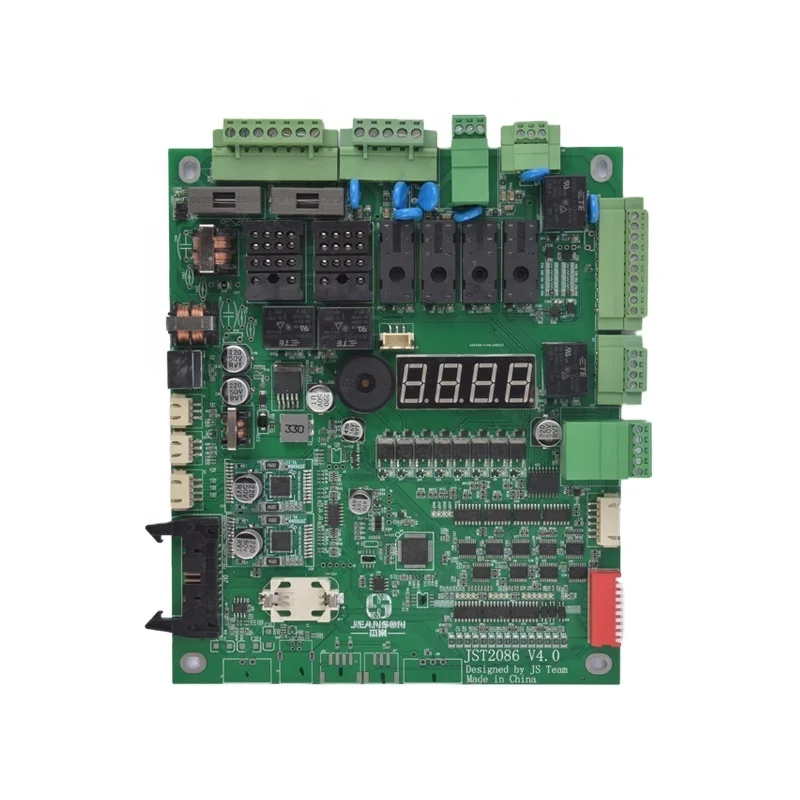

Product Overview
Description
Specification
specified load | 10A 250VAC (NO) 10A 24VDC (NO) 5A 125VAC (NO/NC) 5A 24VDC (NO/NC) |
Rated current | 10A(NO) 5A(NC) |
Maximum switching voltage | 250VAC 24VDC |
Maximum switching current | AC10A DC10A( NO) AC5A DC5A (NC) |
Maximum switching power | AC2500VA DC240W(NO) AC625VA DC120W(NC) |
Contact resistance | Less than 100 mΩ |
Insulation resistance | Above 500MΩ |
Withstand voltage | AC750V 50/60Hz 1min |
Product Description
I.Overview ETP 1016A is an industrial control module specially developed by our company with independent intellectual property rights (patent number: 201220015921.1). It is suitable for single-motor connecting equipment. The control module uses industrial-grade microcomputers as the main control components. Strong interference ability, compatible with all placement machine signals (SMEMA interface signals), with 10~80 seconds waiting timeout selection function, high-quality Omron relay, Tyco electrical output control, low failure rate, stable performance, long service life, etc. And has been recognized and trusted by the majority of users.
II.Electrical characteristics:
1. Power input voltage range:DC 18-28V & AC18V
2. Working current:Maximum 100mA (only bare board current, excluding electric eye and other peripheral equipment current)
3. Input terminal characteristics:Input level range: DC 0-28V
Input impedance: 3KΩ@12-24VDC
High level voltage: >10V
Low level voltage: <5.0V
Corresponding time: 300mS
Input type:IN1—IN7 support NPN type input
load:
Resistive load (cos_=1)
specified load:10A 250VAC (NO) 10A 24VDC (NO)
5A 125VAC (NO/NC) 5A 24VDC (NO/NC)
Rated current:10A(NO) 5A(NC)
Maximum switching voltage:250VAC 24VDC
Maximum switching current:AC10A DC10A( NO)
AC5A DC5A (NC)
Maximum switching power:AC2500VA DC240W(NO) AC625VA DC120W(NC)
Contact resistance:Less than 100 mΩ
Insulation resistance:Above 500MΩ
Withstand voltage:AC750V 50/60Hz 1min
Note: Input is limited to DC signal
II.Electrical characteristics:
1. Power input voltage range:DC 18-28V & AC18V
2. Working current:Maximum 100mA (only bare board current, excluding electric eye and other peripheral equipment current)
3. Input terminal characteristics:Input level range: DC 0-28V
Input impedance: 3KΩ@12-24VDC
High level voltage: >10V
Low level voltage: <5.0V
Corresponding time: 300mS
Input type:IN1—IN7 support NPN type input

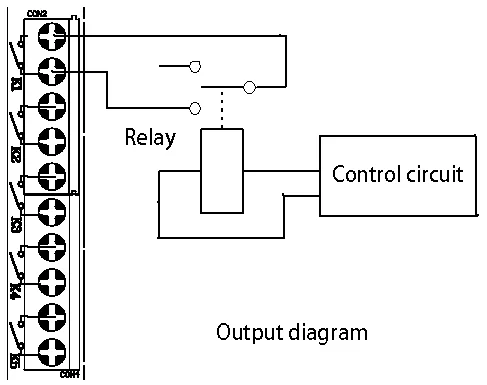

4. Output characteristics:
load:
Resistive load (cos_=1)
specified load:10A 250VAC (NO) 10A 24VDC (NO)
5A 125VAC (NO/NC) 5A 24VDC (NO/NC)
Rated current:10A(NO) 5A(NC)
Maximum switching voltage:250VAC 24VDC
Maximum switching current:AC10A DC10A( NO)
AC5A DC5A (NC)
Maximum switching power:AC2500VA DC240W(NO) AC625VA DC120W(NC)
Contact resistance:Less than 100 mΩ
Insulation resistance:Above 500MΩ
Withstand voltage:AC750V 50/60Hz 1min
Note: Input is limited to DC signal

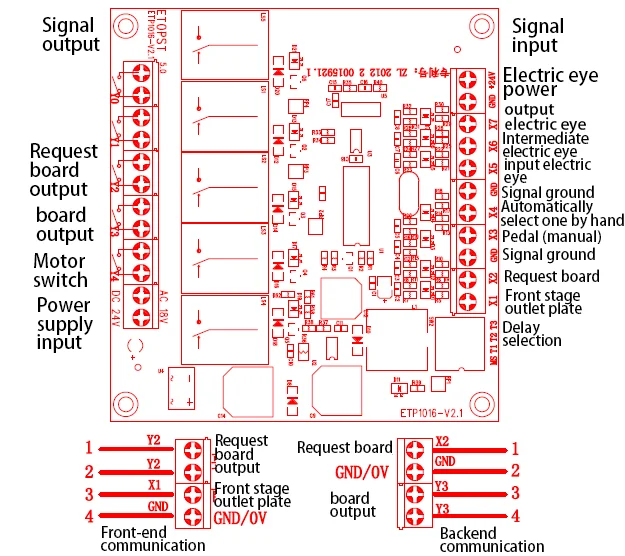

MS is used to select the electric eye mode, 0 selects the three electric eyes mode, 1 selects the two electric eyes mode, the two electric eyes mode only needs to enter the board electric eye and the middle electric eye (the power-on setting is valid)
Delay selection: 10-80 seconds delay selection is realized by three-digit dialing (the new delay setting is valid after power-on)
Delay selection: 10-80 seconds delay selection is realized by three-digit dialing (the new delay setting is valid after power-on)
DIP switch group value T3 T2 T1 | Delay time (seconds) |
0 0 0 | 10 |
0 0 1 | 20 |
0 1 0 | 30 |
0 1 1 | 40 |
1 0 0 | 50 |
1 0 1 | 60 |
1 1 0 | 70 |
1 1 1 | 80 |
