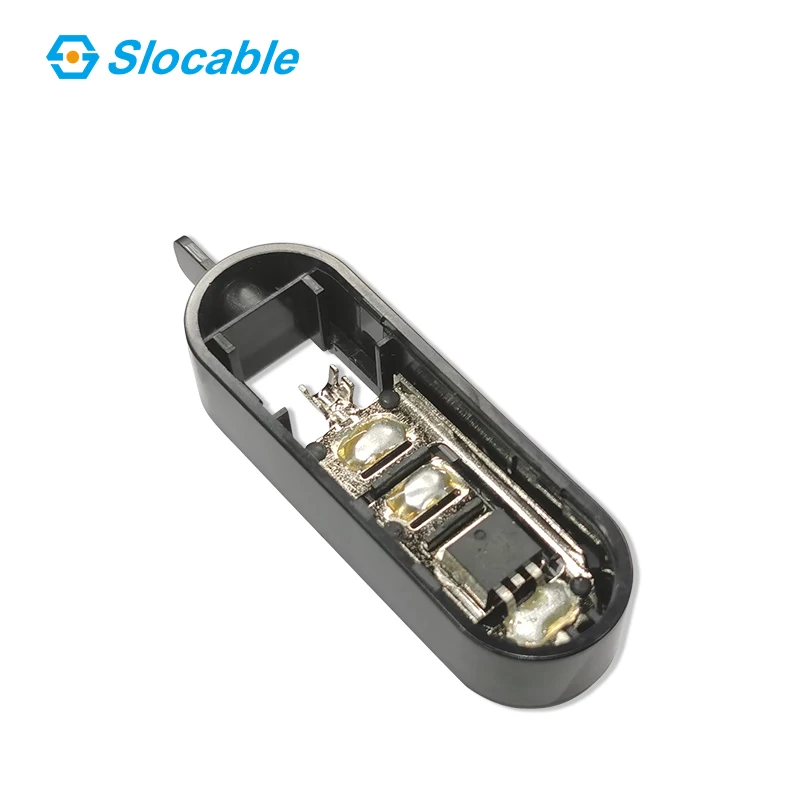

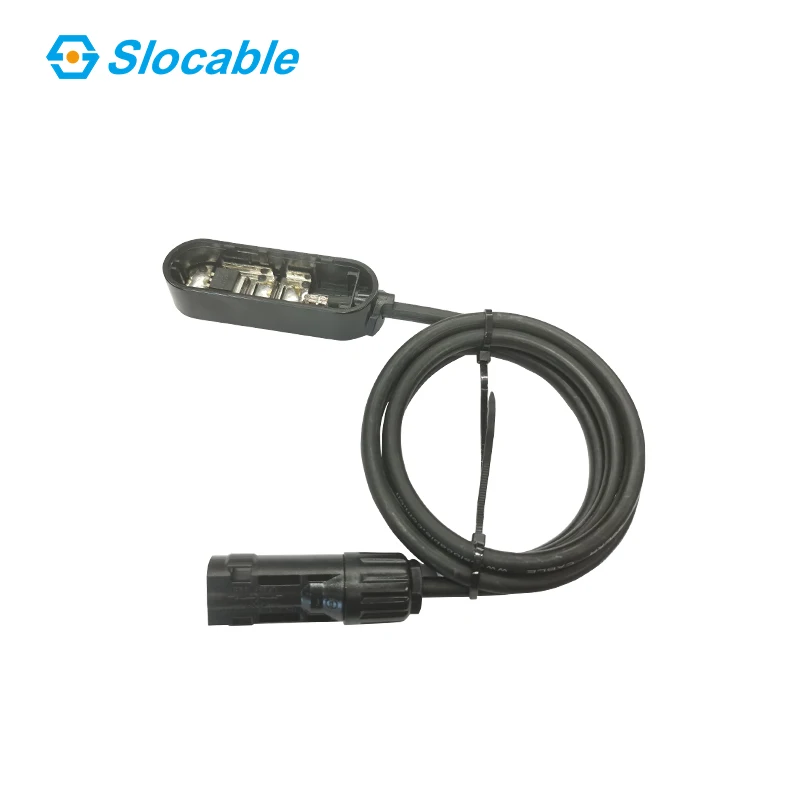

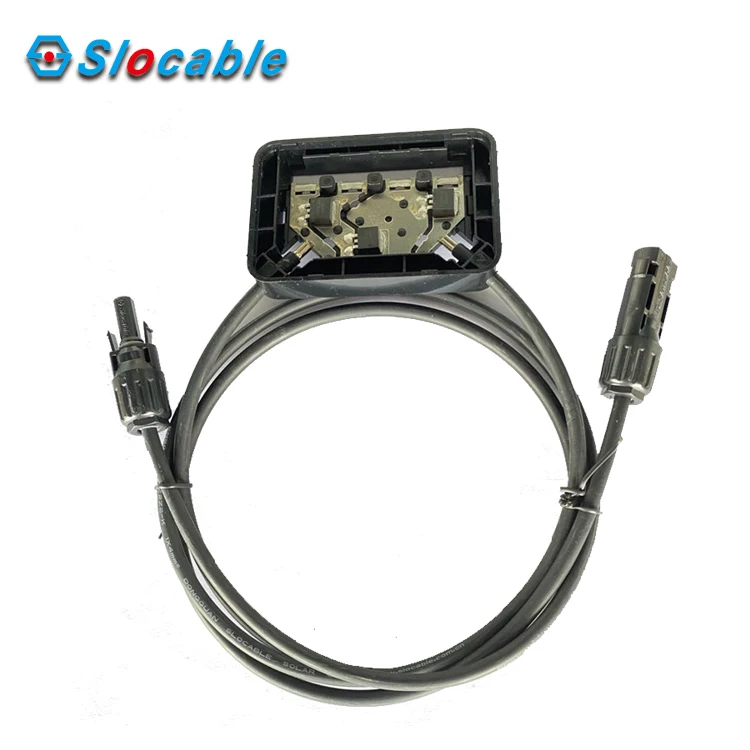

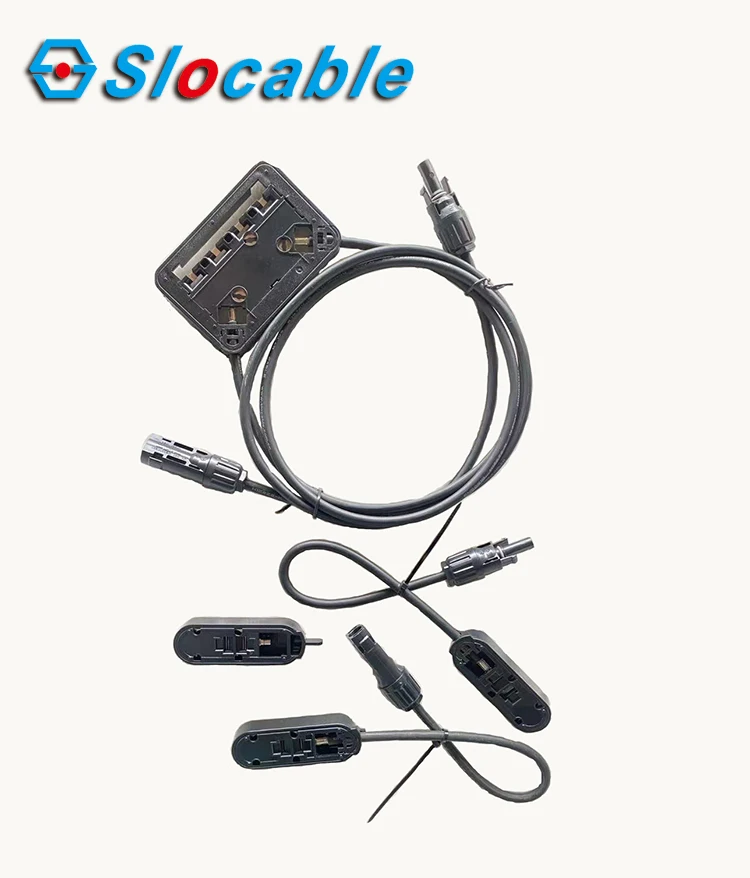

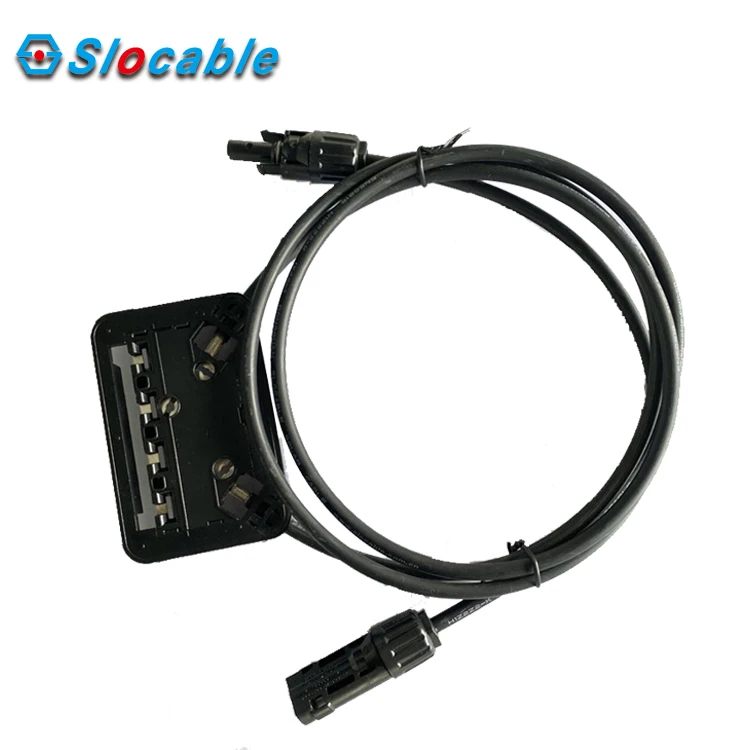

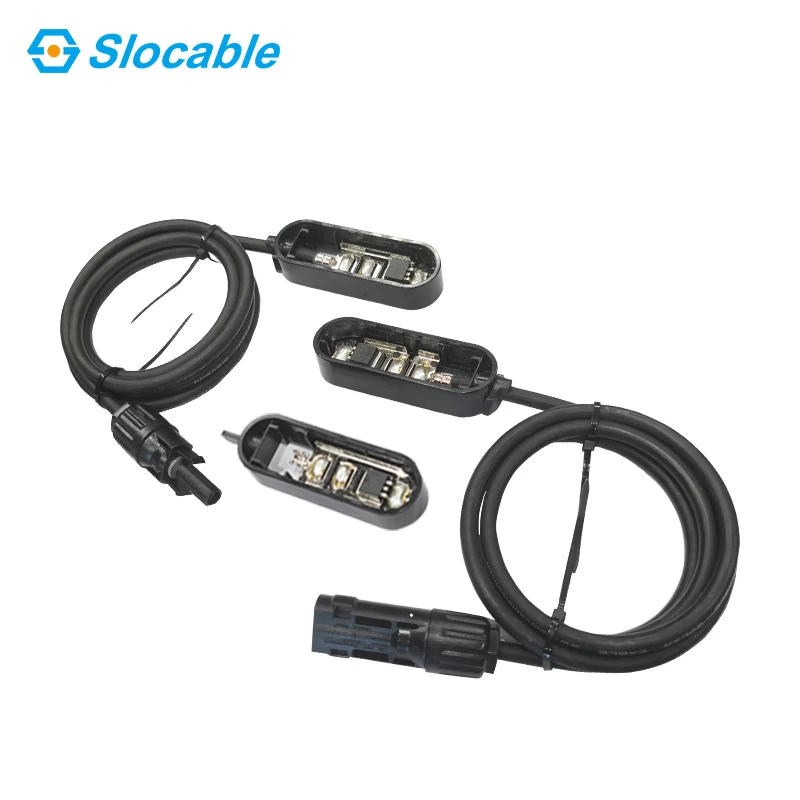

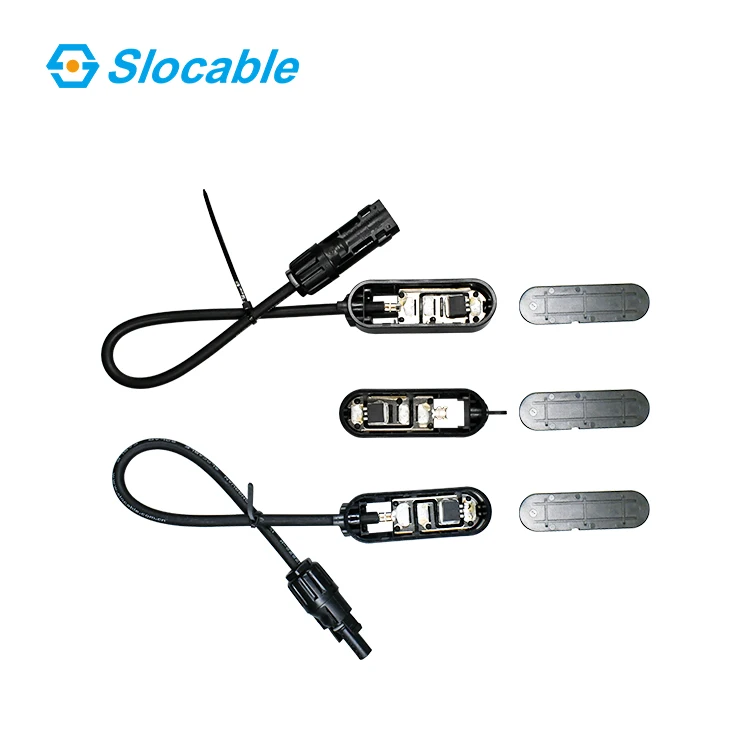

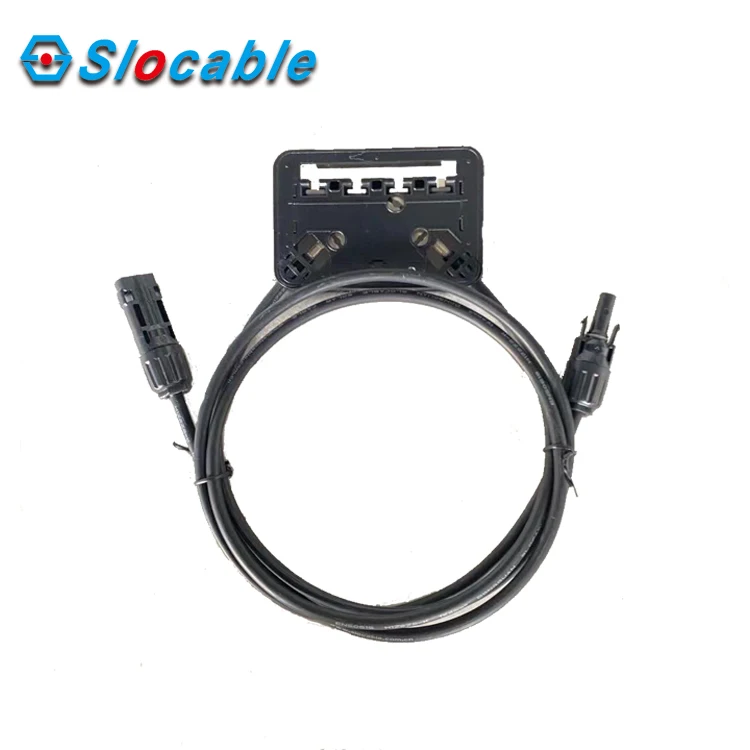

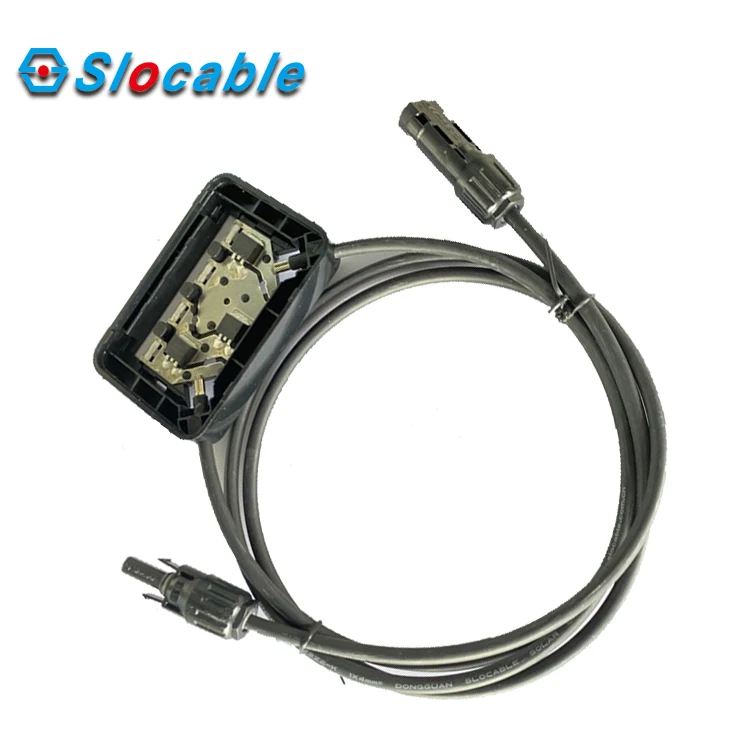

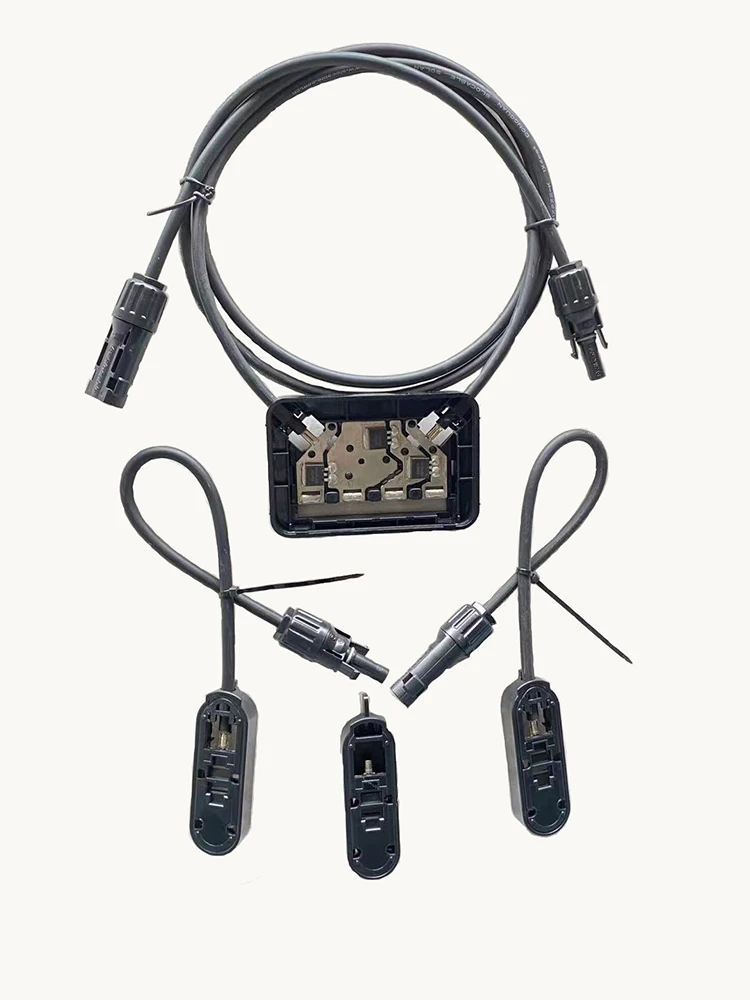

Slocable Best Price IP68 Waterproof 1500v 25A Solar Panel Junction Box For Solar System
- Category: >>>
- Supplier: Dongguan Slocable Photovoltaic Technology Co. Ltd.
Share on (1600516383423):
Product Overview
Description
Slocable TUV CE Certified 16A 1500V junction box pv for solar module
Product Description
| Product name | Solar PV Junction Box |
Rated current | 16A/20A/25A |
| Rated Voltage | 1500V DC |
| Test voltage | 8kV |
| Contact resistance | <0.5mΩ (under 25℃) |
| Waterproof protection | IP68 |
| Overvoltage degree | CATIII/2 |
| Safety class | Class Ⅱ |
| Application class | Class A |
| Working temperature | -40°C~+85°C |
| Tension of cable and terminal | ≥350N |
| Wire Size Range | 4mm2 solar cable |
| Bypass diode requirements | IR≤200μA (25℃); VRRM≥45V; VF≤0.6 (25℃) |
| Insulation Material | PPO |
The features of solar junction box with pv connector:
- Low forward voltage
- High current capability
- High forward surge capability
- Low power losses,High efficiency
- Guarding for over voltage protection

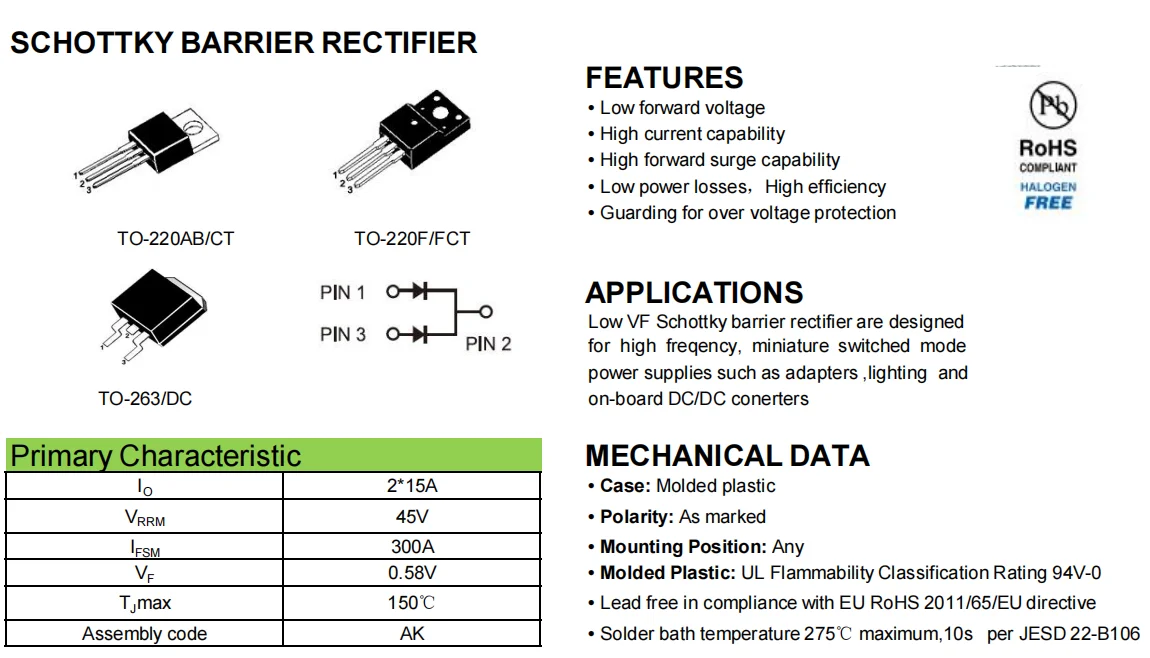

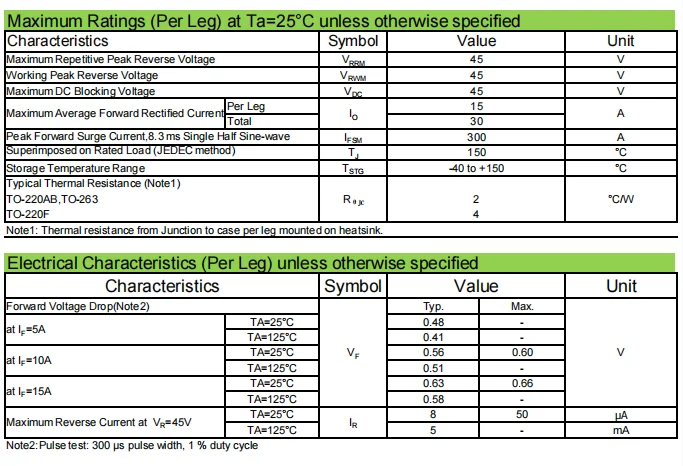

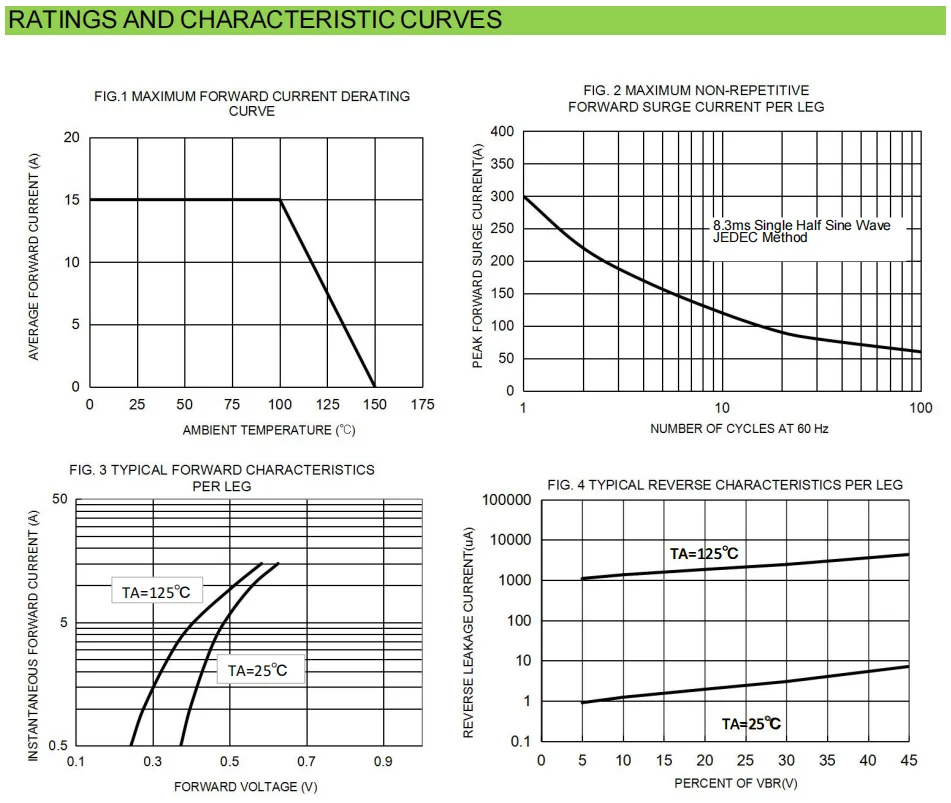

Technical Data
Product drawing

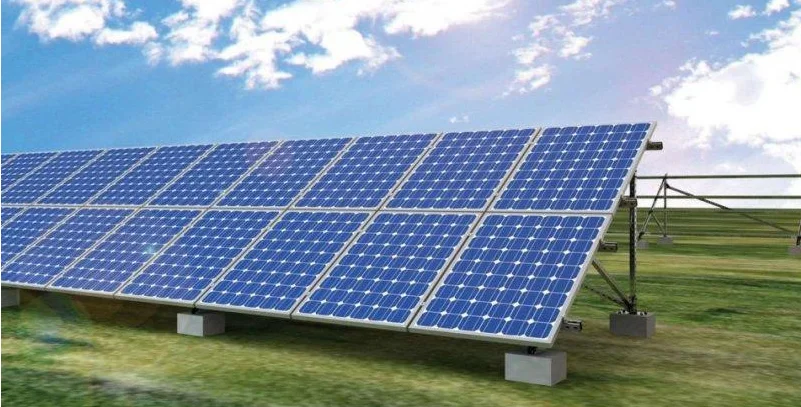

Application
![QK71NV8K6O76X_Z`]SAWNUT](http://sc03.alicdn.com/kf/H94f01b5c4e774f53aa6e621e59e3d684q/200406446/H94f01b5c4e774f53aa6e621e59e3d684q.png)
