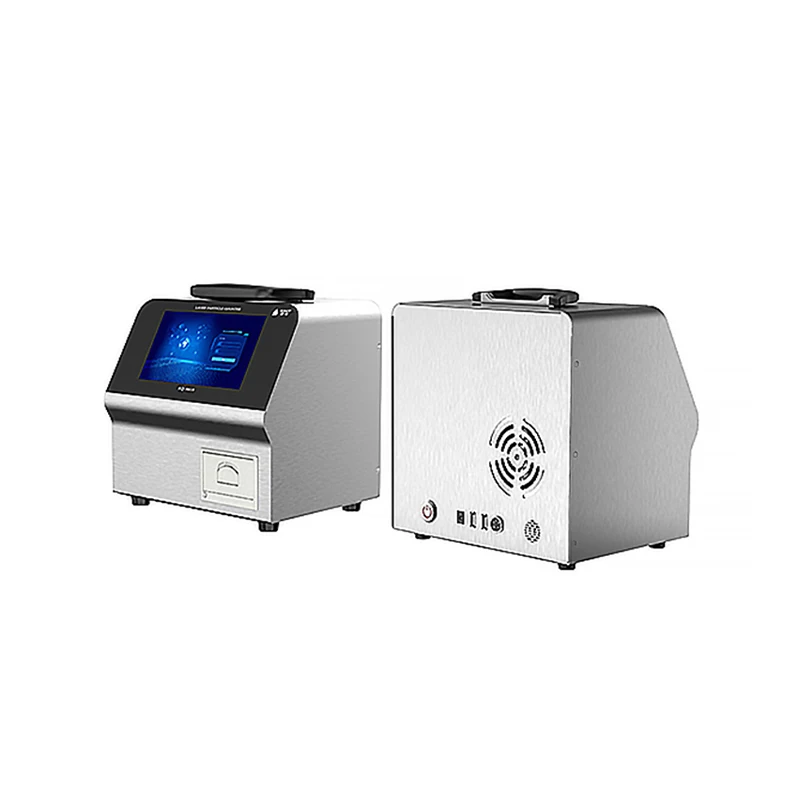

KQ 4050 High Quality Laser dust particle counter air particle counter
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.
Share on (1600516386085):
Product Overview
Description
Product introduction
KQ-4050 Large Flow 50L Desktop Laser Dust Counter is a new product developed by our company.
It forgoes the usual LCD dot matrix screen and takes the lead in using a 7-inch IPS smart touch screen.
Coordinating human-computer interaction simplifies operations and improves the user experience.
At the same time, the company team is led by the postdoctoral team of USTC and cooperates with Nanjing
University of Science and Technology.
University of Science and Technology.
Achieve accurate measurement of dust particles through precision optical sensing technology.
The instrument has been widely used in clean room testing ,pharmaceutical factory, electronics factory, hospital operating room, aerospace, precision processing, food industry and other industries.
Products Features
* The large flow rate is 50 L/min, which improves the sampling accuracy and efficiency;
* 7 inch HD large screen, high resolution, fast response, users can read the cleanliness data more
directly;
* Human-computer interaction, simple operation, reduce learning costs and improve user experience;
* 304 stainless steel material, in line with GMP standard requirements and beautiful;
* 20000 groups of large data storage, support USB disk one click export, download data at any time;
* Supports audit tracing, log management, and three-level rights management. Searchable,
controllable;
* 7 inch HD large screen, high resolution, fast response, users can read the cleanliness data more
directly;
* Human-computer interaction, simple operation, reduce learning costs and improve user experience;
* 304 stainless steel material, in line with GMP standard requirements and beautiful;
* 20000 groups of large data storage, support USB disk one click export, download data at any time;
* Supports audit tracing, log management, and three-level rights management. Searchable,
controllable;
* Laser source imported from Japan, life > 300000 hours (annual calibration);
* Screen data alarm, equipped with flow sensor and real-time adjustment of flow.;
* Ensure the stability of flow and accuracy of counting;
* Large capacity lithium battery, longer battery life, AC/DC dual use;
* Expandable, with analog access hardware interface can be connected to external temperature and humidity
* Screen data alarm, equipped with flow sensor and real-time adjustment of flow.;
* Ensure the stability of flow and accuracy of counting;
* Large capacity lithium battery, longer battery life, AC/DC dual use;
* Expandable, with analog access hardware interface can be connected to external temperature and humidity
sensor/wind speed sensor/differential pressure sensor.
Technical Parameter
Particle Size Channel | 0.3μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10.0μm |
Sampling Flow | 50L/min±5% |
Particle Size Distribution Error | ≤ ± 30% |
Concentration Indication Error | 0.5μm≤±30%FS |
Repetition Error | ± 10% F.S |
Self-cleaning Time | ≤ 10min |
Sampling Period | 1~9999S (adjustable) |
Sampling Delay | 0~999S (adjustable) |
Sampling Frequency | 1~50 times (adjustable) |
Sampling Points | 2~9 point (adjustable) |
Laser Light Source | Imported Semiconductor Laser Diode |
Vacuum | Built-in Vacuum Source |
Screen Display | 7-inch IPS smart touch screen |
Printing Method | Embedded thermal printing |
Operating Voltage | DC24V |
Battery life | ≥4H |
Charger | DC24V 3A |
Charging Time | 5H |
Data Storage | 20000 groups |
Export Data | USB disk export, USB communication export |
Audit Trails | Supports audit tracing, log management, and three-level rights management |
Searchable, traceable, controllable | |
Temperature and Humidity Detection | 0-50℃ 0-100%RH (Optional features） |
Calibration Specification | JJF1190-2008, GB/T6167-2007 |
Criteria | CGMP static, GMP dynamic, ISO14644-1 |
Housing | 304 Stainless Steel |
Size | Width 24.4 * Depth 19.7 * Height 25.6cm |
Weight | 6kg |
Working Environment | Temperature 0~40°C Humidity 10% ~ 90% Without Condensation |
Storage Environment | Temperature -10~50°C Humidity 0 ~ 90% Without Condensation |
Our Service
Act as a good adviser and assistant of clients to enable you get rich and generous returns on your investments.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Packaging
Our Company
As the industry chain of machinery manufacturing is being worldwide comprehensively upgraded, the future production operations will be more environmentally friendly, energy efficient and intelligent. CONOVAL insights into the continuous improvement of customers' demand and we are committed to providing one-stop service for consulting, design, planning, manufacturing, installation, commissioning, after-sales and follow-up upgrades for customers in the pharmaceutical, chemical and food industries. LIAOYANG CONOVAL TECHNOLOGY CO., LTD. is a leading manufacture and engineering service provider of pharmaceutical machinery, packaging machinery and other production lines belongs to CONOVAL INC.
