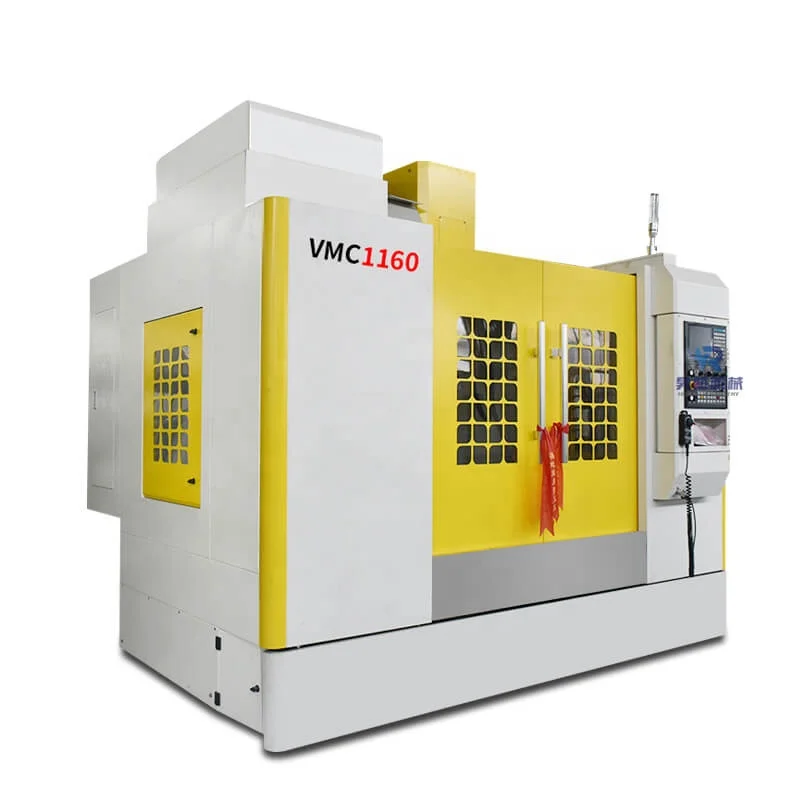

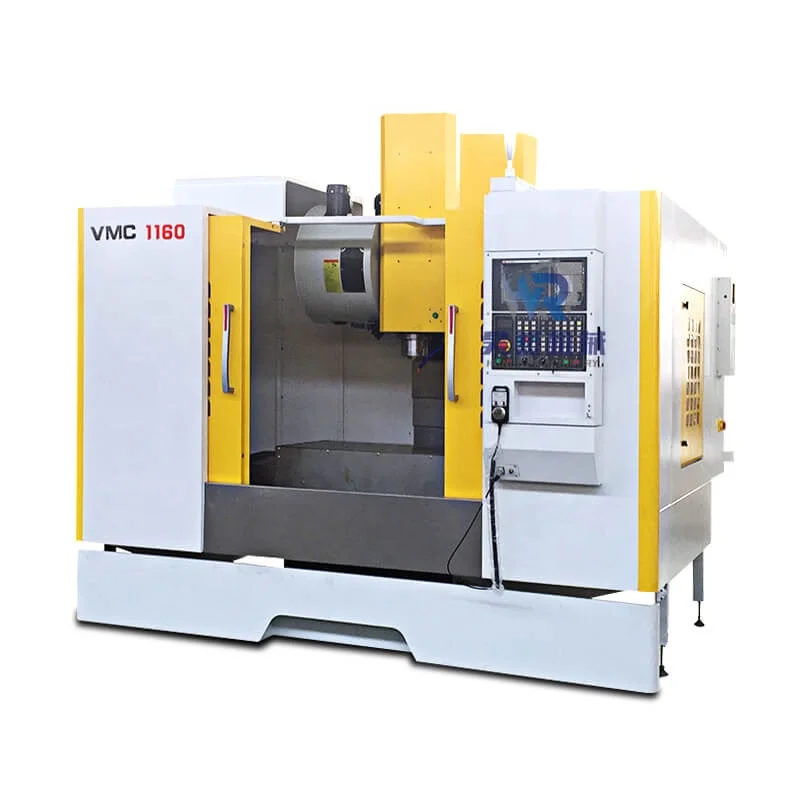

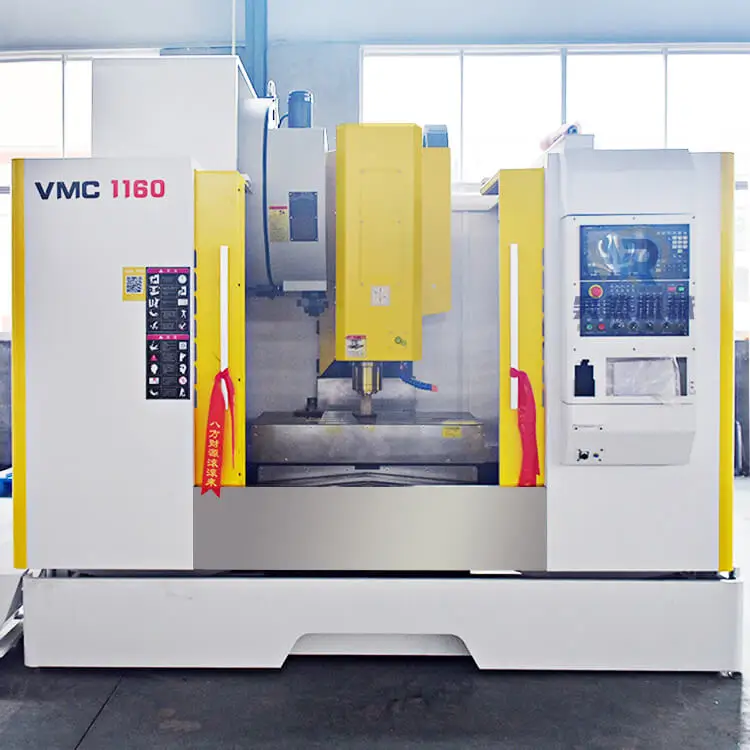

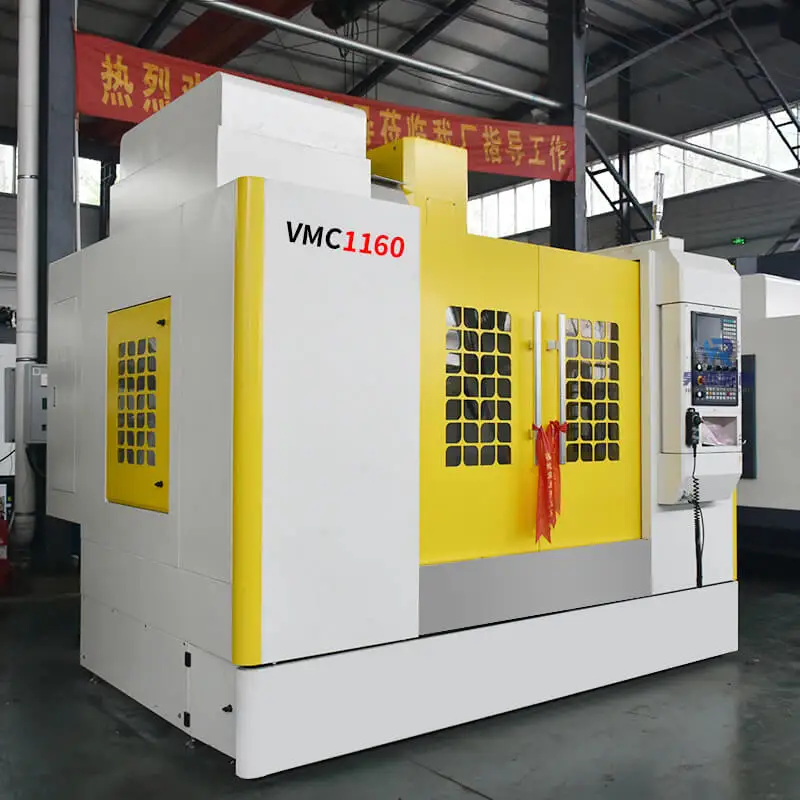

New VMC 1160 CNC Milling Machine BT40 Spindle ATC
- Category: >>>
- Supplier: Shandong Honest Machinery Co. Ltd.
Share on (1600516395162):
Product Overview
Description
Product Description
Model | VMC650 | VMC840 | VMC850 | VMC855 |
Table size (mm) | 1000*400 | 1000*400 | 1000*500 | 1000*550 |
Max. allowable load (Kg) | 400 | 300 | 500 | 500 |
X-axis stroke (mm) | 650 | 800 | 800 | 800 |
Y-axis travel (mm) | 400 | 400 | 500 | 550 |
Z-axis travel (mm) | 550 | 550 | 500 | 550 |
T-slot | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 |
spindle center to Z-axis guide surface (mm) | 485 | 445 | 552 | 590 |
spindle end face to work table (mm) | 100-650 | 100-650 | 110-610 | 120-670 |
Spindle taper hole | BT40-120 | BT40-120 | BT40-140 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 |
Machine Weight (Kg) | 3800 | 3200 | 5300 | 5500 |
Model | VMC966 I | VMC1050 | VMC1160 | VMC1165 |
Table size (mm) | 1100*550 | 1200*420 | 1200*600 | 1200*600 |
Max. allowable load (Kg) | 600 | 500 | 800 | 800 |
X-axis stroke (mm) | 900 | 1000 | 1100 | 1100 |
Y-axis travel (mm) | 600 | 500 | 600 | 650 |
Z-axis travel (mm) | 600 | 550 | 600 | 650 |
T-slot | 5-18-100 | 5-18-100 | 5-18*100 | 5-18-100 |
spindle center to Z-axis guide surface (mm) | 663 | 575 | 650 | 710 |
spindle end face to work table (mm) | 100-700 | 100-650 | 120-720 | 120-720 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 48/48/48 | 18/18/18 | 36/36/24 | 36/36/36 |
Machine Weight (Kg) | 5600 | 5500 | 6500 | 6800 |
Model | VMC1265 I | VMC1370 I | VMC1580 | ||
Table size (mm) | 1200*600 | 1400*700 | 1700*800 | ||
Max. allowable load (Kg) | 800 | 800 | 1500 | ||
X-axis stroke (mm) | 1200 | 1300 | 1500 | ||
Y-axis travel (mm) | 650 | 700 | 800 | ||
Z-axis travel (mm) | 650 | 750 | 700 | ||
T-slot | 5-18-100 | 5-18-130 | 5-22-135 | ||
spindle center to Z-axis guide surface (mm) | 710 | 713 | 855 | ||
spindle end face to work table (mm) | 120-770 | 120-870 | 160-860 | ||
Spindle taper hole | BT40-150 | BT40-150 | BT50-155 | ||
Spindle speed (r/min) | 8000 | 8000 | 6000 | ||
X/Y/Z rapid movement (m/min) | 36/36/36 | 24/24/24 | 24/24/18 | ||
Machine Weight (Kg) | 7000 | 8000 | 12000 | ||
X, y and Z guide rails have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. They cooperate with automatic forced lubrication to improve the accuracy and service life of the machine tool;
Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
X, y and Z feed directions adopt high-precision and high-strength internal circulation double nut preloading large lead ball screw, with high feed speed; The drive motor is directly connected with the lead screw through the elastic coupling, and the feed servo motor directly transmits the power to the high-precision ball screw without back clearance to ensure the positioning accuracy and synchronization of the machine tool;
High speed, high precision and high rigidity spindle unit is adopted, with strong axial and radial bearing capacity.
High speed, high precision and high rigidity spindle unit is adopted, with strong axial and radial bearing capacity.
Product Details

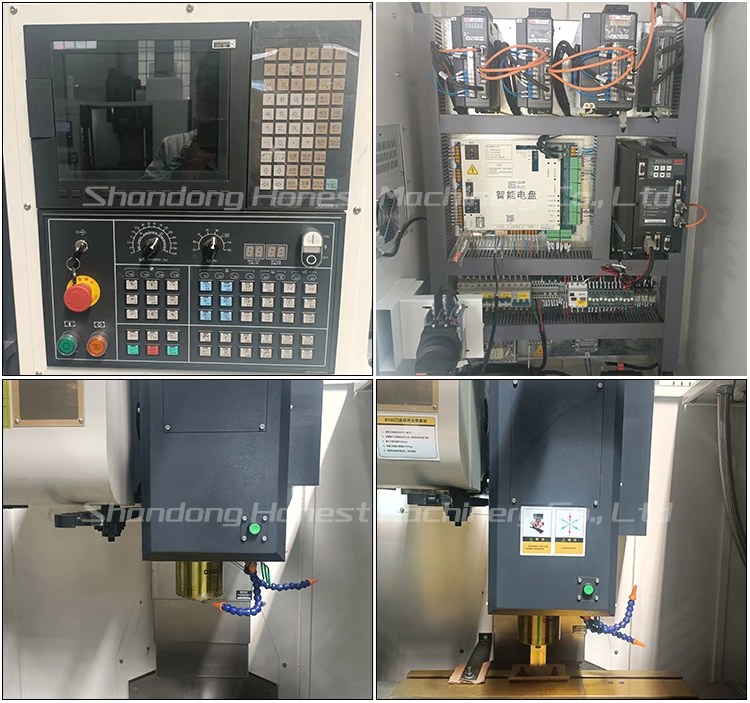

Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System:
machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with
good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation
parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and
reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the
foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong
cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the
long-term service performance of the machine tool.
machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with
good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation
parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and
reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the
foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong
cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the
long-term service performance of the machine tool.
Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
Taiwan HIWIN high precison guideway
Automatic tool change system
mechanical accuracy test can make every customer more assured
sample
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

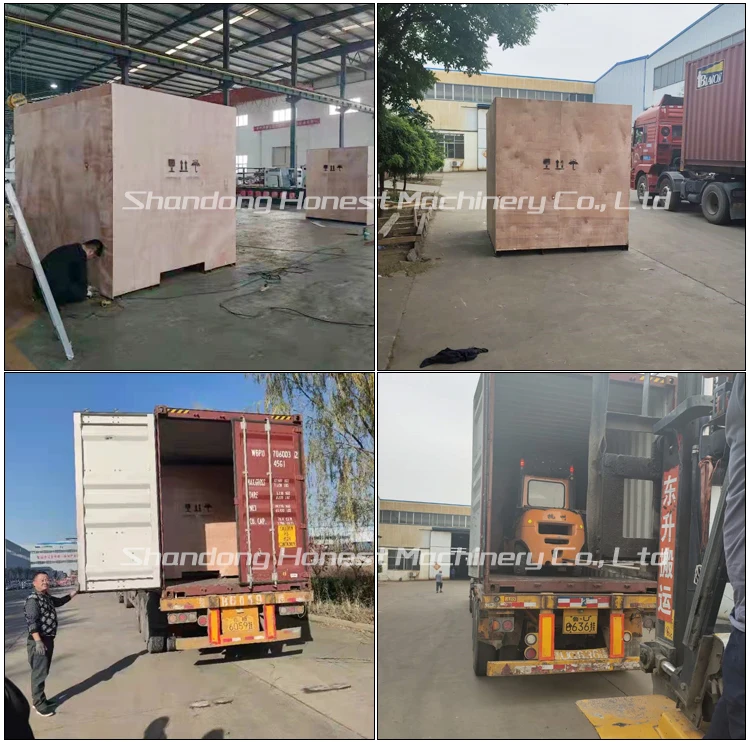

Packaging＆Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company information
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales.
The company has a series of cnc milling machine 、fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
The company has a series of cnc milling machine 、fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
FAQ
1.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
