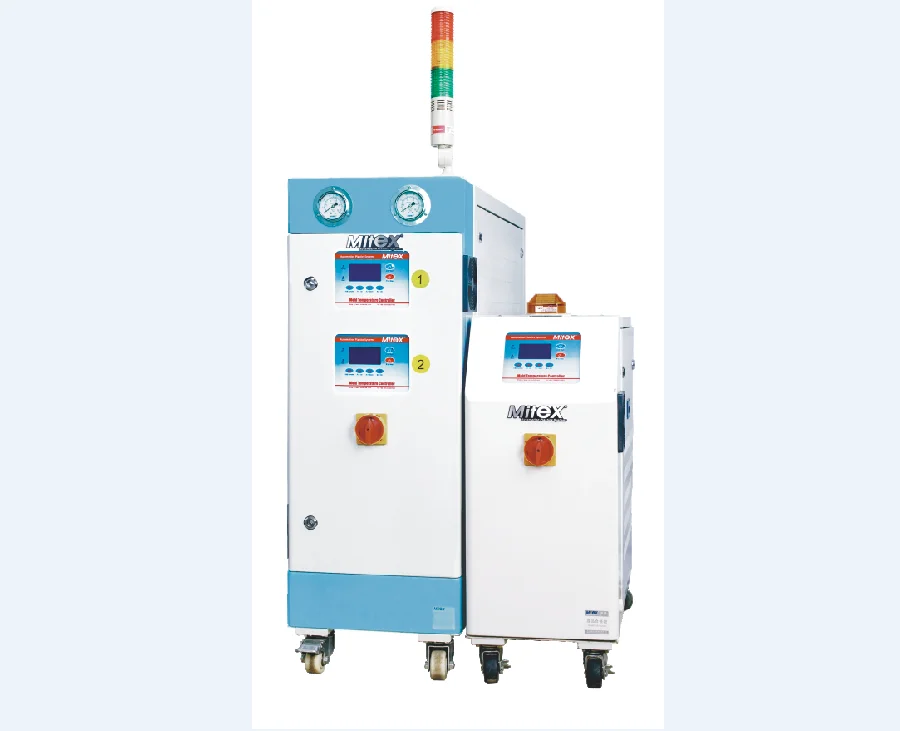

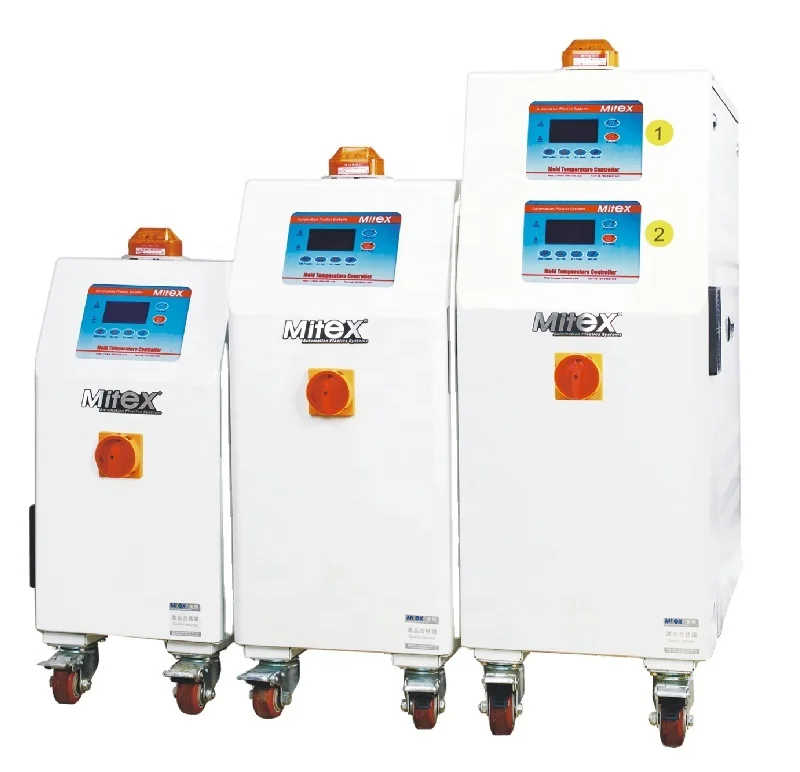

Industrial Plastic Water Type Mold Temperature Controller Machine Price
- Category: >>>
- Supplier: Dongguan Mitex Automation Machinery Co. Ltd.
Share on (1600516430579):
Product Overview
Description
Product Description

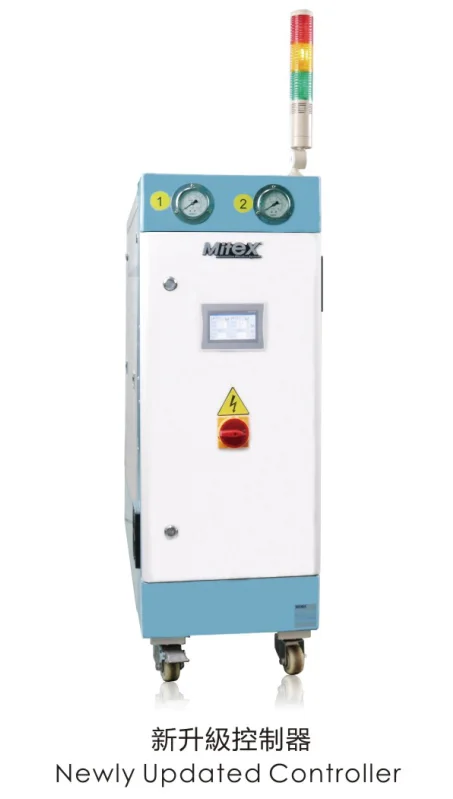

120℃ Series
150/180℃ Series
Brief Introduction
MTC series water heaters have both standard and high temperature models, which are used to heat up the mold and maintain temperature, although they can be used in other similar applications. High temperature water from the mold is returned to the cooling tank and cooled by either indirect cooling (For high temperature and high temperature plus pressure models) or direct cooling (For standard models). It is then pressured by the high-pressure pump, sent to the heating tank and finally to the mold with a constant temperature. The OMRON temperature controller can maintain an accuracy of ±0.3°C.
Side View
Back View
Inside
Inside
Electrics
Water Pump
Overheat Protector
Pressure Gauge

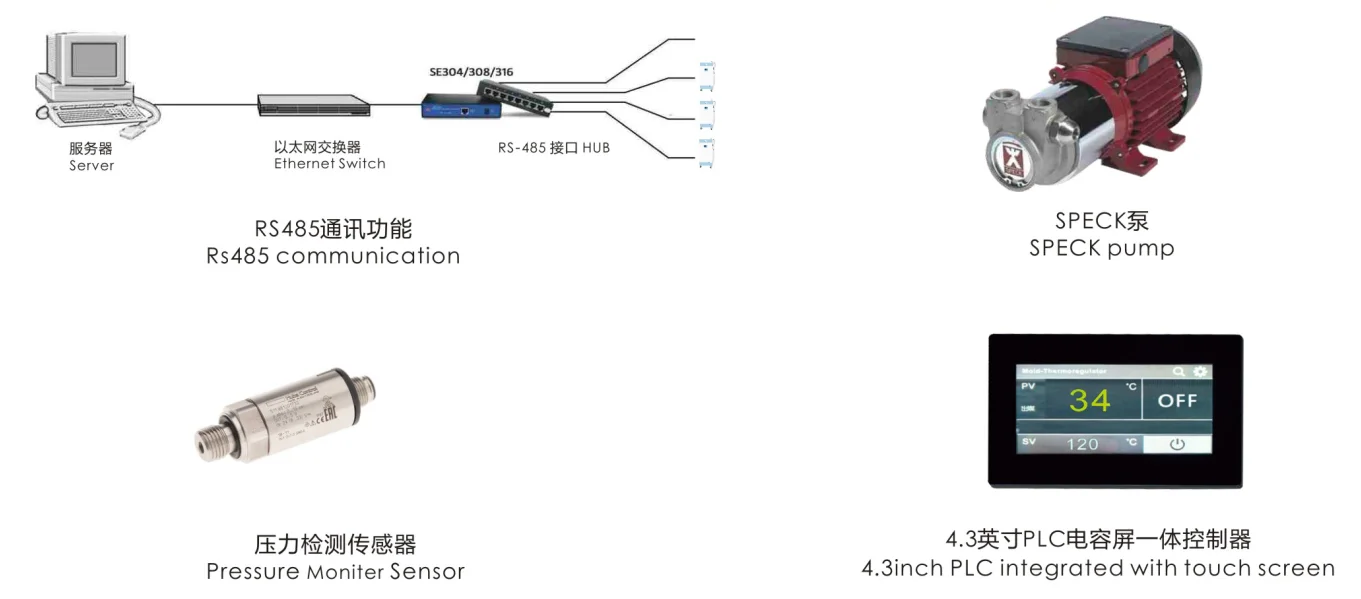

For option
Product Paramenters
Model | MTC | ||||||||||
1510G | 1520G | 1510G-TS | 1815M | 1840M | |||||||
Medium | Fresh Water | ||||||||||
Max. working temp. | 150℃ | 180℃ | |||||||||
Heater capacity (KW) | 9 | 18 | 9*2 | 9 | 18 | ||||||
Control Method | P.I.D control | ||||||||||
Pump | seal method | Mechanical method | Sealless | ||||||||
Motor capacity (KW) | 0.75 | 1.5 | 0.75*2 | 1.1 | 3 | ||||||
Max.pressure (Mpa) | 0.38 | 0.45 | 0.45 | 0.45 | 0.6 | ||||||
Max.flow (L/min) | 50 | 82 | 47 | 50 | 120 | ||||||
Cooling method | Indirect cooling | ||||||||||
Cooling capacity (KW) | 11 | 11*2 | 11 | 11 | |||||||
circulation line | Main Pipe | 1 inch | |||||||||
Branch pipe | 3/8" 4 direction | 3/8" 8 direction | 3/8" 4 direction | 3/8" 8 direction | |||||||
Cooling Line | 3/8" | 3/8" | |||||||||
Alarm | Phase reverse, Medium shortage, pump overload, tem. upper and lower limite, overheat protectiion | ||||||||||
Power supply | AC 380V, 3 Phase, 50hz | ||||||||||
Water pressure | 0.1-0.3Mpa | ||||||||||
Accessorires | 5 Meters power cable | ||||||||||
Dimension (MM) | 1000*340*835 | 1000*340*835 | 1350*400*1385 | 1000*340*835 | 1100*340*900 | ||||||
Net weight (kgs) | 97 | 115 | 190 | 110 | 127 | ||||||

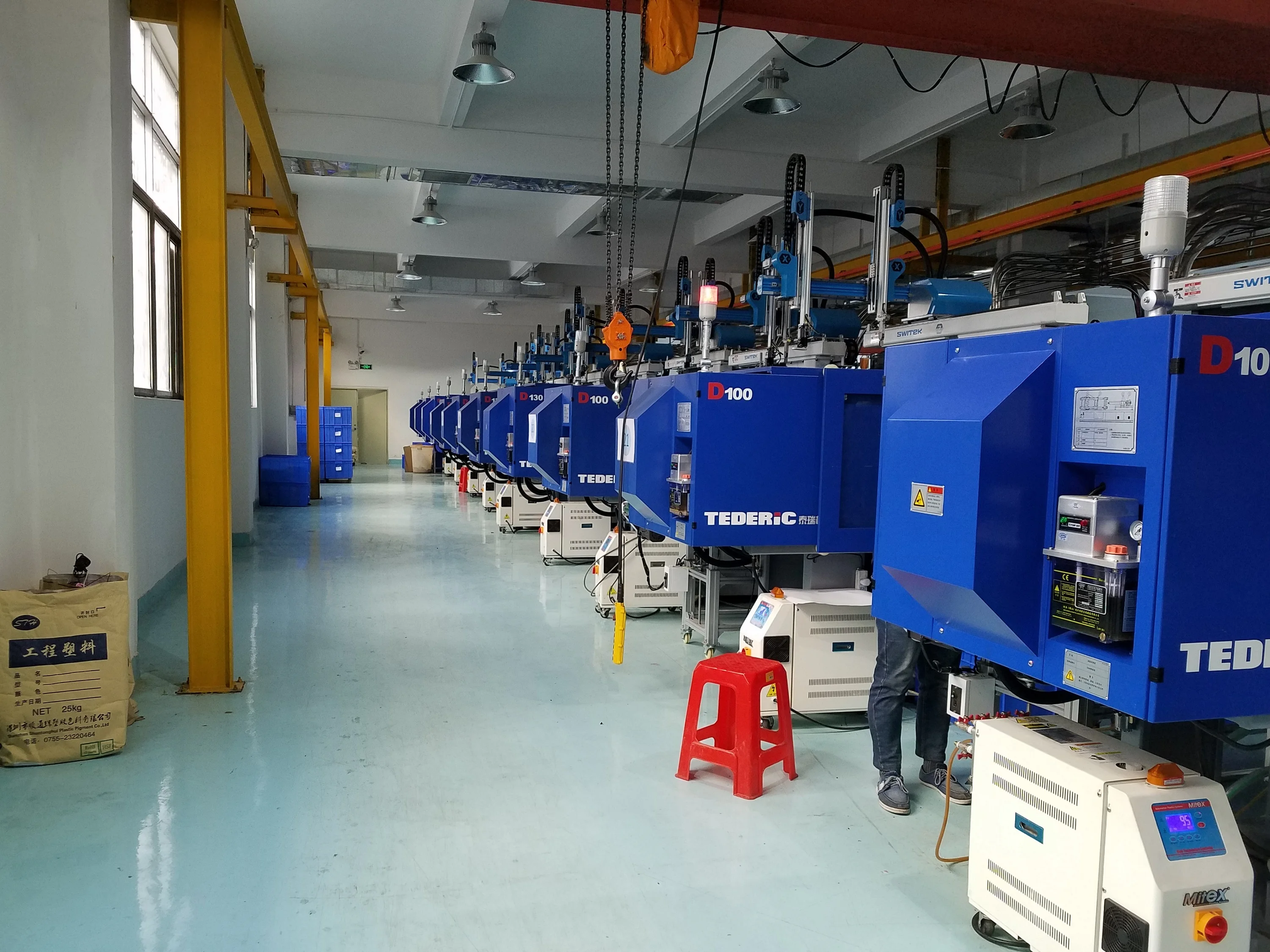

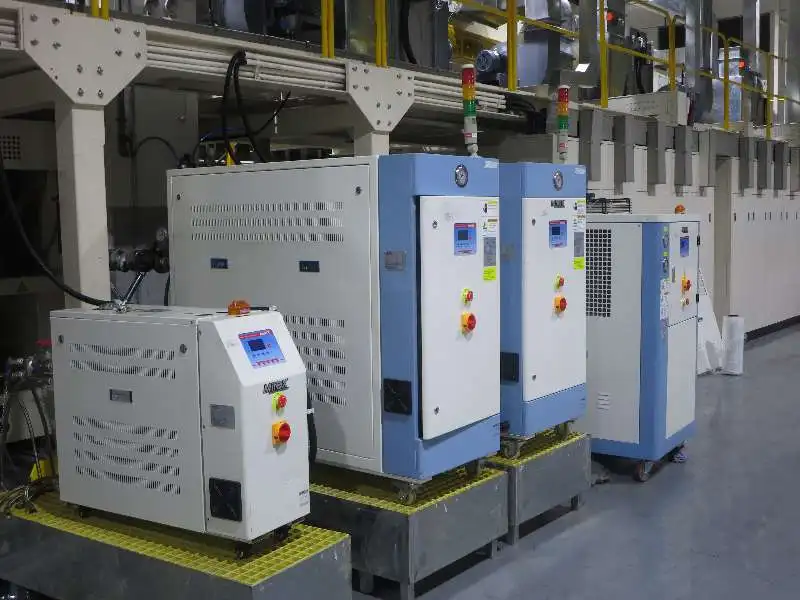

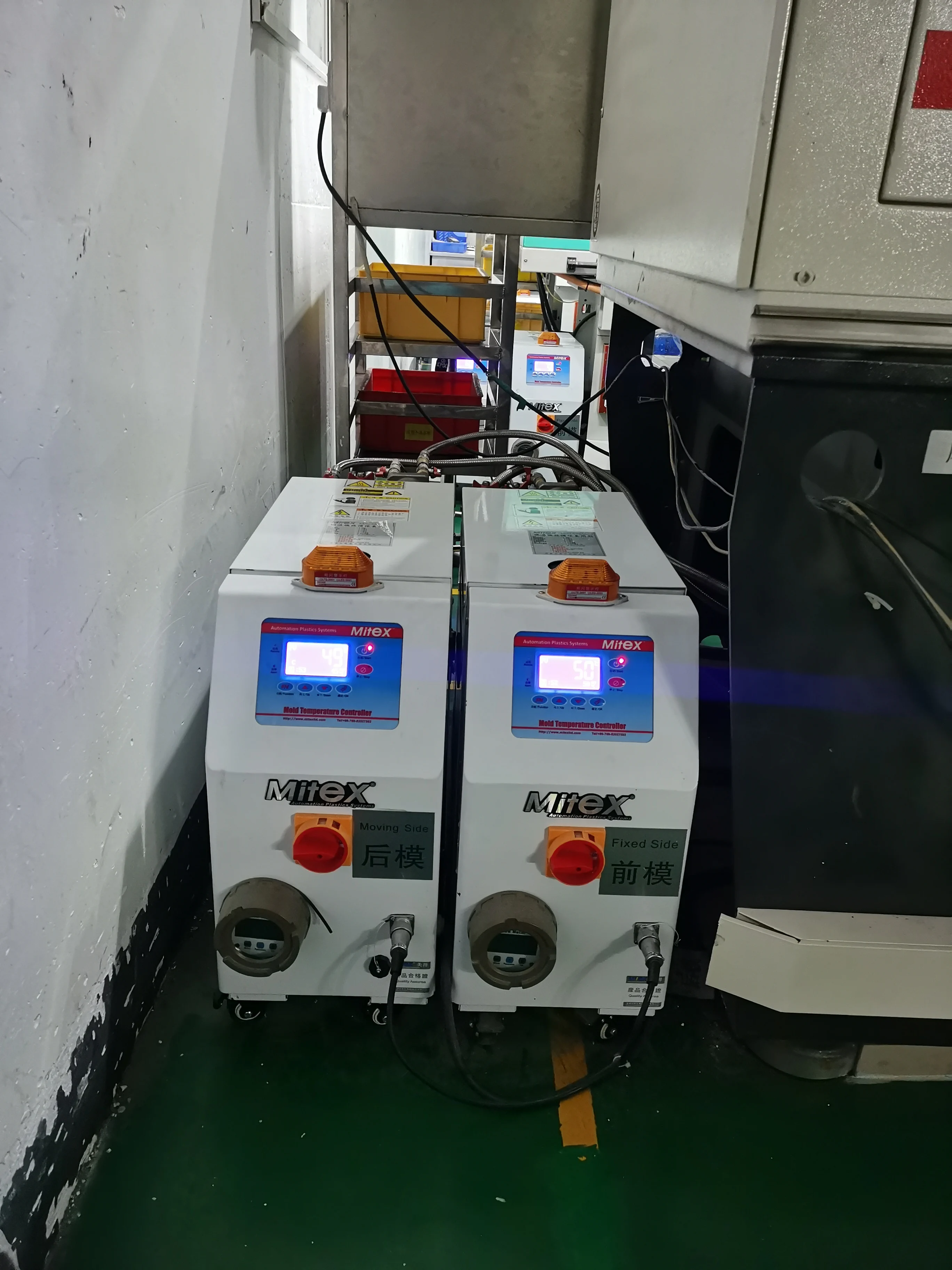

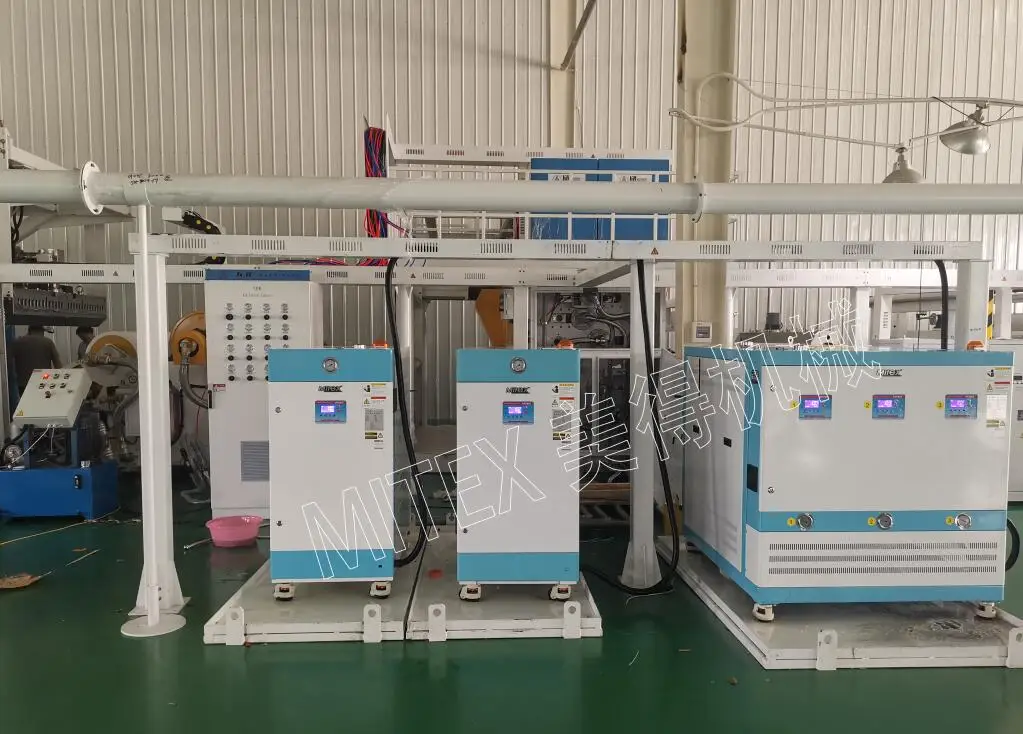

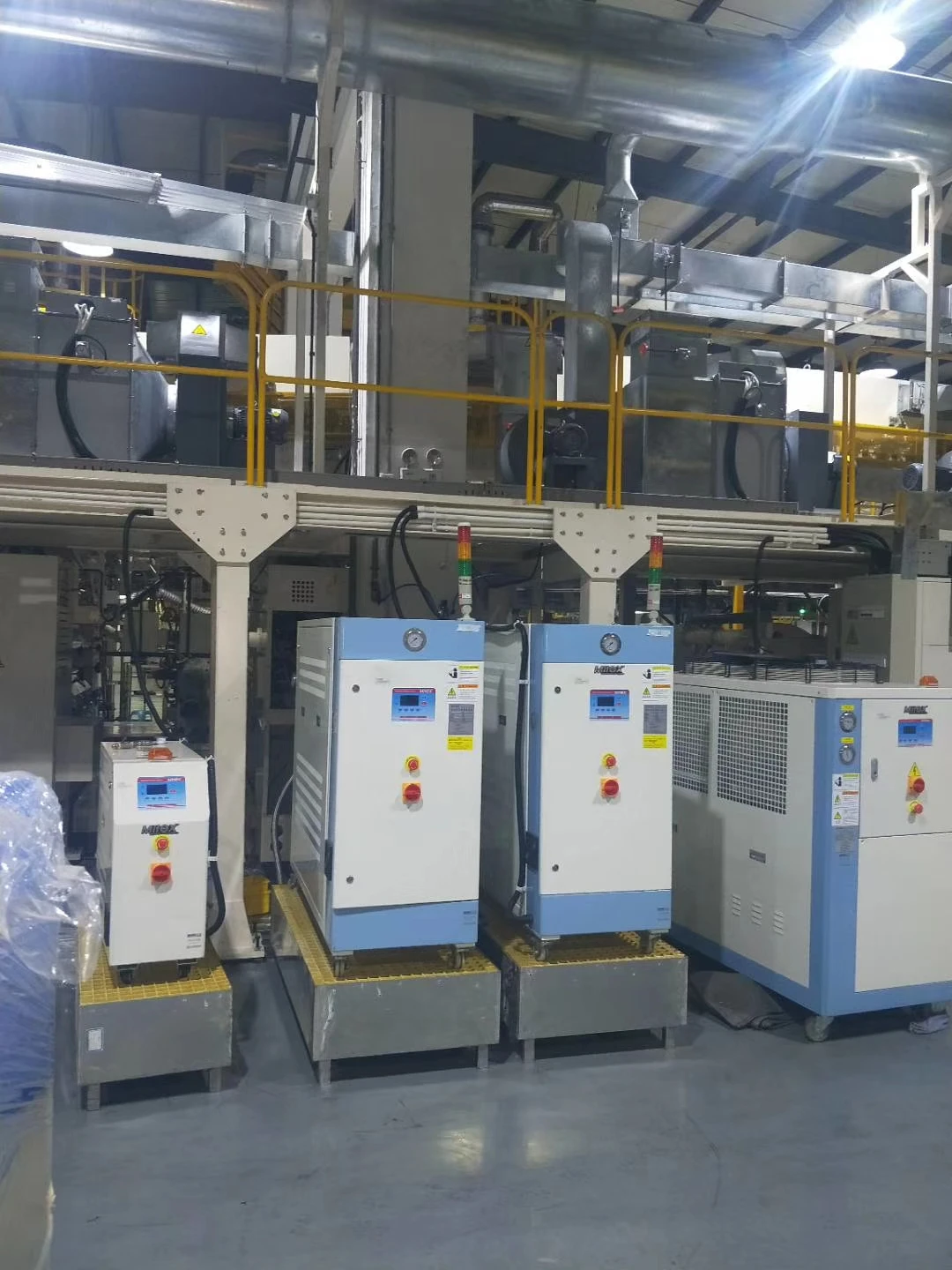

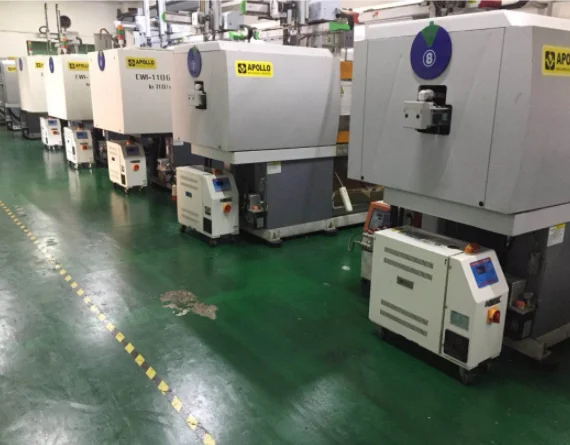

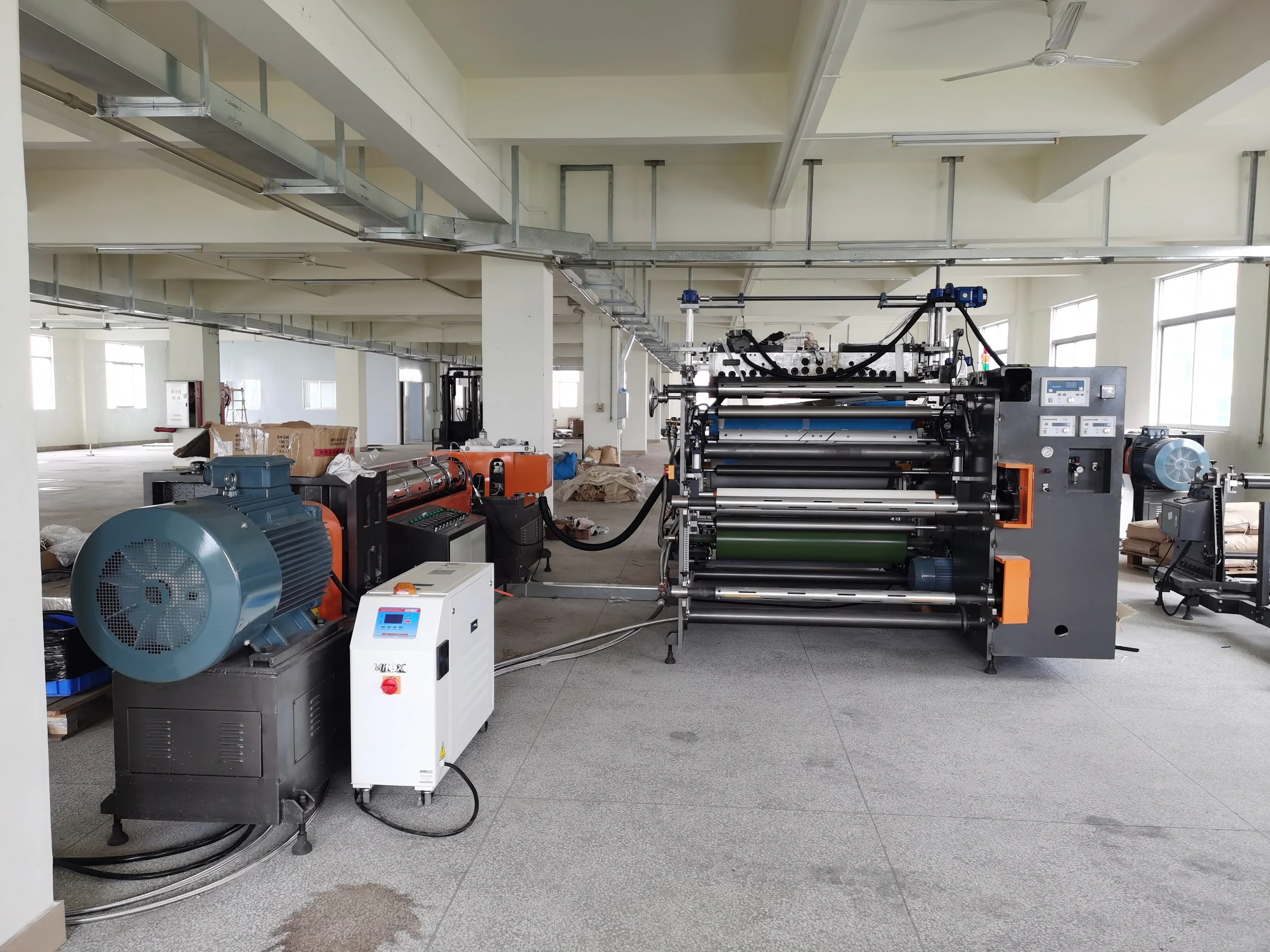

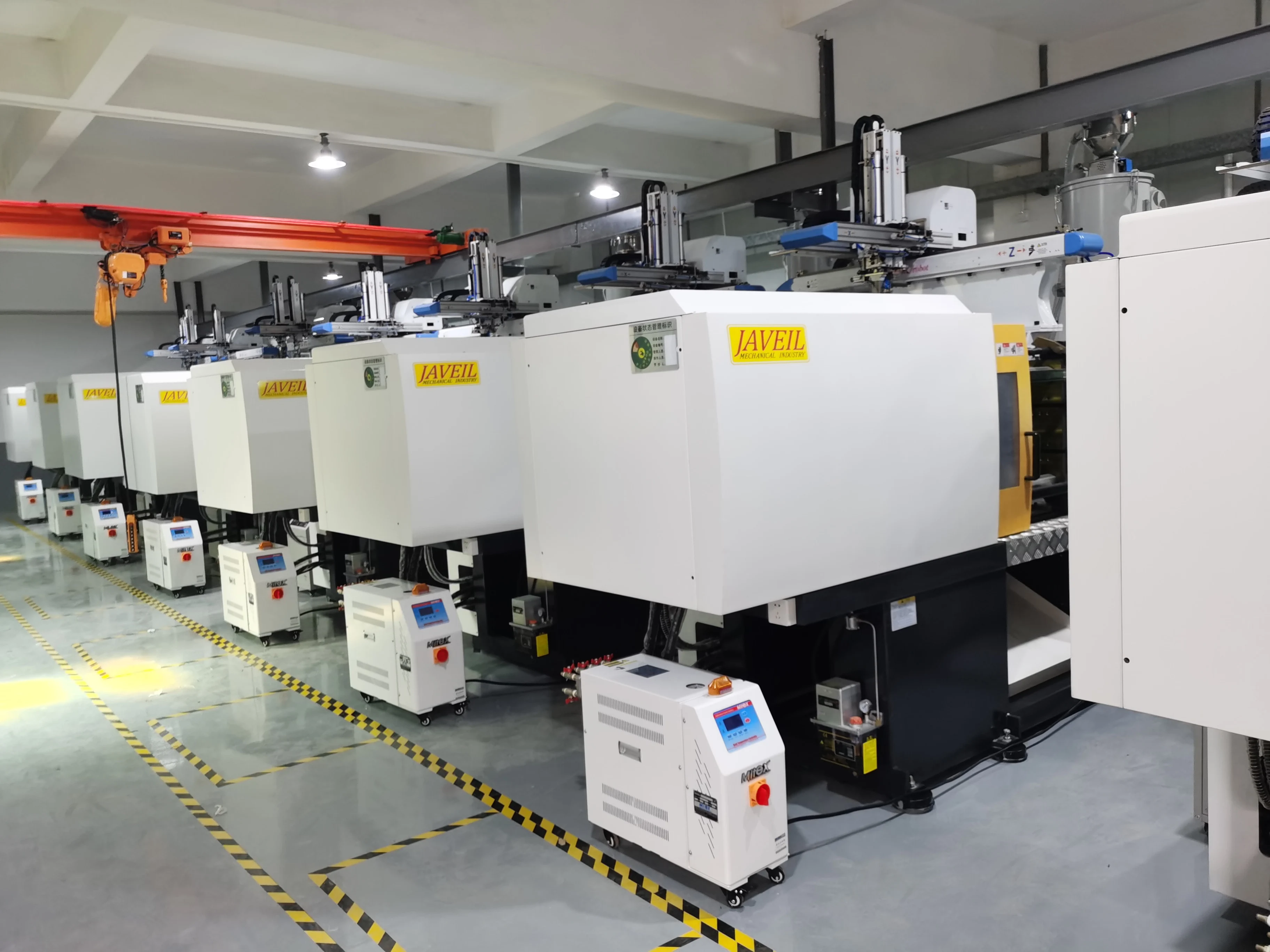

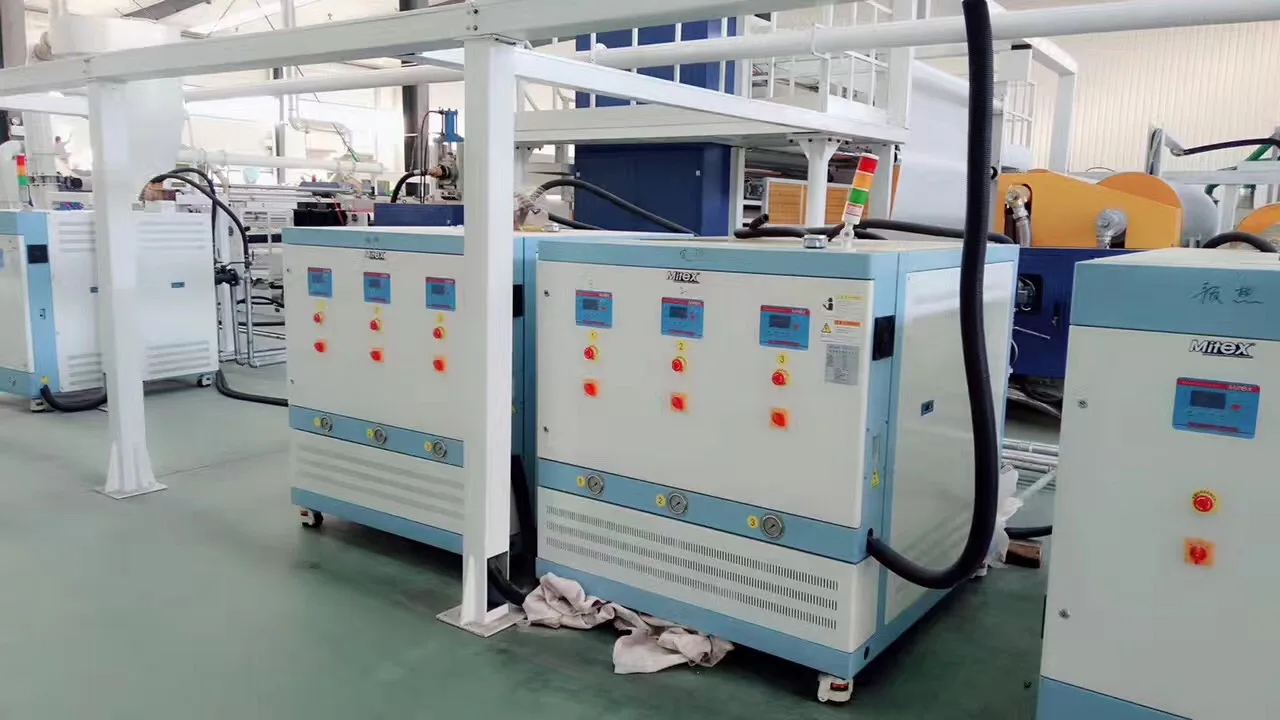

Customer cases
Related Products

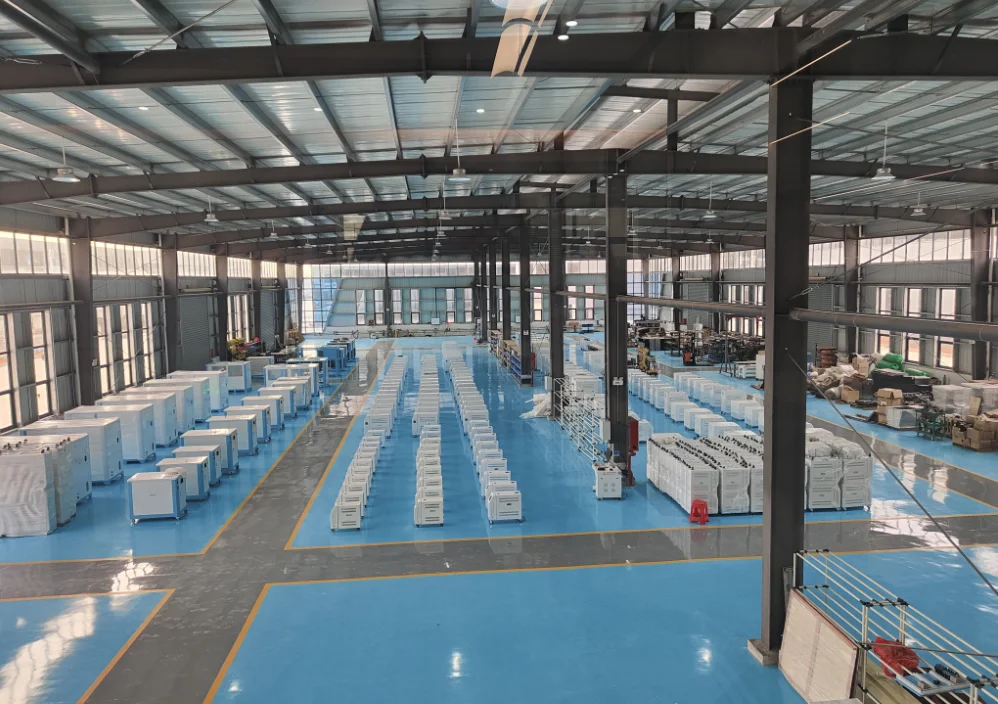

Company Introduction
Mitex Automation Machinery Co., Ltd is a national-level High-Tech enterprise that established in July, 2007. Also a plastic
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0 resolution.
The main products include: Centralized feeding system, dehumidifying and drying system. automatic metering and mixing system,crushing and recovery system, mold temperature control system and automation solution etc.
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0 resolution.
The main products include: Centralized feeding system, dehumidifying and drying system. automatic metering and mixing system,crushing and recovery system, mold temperature control system and automation solution etc.
