Product Overview

Description

Description:

Vacuum tray dryers is widely used in pharmaceutical, chemical, foodstuff and electronic industry, and it is well known that vacuum drying is put raw material into the environment of vacuum for heating and drying, if use vacuum pump to draw air and humidity out, the dry speed will be faster.

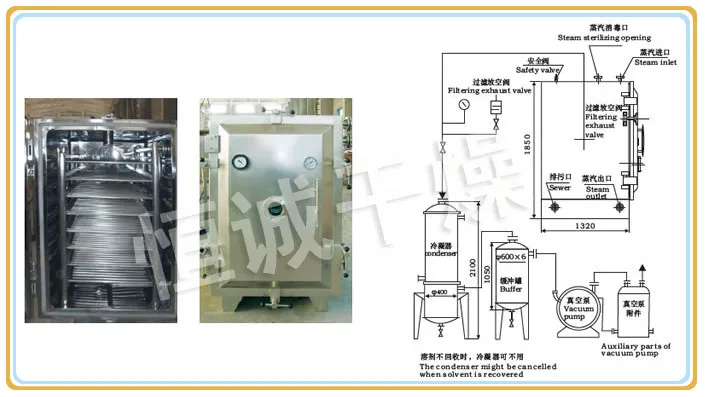

Work Principle:

It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to take air and humidity out,the dry speed will be faster. Note:If use condensator, the solvent in raw material can be recovered. If the solvent is water,condenser might be canceled and the investment and every could be saved.

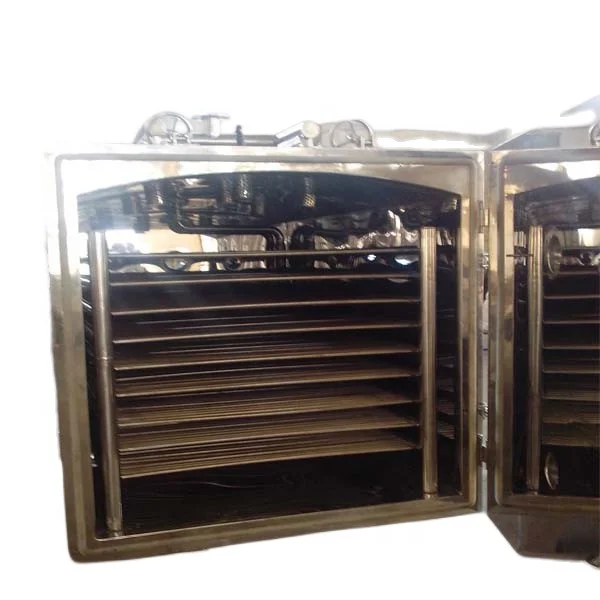

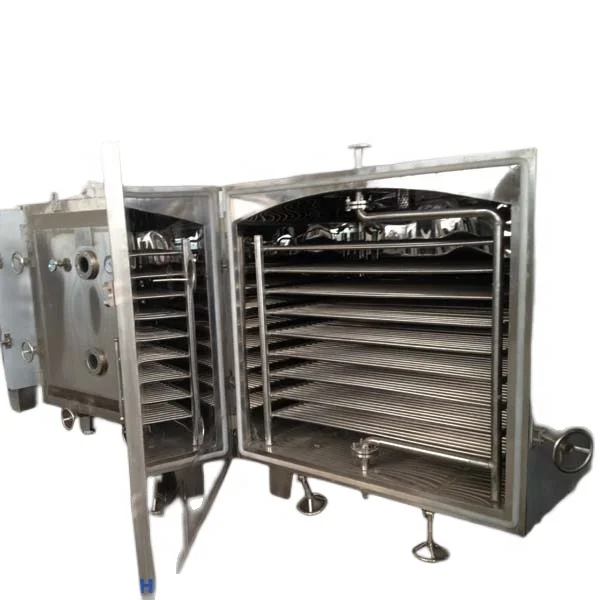

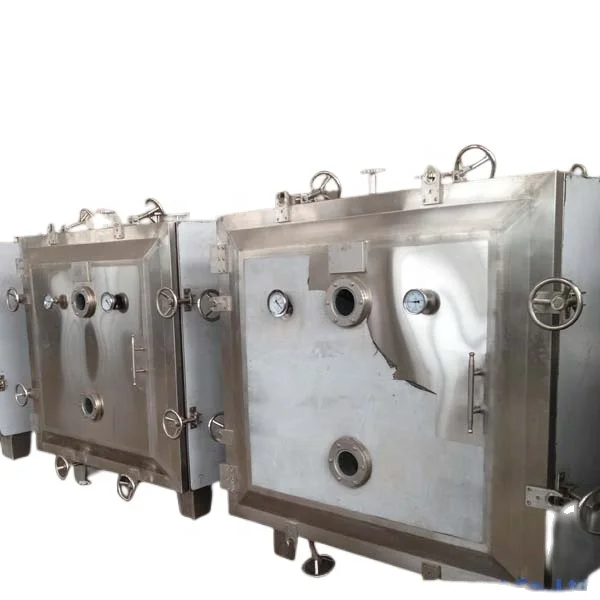

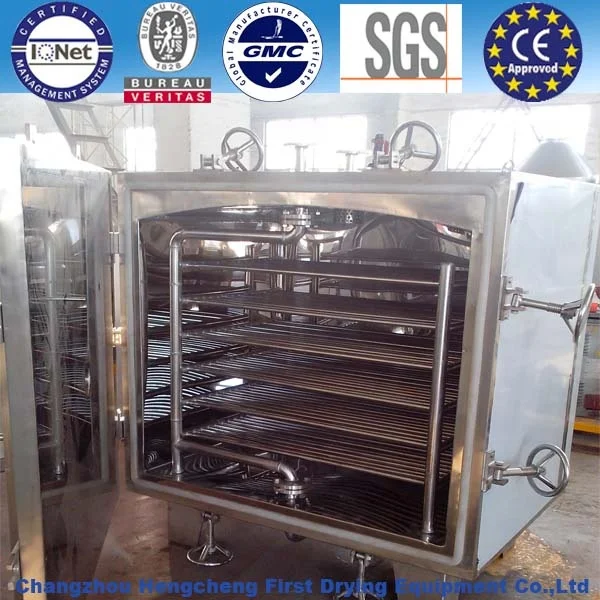

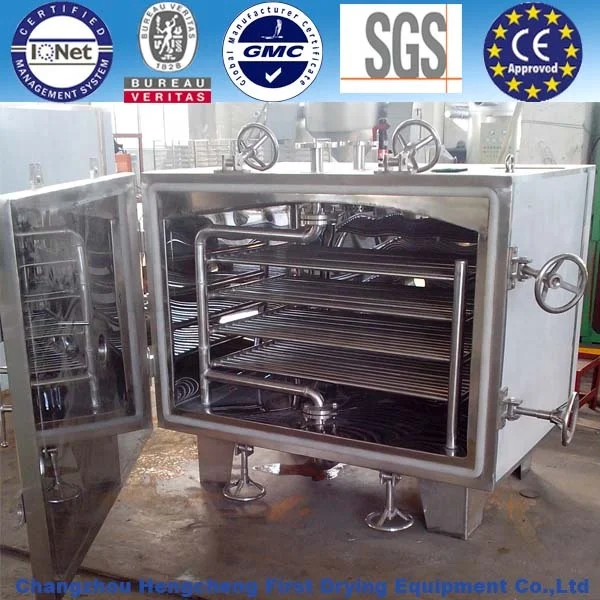

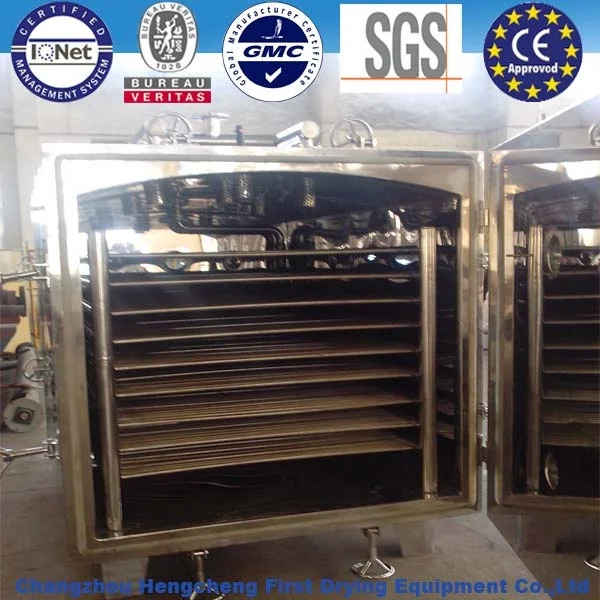

Product pictures:

Product Characteristics:

1.Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency increase. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.

2. The heat source for evaporation may be low pressure steam or surplus heat steam.

3. The heat loss is less.

4.Before drying,the treatment of disinfection may be carried out during the period of drying,there is no impurity material mixed. It is in conformity.

5. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.



Material to be dried:

It is suitable for low temperature drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.



Technical Parameter:



Model Name	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
Inter size of drying chamber(mm)	Φ600×976	Φ800×1247	Φ1000×1527	Φ1400×2054	1500×1060 ×1220	1500×1400 ×1220	1500×1800 ×1220
Outer size of drying chamber(mm)	1135×810 ×1024	1700×1045 ×1335	1693×1190 ×150	2386×1675 ×1920	1513×1924 ×1720	1513×1924 ×2060	1513×1924 ×2500
Layers of baking support	4	4	6	8	5	8	12
Interval of baking(mm)	82	82	102	102	122	122	122
Size of baking tray(mm)	310×600 ×45	520×410 ×45	520×410 ×45	460×640 ×45	460×640 ×45	460×640 ×45	460×640 ×45
Quantity of baking tray	4	8	12	32	20	32	48
working pressure inside the pipe of baking support(Mpa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Operation temperature of baking support, oC	35-150	35-150	35-150	35-150	35-150	35-150	35-150
Degree of vacuum inside the chamber when operation (Mpa)	-0.09~0.096
Under the condition of -0.1Mpa and 110oC,evaporation rate of water(kg/m2.hr )	7.2	7.2	7.2	7.2	7.2	7.2	7.2
When condenser is used,Model,and power of vacuum pump(kw)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
When condenser is not used,Model,and power of vacuum pump(kw)	SK-0.8 2.2KW	SK-2.7 4KW	SK-3 5.5KW	SK-6 11KW	SK-3 5.5KW	SK-6 11KW	SK-6 11KW
Weight of drying chamber(kg )	250	600	800	1400	1400	2100	3200
