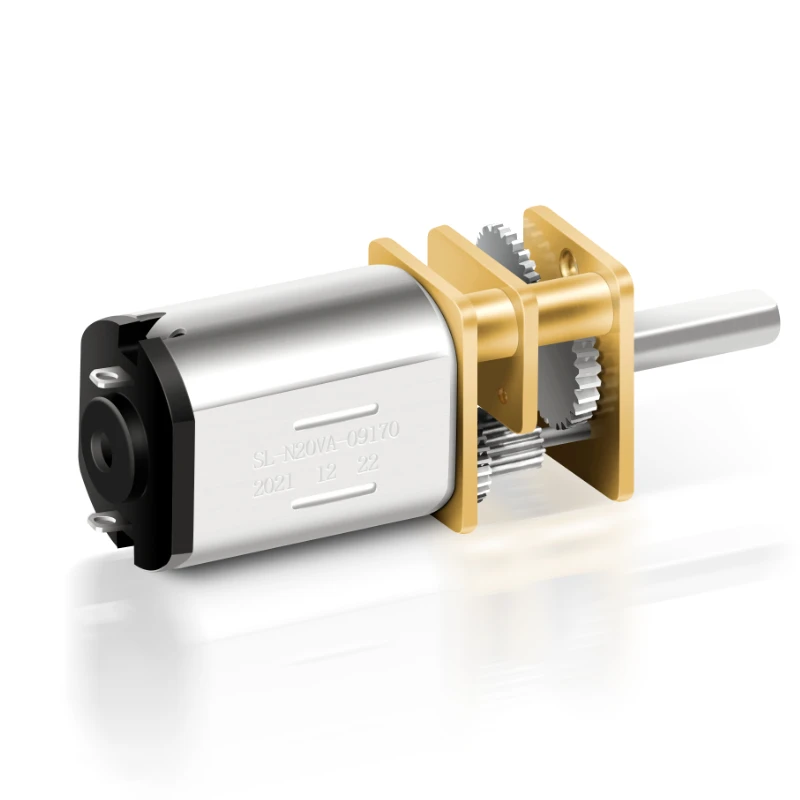

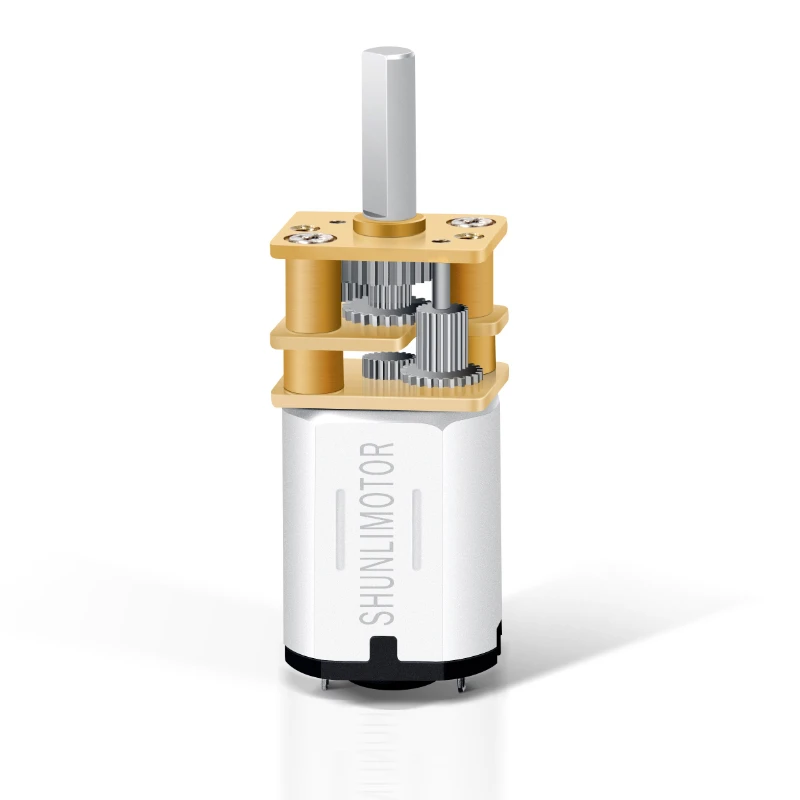

Shunli dc 12mm 1.5v 6v 12v dc mini gear motor low rpm 5rpm 500rpm electric motor with encoder 3kg.gm for digital door lock
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (1600516445700):
Product Overview
Description
Product Description

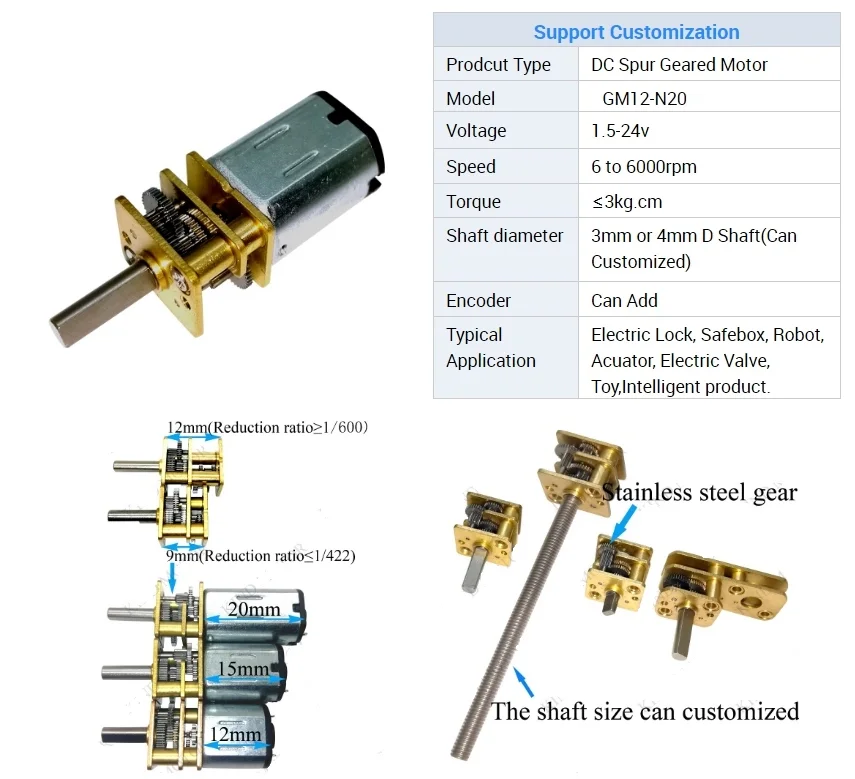

12mm 5v n20 micro dc gear motor
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing

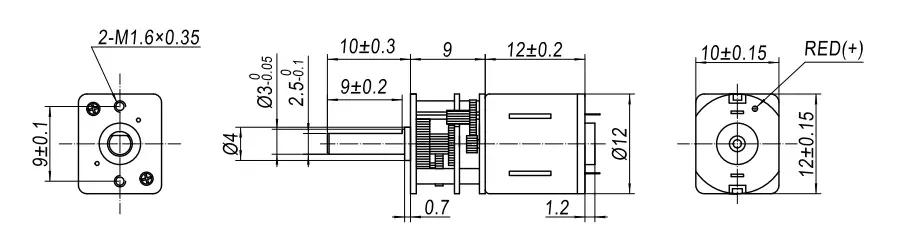

------GM12AMN10

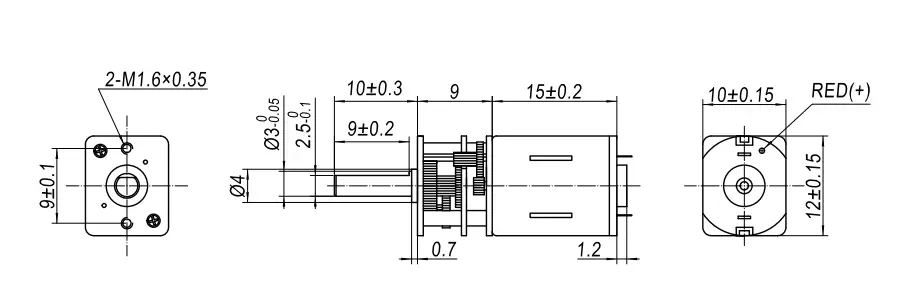

-----GM12AMN20

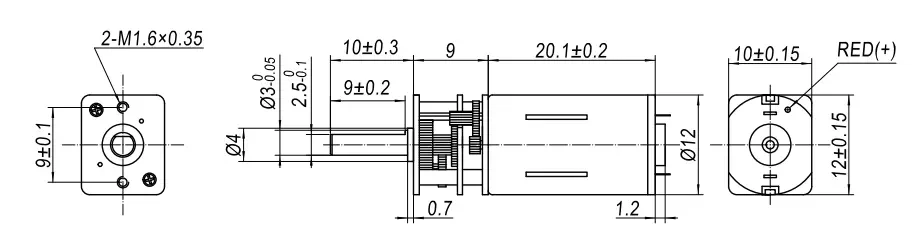

-----GM12AMN30
Reference Datasheet
Gearbox Technical Date
| Number of stages | 2 | 4 | 5 | 7 |
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K | 110K/150K/210K/ 250K/298K/380K | 372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
Application

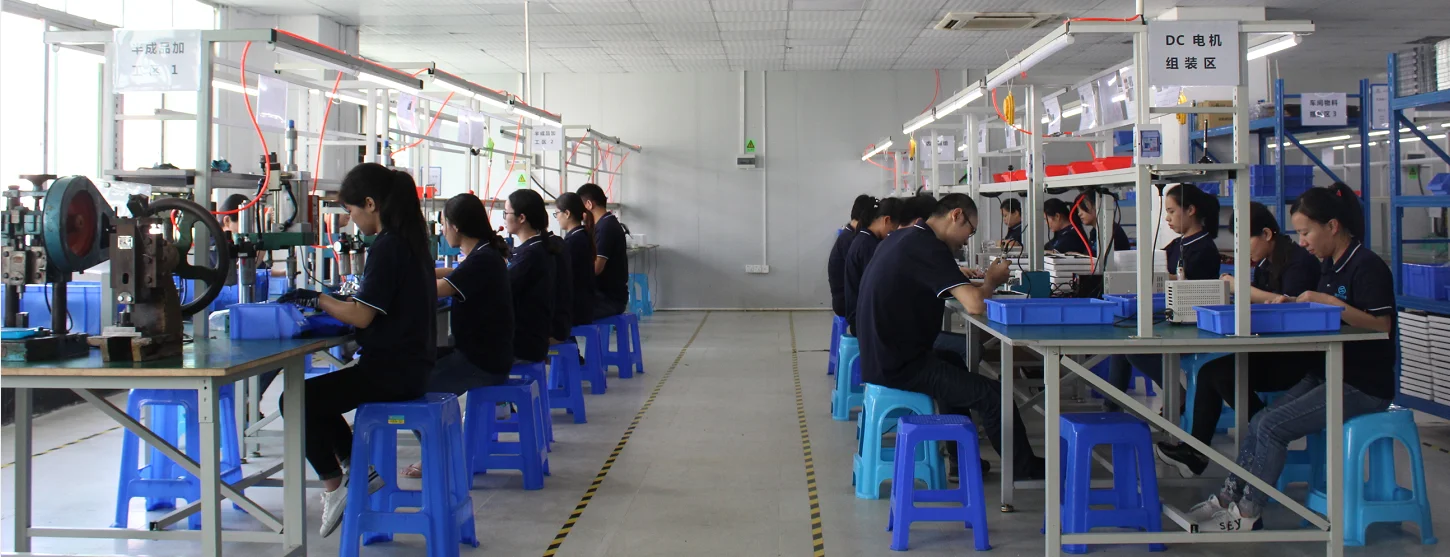

Our Company
Shenzhen Shunli Motor Co. Ltd has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
FAQ
1.Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

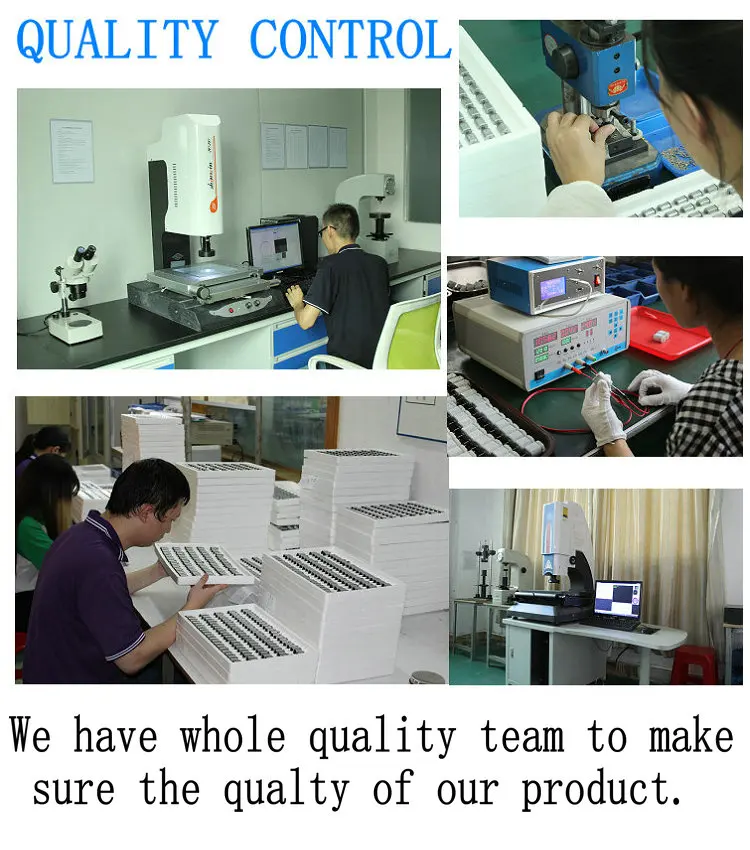

5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
