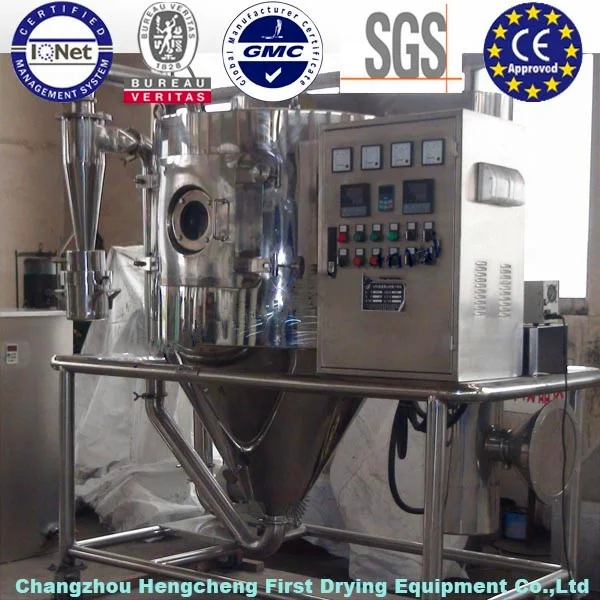

Customized spray dryer lpg 5 with price

Product Overview

Description

Description:
Spray Drying Machine, Atomized drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Working Principle:
Spray Drying Machine Series of LPG is gas-liquid co-current flow drying equipment, using high-speed centrifugal atomizer, the liquid will be atomized into fine droplets, then mix with the hot air from the distributor in the dryer, heat and mass transfer exchanges rapidly during the mixing process. In a very short period of time the liquid become dry powdered products. Production control and product quality control is convenient and reliable. It is widely used in the drying production of different types of liquids materials.


Characteristics:
1.Different types of solution, suspension, emulsion and cream paste material can be dry for a one-time production.
2.The fog moment and fog droplet of spray-drying can be slightly adjusted.
3.The hot air has been reasonable allocation, and the ceiling and walls sticky situation has been eliminated.
4.It is suitable for the drying of thermo-sensitive and non thermo-sensitive material at the same time. The product particles are smaller than pressure spray dryer.
5.Simplify the production process, easy to use, good liquidity and instant of the product.

Application:
Inorganic: Aluminum nitride, zirconium, potassium fluoride, betonies kaolin, barium sulfate, lead sulfate, sodium aluminum, chromium oxide, titanium dioxide.
Macromolecule polymers: Urea-formaldehyde resin, PVC.
Dyes: Dispersal red FB, reactive dyes, etc.
Chemical Agents: Silica dioxide, diatomite, sodium silicate, wood calcium, sodium ligninsulfonate, naphthalene series water reducer.
Pesticide: Carbendazol chloride wet table power
Food and feed additives: Casein peptide phosphate, potassium sorbet fish serum.
Fertilizer: Potassium humane, sodium humane.









Changzhou Hengcheng First Drying Equipment Co., Ltd is a specialized manufacturer for manufacturing dryer, mixer, granulator, crusher, sieving machine, etc. Our equipment is mainly used in pharmaceutical, food, chemical, mining and other industries of product drying, mixing, granulating and screening.
Our factory has over 20 years of experience in manufacturing equipment, with eight technical experienced R & D engineers and forty-five skilled workers. We have introduced several sets of advanced production equipment, and digestion and absorption of advanced production technology, successfully acquired
a number of patents, can provide customers with better service and products. The workshop area is over 6000 square meter; the office area is over 2000 square meter. And factory has certificated by BV, SGS, TUV and GMC. Factory production system have certificated by ISO9001-2008 & ISO14001-2004.
In last year, our turnover has overed US dollar Forty millions, the export amount is about US dollar six millions. Our foreign customers have been all over the world, such as American, Europe, Japan, Korea, Malaysia, Indonesia, Thailand, South Africa, Argentina, Australia, India, and Arab country, etc...
Our factory located in the beautiful East of China, near Shanghai, it is about 200km from Shanghai Pudong airport to our factory. Welcome you visiting our factory.Our factory always believes: More quality products, more satisfied customers.
Looking forward to sincerely cooperating with you in a long term!



1. Before you inquiry, you should let us know the following information:
    a.>Name of the material to be dried?
    b.> Shape of the material to be dried?
    c.> Initial moister of material?
    d.> Final moister of material?
    e.> Drying materials can withstand the maximum temperature?
    f.> Capacity of dried material? kg/h (or capacity of inlet wet material? kg/h)
    g.> Equipment material, stainless steel or carbon steel?
    h.> Using heating source, steam / electricity / coal / heat conduction oil or other?
2. Our usual price is based on FOB Shanghai, if you request CIF, please give us the delivery port, then we will give you CIF price.
3. Our usual payment term is: 30% TT in advance, 70%TT before shipment.
