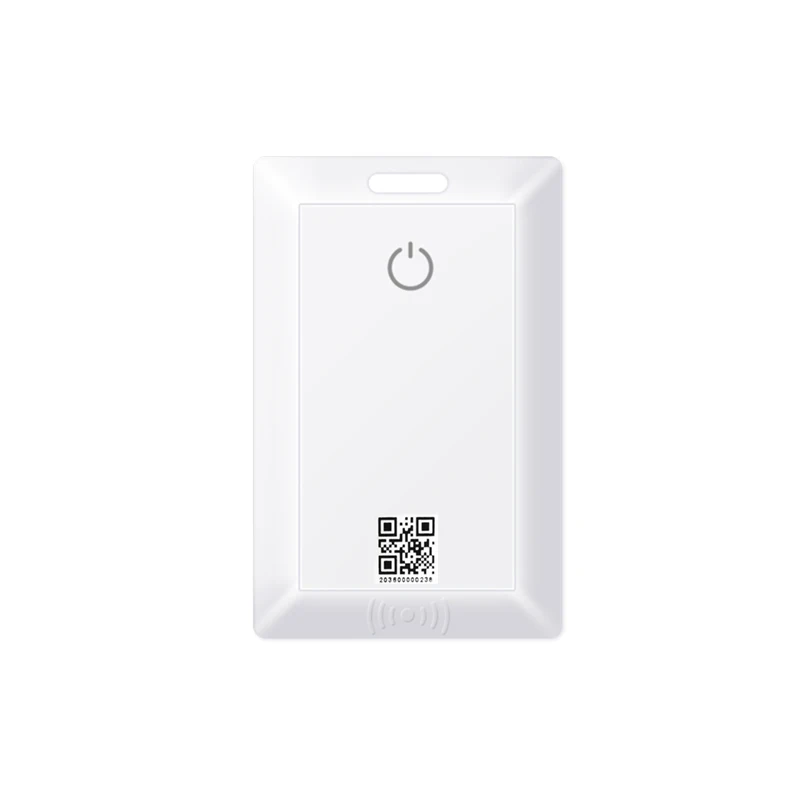

Bluetooth Temperature and Humidity Beacon BLE5.2 Beacon Tracking Tag Long Distance ibeacon
- Category: >>>
- Supplier: Shenzhen Deasino Technology Co. Ltd.
Share on (1600516501148):
Product Overview
Description
Product Description

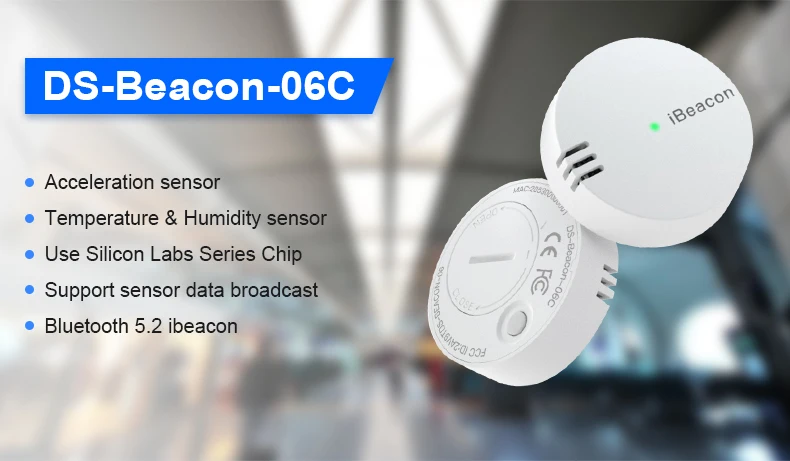

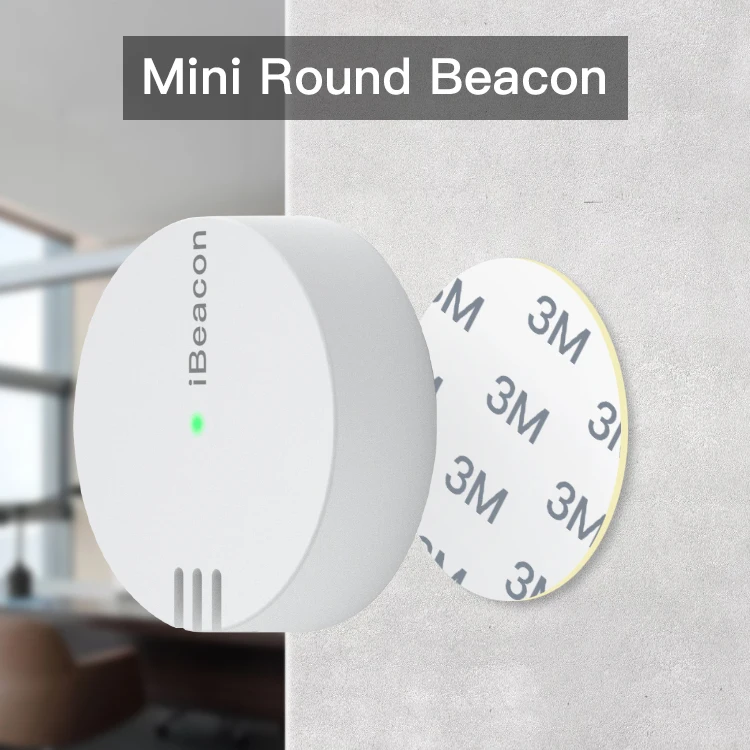

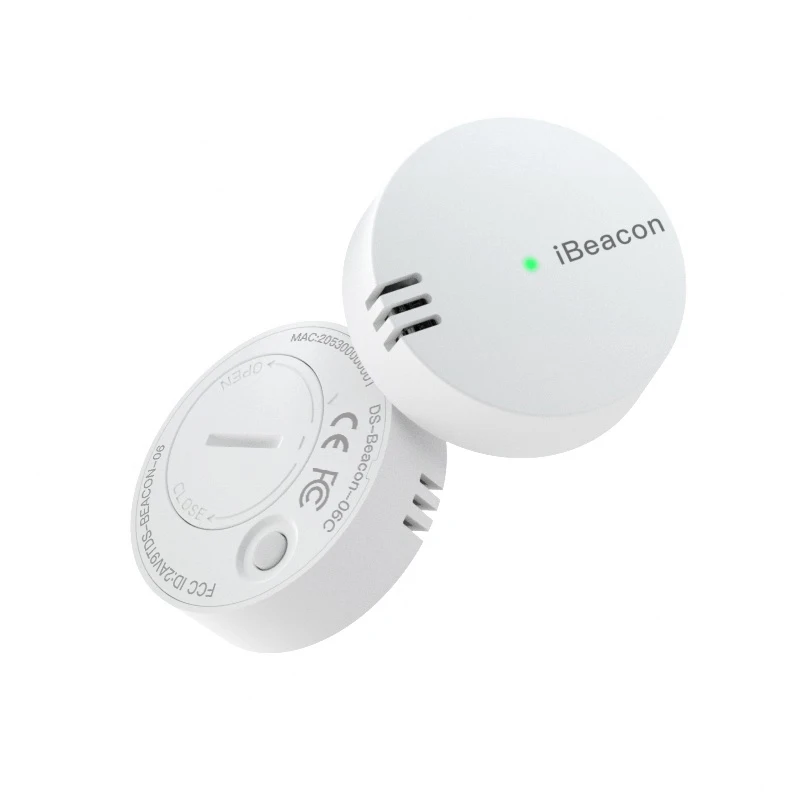

Bluetooth Temperature and Humidity Beacon BLE5.2 Beacon Tracking Tag Long Distance ibeacon
Model | DS-Beacon-06C |
Sensor | Acceleration;Temperature&Humdity Sensor |

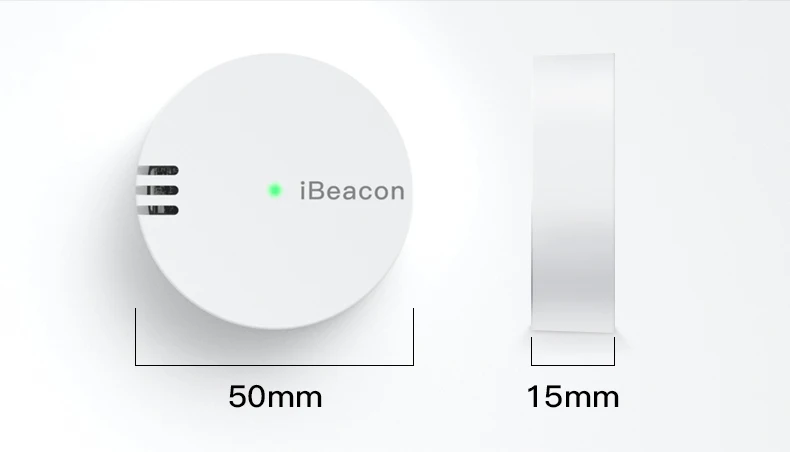

Size | R25mm * H15mm |
Case color | White/ Colors can be customized |
Transmission Range | ≥50 meters in open environment |
Broadcasting Power | -40 +4dBm, Default 0 dBm |
Standby Time | 2 Years / CR2450 |
Broadcasting Frequency | 20ms~20s, Default 1000ms |
Security | The default connection password is 000000 |

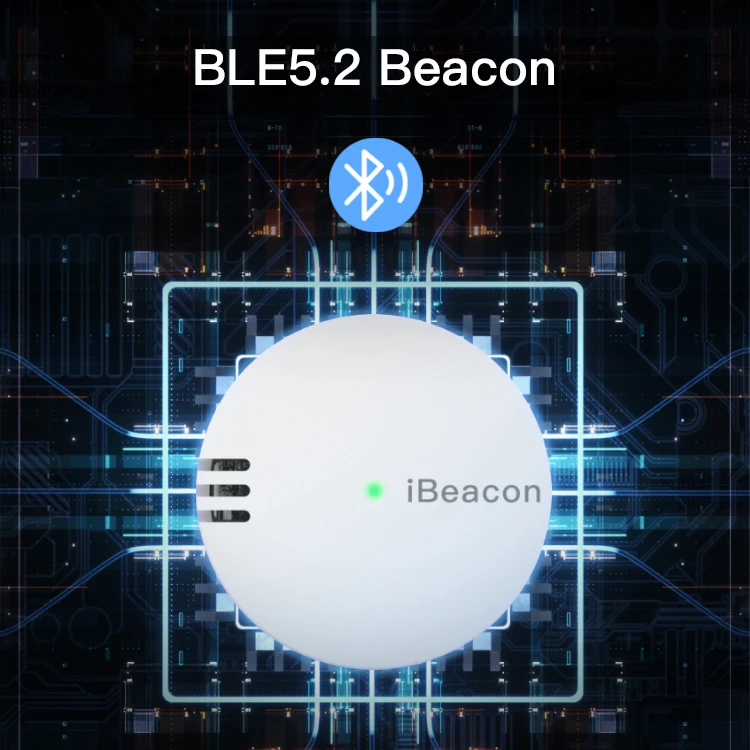

Communication Protocol | Bluetooth Low Energy 5. 2 ibeacon |

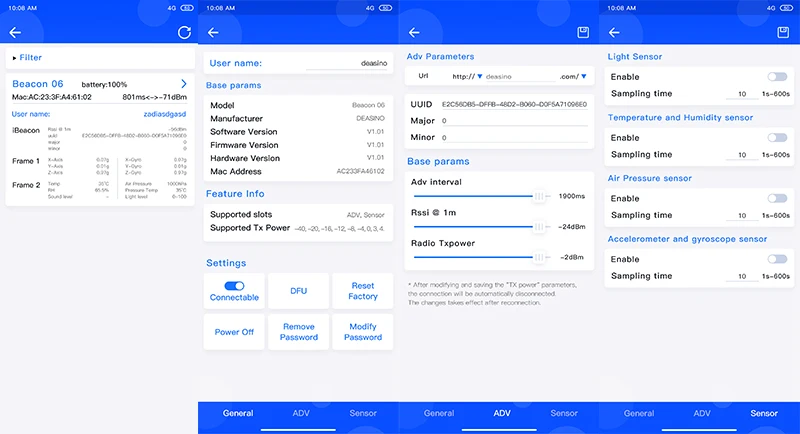

APP Tool | DEASINO in APP store, google play |
Feature:
1.iBeacon uses Silicon Labs Series Chip

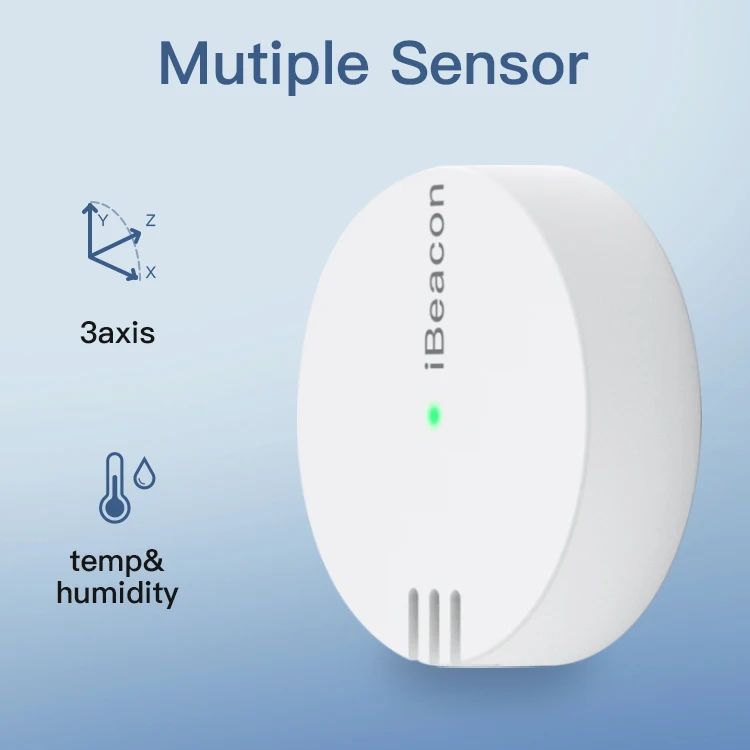

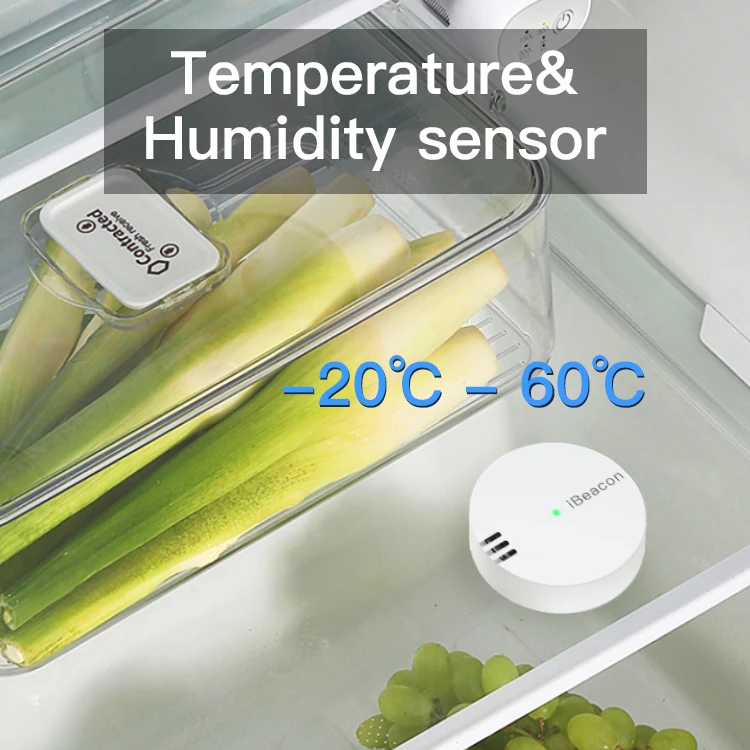

2.06C with Acceleration sensor, Temperature & Humidity sensor

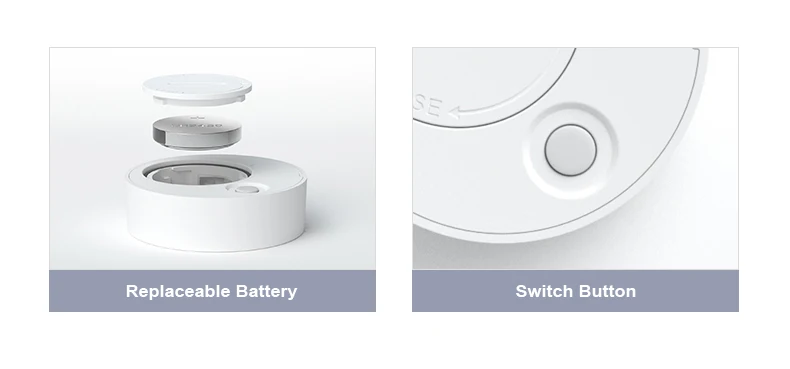

3.Replaceable battery: CR2450
4.>50 meters long working range
5.Switching function、Low voltage alarm function、Support Sensors
6.Support sensor data broadcast
1.iBeacon uses Silicon Labs Series Chip
2.06C with Acceleration sensor, Temperature & Humidity sensor
3.Replaceable battery: CR2450
4.>50 meters long working range
5.Switching function、Low voltage alarm function、Support Sensors
6.Support sensor data broadcast
7.Set Bluetooth broadcast parameters and sensor sampling time
8.Can set the device's user name.

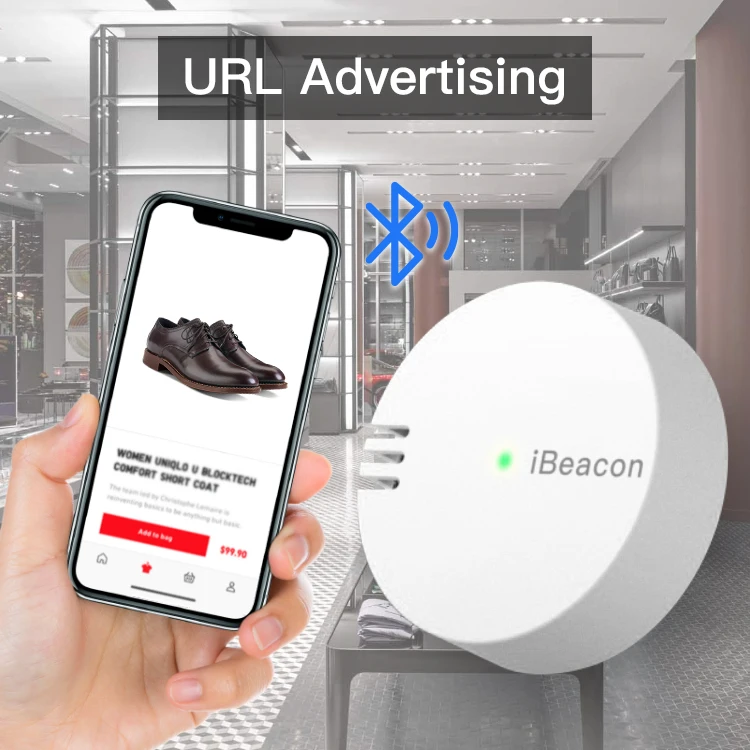

9.Can set the URL advertising.
Application
- Indoor positioning of shopping malls, airports and other large public places;
- Online explanation of tourist attractions, museums, etc.,
- Check in for exhibitions, forums and offices. Location based real-time message push, such as live information, conference process sharing, etc.,
*The above functions require the customer to independently develop an app or platform for use. Beacon only provides basic Bluetooth broadcast packet broadcast information.
How to Use
On/off function:
Open: Long press for 3 seconds.
Close: Under the power on state, hold down for three seconds and the green light will flash five times. During the green light flashing, click the button, the light will be on for one second and the power off will be successful.
Connect: Connected to Bluetooth successfully, LED flash twice;
Disconnect Bluetooth and the LED light will flash three times.
Connect: Connected to Bluetooth successfully, LED flash twice;
Disconnect Bluetooth and the LED light will flash three times.
If you need the data sheet of DS-Beacon-06, please contact us!
Recommend Products
DS-Beacon-01 DS-Beacon-04 DS-Beacon-05A

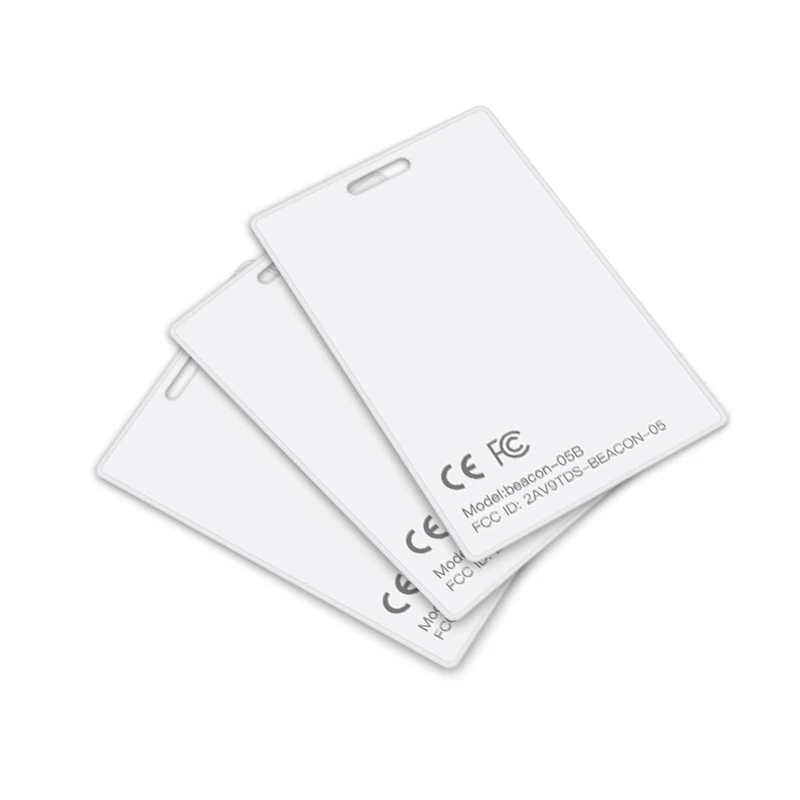

DS-Beacon-05B DS-Beacon-06A DS-Beacon-06C
Company Profile
Deasino was established in 2007 as a provider of smart consumer and Internet solutions. We provide customerswith advanced mobile phone app development, smart home system, electronic technology, electronic circuit design, PCB design,circuit board design, single-chip technology, intelligent control, embedded system, intelligent controller, analog digital
circuit, Internet of Things project , Cloud services, cloud computing, cloud storage, big data management software design and
other technical services.
circuit, Internet of Things project , Cloud services, cloud computing, cloud storage, big data management software design and
other technical services.
FAQ
Q1.What documents will you provide after I buy your samples?
A1.1.Configuration App 2.Instruction 3.Specification/APP Protocol
Q2. How to ship ?
A2.We have forwarder in China , can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line. We have profession assistance track for you until delivery.
Q3. Can I change some parameters, like password,Major, Minor, UUID?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK?
A4:We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
A1.1.Configuration App 2.Instruction 3.Specification/APP Protocol
Q2. How to ship ?
A2.We have forwarder in China , can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line. We have profession assistance track for you until delivery.
Q3. Can I change some parameters, like password,Major, Minor, UUID?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK?
A4:We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
