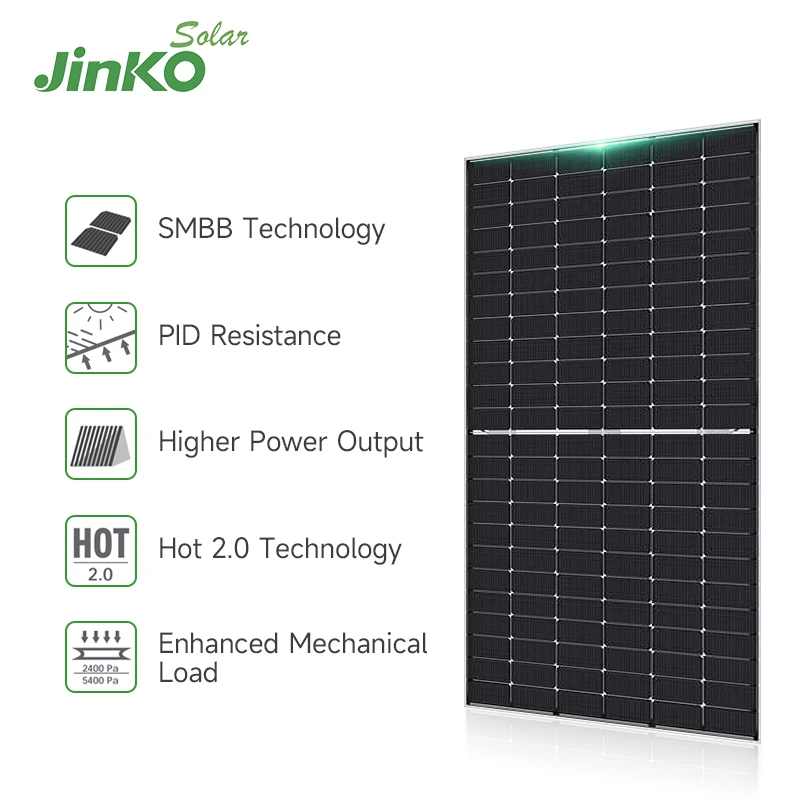

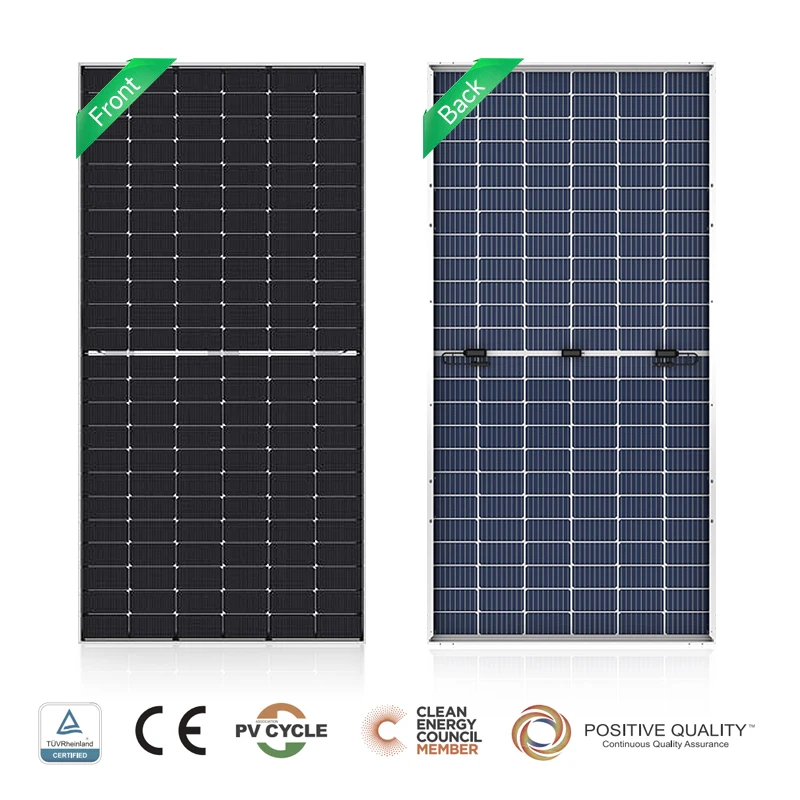

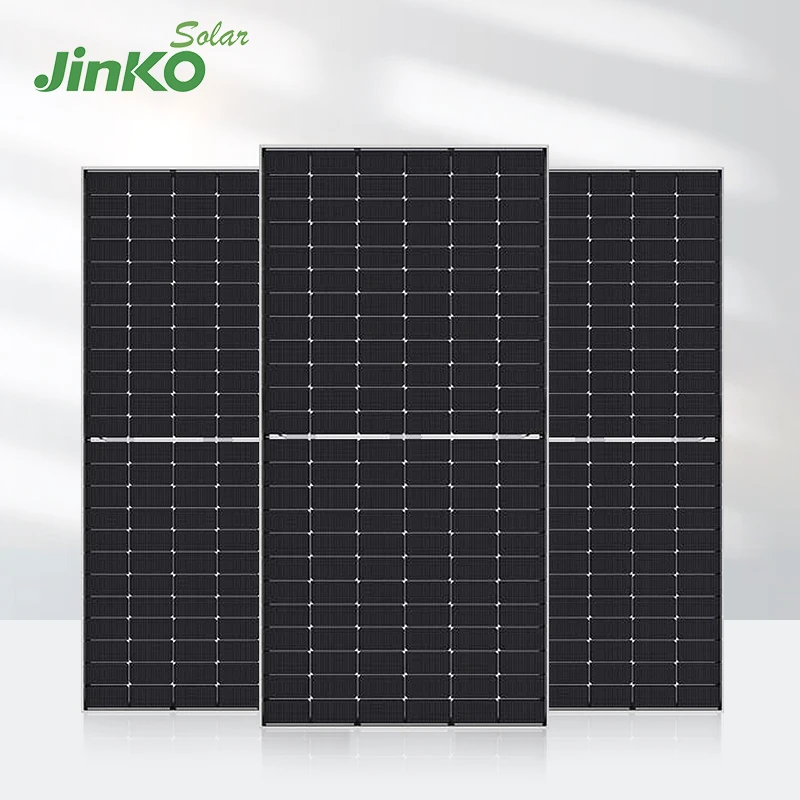

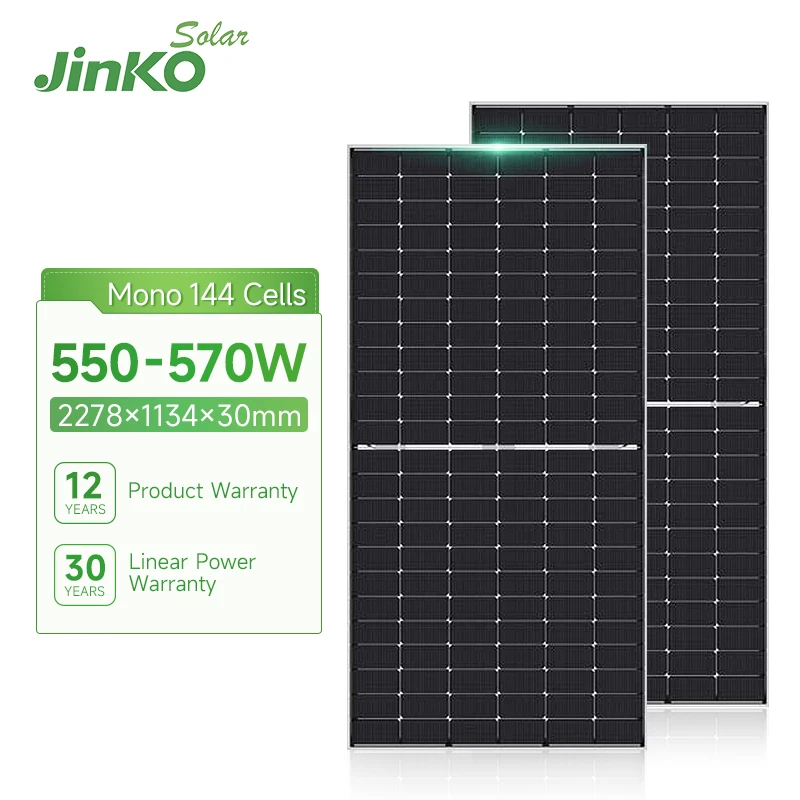

Jinko Solar 550W 555W 560W 565W 570W Bifacial Module Solar Panels with Dual Glass
- Category: >>>
- Supplier: Anhui Micoe Photovoltaic Technology Co. Ltd.
Share on (1600516519163):
Product Overview
Description
Products Description
SPECIFICATIONS （STC) | ||||||||||
Module Type | JKM550N-72HL4-BDV | JKM555N-72HL4-BDV | JKM560N-72HL4-BDV | JKM565N-72HL4-BDV | JKM570N-72HL4-BDV | |||||
Maximum Power (Pmax) | 550Wp | 555Wp | 560Wp | 565Wp | 570Wp | |||||
Maximum Power Voltage (Vmp) | 41.58V | 41.77V | 41.95V | 42.14V | 42.29V | |||||
Maximum Power Current (Imp) | 13.23A | 13.29A | 13.35A | 13.41A | 13.48A | |||||
Open-circuit Voltage (Voc) | 50.27V | 50.47V | 50.67V | 50.87V | 51.07V | |||||
Short-circuit Current (Isc) | 14.01A | 14.07A | 14.13A | 14.19A | 14.25A | |||||
Module Efficiency STC (%) | 21.29% | 21.48% | 21.68% | 21.87% | 22.07% | |||||
Operating Temperature(℃) | -40℃~+85℃ | |||||||||
Maximum system voltage | 1500VDC (IEC) | |||||||||
Maximum series fuse rating | 30A | |||||||||
Power tolerance | 0~+3% | |||||||||
Temperature coefficients of Pmax | -0.30%/℃ | |||||||||
Temperature coefficients of Voc | -0.25%/℃ | |||||||||
Temperature coefficients of Isc | 0.046%/℃ | |||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
Refer. Bifacial Factor | 80±5% | |||||||||
BIFACIAL OUTPUT-REARSIDE POWER GAIN | ||||||||||||
5% | Maximum Power (Pmax) | 578Wp | 583Wp | 588Wp | 593Wp | 599Wp | ||||||
Module Efficiency STC (%) | 22.36% | 22.56% | 22.77% | 22.97% | 23.17% | |||||||
15% | Maximum Power (Pmax) | 633Wp | 638Wp | 644Wp | 650Wp | 656Wp | ||||||
Module Efficiency STC (%) | 24.48% | 24.71% | 24.93% | 25.15% | 25.37% | |||||||
25% | Maximum Power (Pmax) | 688Wp | 694Wp | 700Wp | 706Wp | 713Wp | ||||||
Module Efficiency STC (%) | 26.61% | 26.86% | 27.10% | 27.34% | 27.58% | |||||||

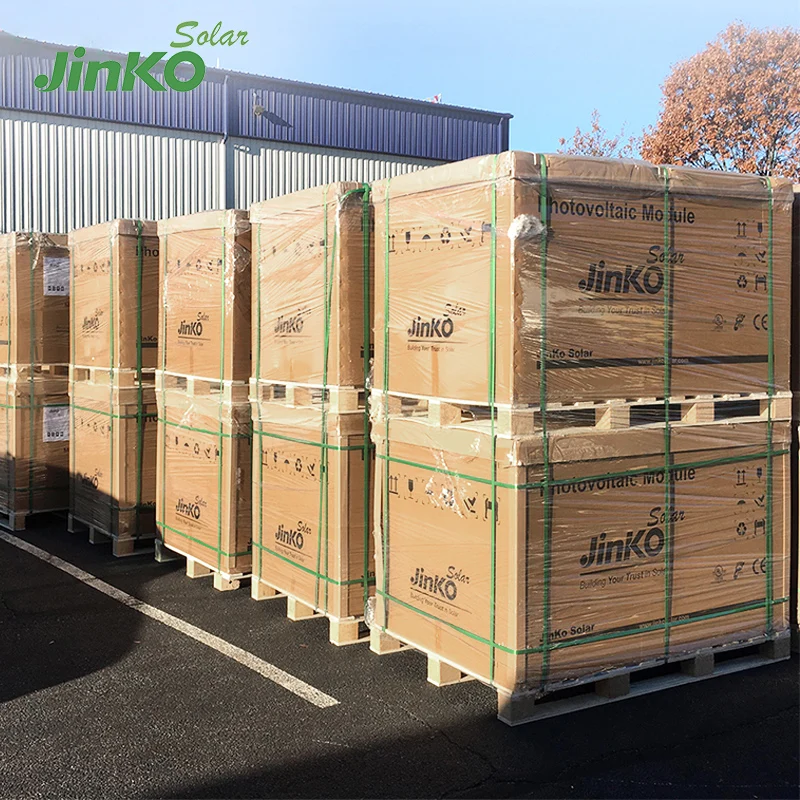

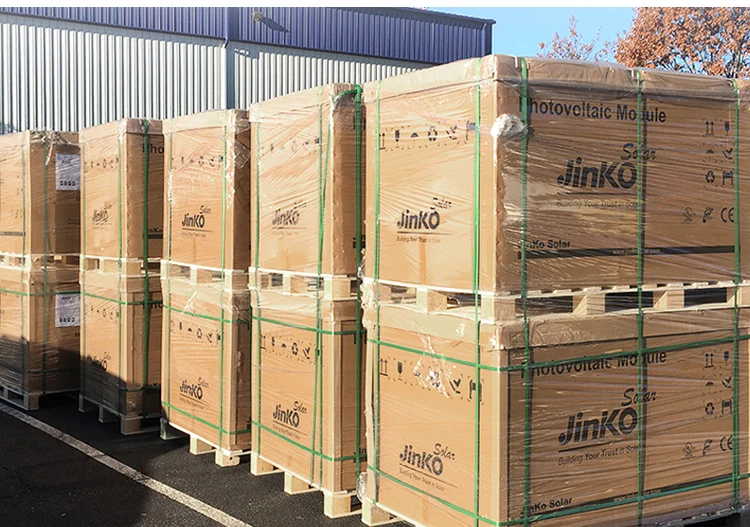

Product Packaging
Workshop Display
Main Products
Why Choose Us

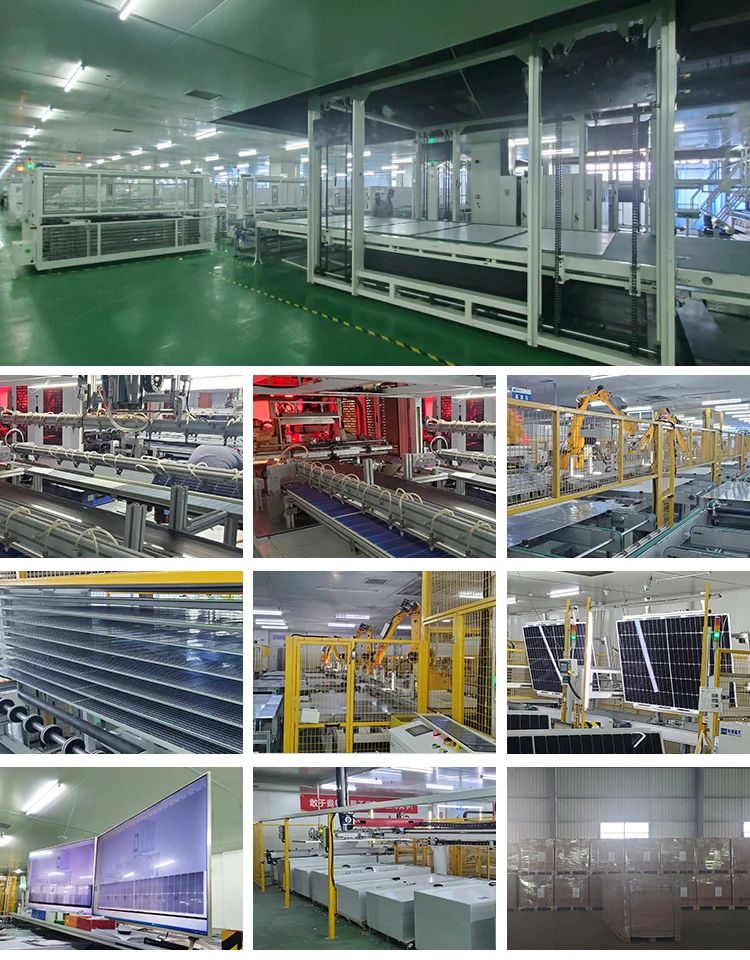

Automated Production Equipment
