Multi wire Drawing Machine with Online Annealer, 16Wires Copper Wire Drawing Machine Inlet2.6mm Outlet 0.16 0.40mm
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (1600516586948):
Product Overview
Description
Product Description

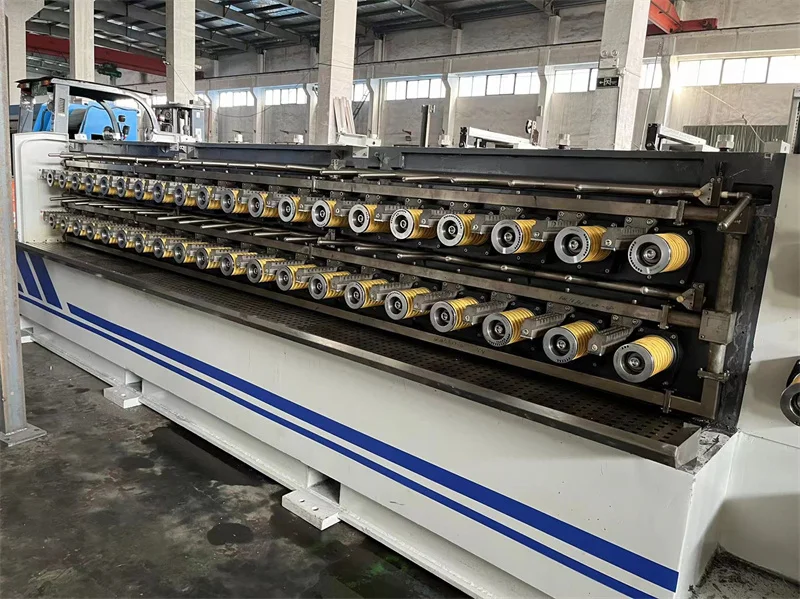

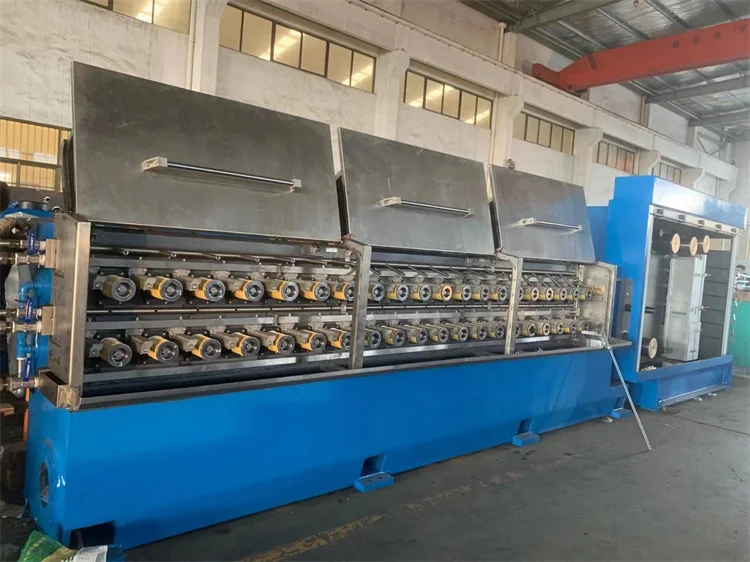

(16 Wires) Multi-wire Drawing Machine with Continuous Annealer
This type machine is used for drawing and annealing 16 copper wires from 2.6mm to 0.16-0.40mm. Easy to maintain, simple to operate and low noise, high efficiency.
Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Space saving.
3) Electricity Saving and Labour Saving .
4) High efficiency for next pay-off progress.
5)Quick die change system for dies quantity saving 30%.
6)Two clutches for faster speed.
Technical Parameter
Machine type | JCJX-DT24/100.16 |
Inverter control | Dual inverter control |
Drawing wire No. | 16 wires |
Drawing dies No./max. | 24 |
Inlet diameter | Ø 2.6mm |
Out diameter | Ø0.16- 0.40mm |
Drawing line speed | 30m/s |
Slip ratio of m/c | 25% |
Frame | Welded by steel plate |

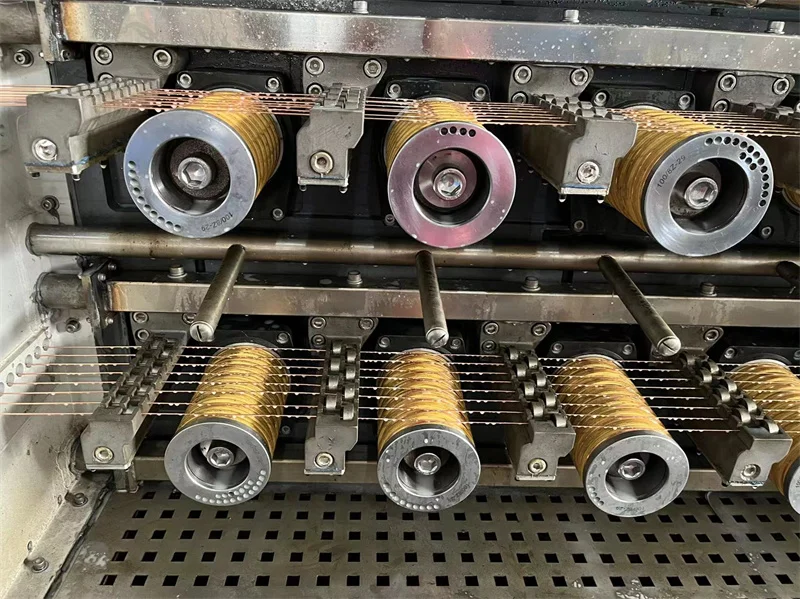

Capstan | Zirconium oxide porcelain |
Main motor | 185kw(DC) |
Spooler motor | 45kw(DC) |

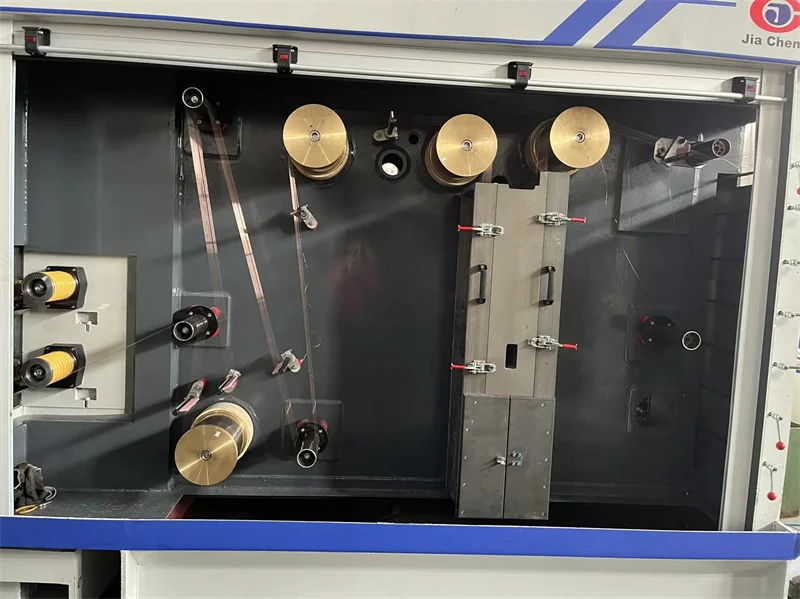

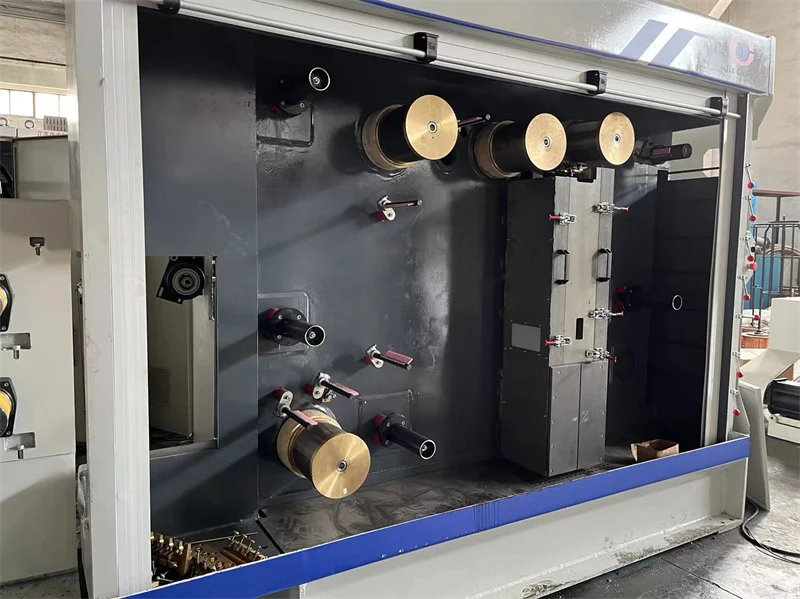

Annealing voltage | DC 0-60V |
Annealing current | DC 2500A |
Protection type | Steam or nitrogen |
Spool bobbin size | Ø 500mm/Ø 630mm OR according to customers |
Transmission type | By timing belts |
Spooler control | PID Synchronous spooler |
Detecting device | Weight balance by swing arm |
Tension control | Weight balance type |
Lubrication type | Spray type |
Brake | Magnetic brake |
Power source | 380v 50/60 HZ or others |

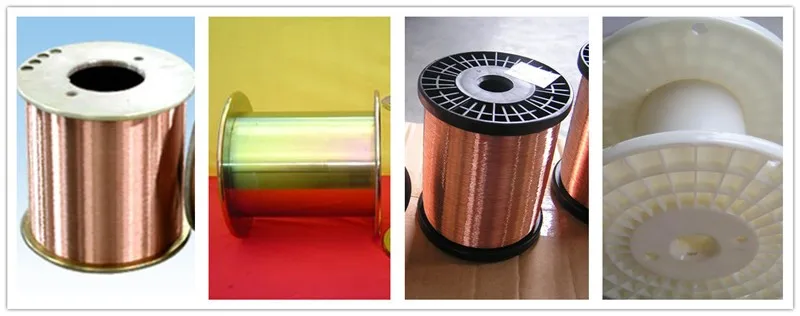

Finished Product
Certifications
Exhibition
FAQ
A: Are you trading company?
Q : No, we are professtional wire and cable machinery manufacturer since1990.
A: What kind of machine do you have?
Q: Our machine range covers from Rod Breakdown Machine Series(1wire,2wires,Non-slip type with individual motor for 8mm inlet), Intermediate Wire Drawing Machine Series(for 3.5mm inlet), Fine Wire Drawing Machine Series, Multi-wire Drawing Machine Series(4wires,8wires,16wires,20wires), Stranding Machine Series, Extruding Machine Series, Annealing&Tinning Machine Series, Coiling Machine Series and Auxiliary Parts for Copper and Alumnium.
A: How can we go to your factory?
Q: Our company is located in Zhangjiagang city, 2.5 hours to Pudong airport, 1.5 hours to Hongqiao airport, 1 hour to Wuxi air port.
A : If we buy machine from you, can you offer some raw material and spare part?
Q : Yes, We will provide you a spare parts list for your reference.
A : Can you support complete project instead of single machine?
Q : Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer.
A : How about the after-sell service?
Q :Online support, field installation, commissioning and training, field maintenance and repair service, video technical support.
A : What’s the payment terms?
Q : Standard type is 30% T/T as deposit, 70% T/T before shipping. Others can be accept.
A : How long is your machine’s guarantee time?
Q : Whole machine one year, electrical equipment 6 months (except wearing parts).
