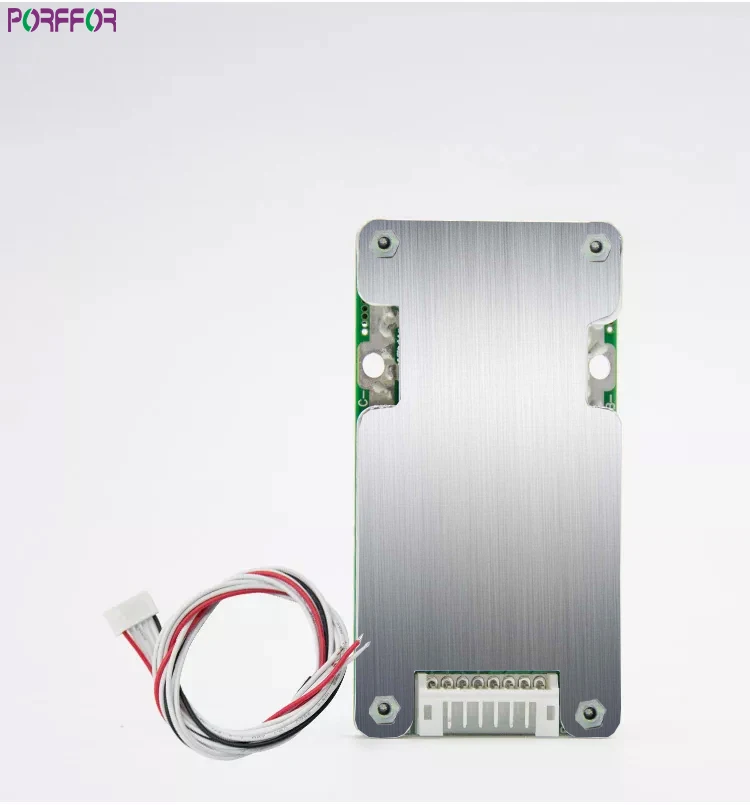

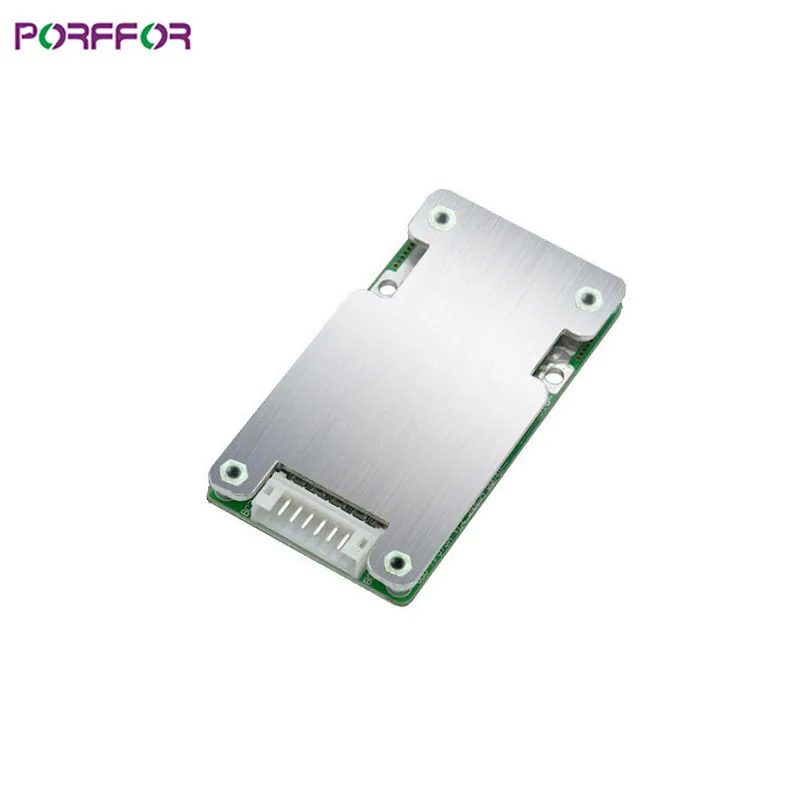

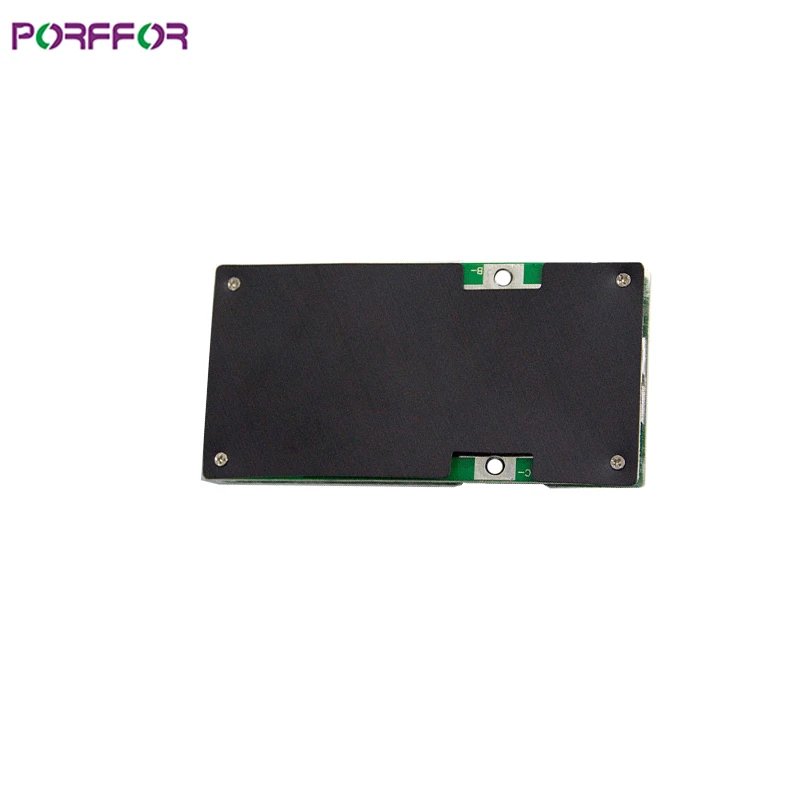

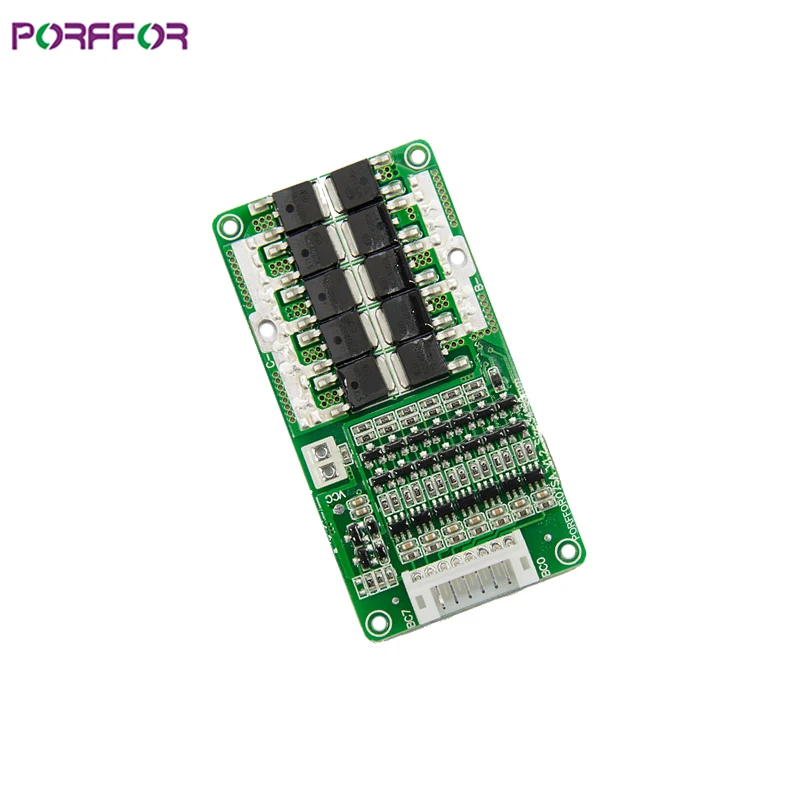

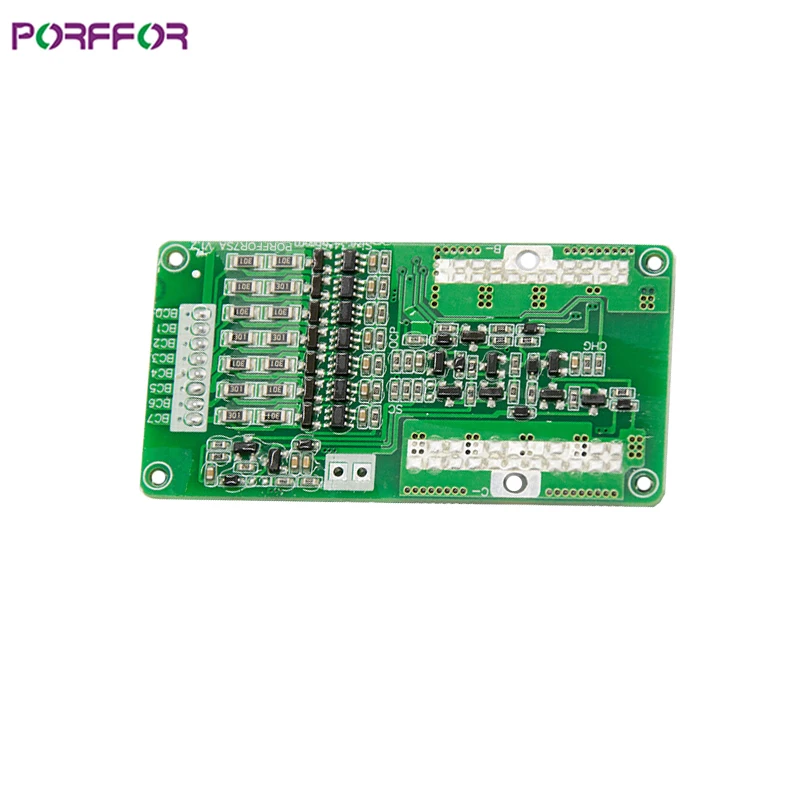

3S 11.1V 4S 12.8V 14.8V 5S 6S 22.2V 7S 25.9V 24V 10A 15A 20A 25A BMS NMC Lithium Li polymer battery protection board
- Category: >>>
- Supplier: Wuxi Porffor Technology Co. Ltd
Share on (1600516590589):
Product Overview
Description
Specification
Porffor-Giving Best & warranty longest(Min 2 years) | ||||
Discharge current | 10A | 15A | 20A | 25A |
Charge current | 10A | 15A | 20A | 25A |
Internal resistance of discharge circuit | 10mR | |||
Charge voltage | LI-ION : The series of battery *4.2V | LiFePo4 : The series of battery *3.6V | ||
Overcharge protection | Overdischarge protection |
Overcharge detecting voltage: Li-ion:4.25±0.05V Lifepo4:3.75±0.05V | Overdischarge detecting voltage: Li-ion:2.8±0.1V Lifepo4:2.1±0.1V |
The delay time : 1000mS | The delay time : 350mS |
The recover voltage: Li-ion:4.19±0.05V Lifepo4:3.6±0.05V | The recover voltage: Li-ion:2.9±0.05V Lifepo4:2.3±0.05V |
Balance | Overcurrent protection |
Balance open voltage : Li-ion:4.19±0.05V Lifepo4:3.6±0.05V | Discharge overcurrent protection current value: Discharge current * 2.5(Min)/3.5(Max) |
Balance current : 24-34mA | The delay time : 50(Min)-250(Max)mS |
| Restore conditions : Charge or disconnect the load |
Short circuit protection | Temperature protection (Not available, if not let add)) |
Lead to conditions : External load short circuit | Disc harge temperature protection value : 75℃ |
The delay detecting time : 50(Min)-250(Max)uS | Charge temperature protection value : 53℃ |
Short circuit protection current : Discharge current * 7.5(Min)-10(Max) | Work temperature : 20~70℃ |
Restore conditions :Charge or disconnect the load | Storage temperature : 40~85℃ |
self-consuming : <50uA |
|

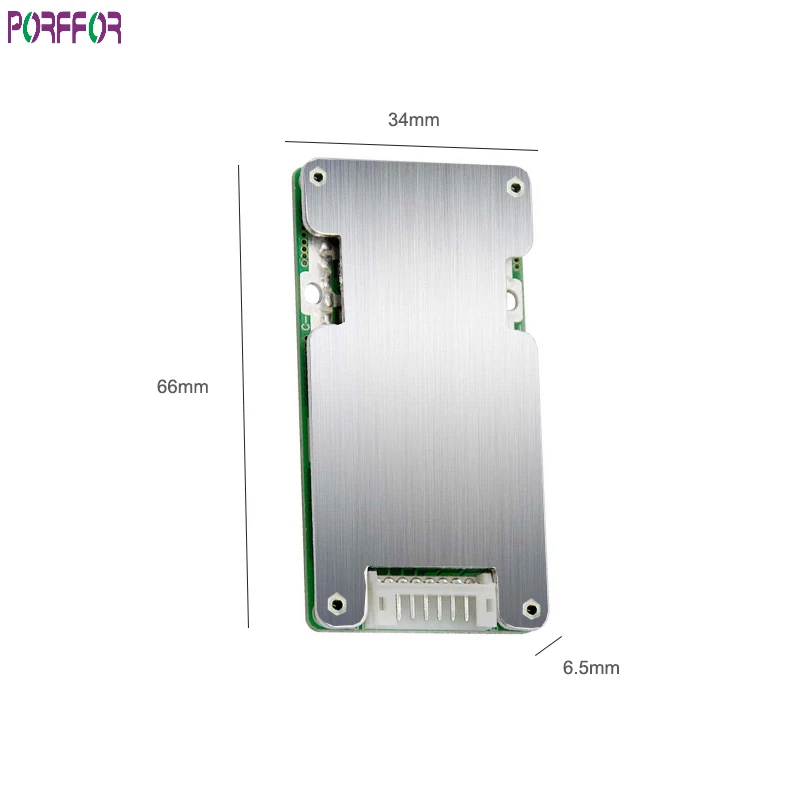

Size : 66*34*8 mm | |
Company inforamtion
(We can produce according your requirement, and print your logo ! We have many brand, sell by agent. )

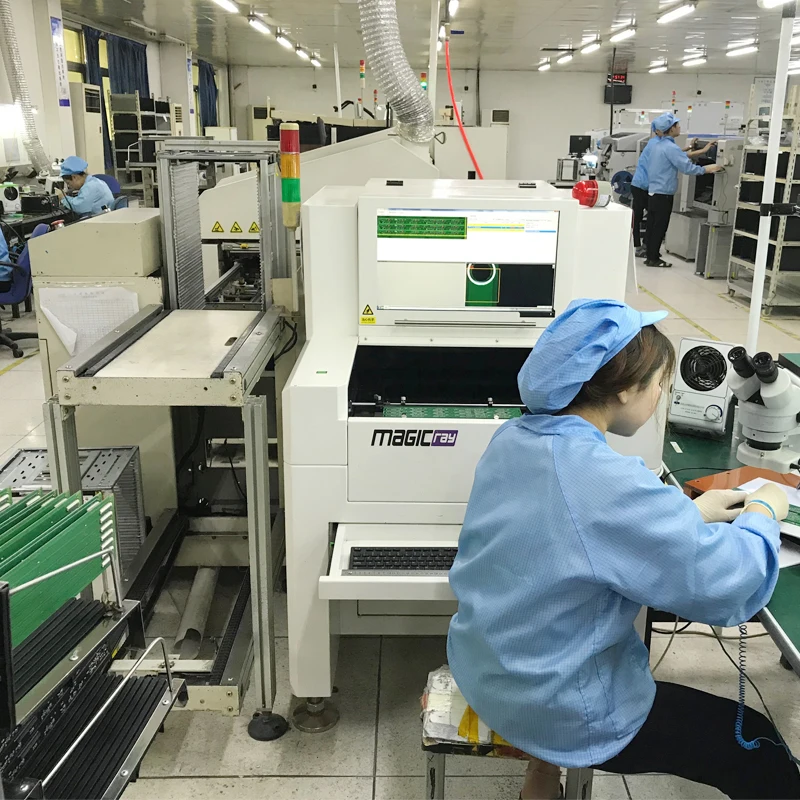

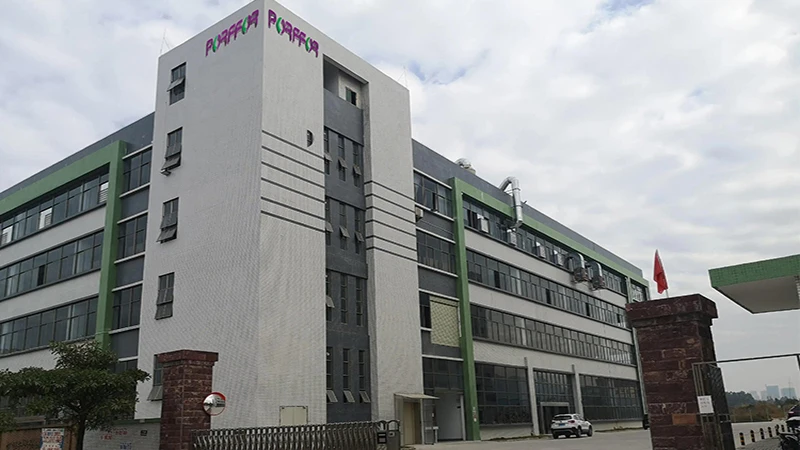

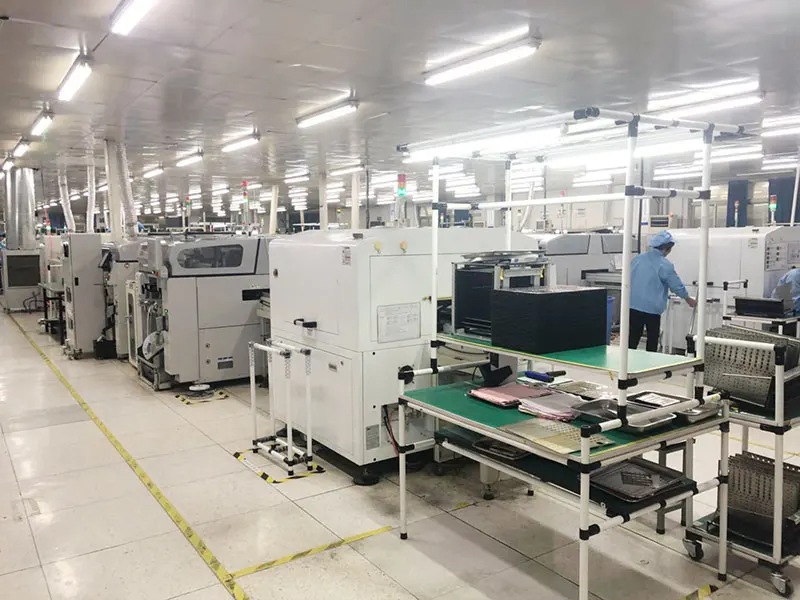

Wuxi Porffor Technology CO., LTD is a certified national high-tech enterprise,Nearby Shanghai, sunan shuofang airport.The company has more than 100 employees, including 12 professional technical engineers who have been engaged formany years. Now, the company has the most advanced and high-quality automatic patch and high-precision testingequipment, 6 SMT production lines and 2 DIP production lines. The company operates strictly in accordance with ISO9001 international quality system. The purchase of raw materials, production and manufacturing of products, controlof quality, after-sales service and other strict, rigorous, standardized management procedures.Our products have exported to Europe, southeast Asia, Australia, Africa and other global 100 countries.The company in line with the talent first, the pursuit offirst-class, leading change, right management, coexistence and win-win corporate purposes, Set up a good brand image in the industry, we can provide OEM, ODM and other services. We are willing to cooperate with customers and peers in the industry.
After sales service team and supervision team friendship expression:
When you encounter any product problems, please do not immediately give negative comments, please immediately contact the seller and leave a message. Due to the time difference, we will properly deal with it immediately after returning to work until you are satisfied. (The company has a special team to supervise: when negative comments are received, the relevant sales and service personnel must be fired immediately, and the relevant products and services must be corrected. So please feel free to buy and don't worry about after-sales service. If you have any dissatisfaction, you can also complain to the supervisory team according to the complaint manual(When you buy PORFFOR products, there is a Complaint feedback and warranty manual in the package).
Packing details and ship details :
Package : Packed in static bag or static bubble bag, packed in carton outside
Ship : According to the customer's choice of logistics to transport
