1.4 inch small oled circular screen 1.39'' round oled display
General Description

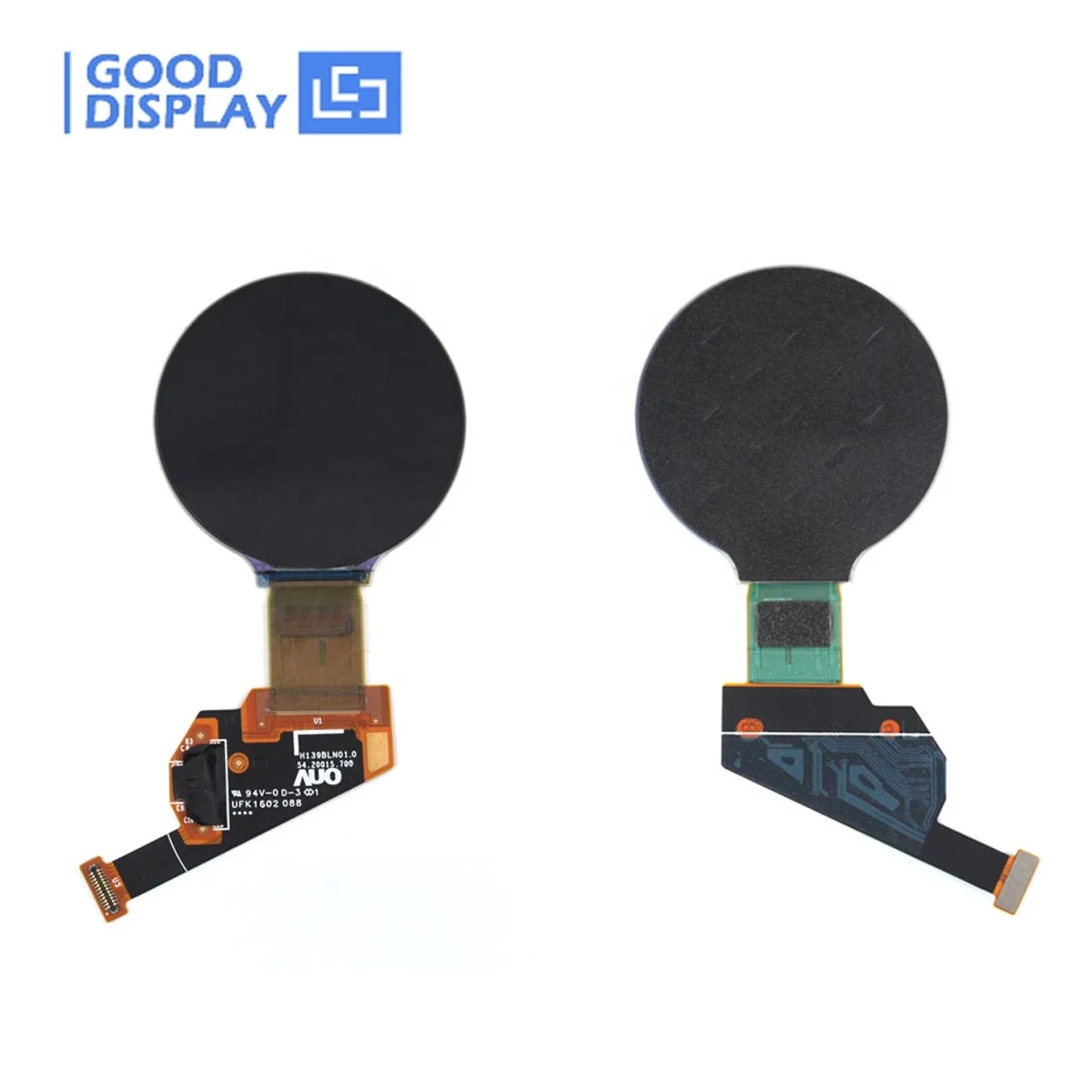

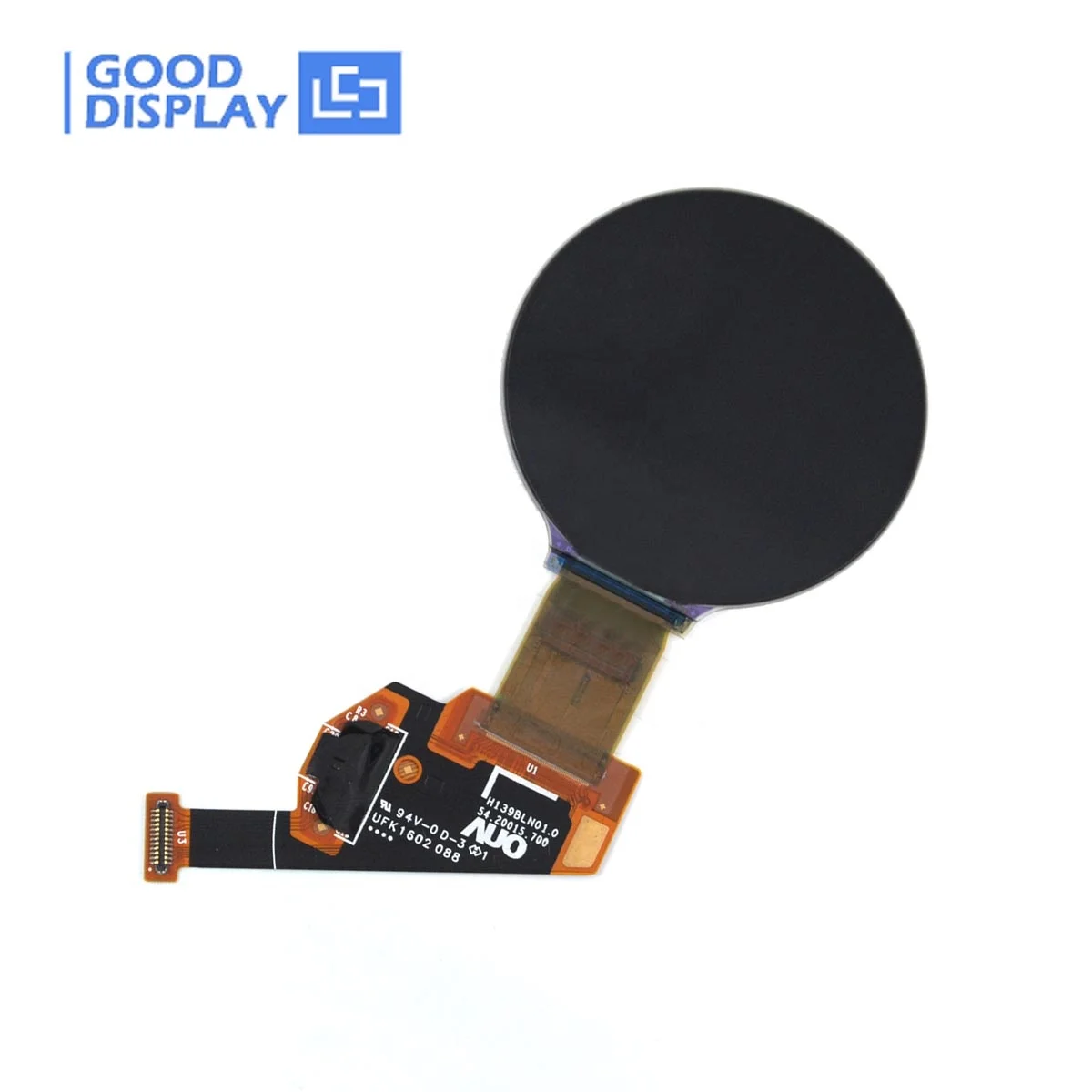

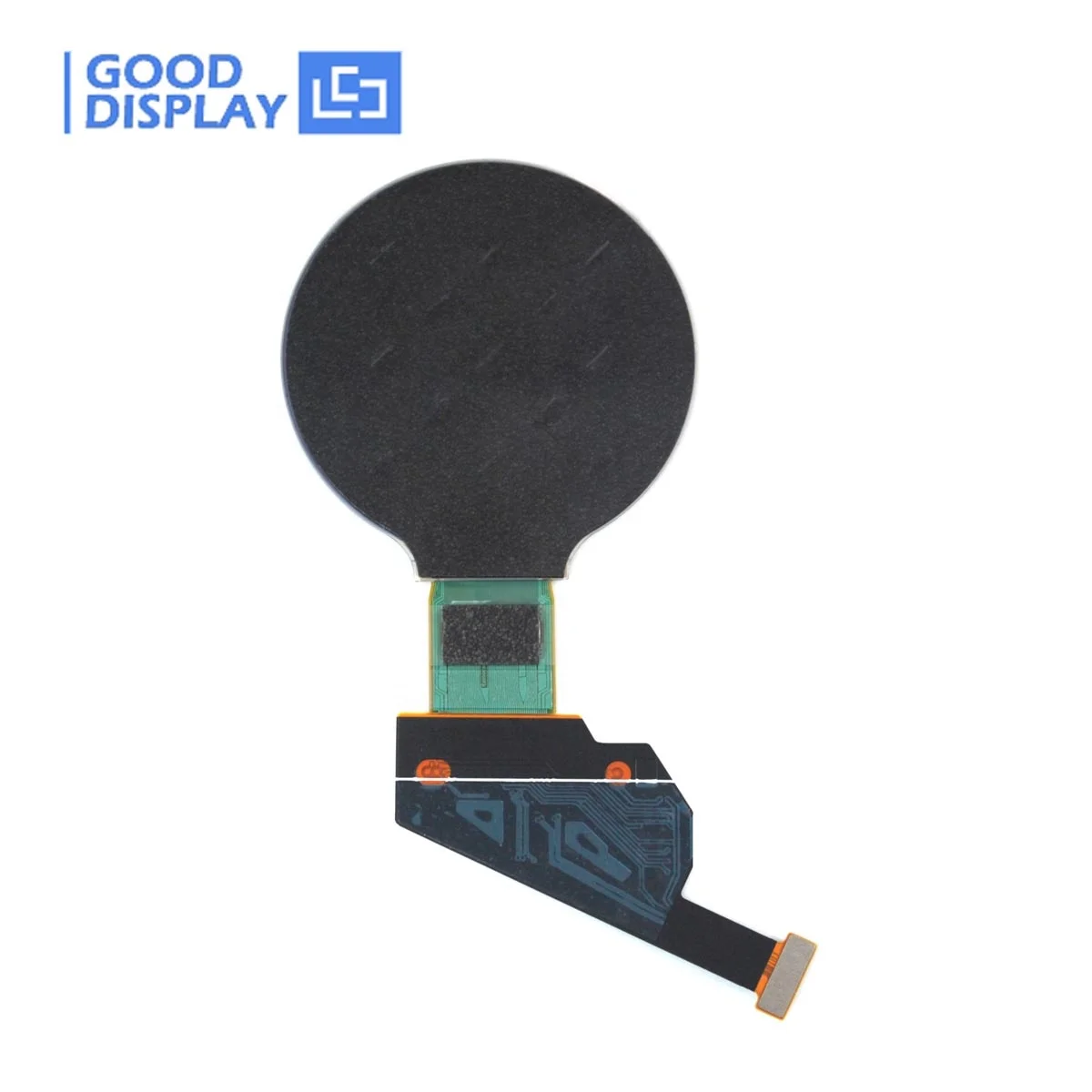

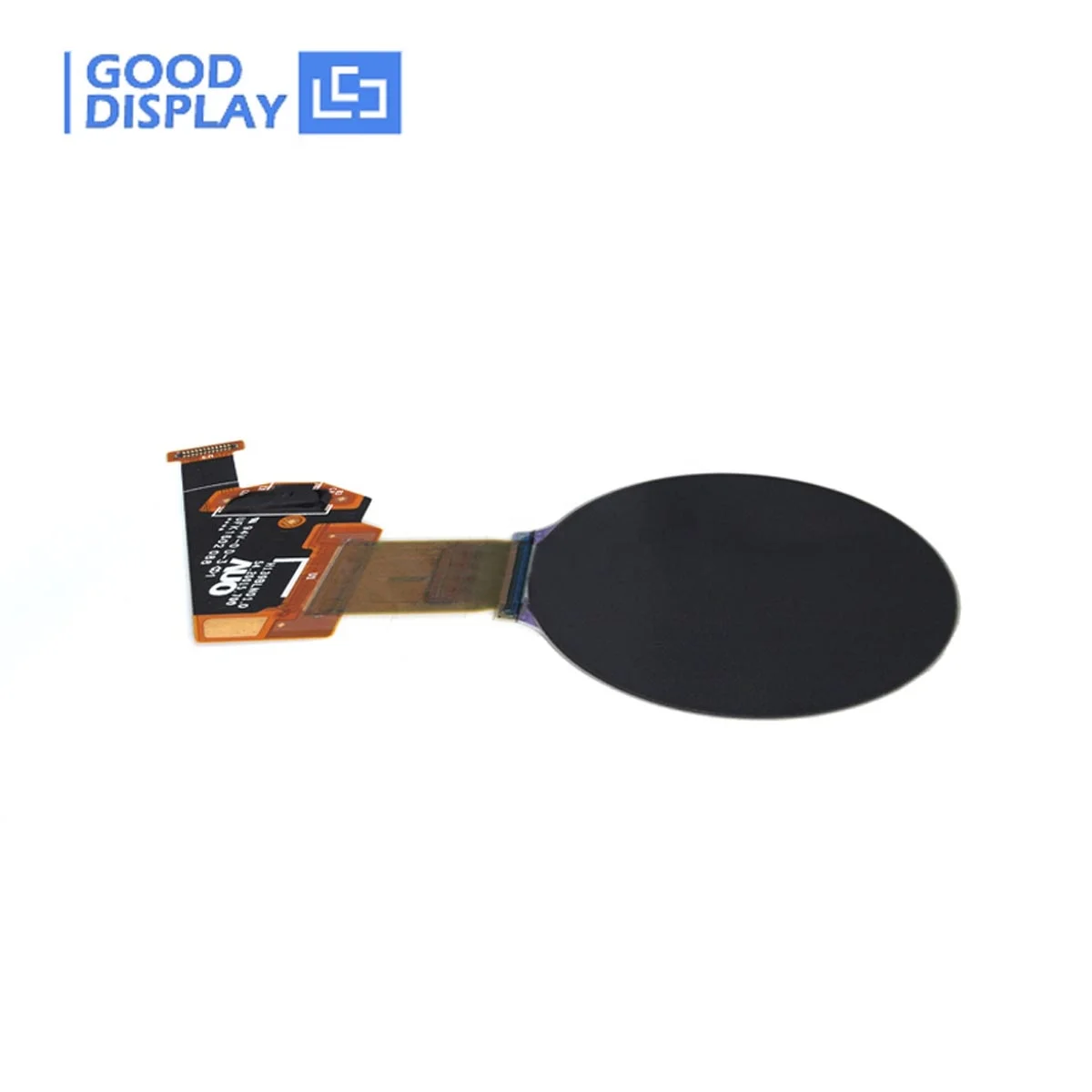

GDOR0140CP20 is a round OLED display, and has a 400x400 resolution,diagonal is 1.39 inch. Display color 16.7M(RGB x 8bits), MIPI 1-lane interface, pixel arrangement is Real RGB arrangement.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOR0140CP20 is a very good choice for applications like Smart Watch.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOR0140CP20 is a very good choice for applications like Smart Watch.
Main Parameters
PART NUMBER | GDOR0140CP20 |
DIAGONAL SIZE | 1.39 inch |
DISPLAY MODE | Passive Matrix |
DISPLAY COLOR | 16.7M |
NUMBER OF PIXELS | 400xRGBx400 |
INTERFACE | MIPI 1-lane |
OUTLINE DIMENSION(mm) | 38.6 x 40.5 x 0.67 |
ACTIVE AREA(mm) | φ35.4 |
PIXEL PITCH(μm) | 29.5 x 88.5 |
BRIGHTNESS(Typ) | 300 cd/m2 |
VIEW ANGLE | 85/85/85/85 |
OPERATING TEMP. | -20℃~60℃ |
STORAGE TEMP. | -30℃~70℃ |
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Display color: 16.7M(RGB x 8bits)
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle 85/85/85/85
● Wide operating temperature: -20℃~60℃
