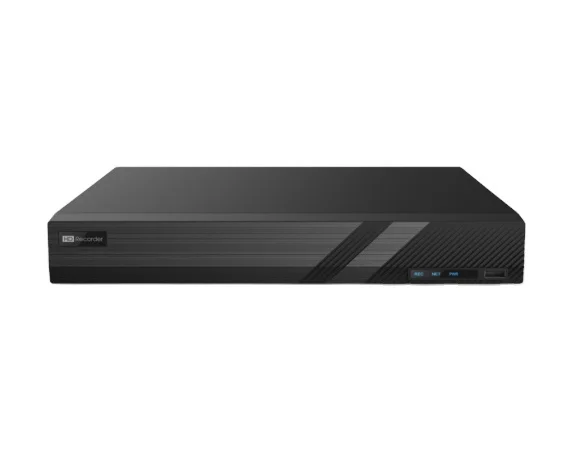

Superlive plus 16CH 4K 8MP/5MP AHD/CVI/TVI/CVBS/IP 5 IN 1 hybrid DVR xvr tvt oem , with 2 SATA HDD slots
- Category: >>>
- Supplier: Shenzhen YCX Electronics Co. Ltd.
Share on (1600516651687):
Product Overview
Description
Superlive plus 16CH 4K 8MP/5MP AHD/CVI/TVI/CVBS/IP 5 IN 1 hybrid DVR xvr tvt oem , with 2 SATA HDD slots
Products Description
Features
* Supports 16 CH TVI / AHD/CVI 8MP/5MP/4MP/3MP/1080P/720P/WD1
*Supports 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input 8CH analog video input can be switched to 8CH IP video input
*Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

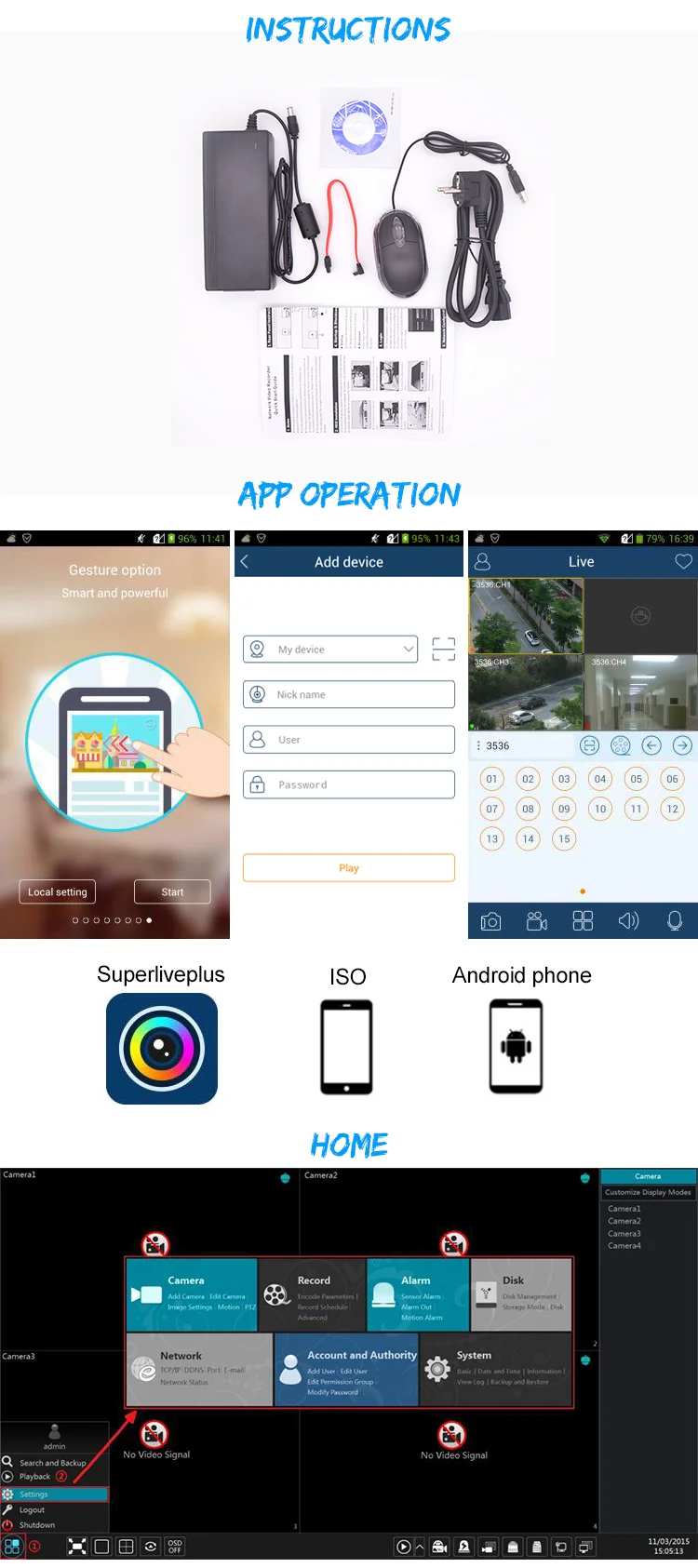

*Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
*Multi-mode recording: manual / timer / motion / smart event
*Playback :16 CH simultaneously playback
*Search: time slice, time, event, tag and smart search
*Express and flexible backup via USB, network and so on

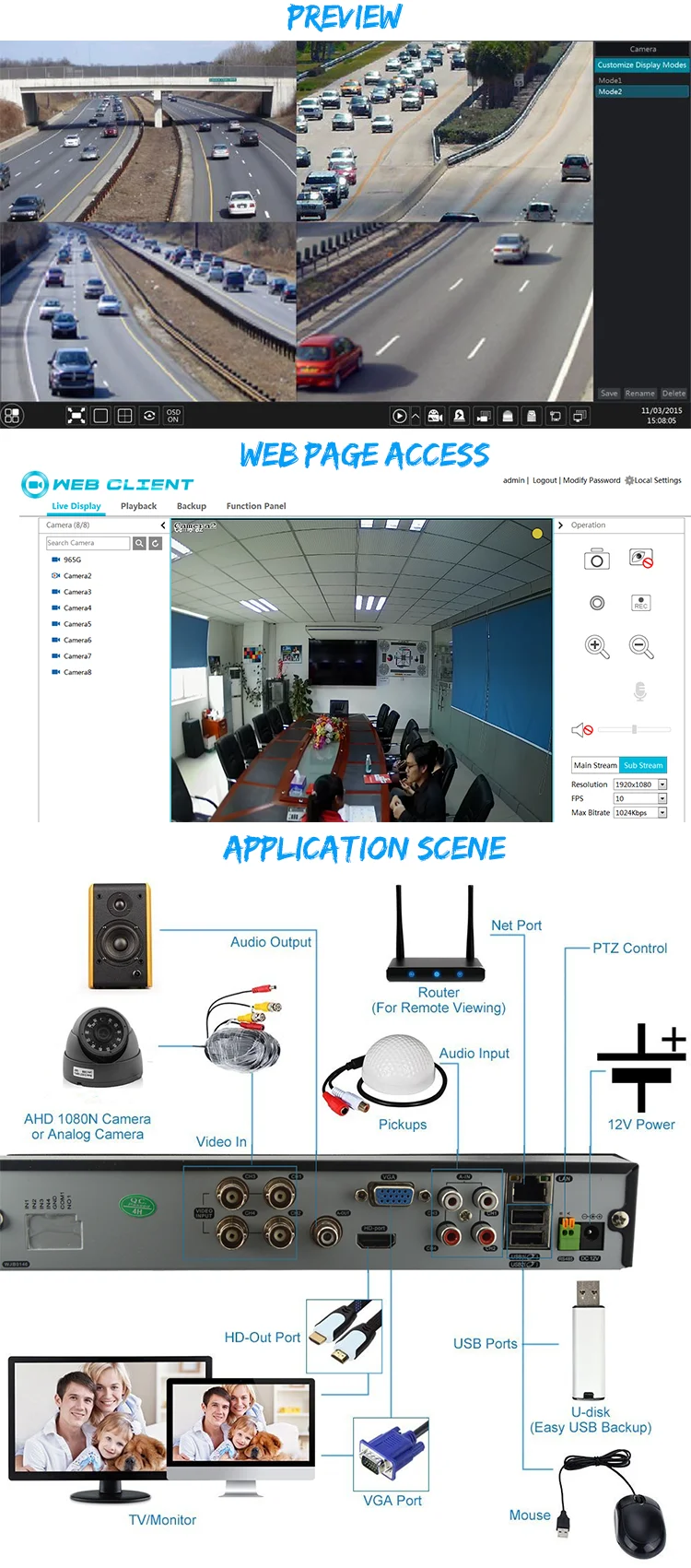

*Pentaplex: preview, record, playback, backup and remote access
*DHCP, DDNS, PPPoE network protocol
*Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
*Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
*Multi-user online simultaneously
*Authorization management, log review and device status review
*HD-MI 4K output, true high resolution display
*Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
*Support NAT function and QR Code scanning by mobile phones
*Supports 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input 8CH analog video input can be switched to 8CH IP video input
*Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
*Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
*Multi-mode recording: manual / timer / motion / smart event
*Playback :16 CH simultaneously playback
*Search: time slice, time, event, tag and smart search
*Express and flexible backup via USB, network and so on
*Pentaplex: preview, record, playback, backup and remote access
*DHCP, DDNS, PPPoE network protocol
*Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
*Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
*Multi-user online simultaneously
*Authorization management, log review and device status review
*HD-MI 4K output, true high resolution display
*Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
*Support NAT function and QR Code scanning by mobile phones

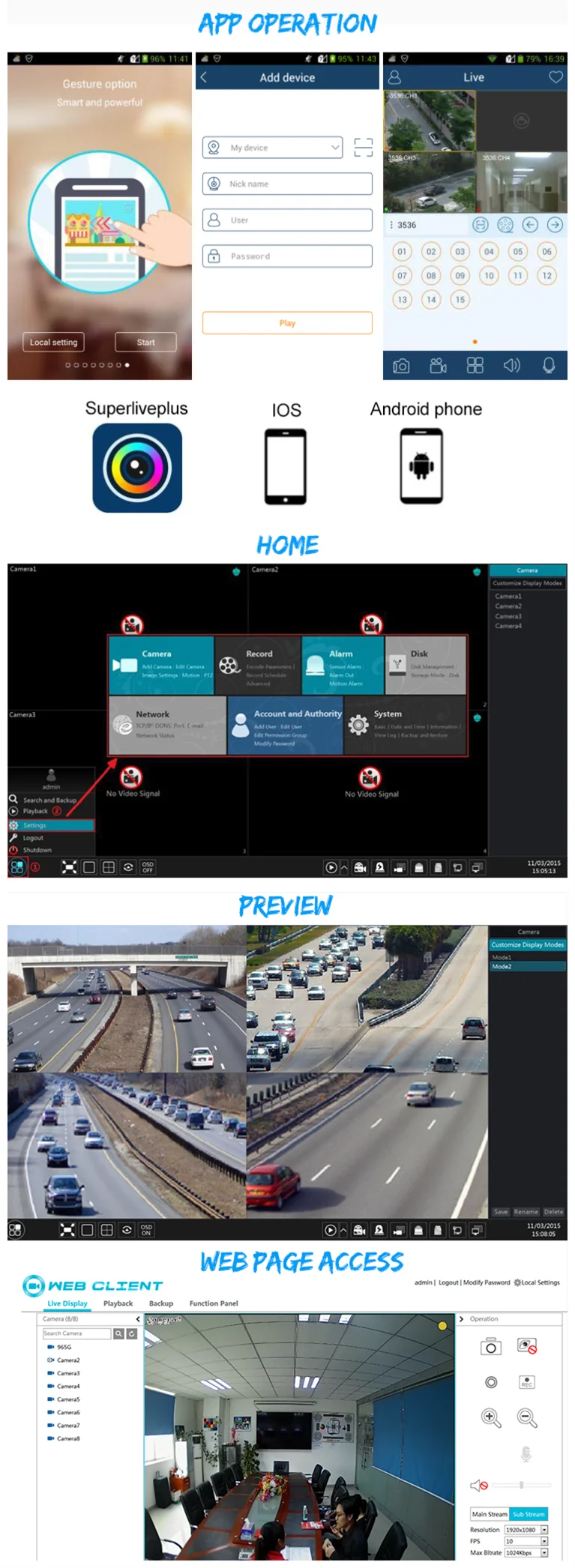

*Powerful mobile surveillance by smart phones with iOS and Andriod OS
Product Paramenters
Model | XVR6216-V3 | ||
System | OS | Embedded Linux | |

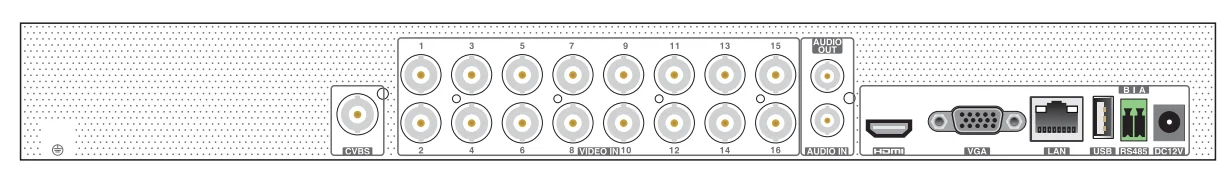

Video | Analog Video Input | BNC ×16 | |
BNC interface (1.0Vp-p; 75Ω) | |||
TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) | |||
IP Video Input | 8CH (up to 16CH) | ||
Up to 8MP @30fps | |||
Total Input | 24CH | ||
Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 | ||
VGA × 1 : 1920 × 1080 / 1280 × 1024 | |||
BNC × 1 : CVBS ( used as the main or spot output ) | |||
Compression | H.264/H.265 | ||
Multi-screen Display | 1 /4/6/8/9/13/16/25 | ||
Audio | Input | RCA ×1 | |
Output | RCA × 1 (linear, 600Ω) | ||
Two-way audio | Take up channel one audio input | ||
Compression | G.711(U/A) | ||
Record | Resolution | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1 | |
Frame Rate | Analog Channel: | ||
4K@8fps (PAL/NTSC) | |||
4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) | |||
5MP Lite@20fps (PAL / NTSC) | |||
4MP/3MP@12fps / 15fps (PAL / NTSC) | |||
4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC) IP Channel: 8MP @25fps / 30fps (PAL / NTSC) | |||
Bit Rate | 32Kbps ~ 5Mbps | ||
Mode | Manual, timed, motion, smart event | ||
Playback | Playback | 16CH | |
Search | Time slice / time / event / tag search | ||
Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | ||
Function | Play, pause, FF, FB, digital zoom, etc. | ||
Alarm | Mode | Manual, motion, exception, smart event | |
Input | No | ||
Output | No | ||
Network | Interface | RJ 45 1000Mbps × 1 | |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, ONVIF | ||
Incoming Bandwidth | 32Mbps | ||
Outgoing Bandwidth | 96Mbps | ||
Client Connection | Max. 10 users access | ||
OS | iOS, Andriod | ||
Storage | HDD | SATA× 2, up to 10TB per HDD | |
Backup | Local Backup | U disk, USB mobile HDD | |
Network Backup | Yes | ||
Port | RS 485 | Yes (half-duplex), connect to PTZ or keyboard | |
USB | USB 2.0 × 2 | ||
Remote Controller | Optional | ||
Others | Power Supply | DC12V / 4A | |
Consumption | ≤ 30W ( without HDD ) | ||
Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | ||
Working Environment | -10~50°C, 10%~90% (humidity) | ||
Certificate | CE, FCC | ||
Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | ||
