Product Overview
Description
RF820 SIDE SEALING MACHINE
This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on.
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; automatic punching; automatic gluing.
5.Cylinder material hatch. Bottom gusset.
6. Two pcs of EPC. Two feeding faclity.
7. Optional facility: 1). Ultrasonic facility, etc. (Adding by your requirement)
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; automatic punching; automatic gluing.
5.Cylinder material hatch. Bottom gusset.
6. Two pcs of EPC. Two feeding faclity.
7. Optional facility: 1). Ultrasonic facility, etc. (Adding by your requirement)
Product Video
Product Paramenters
Model | RF720 | RF820 | RH1020 | RH1220 |
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
Total Power | 5.5KW | 6.5KW | 9.0KW | 11KW |
Average Power | 2.5KW | 3KW | 4KW | 5KW |
Film Width | 120-670mm | 120-770mm | 200-970mm | 300-1170mm |
Bag Length | 50-500mm | 55-800mm | 55-800mm | 60-1000mm |
Max Speed | 270pcs/min | 200pcs/min | 150pcs/min | 150pcs/min |
Machine Weight | 750KG | 850KG | 1000KG | 1200KG |
Machine Length | 3400mm | 3800mm | 4200mm | 4200mm |
Machine Width | 1100mm | 1200mm | 1500mm | 1700mm |
Machine Height | 1300mm | 1300mm | 1300mm | 1300mm |
Product Features
1. It adopt PLC control, liquid crystal touch screen display.
2. Step (Servo) motor to fix length.
3. For small size bag, 2line bag production for high output
4. With photocell to track printing film
2. Step (Servo) motor to fix length.
3. For small size bag, 2line bag production for high output
4. With photocell to track printing film
Product Details

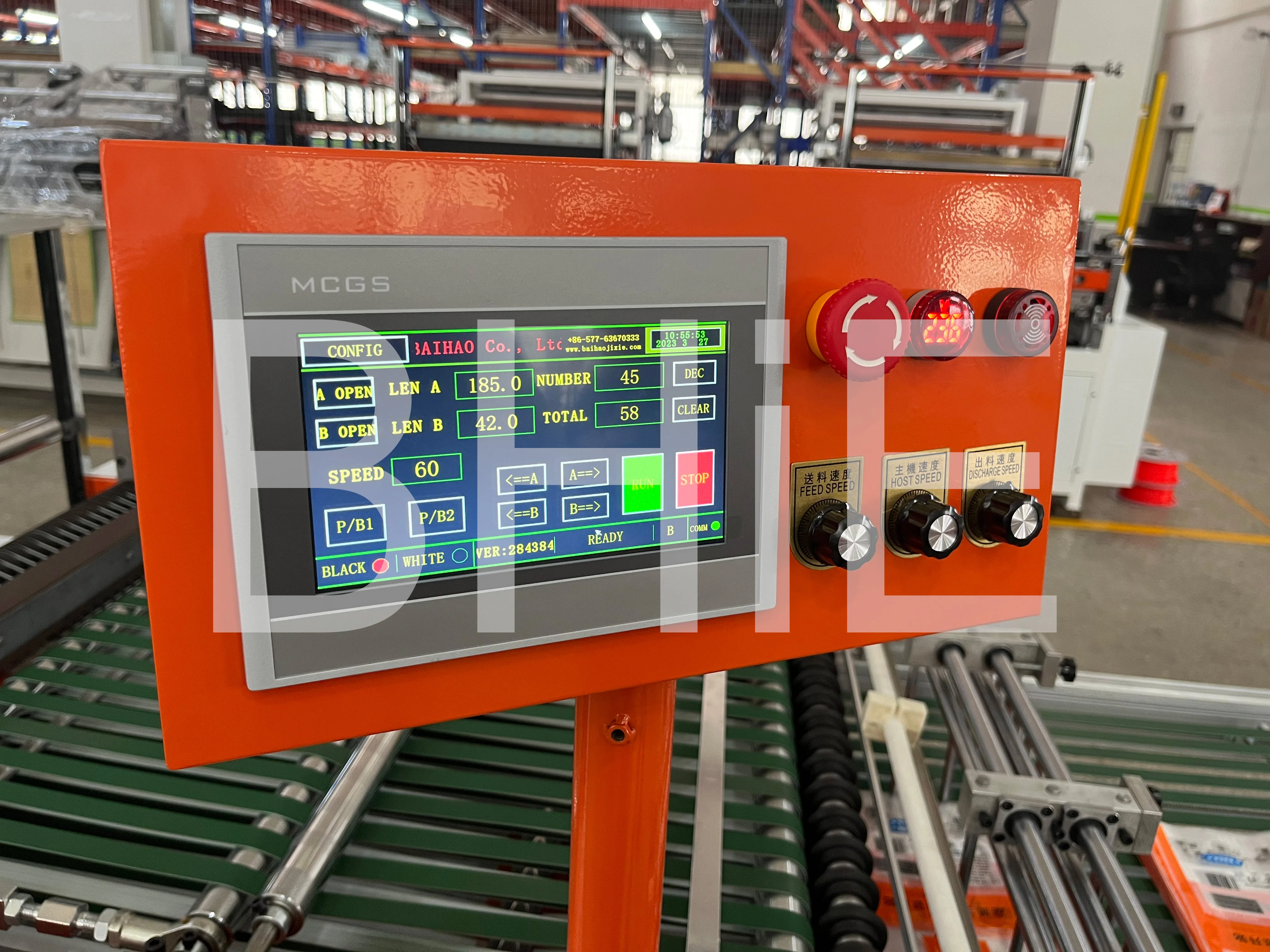

PLC+ Servo motor+ Inverter+ Touch screen

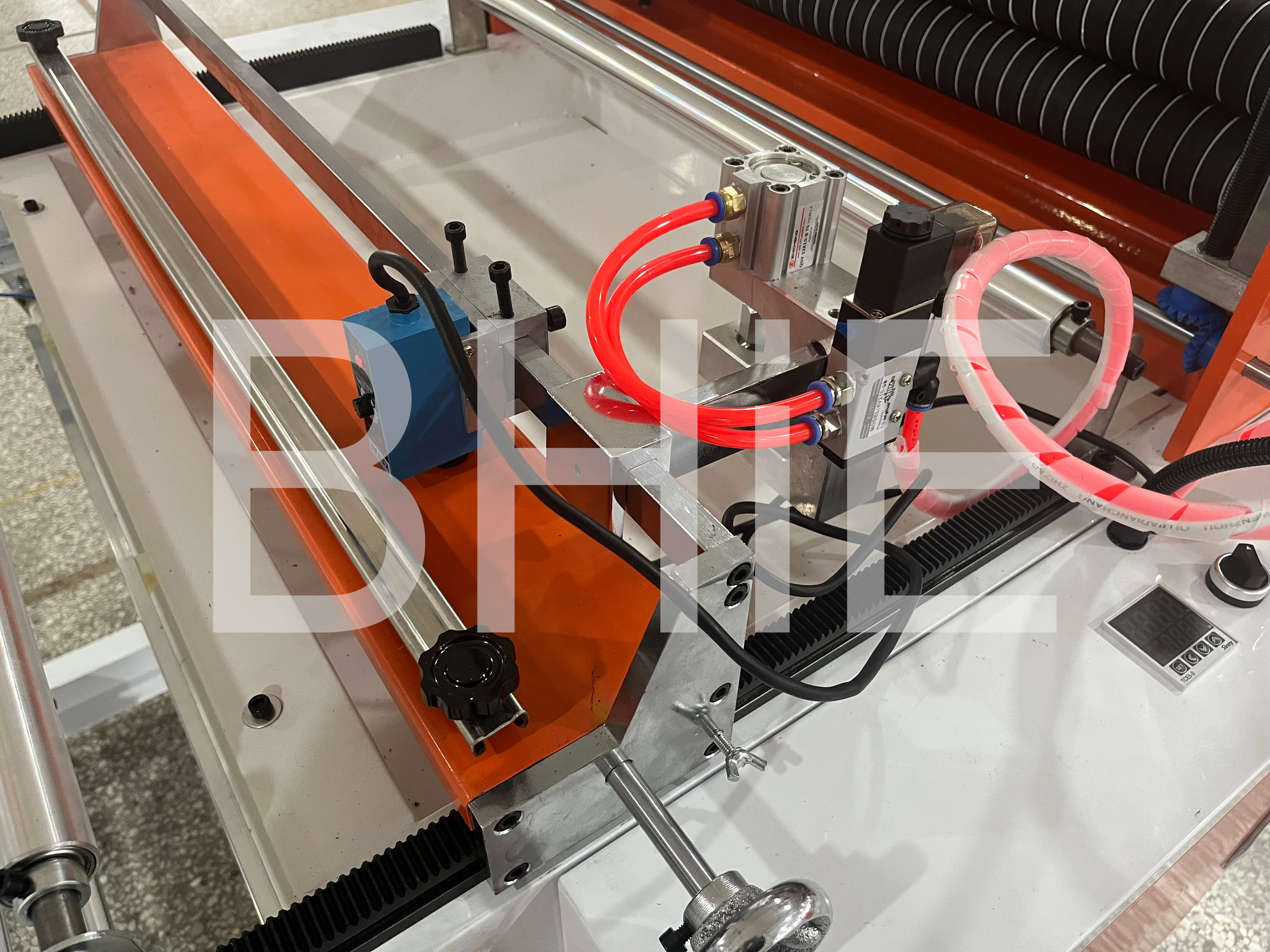

Photocell track & Pneumatic punching

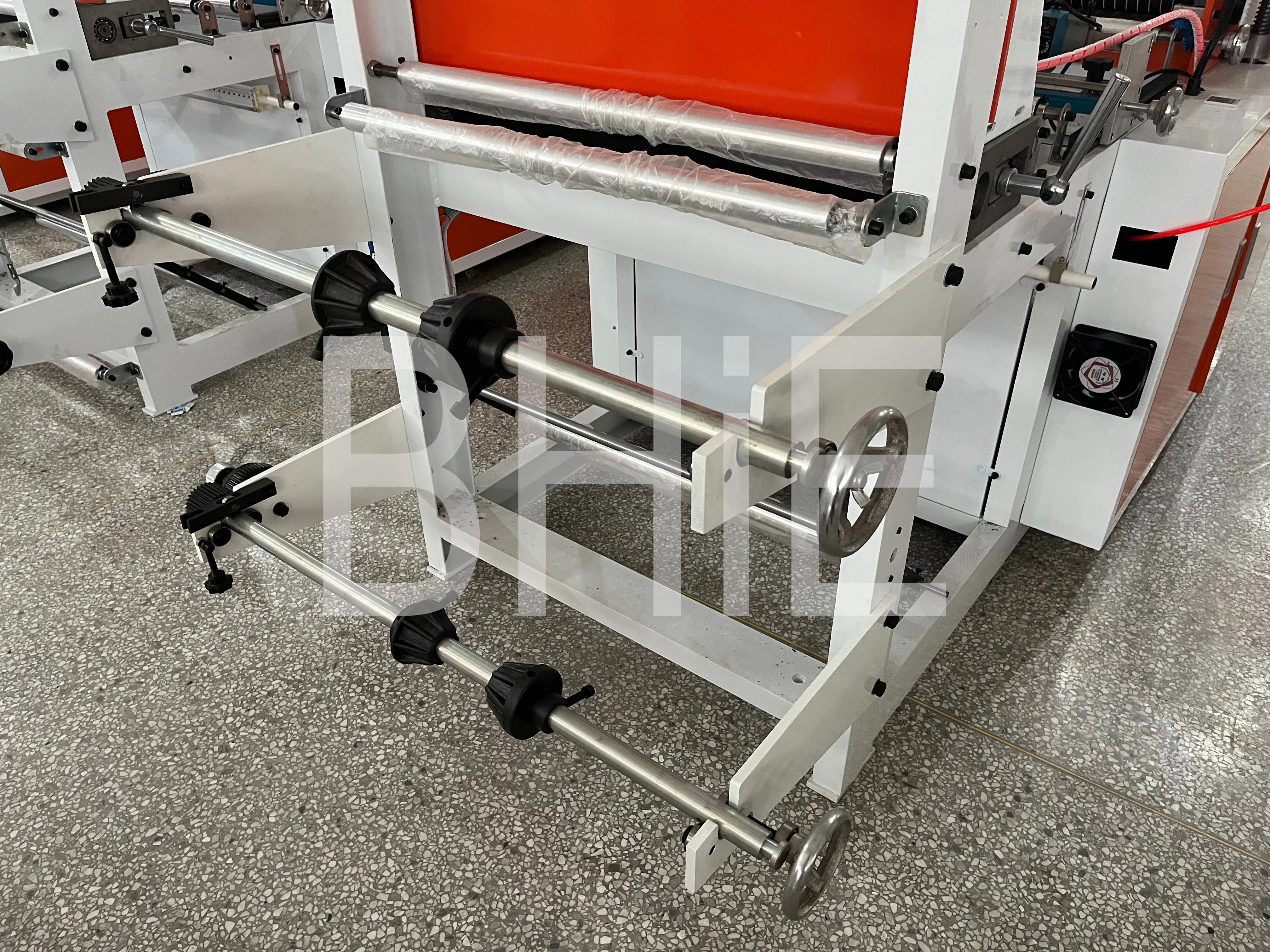

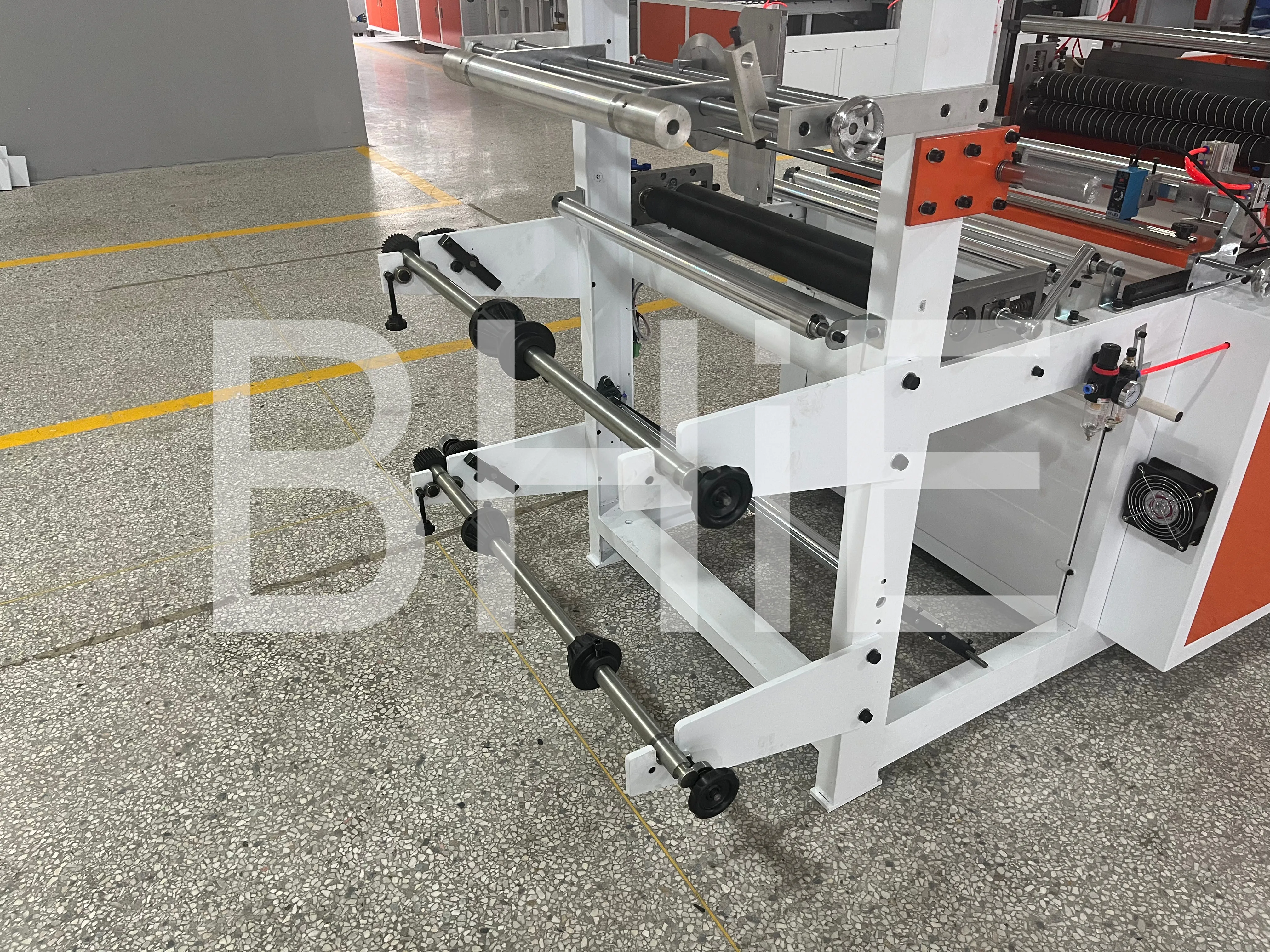

Double unwinding & Brake control

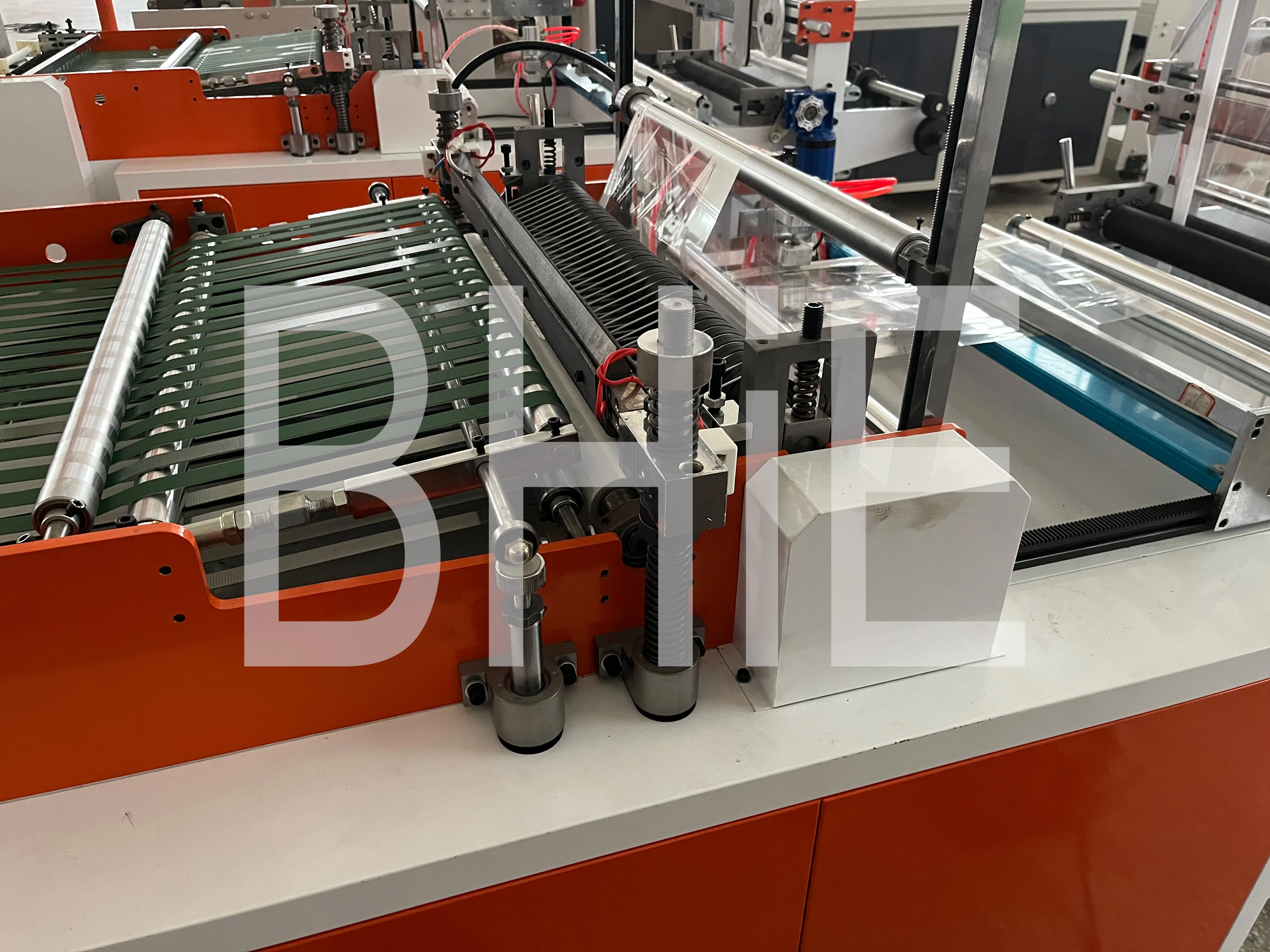

Changeable double side knife

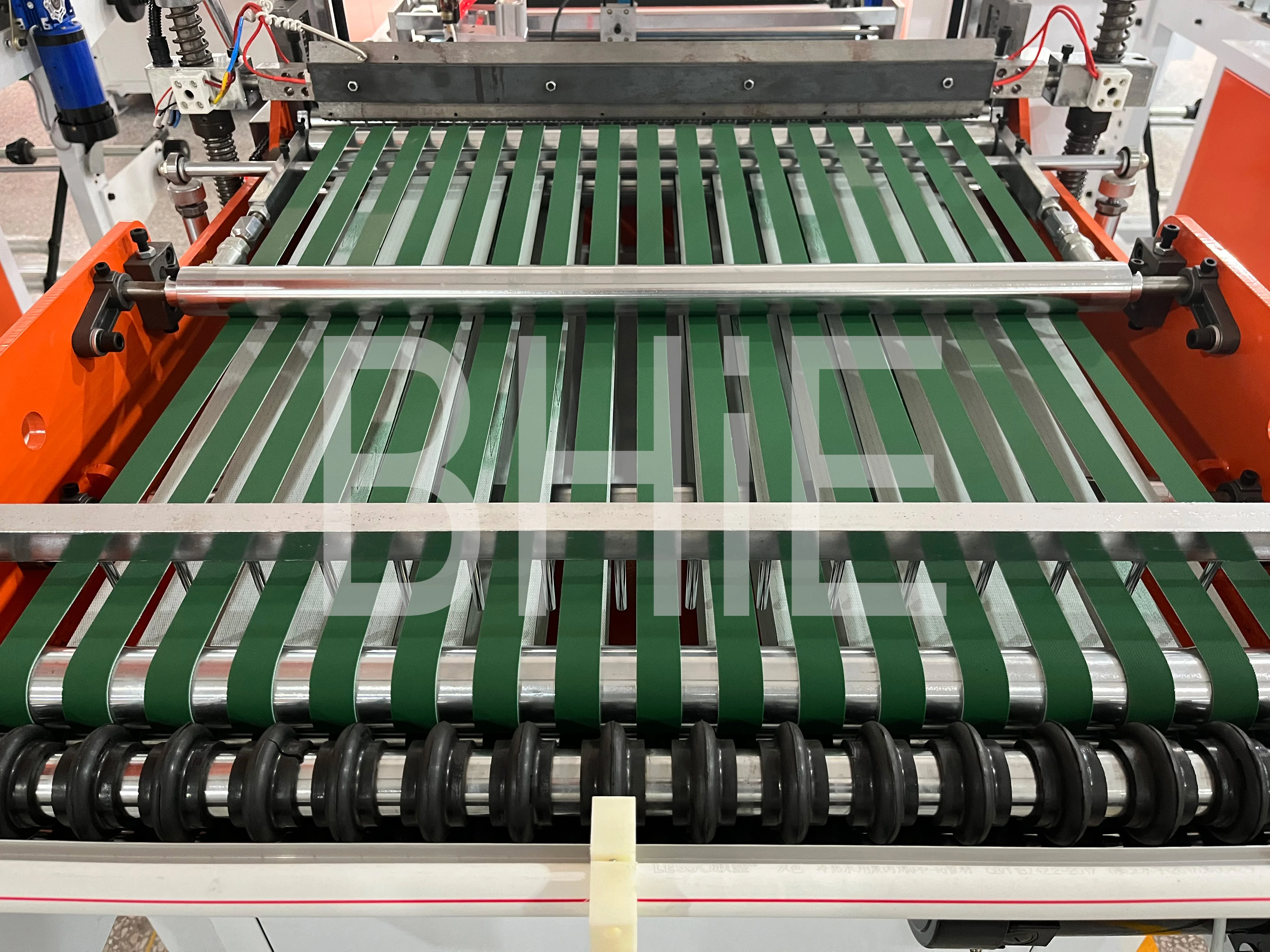

High quality belt

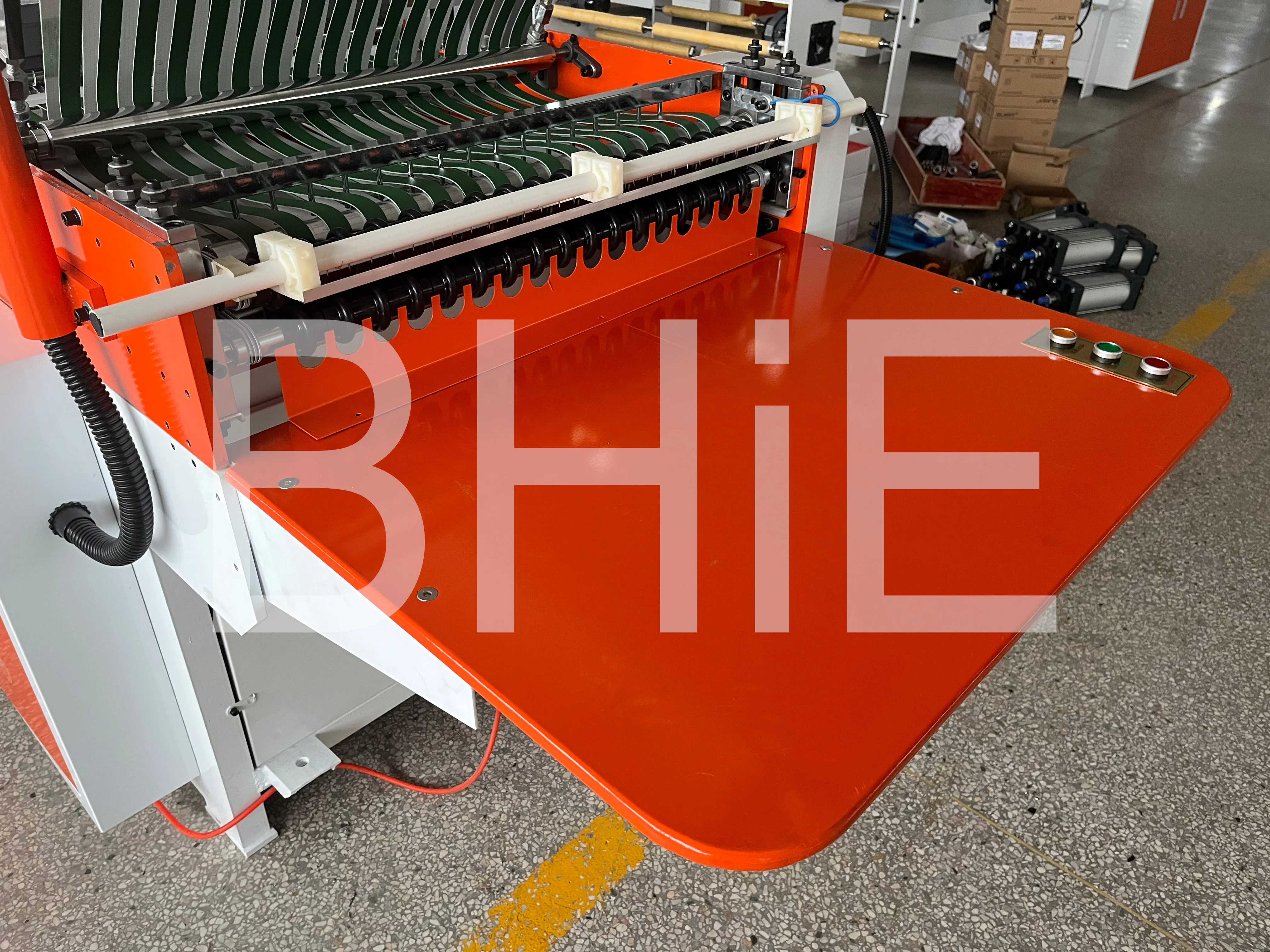

Standard bag collection table

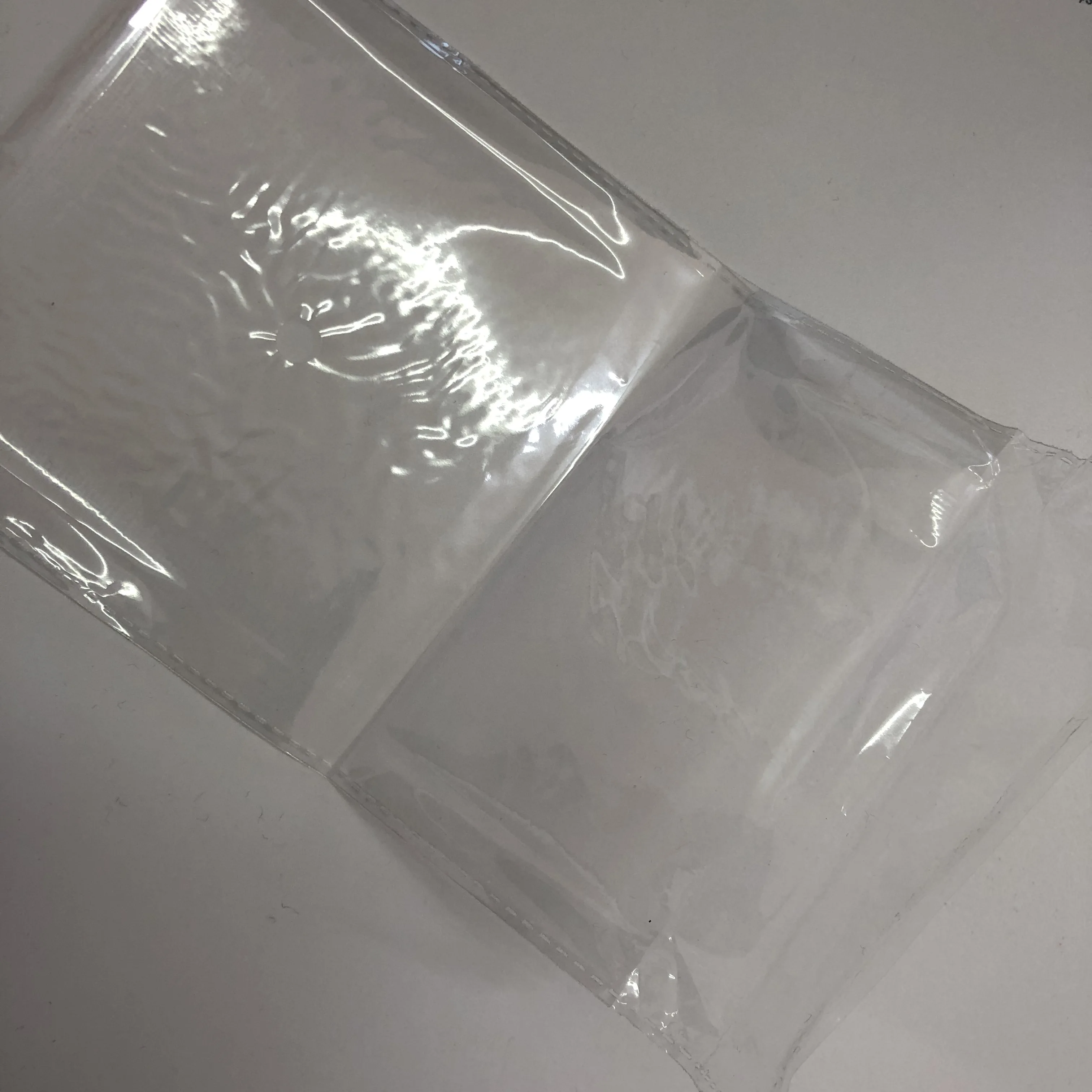

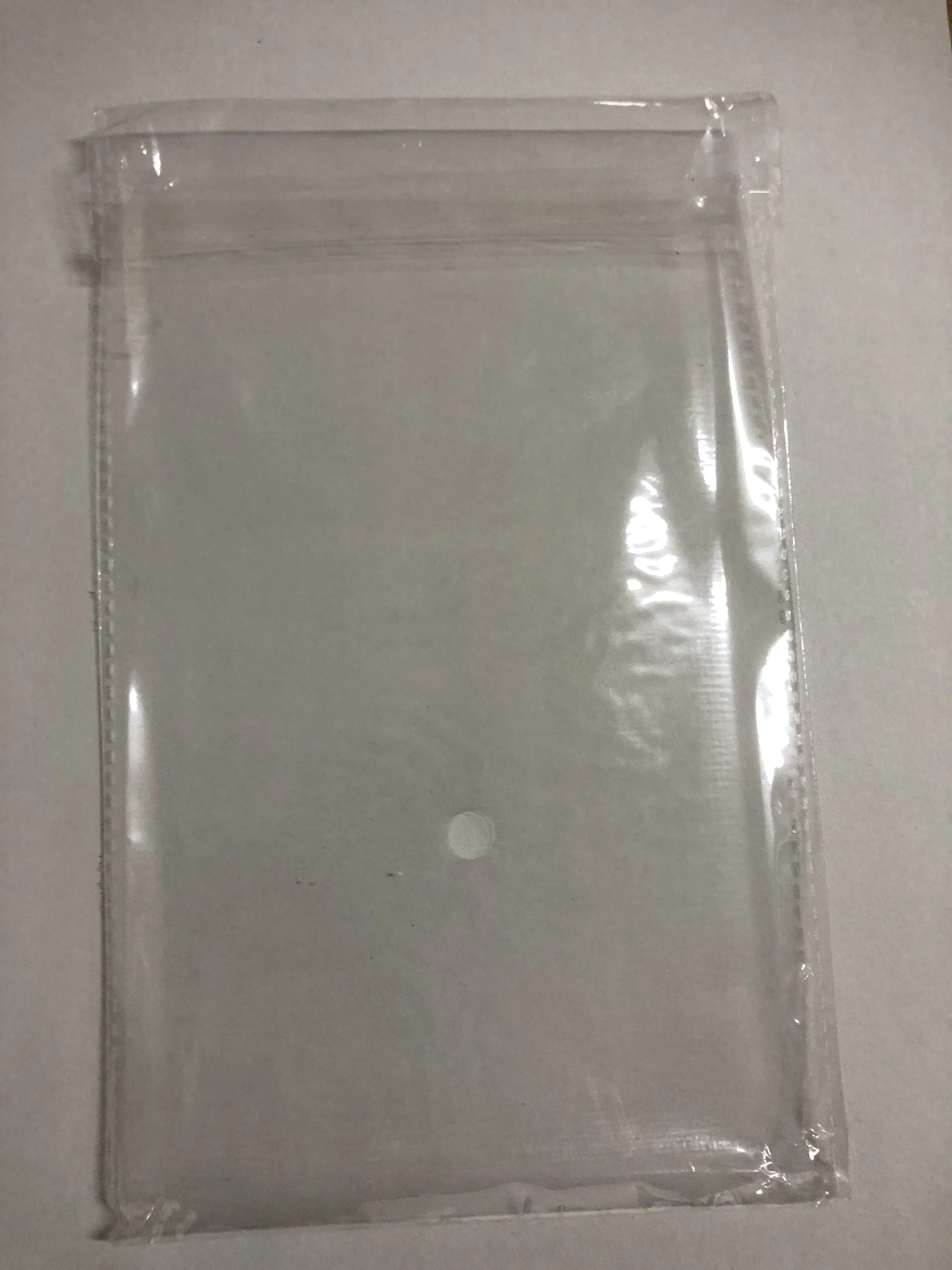

Production Bag Samples
