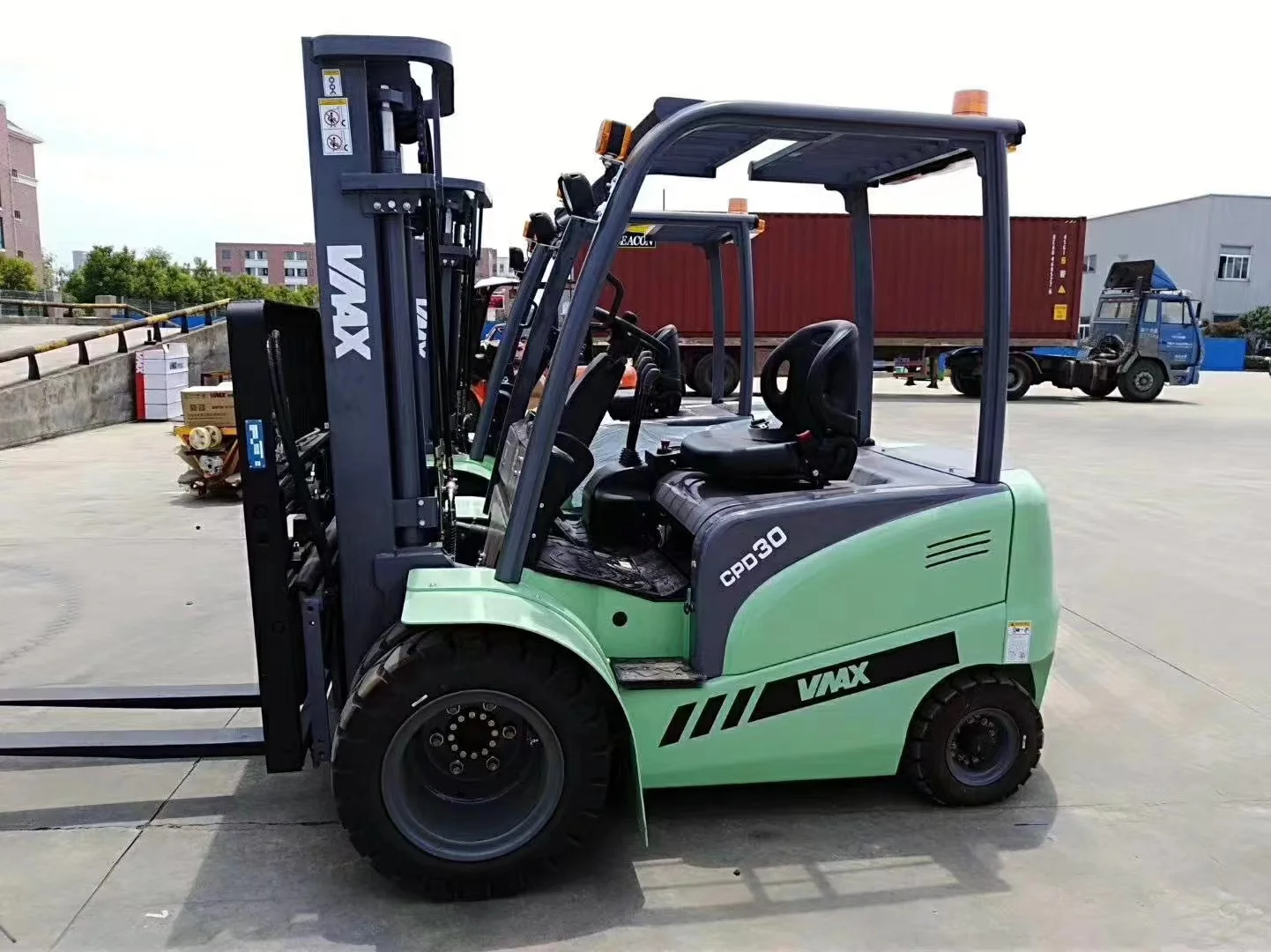

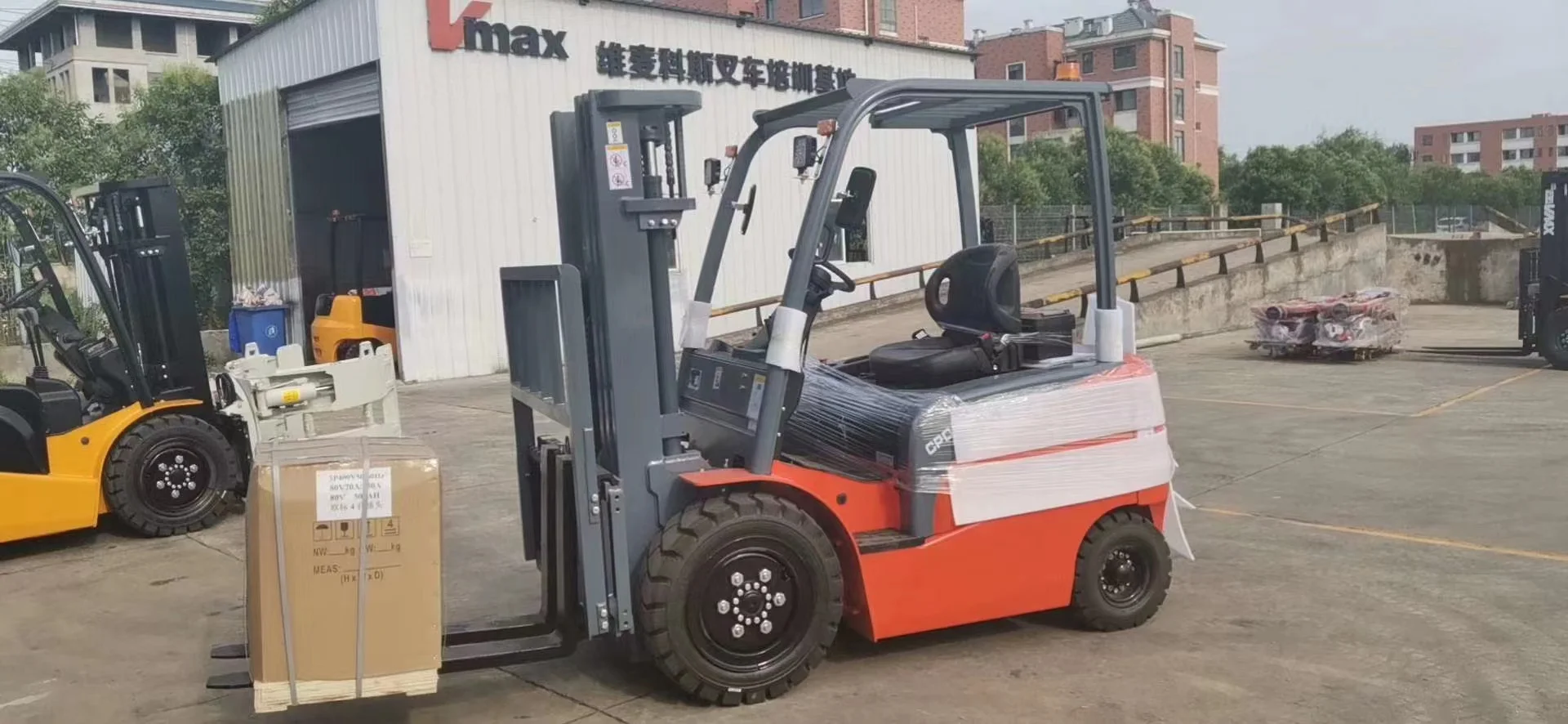

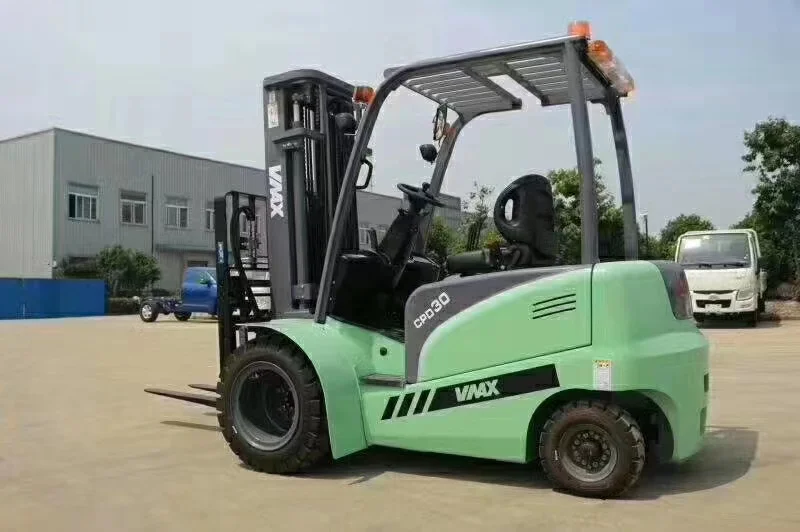

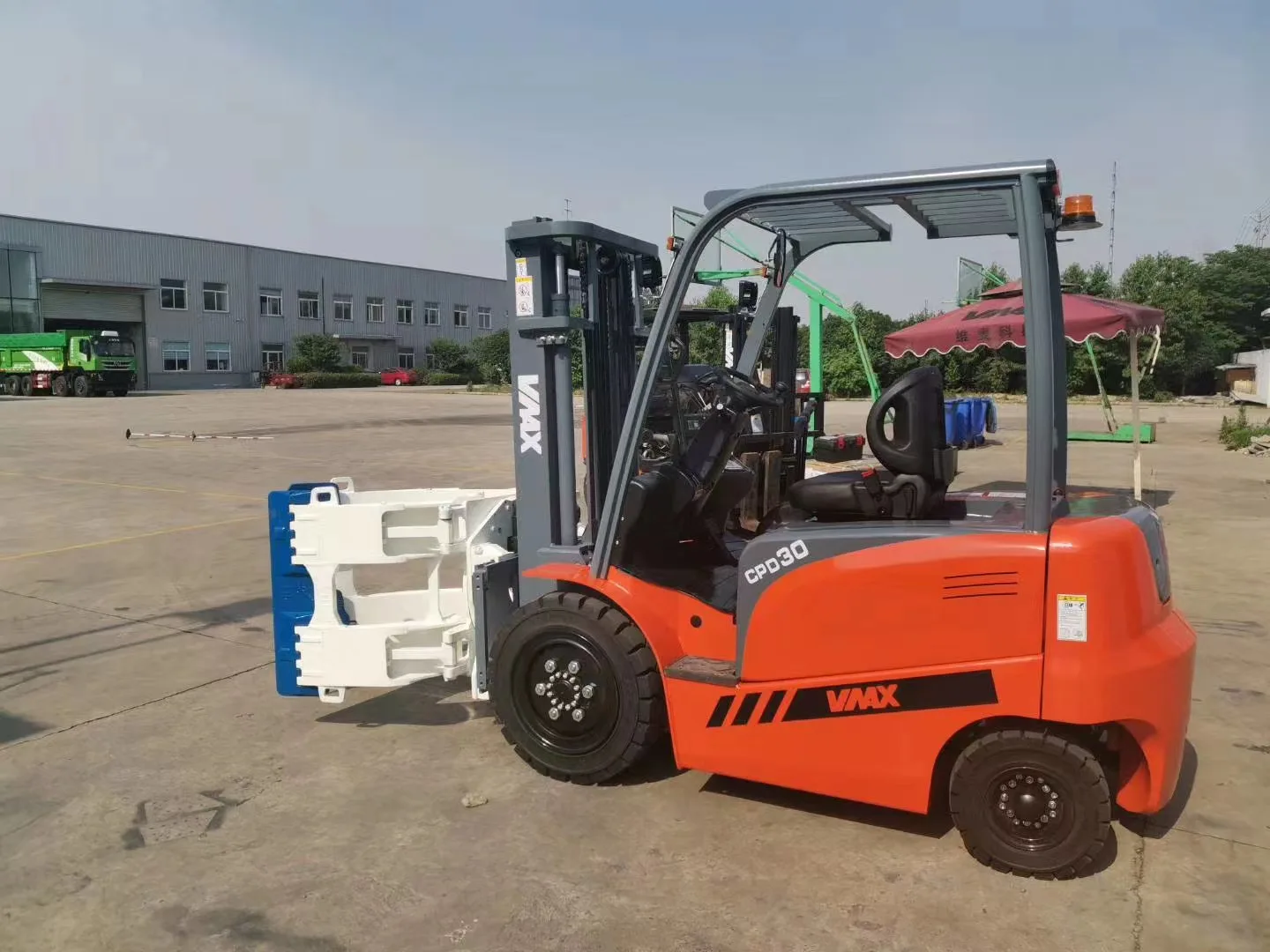

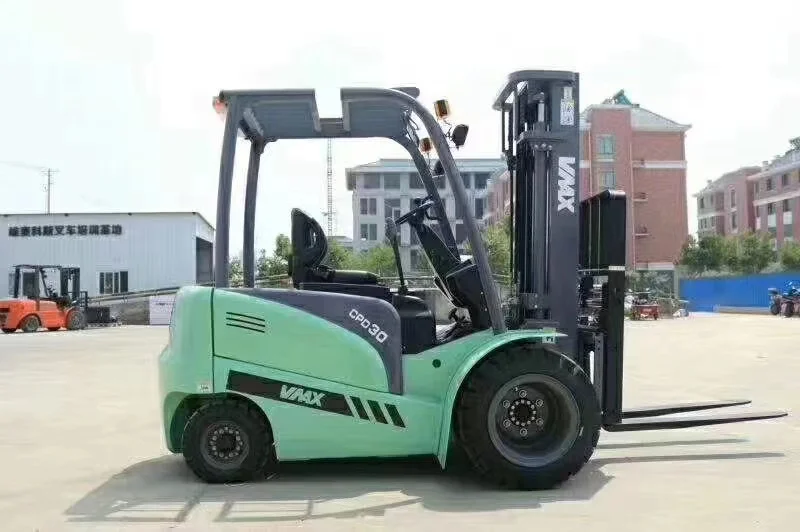

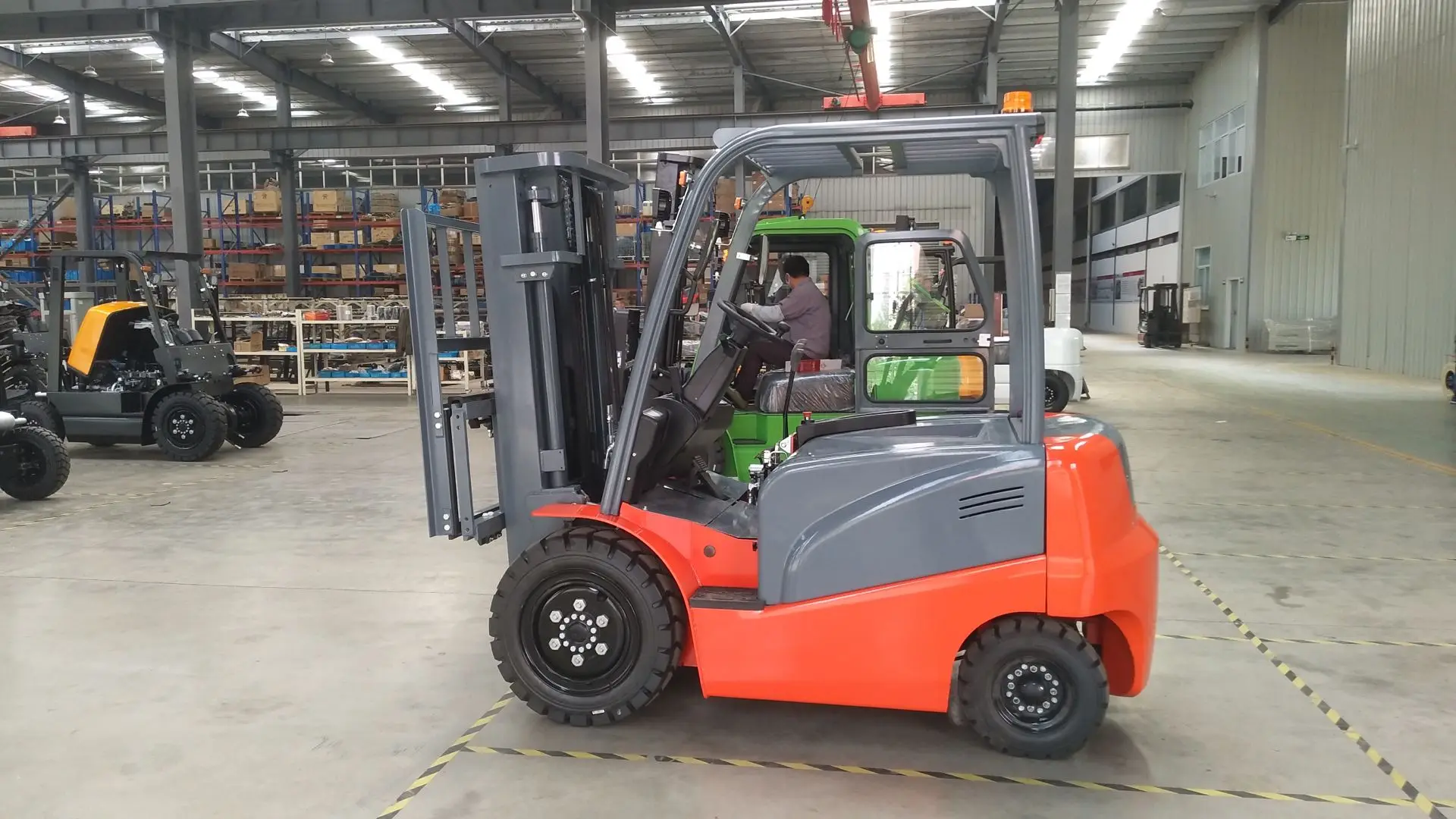

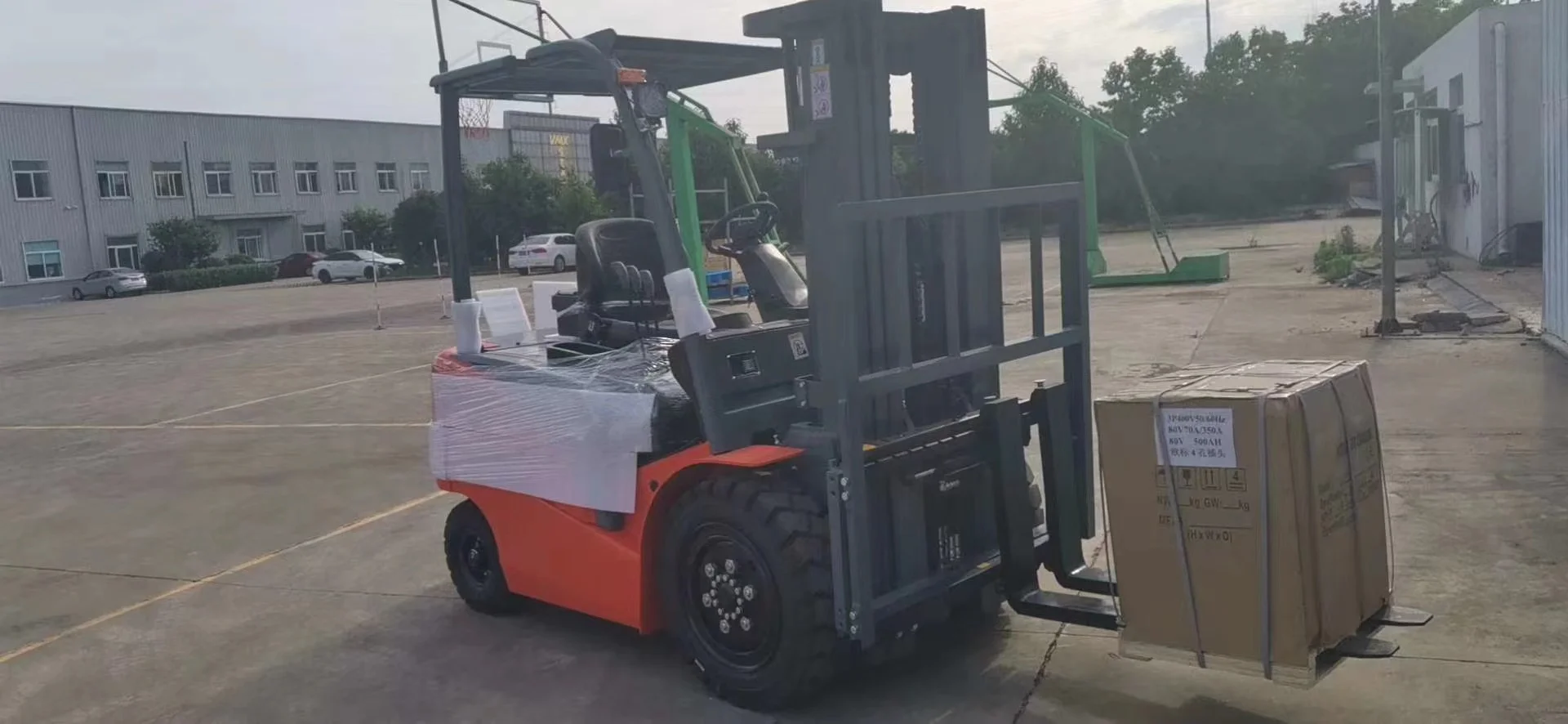

1.5ton 2ton 2.5ton 3ton 3.5ton 4ton 5ton Full Electric Forklift Truck Chariot Elevator Electrique
- Category: >>>
- Supplier: Vmax International Group(shanghai)co. Ltd.
Share on (1600516674174):
Product Overview
Description
Product Description
| Item | Specification | Model | Unit | FB/CPD20 | FB/CPD25 | FB/CPD30 | FB/CPD35 | |
| 1 | Controller Type | ZAPI AC | ||||||
| 2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| 3 | Load centre | mm | 500 | 500 | ||||
| 4 | Lift height | mm | 3000 | 3000 | ||||
| 5 | Free lifting height | mm | 160 | 165 | 170 | |||
| 6 | Fork size | TxWxL | mm | 40x122x1070 | 45x125x1070 | |||
| 7 | Tilting angle | Deg | 6/12 | 6/12 | ||||
| 8 | Dimensions | Overall Dimension | Length (to forkface) | mm | 2375 | 2400 | 2615 | 2670 |
| 9 | Width | mm | 1150 | 1230 | ||||
| 10 | Height when mast lowered | mm | 2010 | 2075 | 2150 | |||
| 11 | Height when mast extended | mm | 3990 | 4100 | 4160 | |||
| 12 | Height to safeguard | mm | 2110 | 2150 | ||||
| 13 | Turning radius | Min. | mm | 2080 | 2100 | 2280 | 2335 | |
| 14 | Front overhang | mm | 460 | 485 | ||||
| 15 | Tread | F/R | mm | 960/950 | 1000/980 | |||
| 16 | Ground clearance | Min. | mm | 130 | 130 | |||
| 17 | Wheelbase | mm | 1500 | 1680 | ||||
| 18 | Fork spread | Min./Max. | mm | 250/1040 | 250/1100 | |||
| 19 | Working aisle width | 1000x1200 crossways | mm | 3810 | 3830 | 4035 | 4090 | |
| 20 | with pallet(Ast)* | 800x1200 lengthways | mm | 3940 | 3960 | 4165 | 4220 | |
| 21 | Performance | Speed | Travel(Laden) | km/h | 12 | 12 | ||
| 22 | Travel(Unladen) | km/h | 12.5 | 13 | ||||
| 23 | Lifting(Laden) | mm/s | 290 | 250 | ||||
| 24 | Lifting(Unladen) | mm/s | 440 | 400 | ||||
| 25 | Gradeability | Laden | % | 15 | 15 | |||
| 26 | Unladed | % | 15 | 15 | ||||
| 27 | Self weight | Include battery box | kg | 4130 | 4300 | 5060 | 5380 | |
| 28 | Tyre | Front | 7.00-12-12PR | 289-15-12PR | ||||
| 29 | Rear | 187-8-14PR | 189-8-14PR | |||||
| 30 | Driven | Motor | Driven motor | kw | 11 | 12 | ||
| 31 | Pump motor | kw | 11 | 12 | ||||
| 32 | Battery | Standard(Option) | V/Ah | 48/600 | 80/500 | |||
| 33 | Operating pressure for attachment | Mpa | 17.5 | 17.5 | ||||
Company Information
Our Services
FAQ:
Any questions, welcome to contact us, we ill be always help you and support you.
1.May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2.How long the product warranty period?
The product warranty period is 18 months or 2000 hours.
3.How long have you engaged in this industry?
We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
