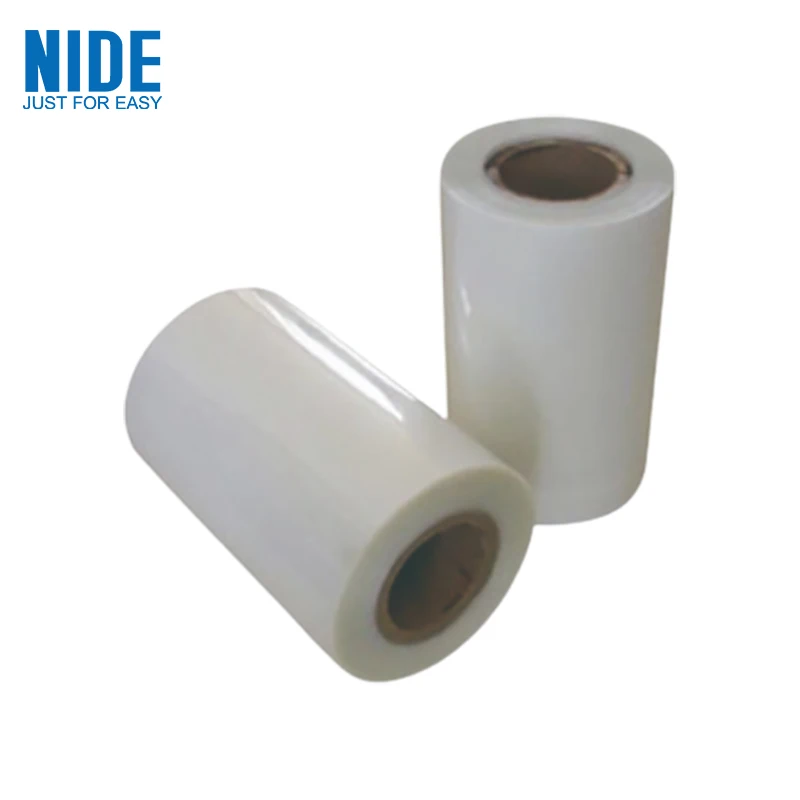

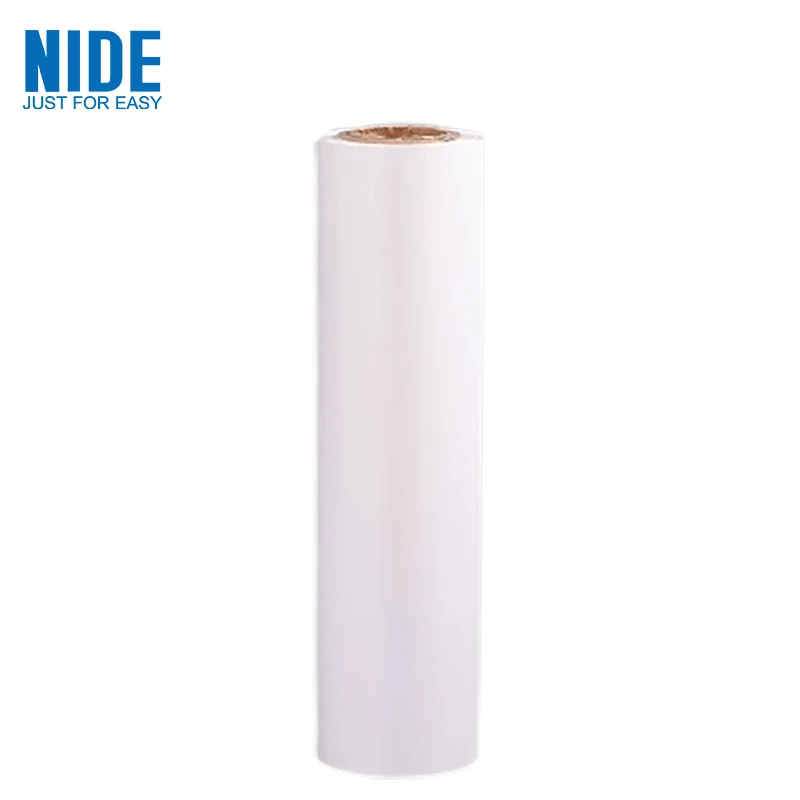

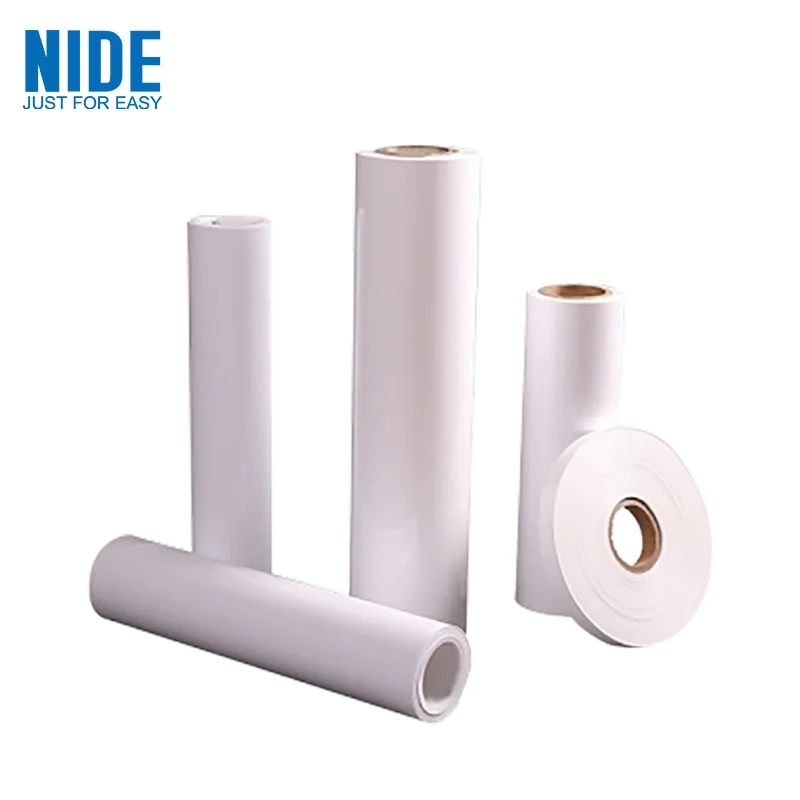

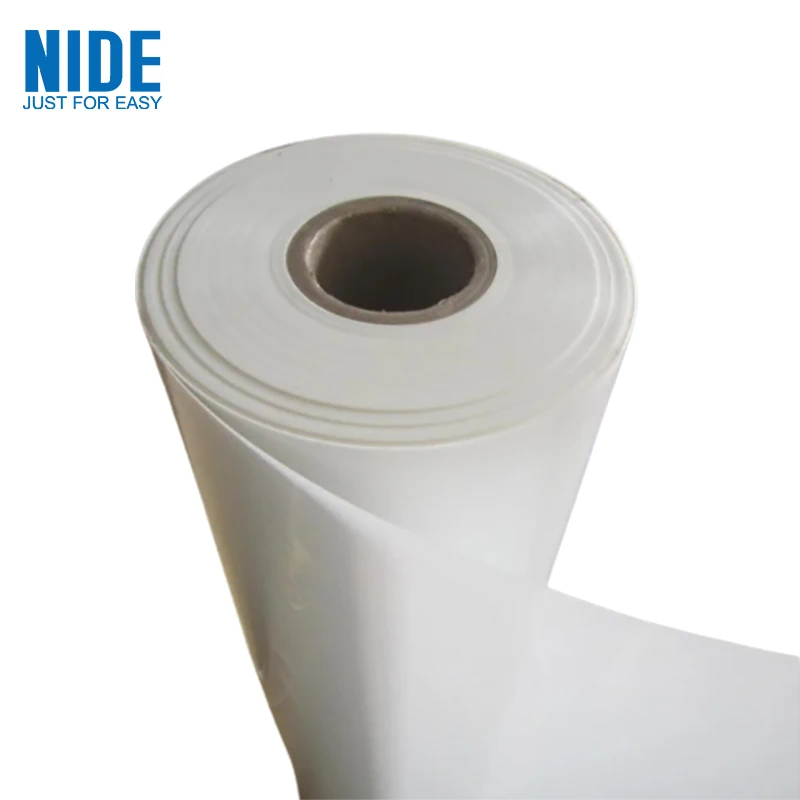

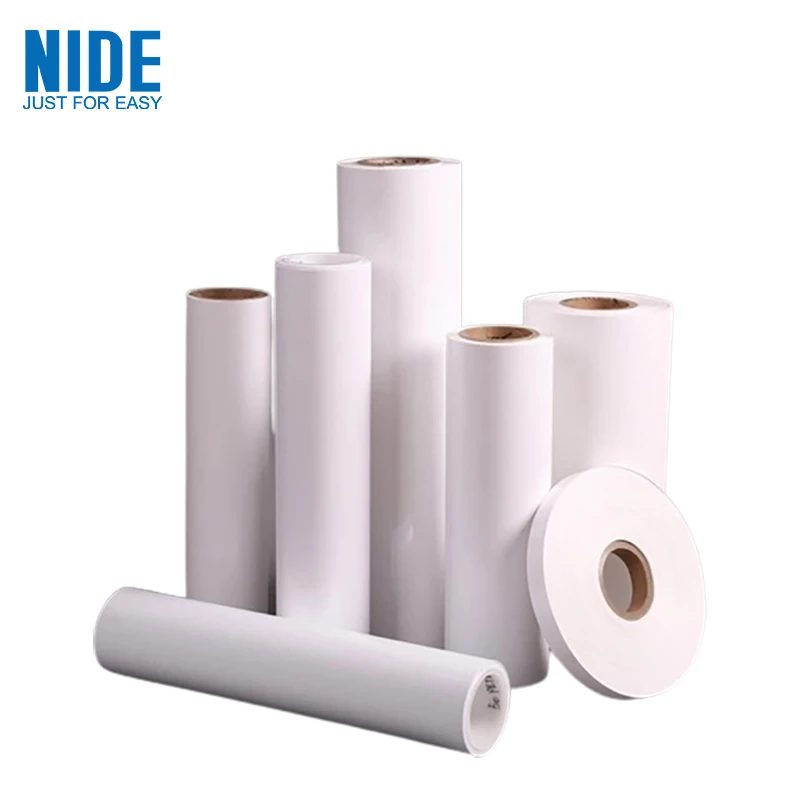

Manufacturer H Class 6640 Nm Aramid Paper For Motor Winding And Transformer
Product Description:
H-grade NM Aramid Paper is a two-layer composite foil, of which the outer layers are NOMEX® insulating paper from DuPont, and the inner layer is an electric shock film, which has excellent dielectric properties, flame retardant properties, mechanical properties and high heat resistance. , suitable for slot insulation, turn-to-turn insulation and gasket insulation of H-class motors
Application of 66520 insulating paper:
It has good electromechanical properties, cut-through resistance and overload resistance, and has good compatibility with common insulating paints, suitable for F-class motor slot and phase-to-phase insulation
advantage:
Low moisture absorption rate
Good thermal conductivity
Good infiltration effect of insulating paint
Long-term withstand voltage at high temperature
H-grade NM Aramid Paper film specification:
| Items | Units | Values |
|
| |||||||
1 | Normal Thickness | mm | 0.18 | 0.20 | 0.25 | 0.30 | 0.35 |
| ||||
2 | Quantitative | g/m2 | 210±30 | 240±30 | 300±40 | 350±50 | 430±50 |
| ||||
3 | Tensile Strength | Portrait | No Bending | N/10mm | ≥160 | ≥180 | ≥220 | ≥270 | ≥320 |
| ||
After Bending | ≥110 | ≥130 | ≥180 | ≥200 | ≥250 |
| ||||||
Transverse | No Bending | ≥110 | ≥130 | ≥180 | ≥200 | ≥250 |
| |||||
After Bending | ≥90 | ≥110 | ≥150 | ≥170 | ≥200 |
| ||||||
4 | Elongation |
No Bonding at Portrait | % | ≥10 | ≥12 | ≥12 | ≥12 | ≥12 |
| |||
NoBonding at Transverse | ≥15 | ≥18 | ≥18 | ≥18 | ≥18 |
| ||||||
5 | Breakdown Voltage | No Bending | KV | ≥10 | ≥11 | ≥13 | ≥15 | ≥20 |
| |||
After Bending | ≥8 | ≥9 | ≥12 | ≥13 | ≥16 |
| ||||||
6 | Normal Bond Strength | / | No Delamination |
| ||||||||
7 | (180±2)0C10 minutes Heat State Bond Strength (180±2)0C10 Min, | / | No Delamination,No Blister, No adhesive flow |
|
| |||||||
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
Packaging
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
