Ce Approved Mini Electric Portable Mobile Portable Vertical Shaft Beton Cement Planetary Concrete Mixer

Product Overview

Description

                                            MPSeries Planetary Concrete Mixer

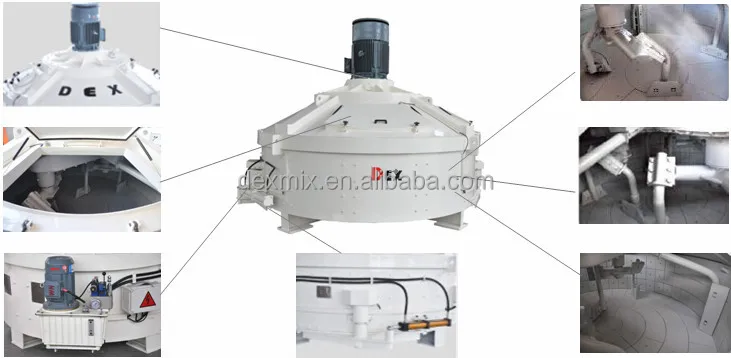

Mixer Details





Features

         1. Germany Technology

       2. CE Certification, passed ISO9001

       3. Steady driving; Excellent performance; Compact structure

       4. Easy maintenance and cleaning

       5. Mixing faster and more homogenous

       6. No leakage

       7. Long operating life

       8. We can offer customerized mixer for special requirements or applications



Options:

     · Hydraulic coupling (Italy)

     · Moisture Probe (Germany)

     · High Pressure Washout System (Italy)





Technical Parameters

Item	MP50	MP100	MP150	MP250	MP330	MP500	MP750	MP1000	MP1250	MP1500	MP2000	MP2500	MP3000
Filling Volume, L	75	150	225	375	500	750	1125	1500	1875	2250	3000	3750	4500
Feeding Capacity, Kg	120	240	360	600	790	1200	1800	2400	3000	3600	4800	6000	7200
Compacted Concrete, L	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000
Mixing Power, Kw	4	5.5	7.5	11	15	18.5	30	37	45	55	75	90	110
Mixing Star*Mixing Blades	1*2	1*2	1*2	1*2	1*2	1*2	1*3	2*2	2*2	2*2	3*2	3*3	3*3
Side Scraper/Discharge Scraper	1/-	1/-	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharging Power, Kw	Pneumatic Discharging				2.2	2.2	2.2	3	3	3	4	4	4
Weight, Kg	500	850	1300	1500	2200	2500	3500	5500	6000	6500	8500	10500	11000

Remark: Technical data may change due to technical progress. Subject to modification without notice.





Motion Track

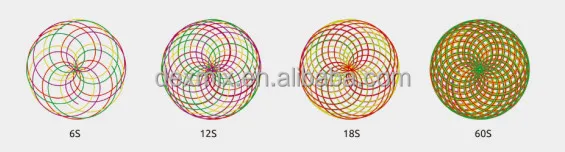

This diagrams show the perfect mixing actiong of the DEX planetary mixer from 6 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars' action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.

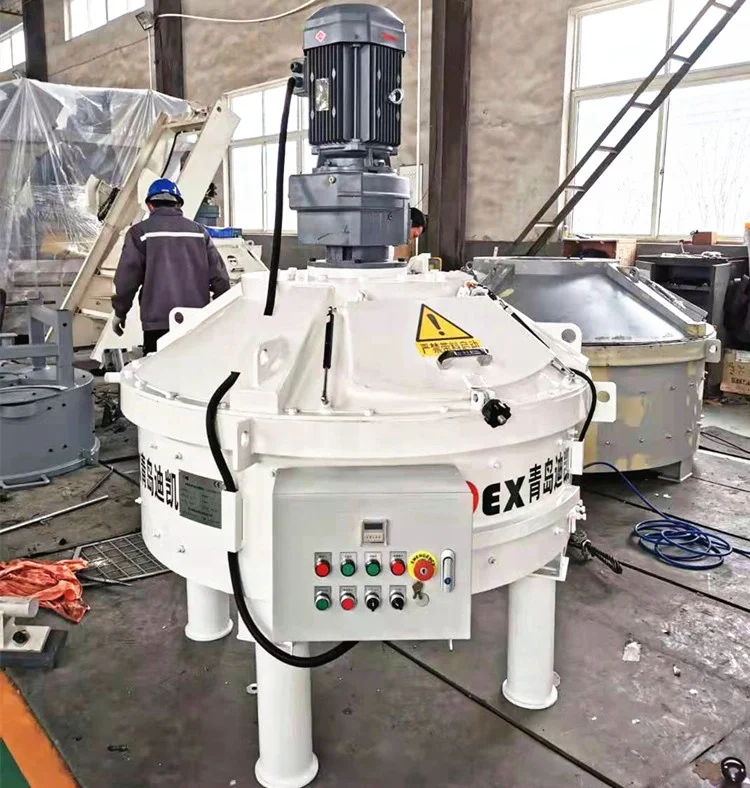

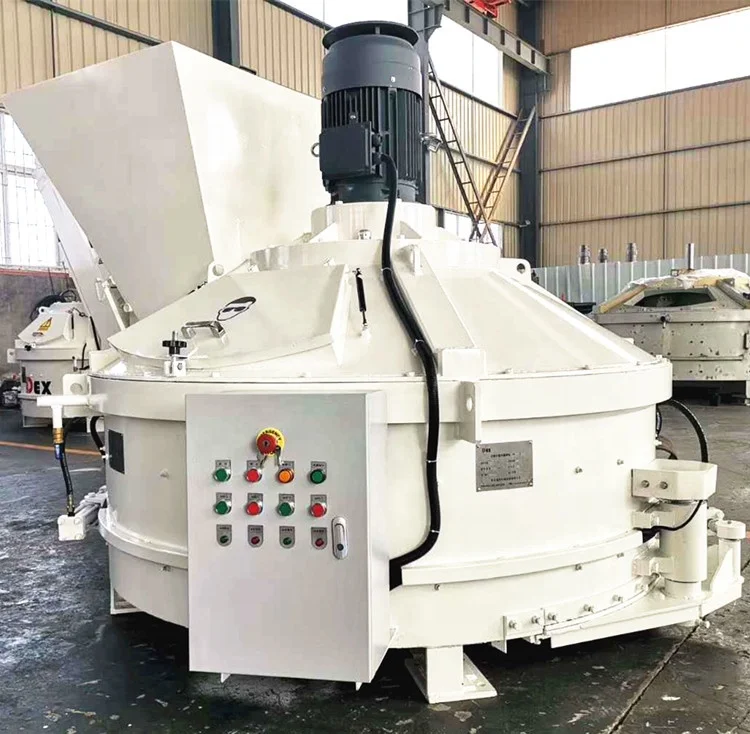

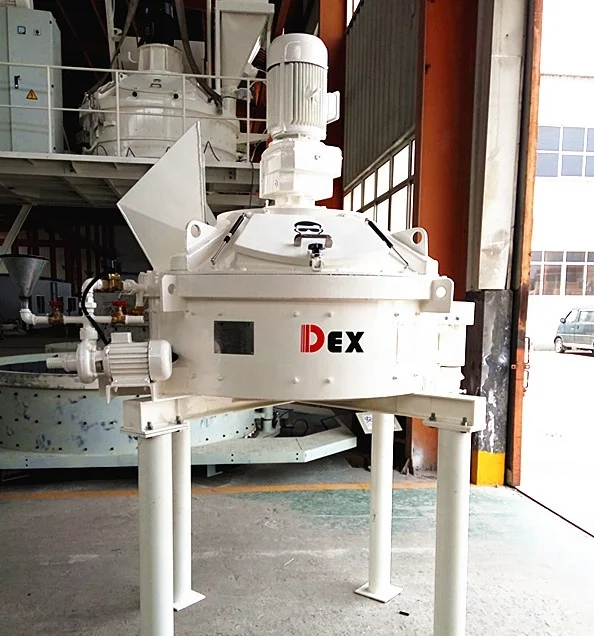

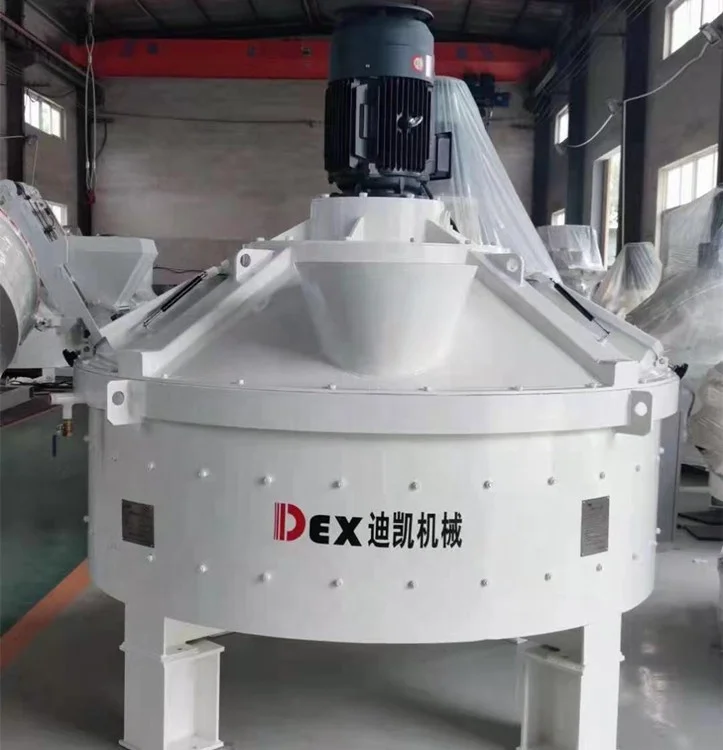

Product Photos

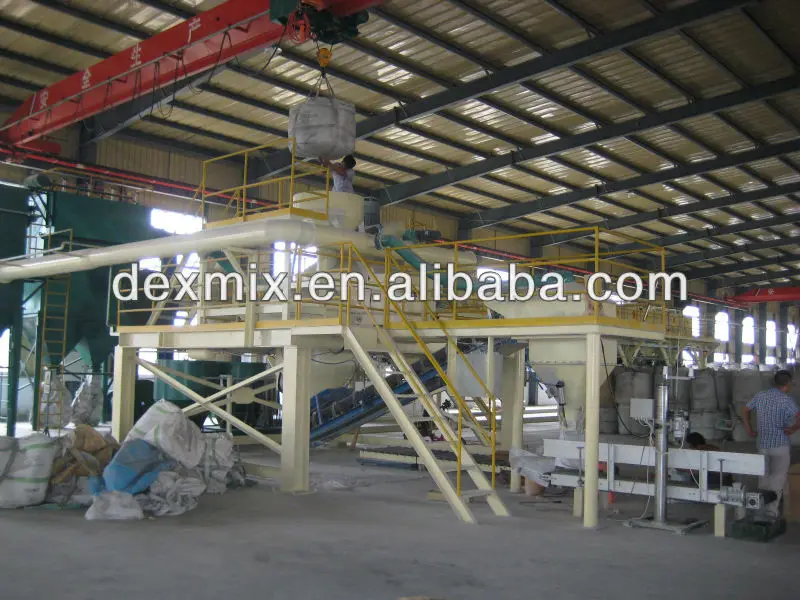

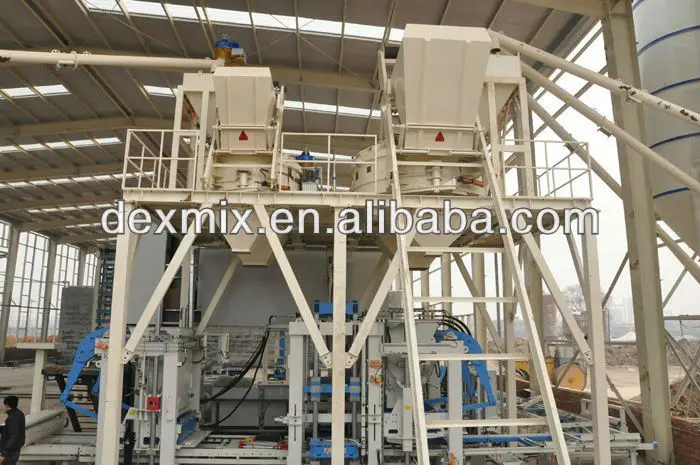

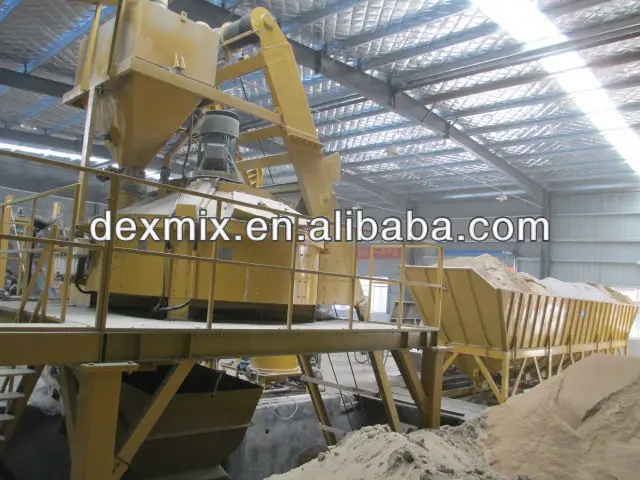

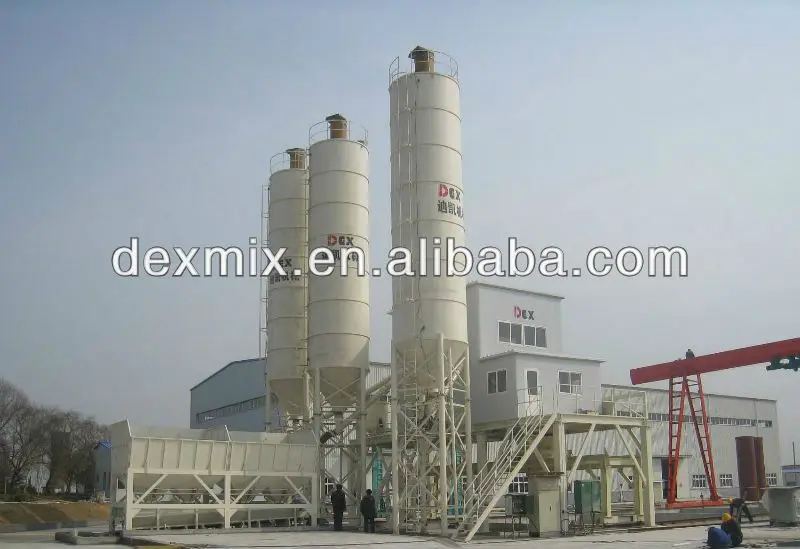

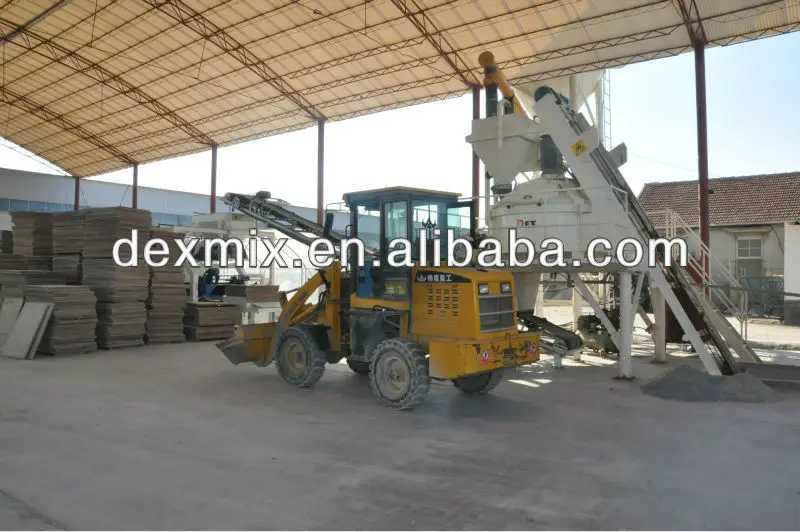

Working Site of Planetary Concrete Mixer











The planetary concrete mixer are widely used to produce precast concrete, commercial concrete and high performance concrete. It is also suitable used in the mixing of materials for the production of block, glass, ceramics, refractory materials, etc.

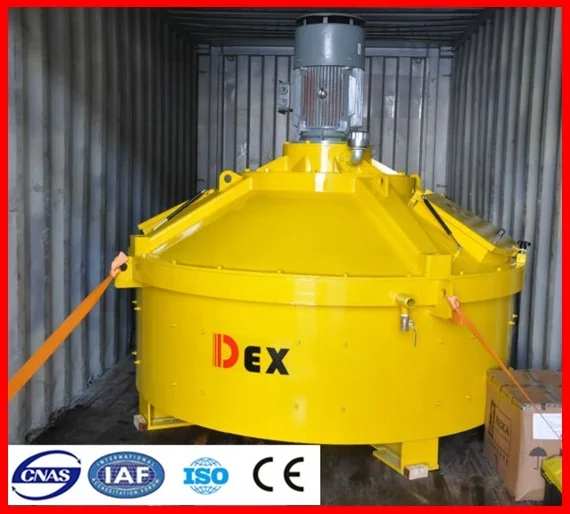

Packing and Shipping







 About Us

Qingdao DEX Machinery Co., Ltd is a professional manufacturer in design and research, manufacturing, sales and service on mixing equipment. We owned many national patents and registered trademarks.



In the manufacture process, we adopt integrated quality control, and have passed ISO9001 international authentication. We adopt world-famous brand for the key electronic elements, pneumatic and hydraulic systems to ensure high quality and reliable of the mixing equipment. Now, DEX has developed a complete range of mixing equipments with independent intellectual property to meet different customers' requirement.



Our equipments are widely used in various fields of China and also exported to more than 30 countries in Southeast Asia, Europe, South America, Africa and Middle East.
