EDI water treatment ultra pure water system electrodeionization system
- Category: >>>
- Supplier: SiHYFLUX Co. Ltd.
Share on (1600516719969):
Product Overview
Description
Product Details
EDI is a kind of pure water manufacturing apparatus that applies to ion exchange technology, ion exchange membrane technology and
ion eleyric migration technology. It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage
electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to
accellerate ions moving, so as to achieve the purpose of water purification.
EDI has the features of easy operation and excellent environmental. It is a green revolution n high pure water producing.
ion eleyric migration technology. It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage
electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to
accellerate ions moving, so as to achieve the purpose of water purification.
EDI has the features of easy operation and excellent environmental. It is a green revolution n high pure water producing.

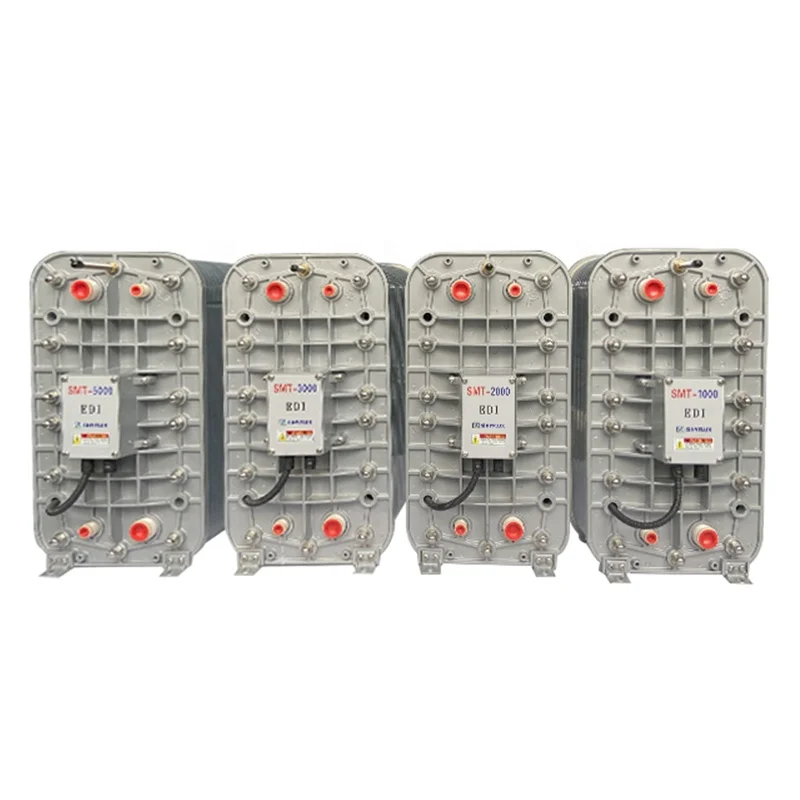

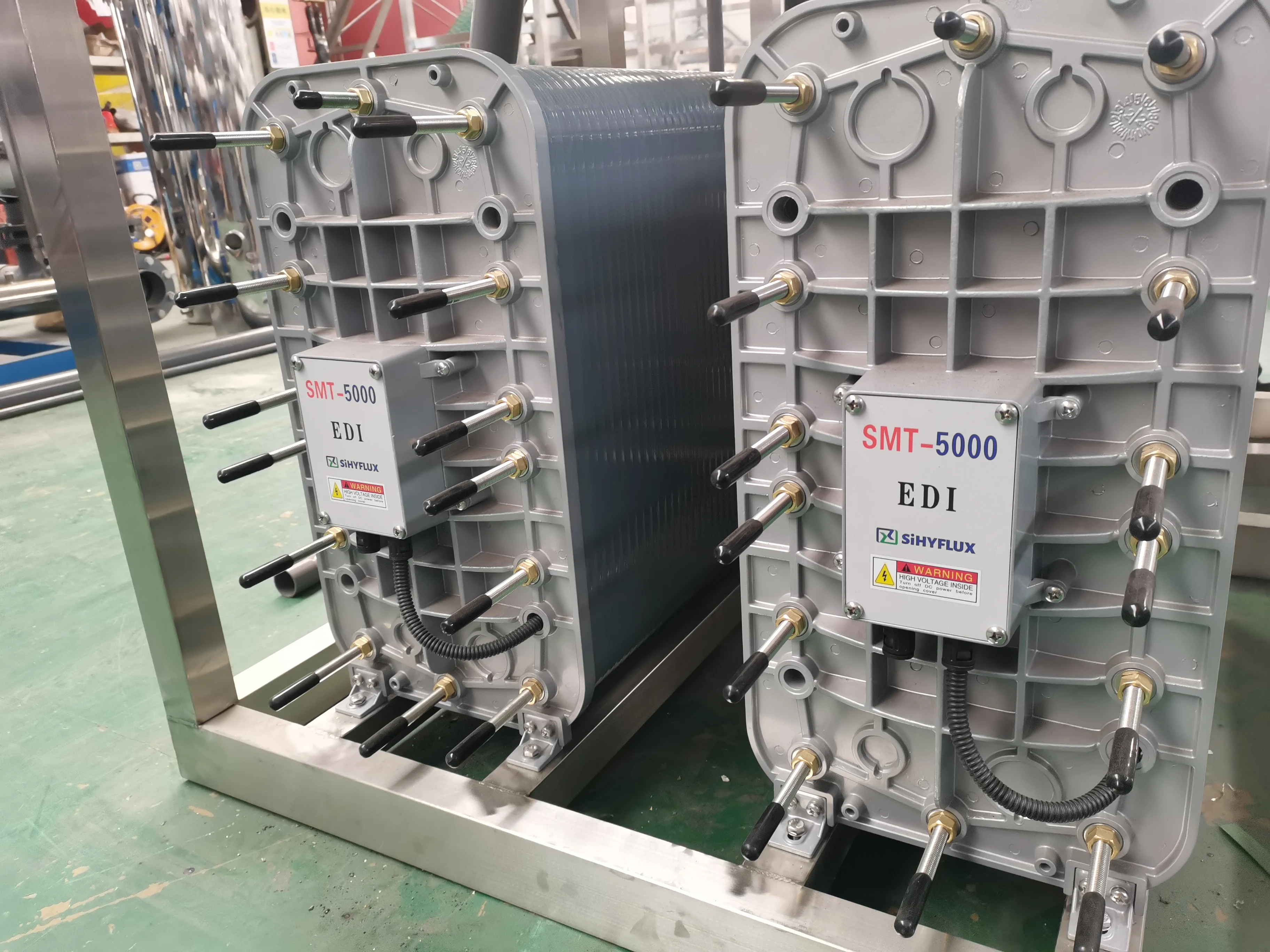

Type | SMT-500 | SMT-1000 | SMT-2000 | SMT-3000 | SMT-5000 |
Size (L*W*H) | 300*301*601 mm | 307*301*601 mm | 504*301*601 mm | 701*301*601 mm | 1000*301*601 mm |
Flux rate of purified water (T/H) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 |
Max flux rate of purified water (T/H) | 0.67 | 1.65 | 2.8 | 4.2 | 6.8 |
Recovery rate (%) | 90-96 | 90-96 | 90-96 | 90-96 | 90-96 |
Resistance of purified water (MΩ.cm) | >=15 | >=15 | >=15 | >=15 | >=15 |
Voltage (DCV) | 0-55 | 0-135 | 0-240 | 0-320 | 0-400 |
Electricity (DCA) | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
Intake pressure (mpa) | 0.1-0.3 | 0.1-0.3 | 0.15-0.4 | 0.15-0.4 | 0.22-0.4 |
Max pressure (mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Pipe size of purified water | DN32 | DN32 | DN32 | DN32 | DN23 |
Pipe size of purified water concentrated water | DN20 | DN20 | DN20 | DN20 | DN20 |
Features
（1）High water quality (resistanceup to 18 M ω.cm);
（2）Operation is simple and safe;
（3）Will not stop due to regeneration;
（4）No acid and alkali chemical regeneration
（5）Low operating cost;
（6）Covers a small area;
（7）No sewage discharge.
（2）Operation is simple and safe;
（3）Will not stop due to regeneration;
（4）No acid and alkali chemical regeneration
（5）Low operating cost;
（6）Covers a small area;
（7）No sewage discharge.
Successful Projuct
Project in India
Project in Thailand
Project in Guangdong
Our Services & Strength
Directly manufacture factory
Best price advantage
Core technology and large -scale production capacity for manufacturing
Accept OEM and ODM
After Sales Service (technical support, drawing supplied, spare parts support, assist test, 24 hours service)Best price advantage
Core technology and large -scale production capacity for manufacturing
Accept OEM and ODM
FAQ
Q:minimum order quantities? A: 1 module/ 8m2
Q: delivery time?
A: 3-5 workdays after receive payment
Q: on-line order acceptable?
A: yes
Q: delivery time?
A: 3-5 workdays after receive payment
Q: on-line order acceptable?
A: yes
