Product Overview
Description
Products Description

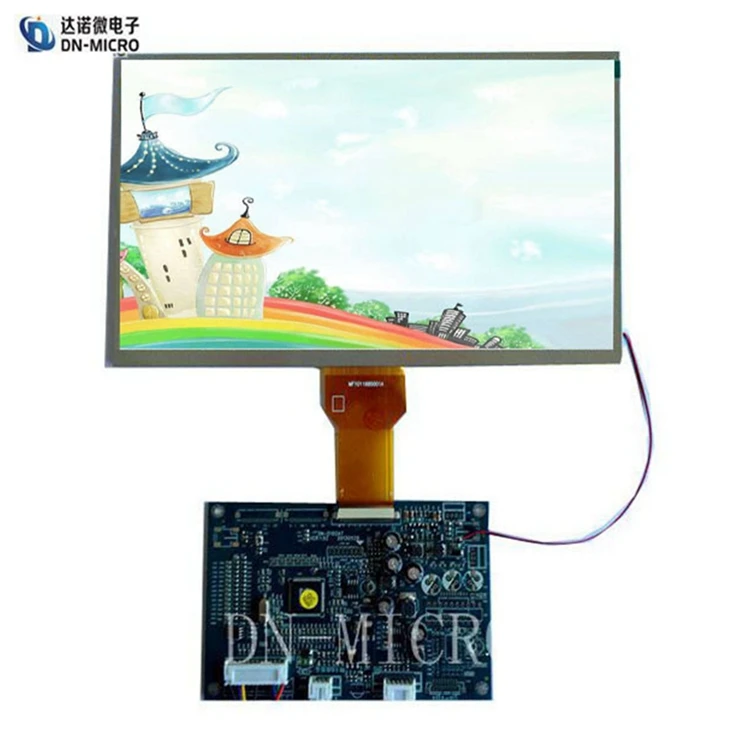

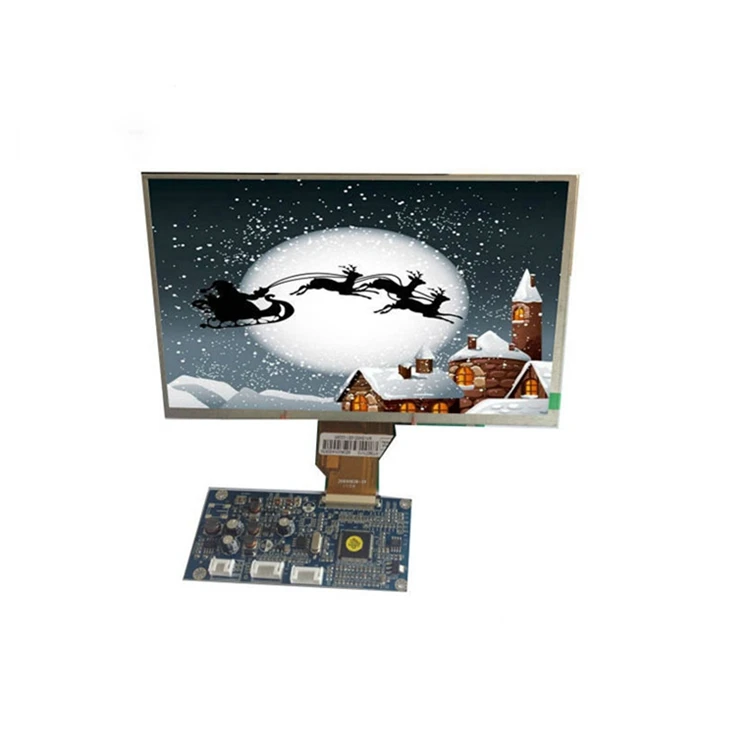

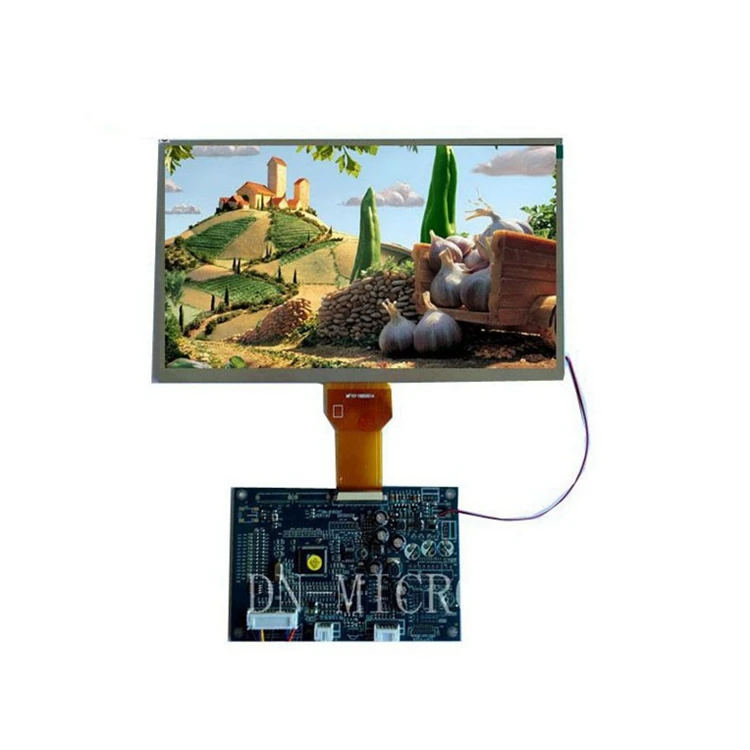

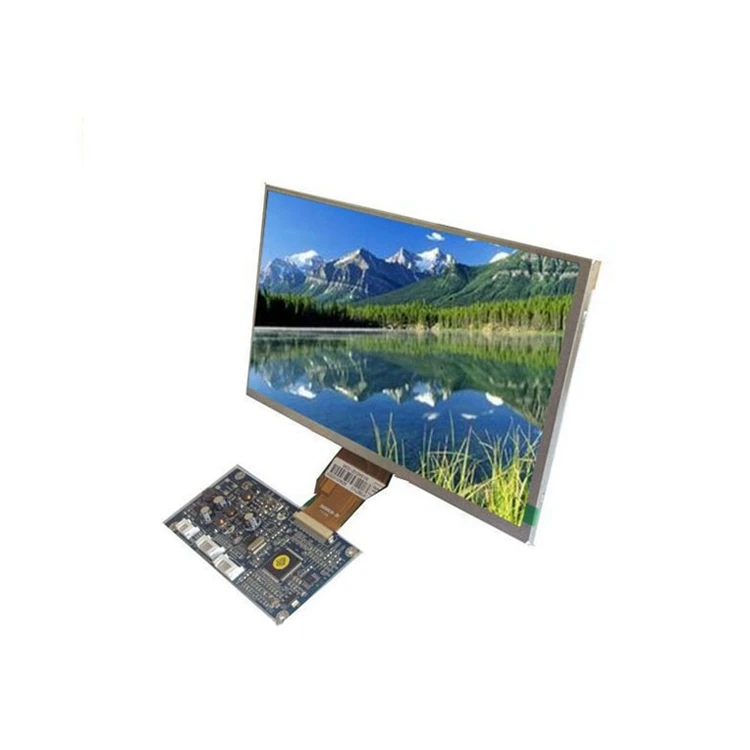

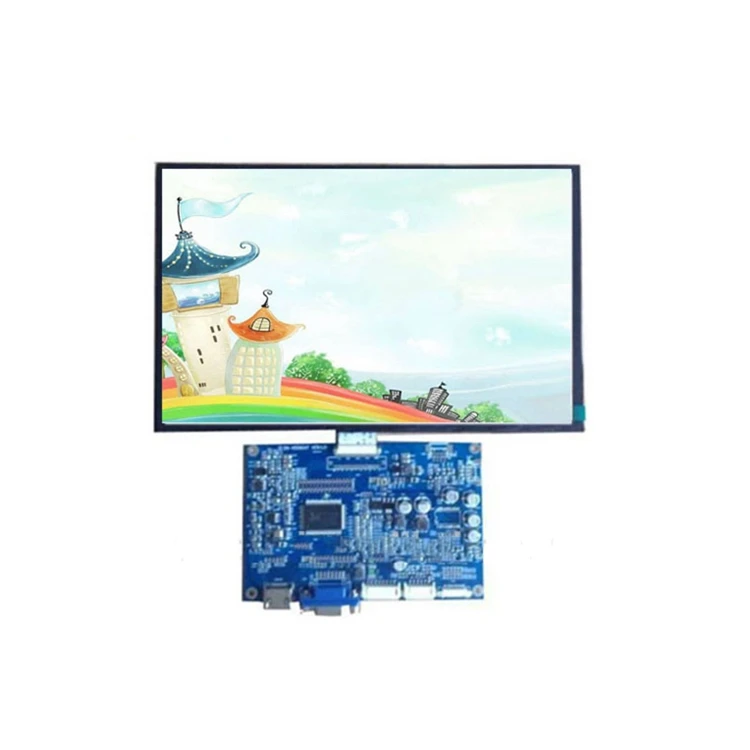

10.1" TFT LCD Module is composed of DN-MICRO AD Board model DN-HD080AT and 10.1 inch Panel model of M101WCBI40 .
This module supports CVBS +VGA +HDMI signal input,Audio output. PAL and NTSC formats can be auto switch. all the function can be controlled by keyboard.
This module can be used for industrail control, video doorphone,instrumentation, medical equipment, security monitor,car display, pos machine or other display electronic equipment.
This module supports CVBS +VGA +HDMI signal input,Audio output. PAL and NTSC formats can be auto switch. all the function can be controlled by keyboard.
This module can be used for industrail control, video doorphone,instrumentation, medical equipment, security monitor,car display, pos machine or other display electronic equipment.
No. | Item | Specification | ||
1 | Model | DN-HD080AT-M101WCBI40 | ||
2 | LCD size | 10.10 inch(Diagonal) | ||
3 | Resolution | 1280*RGB *800 | ||
4 | Display Mode | Normally White | ||
5 | Pixel pitch | 0.1695 (H)×0.1695(V) | ||
6 | Active area | 216.96(H)x 135.6(V) | ||
7 | Module size | 228.86(W)×148.6(H)×2.8(D) | ||
8 | PCB SIZE | 120.00(W)*60.00(H)*9.00(D) | ||
9 | Color arrangement | RGB-stripe | ||
10 | Pixel Arrangement | RGB vertical stripe | ||
11 | Brightness | 330nits | ||
12 | Display colors | 16,194,277 / 262,144 | ||
13 | Module power consumption | 5W(black pattern) | ||
14 | Weight | 250g | ||
15 | Operating temperature | -30°C~80°C | ||
16 | Storage temperature | -40°C~85°C | ||
17 | Environmental relative humidity | 5~90%RH | ||
If you have any questions, please feel free to contact us. Quick reponse to your inquiries within 24 hours. Ann is always here for you！ | ||||
